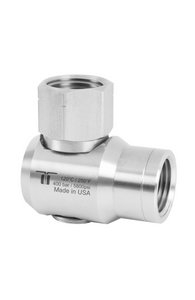

Mosmatic Swivel – 43.471B – 1/4" NPTF x 1/4" NPTF – WDEI – Boxed – 5800 psi – Stainless Steel – 9.3 oz – 25 pcs.

Description

The Mosmatic 43.471B is the boxed version of the 43.471 swivel, packaged in sets of 25 units for OEM, distribution, or maintenance use. With 1/4" NPTF x 1/4" NPTF connections and a working pressure of 5800 psi, this swivel is ideal for compact high-pressure fluid systems.

Applications

• Hose reels for air, water, or chemical use

• Industrial and food-grade washdown systems

• Pressure washer equipment

• Rotating pipe or boom systems

• OEM assemblies requiring 1/4" F x F swivel

Features

• 1/4" NPTF (female) inlet and outlet

• 360° swivel motion with sliding bearing

• Full stainless steel construction

• O-ring NBR sealing (EPDM/FKM optional)

• Maintenance-free design

• Rated for pressures up to 5800 psi

Specs

Product Type: Inline Swivel – WDEI Series (Boxed)
Part Number: 43.471B
Base Model: 43.471
Box Quantity: 25 pcs.
Weight per unit: 9.3 oz

Dimensions

• G1 (F): 1/4" NPTF

• G2 (F): 1/4" NPTF

• NW: 1/4"

• L1: 1.77"

• L2: 1.91"

• L3: 1.14"

• L4: 1.28"

• D1: 1.25"

• SW: 0.87"
