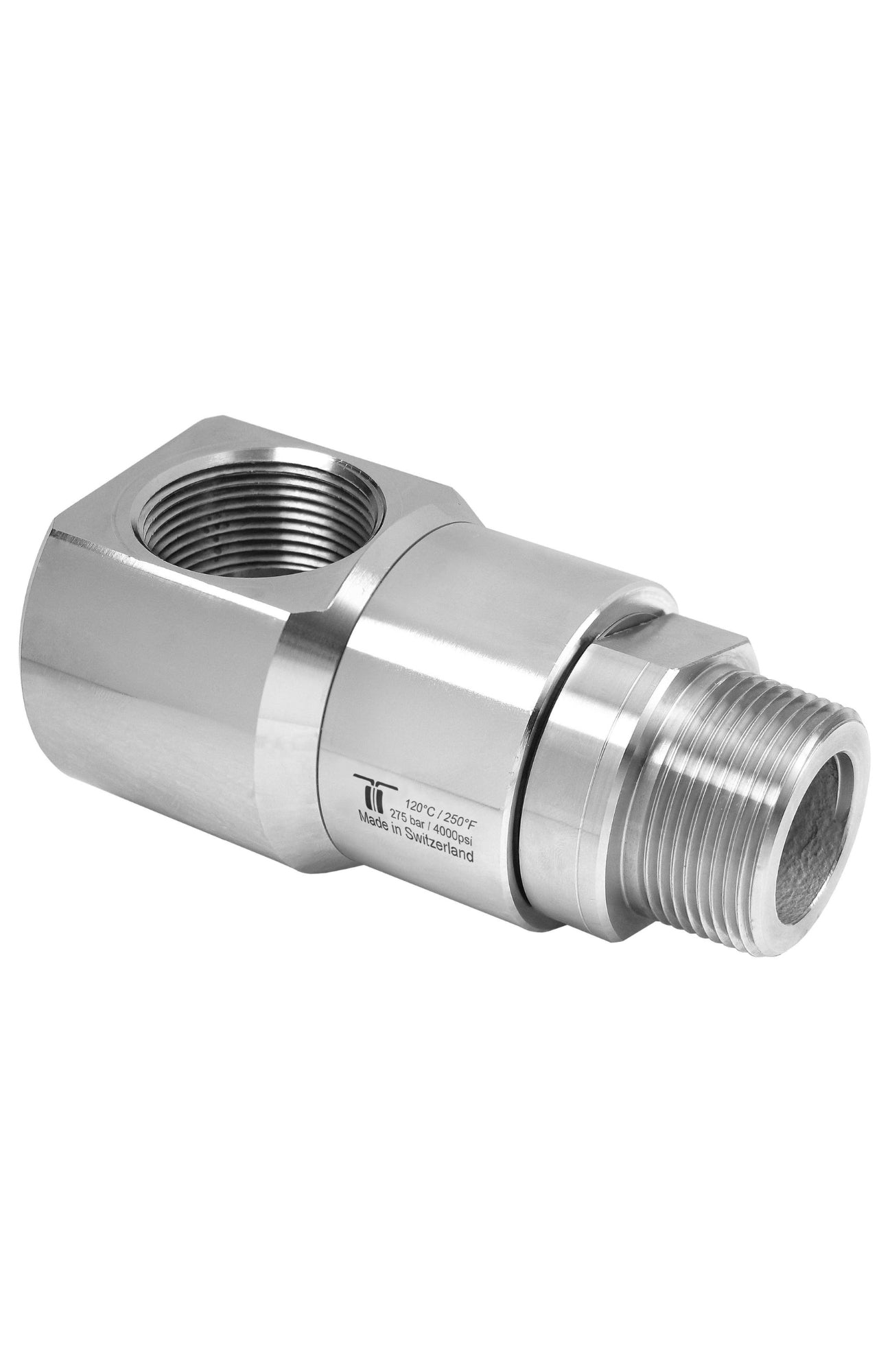

Mosmatic rotary unions DGE swivel 90 degrees G1 1 1/4"NPTF G2 1 1/4"NPTM NW 1 1/4in 34.876

Mosmatic Rotary Unions DGE Swivel 90 Degrees - G1 1 1/4"NPTF G2 1 1/4"NPTM NW 1 1/4in - 34.876

  • $459.92
  • Economize $51.10
Frete calculado no checkout.


High flow, low rpm, automatic car wash systems, high pressure hose reels

  • Maintenance free
  • Sealed stainless steel bearings
  • High flow

G1 (F) 1 1/4”NPTF, G2 (M) 1 1/4”NPTM, NW 1 1/4”, SW1 1.50, L1 5.24, L2 2.62, L3 0.79, L4 1.10, D1 2.76, Weight 74.2oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
