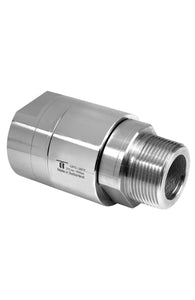

Mosmatic rotary unions DGE swivel G1 1 1/2"NPTF G2 1 1/2"NPTM NW 1 1/2in 34.857

Mosmatic Rotary Unions - DGE Swivel - G1 1 1/2"NPTF G2 1 1/2"NPTM NW 1 1/2in - 34.857

  • Save $59
Frete calculado no checkout.
+ -
 Mais opções de pagamento

High flow, low rpm, automatic car wash systems, high pressure hose reels

  • Maintenance free
  • Sealed stainless steel bearings
  • High flow

G1 (F) 1 1/2”NPTF, G2 (M) 1 1/2”NPTM, NW 1 1/2”, SW1 2.05, SW2 2.76, L1 4.41, L2 2.87, L3 0.79, D1 3.35, Weight 95.3 oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
