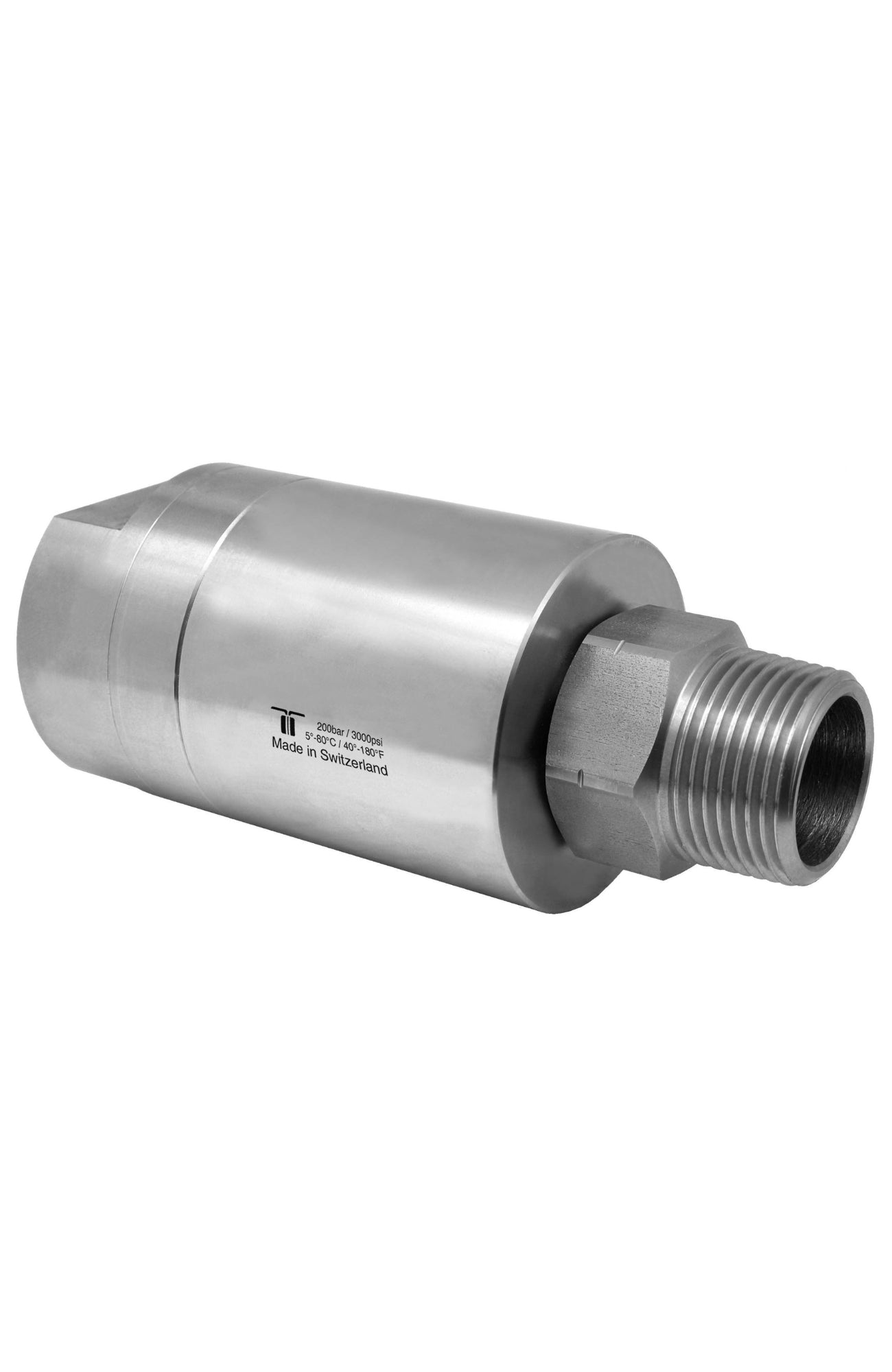

Mosmatic Rotary Unions DGR Swivel - G1 1 1/4"NPTF G2 1 1/4"NPTM NW 1 1/4in - 34.541

Thrust and radial forces, high pressure, industrial or food service applications

• Quadruple bearing system
• High Flow
• Solid stainless steel construction
• Long service life
• Maintenance free
• Corrosion resistant

G1 (F) 1 1/4”NPTF, G2 (M) 1 1/4”NPTM, NW 1 1/4”, SW1 2.00, SW2 1.73, L1 5.57, L2 3.98, L3 0.71, D1 2.36, Max. RPM 130, Weight 62.0 oz

Technical data

• Pressure: 150-3000 psi (1-20MPa)
• Temperature: 40°F - 180°F
• Body: stainless steel
• Inner part: Stainless steel
• Seal: O-ring NBR (optional: EPDM or FKM)
• Bearing: 2x radial ball bearings, 2x thrust ball bearings
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)
