Nilfisk VHC120 Industrial Vacuum Cleaner for Explosive Environments - EXP X50KT FLX PU
- Description

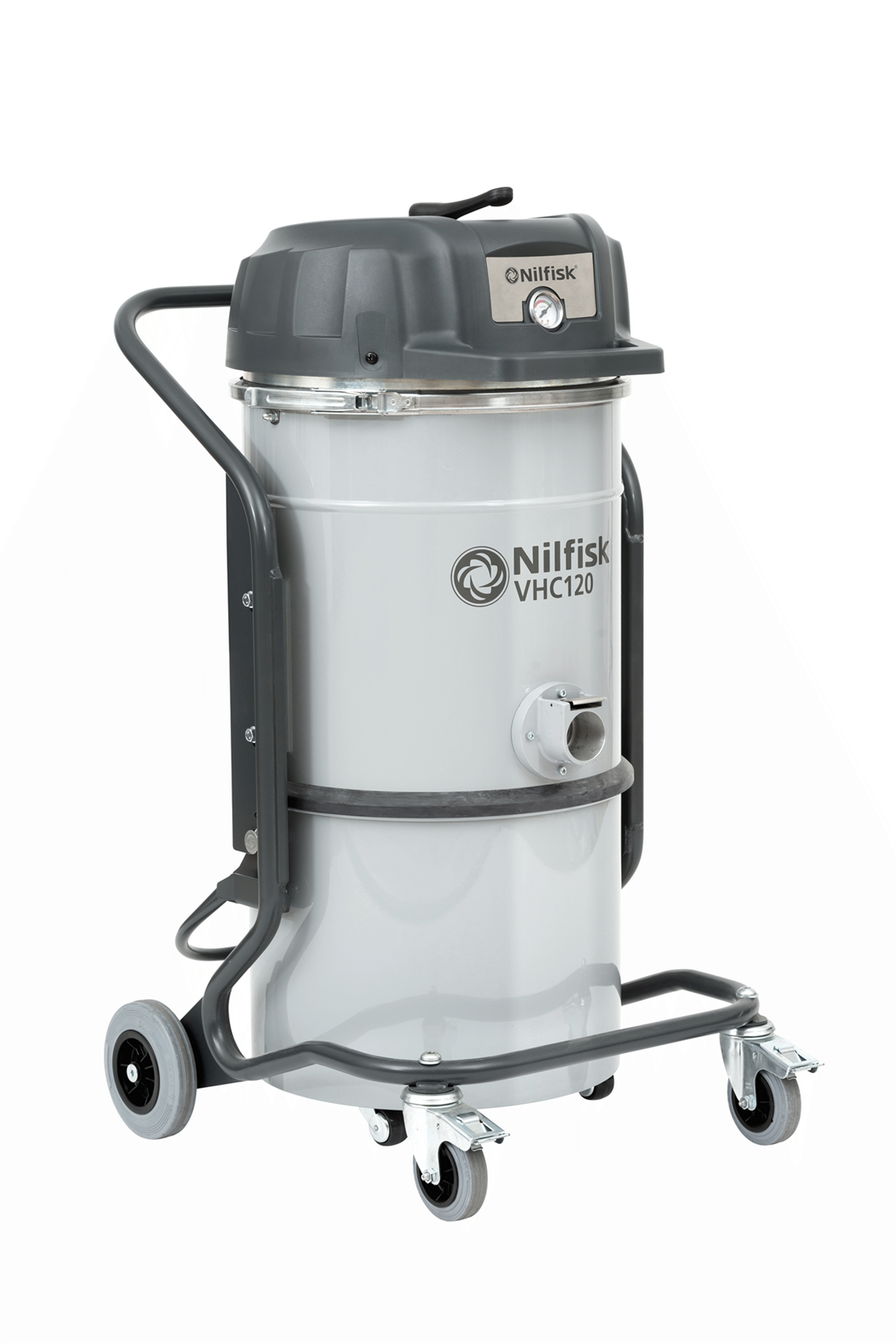

Nilfisk VHC120 Industrial Vacuum
VHC120 is an easy-to-use compressed air industrial vacuum. Conceived to be used where electricity is unavailable or forbidden, it is equipped with a new technology of multistage vacuum generator system.
The compressed air vacuums grant respect for the environment and the most safety level for the operators. Thanks to the new generation multistage vacuum system, it guarantees the best performance, as far as air flow rate is concerned, together with very efficient compressed air consumption.
Compact and light, the VHC120 is equipped with a 9.8 Gallon (37 liter) container. Filtration is provided by an L class star filter with a total filtering surface of 16.000 cm². The VHC120 is always equipped with a pressure gauge.
Ideal Applications
VHC120 is the ideal industrial vacuum for shipyards, metalworking companies, oil refineries, chemical industries, spray-painting facilities, rifle ranges applications, as well as in the food industry, whenever in presence of static electricity (working with sugar or flour), on building sites, and during surface treatment operations.
This vacuum meets the requirements for use in Class I, Group D and Class II, Groups F & G. Group E is possible with additional optional equipment. Variants designed for Wet/Dry material collection are also available upon request.
Optional Immersion Separator
An optional Integrated immersion separator model is available to meet the requirements for compliance with NFPA 484 for the safe collection of combustible metal dusts. (Contact us for pricing) The all-in-one design safely collects and renders inert Group E metal dusts, such as aluminum, magnesium and other commercial alloys, in an inert fluid bath.
Benefits:
- Compact dimensions
- High container capacity
- Energy saving
- Very efficient compressed air consumption
- Quick return on investment
- Less shutdowns on ordinary mantainance
- Flameproof ATEX version (for zones Gas 1-2 and Dust 21-22) available
- Standard manual filter shaker
- Larger star filter 16,000 cm2
- Clapet as a standard on the Atex/Exp versions
- M antistatic filter as a standard on Atex/Exp versions
- Pressure gauge
- Stainless steel version available
- Upstream and Downstream HEPA filter available on the Atex/Exp versions
Specification
Air Consumption @90psi | 44.5CFM or 1260 L/min |
Airflow | 119 CFM or 56 L/min |
Waterlift | 130 in. H2O |
Airflow | 119 CFM |
Inlet Diameter | 0.75 in |
Recommended Air Pressure | 101 psi |
Container Capacity | 9.8 gallons |
Dimensions (L x W x H) | 22.5 x 22 x 49 in. |
Weight | 82 lbs 11 oz (37.5 kg) |
Sound Pressure Level | 72 dB(A) |
