The Mosmatic DXFS Steam Swivel 38.093 is a heavy-duty swivel coupling engineered for steam cleaners and self-rotating applications where high-temperature performance and durability are essential. Designed with a robust triple bearing system—featuring 2x radial ball bearings and 1x thrust ball bearing—alongside a high-quality ceramic seal system, this swivel delivers smooth, reliable rotation while withstanding the intense demands of steam-based operations.

Manufactured from nickel-plated brass for superior corrosion resistance, the DXFS 38.093 includes integrated weep holes that provide seal failure warnings for proactive maintenance and safety assurance. The flange-mounted design ensures easy, secure installation, making it ideal for industrial steam-powered systems. This model supports up to 300 PSI and temperatures as high as 350°F.

Safety Note: Always start the swivel in the downward position. Regularly check for seal integrity through the weep holes and use proper protective equipment.

Applications

• Steam cleaning systems

• Self-rotating steam-powered cleaning equipment

• Industrial high-temperature rotary steam applications

• Commercial steam cleaner assemblies

• Equipment requiring reliable rotary motion under steam pressure

Features

• Triple bearing system: 2x radial ball bearings and 1x thrust ball bearing

• Durable ceramic seal system for high heat resistance and extended service life

• Thread In: 1/4” NPTF | Thread Out: G3/8” M

• Nominal Width (NW): 1/4”

• Max Pressure: 300 PSI

• Max Temperature: 350°F

• Max RPM: 1000

• Overall Diameter: 2.36” | Overall Length: 1.5”

• Seal failure warning through weep holes for added safety and maintenance control

• Flange design for easy and secure installation

• Compatible Medium: Steam | pH Range: 3–12

Specs

Pressure: 300 psi

Temperature: 350°F

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Bearing: Stainless steel

Triple bearing system: 2 x radial ball bearings and 1 x thrust ball bearings

Throughput/medium: steam / ph 3-12

Thread In: G1 1/4" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36"

Length 1 (L1) (overall length) : 1.50

Length 2 (L2): 0.47

Weight: 13.9 oz

The Mosmatic DXFS Steam Swivel 38.193 is a high-quality rotary coupling engineered for steam cleaners and self-rotating systems where durability and reliable performance are critical. Equipped with a triple bearing system—featuring 2x radial ball bearings and 1x thrust ball bearing—and a robust ceramic seal system, this swivel ensures smooth rotation and long-lasting operation under high-temperature conditions.

Manufactured from nickel-plated brass for excellent corrosion resistance, the DXFS 38.193 features integrated weep holes for early seal failure detection, enhancing operational safety and reducing downtime. Its flange-mounted design enables quick and secure installation, making it ideal for industrial and commercial steam applications. Supporting pressures up to 300 PSI and temperatures up to 350°F, this swivel is built to handle demanding steam-powered cleaning environments.

Safety Note: Always start the swivel in the downward position. Regularly inspect weep holes for seal integrity and ensure proper use of protective equipment.

Applications

• Steam cleaning systems

• Self-rotating steam-powered cleaning tools

• Industrial rotary steam connections

• Commercial steam cleaning assemblies

• Equipment requiring consistent rotary motion under steam pressure

Features

• Triple bearing system: 2x radial ball bearings and 1x thrust ball bearing

• Ceramic seal system for high heat resistance and extended lifespan

• Thread In: 3/8” NPTF | Thread Out: G3/8” M

• Nominal Width (NW): 1/4”

• Max Pressure: 300 PSI

• Max Temperature: 350°F

• Max RPM: 1000

• Overall Diameter: 2.36” | Overall Length: 1.5”

• Seal failure warning through weep holes for proactive maintenance

• Flange design for secure, easy installation

• Medium Compatibility: Steam | pH Range: 3–12

Specs

Pressure: 300 psi

Temperature: 350°F

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Bearing: Stainless steel

Triple bearing system: 2 x radial ball bearings and 1 x thrust ball bearings

Throughput/medium: steam / ph 3-12

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36"

Length 1 (L1) (overall length) : 1.50

Length 2 (L2): 0.47

Weight: 10.4 oz

The Mosmatic DXG Swivel 37.051 is a high-performance, nickel-plated brass swivel designed for high-RPM, self-rotating cleaning applications. Ideal for surface cleaners, parts washers, and tire cleaning systems, this swivel delivers premium performance and long-term reliability. It features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, consistent rotation. The integrated ceramic seal system ensures long-lasting leak protection. Corrosion-resistant and maintenance-free, the DXG 37.051 is built with a bulkhead fitting for secure, fixed mounting in demanding environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-RPM, self-rotating cleaning tools

• Industrial and commercial cleaning systems

Key Features

• Durable brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for high-efficiency leak protection

• Ideal for high-RPM, self-rotating applications

• Bulkhead fitting for secure installation

• Maintenance-free design for long-term use

• Thread IN: 1/4" NPTF | Thread OUT: 1/4” NPTM

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.10”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 1/4” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.10

Length 2 (L2): 0.43

Weight: 9.9 oz

The Mosmatic DXG Swivel 37.052 is a heavy-duty, nickel-plated brass swivel designed for high-RPM, self-rotating cleaning applications. Perfect for surface cleaners, parts washers, and tire cleaning systems, this swivel provides smooth rotation, superior corrosion resistance, and long-term performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for enhanced stability and durability. A ceramic seal system delivers reliable leak protection, even under high pressure. With a bulkhead fitting for secure mounting and a maintenance-free design, this swivel is built to perform in demanding industrial environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

• Self-rotating high-RPM cleaning tools

• Industrial and commercial pressure washing

Key Features

• Brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for dependable, leak-free operation

• Ideal for high-RPM, self-rotating applications

• Bulkhead fitting for secure, fixed installation

• Maintenance-free design

• Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTF

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nicket plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 1/4” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30"

Weight: 7.8 oz

The Mosmatic DXG Swivel 37.053 is a high-performance, nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning applications. Ideal for use in surface cleaners, parts washers, and tire cleaners, this swivel ensures long-term durability and precise operation. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, reliable rotation. The integrated ceramic seal system offers exceptional leak protection, even under high pressure. Designed for bulkhead mounting, this corrosion-resistant swivel is maintenance-free and built for demanding environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

• Self-rotating, high-RPM cleaning systems

• Industrial and commercial pressure washing

Key Features

• Nickel-plated brass body for corrosion resistance

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for long-lasting leak protection

• Engineered for high-speed, self-rotating tools

• Maintenance-free design

• Bulkhead fitting for fixed, secure installation

• Thread IN: 1/4" NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.47

Weight: 10.2 oz

The Mosmatic DXG Swivel 37.054 is a heavy-duty, nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning equipment. Ideal for use in surface cleaners, parts washers, and tire cleaning applications, this swivel delivers reliable performance and exceptional durability. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and stable operation. The integrated ceramic seal system ensures long-lasting, leak-resistant performance, even under high pressure. With a secure bulkhead fitting and maintenance-free design, the DXG 37.054 is built for industrial-grade use.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• Self-rotating high-RPM tools

• Commercial and industrial cleaning equipment

Key Features

• Nickel-plated brass body for superior corrosion resistance

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for extended leak protection

• Maintenance-free performance in high-RPM environments

• Bulkhead fitting for secure mounting

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTF

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.42”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.42"

Weight: 7.8 oz

The Mosmatic DXG Swivel 37.063 is a high-performance brass swivel with a corrosion-resistant nickel-plated finish, engineered for high-RPM, self-rotating cleaning systems. Designed for surface cleaners, parts washers, and tire cleaning equipment, this swivel delivers smooth operation and long-term reliability. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—paired with a ceramic seal system for superior leak protection. Built for maintenance-free use, the DXG 37.063 also includes a bulkhead fitting for secure and fixed mounting in industrial environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• Self-rotating high-RPM tools

• Commercial and industrial cleaning systems

Key Features

• Brass construction with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for leak-free, long-lasting performance

• Designed for high-RPM, self-rotating equipment

• Maintenance-free operation

• Bulkhead fitting for secure, stationary mounting

• Thread IN: 1/4" NPTF | Thread OUT: G3/8” M

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nicket plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.39

Weight: 10.2 oz

The Mosmatic DXG Swivel 37.151 is a high-performance, nickel-plated brass swivel designed for high-RPM, self-rotating cleaning applications. Perfect for surface cleaners, parts washers, and tire cleaning systems, this swivel delivers superior durability and smooth rotation under pressure. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for enhanced stability and performance. A high-efficiency ceramic seal system provides long-lasting, leak-free operation. Corrosion-resistant and maintenance-free, the DXG 37.151 is built with a bulkhead fitting for secure and permanent mounting in demanding environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-RPM self-rotating cleaning tools

• Commercial and industrial pressure washing systems

Key Features

• Durable brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for reliable, leak-free performance

• Ideal for high-RPM, self-rotating cleaning applications

• Maintenance-free and built for longevity

• Bulkhead fitting for secure installation

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTM

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.10”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nicket plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 1/4” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.10"

Length 2 (L2): 0.43"

Weight: 9.6 oz

The Mosmatic DXG Swivel 37.152 is a high-precision, nickel-plated brass swivel built for high-RPM, self-rotating cleaning applications. Designed for surface cleaners, parts washers, and tire cleaning systems, this swivel provides smooth rotation, durability, and outstanding leak protection. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for optimal performance under pressure. A ceramic seal system ensures long-lasting, leak-free reliability. With a bulkhead fitting for secure mounting and a maintenance-free design, the DXG 37.152 is ideal for demanding industrial and commercial environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-RPM self-rotating tools

• Industrial and commercial pressure washing setups

Key Features

• Brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for durable, leak-proof performance

• Designed for high-RPM cleaning equipment

• Bulkhead fitting for fixed, secure mounting

• Maintenance-free operation

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTF

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 1/4” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30"

Weight: 7.5 oz

The Mosmatic DXG Swivel 37.153 is a precision-engineered, nickel-plated brass swivel built for high-RPM, self-rotating cleaning systems. Ideal for surface cleaners, parts washers, and tire cleaning applications, this swivel delivers exceptional reliability, smooth performance, and corrosion resistance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for optimal rotation and stability. The integrated ceramic seal system ensures long-term leak protection. With a bulkhead fitting for secure mounting and maintenance-free design, the DXG 37.153 is built to withstand rigorous use in industrial environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

• High-RPM, self-rotating cleaning tools

• Industrial and commercial pressure washing systems

Key Features

• Nickel-plated brass for enhanced corrosion resistance

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for reliable, leak-free operation

• Bulkhead fitting for secure and stable installation

• Designed for high-RPM, self-rotating cleaning tools

• Maintenance-free performance

• Thread IN: 3/8" NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nicket plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14"

Length 2 (L2): 0.47"

Weight: 9.8 oz

The Mosmatic DXG Swivel 37.154 is a durable, nickel-plated brass swivel designed for high-RPM, self-rotating cleaning systems. Perfect for use in surface cleaners, parts washers, and tire cleaners, this swivel provides excellent corrosion resistance, smooth performance, and maintenance-free operation. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for precise and stable rotation. The integrated ceramic seal system ensures leak-free reliability even under high pressure. Built for rugged environments, the DXG 37.154 includes a bulkhead fitting for secure mounting and long-term performance.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

• High-RPM, self-rotating cleaning systems

• Commercial and industrial pressure washing

Key Features

• Brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for long-lasting, leak-free operation

• Engineered for high-RPM cleaning performance

• Bulkhead fitting for secure, fixed installation

• Maintenance-free operation

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTF

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.42”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.42"

Weight: 7.5 oz

The Mosmatic DXG Swivel 37.163 is a premium brass swivel with a corrosion-resistant nickel-plated finish, engineered for high-RPM, self-rotating cleaning systems. Designed for use in surface cleaners, parts washers, and tire cleaning equipment, this swivel delivers smooth operation, precision performance, and long-lasting durability. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for optimal rotation stability. The integrated ceramic seal system ensures leak-free reliability even under high pressure. With a bulkhead fitting for secure mounting and a maintenance-free design, it's built for industrial-grade performance.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-RPM self-rotating tools

• Industrial and commercial pressure washing systems

Key Features

• Brass construction with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for extended leak protection

• Designed for high-RPM, self-rotating cleaning applications

• Maintenance-free performance in demanding environments

• Bulkhead fitting for secure, fixed installation

• Thread IN: 3/8" NPTF | Thread OUT: G3/8” M

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nicket plated

Inner Part: Stainless Steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 G3/8”M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14"

Length 2 (L2): 0.39"

Weight: 9.7 oz

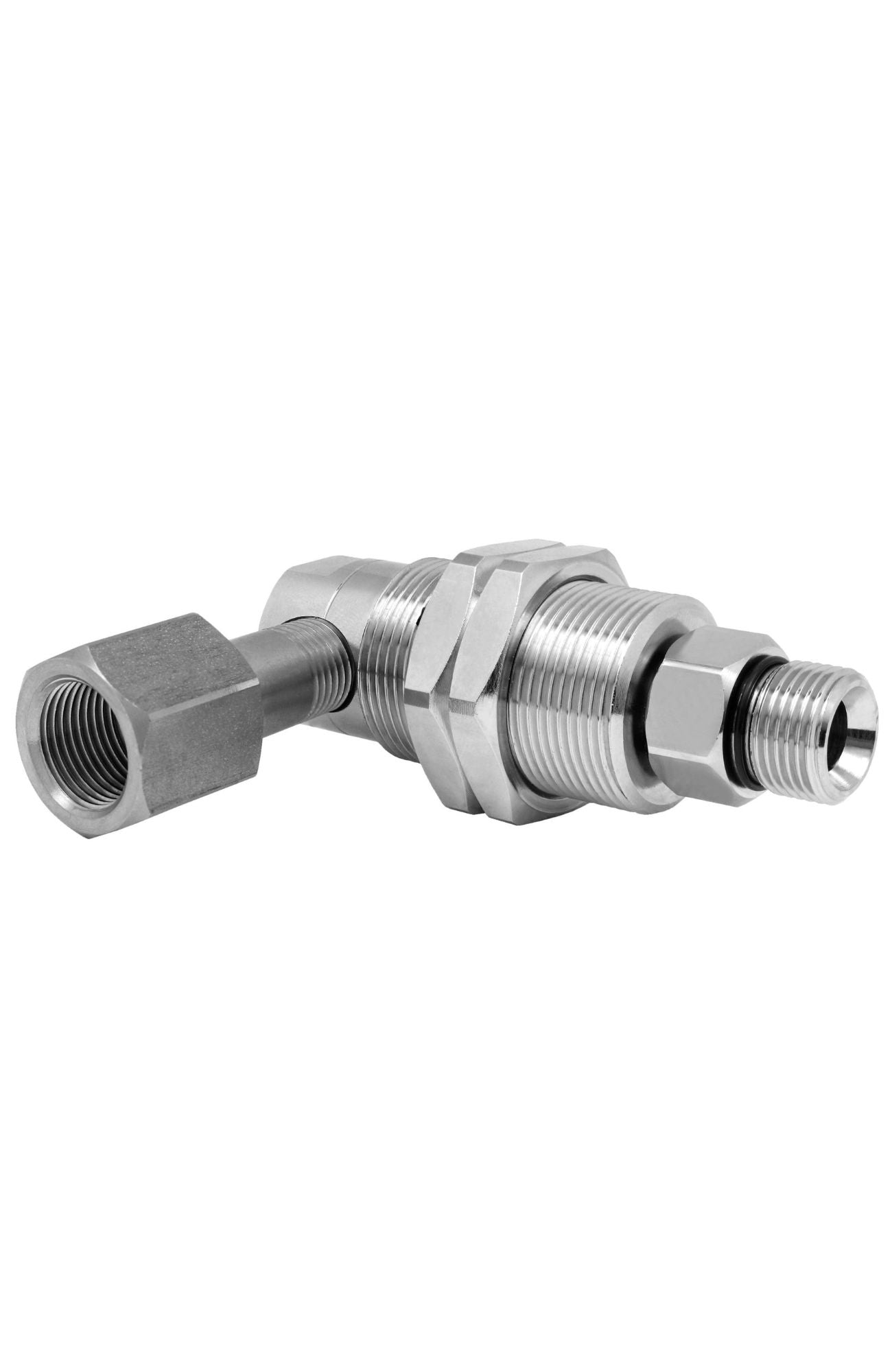

The Mosmatic DXG 90° Swivel 37.353 is a high-quality nickel-plated brass swivel designed for high-RPM, self-rotating cleaning applications. Ideal for use in surface cleaners, parts washers, and tire cleaning systems, this 90-degree swivel offers robust corrosion resistance, precision engineering, and a smooth, maintenance-free operation. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for exceptional rotation stability. The integrated ceramic seal system ensures long-lasting, leak-proof performance under high pressure. With a secure bulkhead fitting, this swivel is built to withstand the rigors of industrial cleaning environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning tools

• High-RPM self-rotating cleaning equipment

• Industrial and commercial pressure washing

Key Features

• Durable brass body with corrosion-resistant nickel plating

• 90-degree configuration for angled installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for enhanced leak protection

• Designed for high-RPM self-rotating systems

• Bulkhead fitting for fixed, secure mounting

• Maintenance-free design

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTM

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2): 0.47

Weight: 9.9 oz

The Mosmatic DXG 90° Swivel 37.453 is a high-performance nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning tools. Designed for surface cleaners, tire cleaners, and parts washers, this swivel offers precision performance and outstanding durability. Its triple bearing system—two radial ball bearings and one thrust ball bearing—ensures smooth, reliable rotation under pressure. The ceramic seal system provides excellent leak resistance and longevity, even in demanding high-pressure environments. Featuring a 90-degree design and bulkhead mounting, the DXG 37.453 is corrosion-resistant, maintenance-free, and built for professional use.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-RPM self-rotating cleaning equipment

• Commercial and industrial pressure washing tools

Key Features

• Durable brass body with corrosion-resistant nickel plating

• 90-degree configuration for compact or angled installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for superior leak protection

• Designed for high-RPM, self-rotating equipment

• Bulkhead fitting for stable and secure mounting

• Maintenance-free construction

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30"

Length 2 (L2): 0.47

Weight: 13.6 oz
