What you can't see, we can!

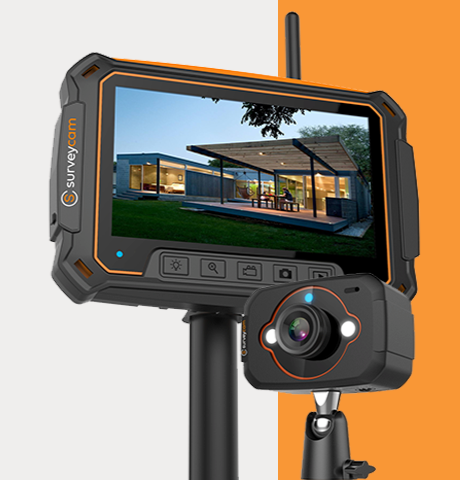

Introducing SurveyCam™️, the world's first all-in-one survey camera, extending up to 45ft when used with the SkyPole. High spec cameras for all photographic and video needs.

SurveyCam™️ can be used for a wide range of different projects whether there's a project for domestic properties or for a business. SurveyCam will adapt to all types of situations.

Features:

• Front LED Lights to improve photos
• Zoom functionality
• External Antenna to improve signal strength
• Sun Shade to block out annoying glare
• Protective Jacket to prevent damage in the field
• Micro SD Card storage
• HD Picture Quality

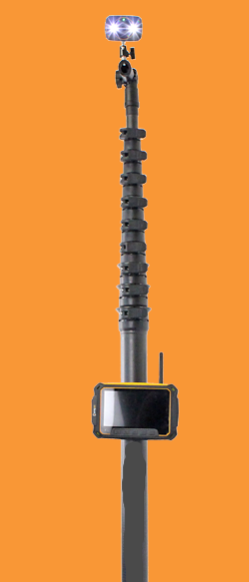

When combined with our state-of-the-art, carbon fiber telescoping SkyPole this system has up to a 44 ft reach and a collapsed pole height of only 6 ft.

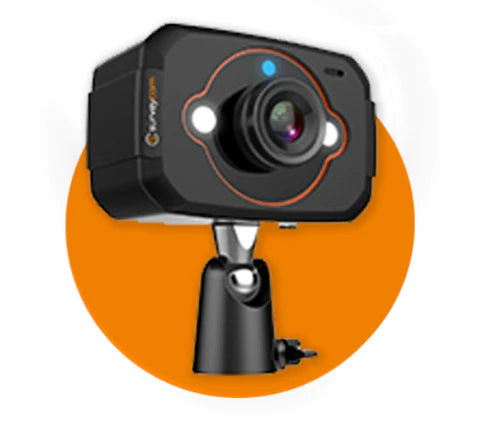

White feature LED Lights

External Antenna

Sun Shade and Protective Jacket

 Video

Included Items

Protective Camera case

• 13"x 11" x 5"
• Water resistant and lockable
• Egg crate foam to lid / Cut to shape foam sections in the base.

5 Inch HD Monitor

• Antenna for Monitor
• 1 x 8GB TF card
• Sunshade for Monitor.
• Multi-Functional TF Card Reader
• 1 x wide base black bracket (monitor)
• Telescopic Hand Grip
• Mount clip

Camera

• Camera Bracket
• Plug Adaptor
• In Car Adaptor
• 2 x USB  Charging Cables
• Mount Clip

Please Note: SurveyCam and inspection SkyPole are sold separately; however, we do offer two bundles in the drop down menu for pairing with the 34 ft and 44 ft versions. If you need higher capability we can also pair the SurveyCam with one of our Ionic Grafter Hydra Poles with reach up to 80 ft.

 Specifications

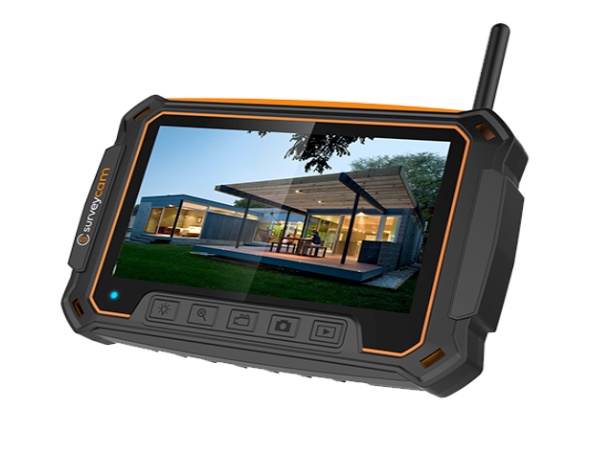

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP


SurveyCam® Photograpic Case:

• Dimensions: 13"x 11" x 5"
• Watertight seal around lid
• Foam protected storage compartments
• Secure double throw latches
• Soft grip handle
• Holes on either edge for padlocking
• Injection Molded high quality Polypropylene

Manual

SurveyCam User Manual

SkyVac® 'Real Time' Wireless Camera System

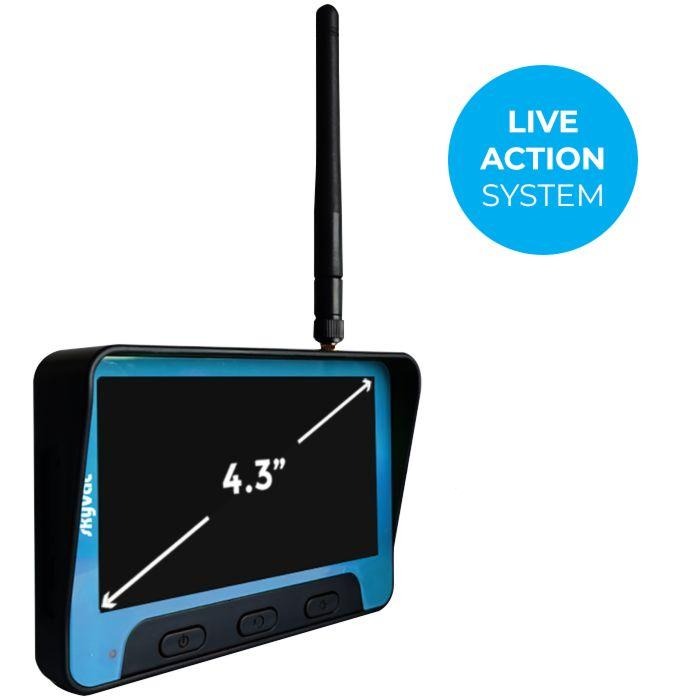

New and improved design: Large 4.3" LCD Screen with slimline, lightweight design. Non-Recordable System.

Take the guess work out of gutter cleaning, with our NEW camera system. The monitor has a large 4.3” LCD screen that transmits a live, clear picture of “in gutter” progress, from the overhead mounted camera. Quick and easy to use with no wires, apps or wifi required, the "Real Time" high-level inspection system is lightweight and designed to cope with gutter cleaning conditions.

Instant Images: No Wires - No Apps - No Wi-Fi - No Internet Required!

Please note: This system does not capture images or viewing. It is designed for live viewing only. If you are interested in a recordable system please click here.

Features & Benefits:

This high-level inspection system not only helps you monitor your live progress but is also a great way to win new business. Simply attach the camera and monitor to your telescoping SkyPole and in minutes you can show potential clients the condition of their gutters, all from the safety of the ground.

Why not use the camera system to earn extra income, offering high level property inspection on roofs, chimneys, or in lofts?

Quick and easy to use, the monitor and camera system are lightweight and engineered to cope with the rigors of gutter cleaning. The slimline monitor has a high quality 4.3” color LCD screen display, with sun visor to ensure clear visibility. Able to cope with an array of lighting conditions, the overhead camera features LED lights for up-close accuracy, while the monitor has adjustable brightness settings. IP4 rated, both camera and monitor are able to withstand a rain shower. Instantly paired, and not affected by Wi-Fi interference, the system is effective up to 164 Ft (50 meters).

Simply turn on, and see 'Live' high-quality images of high level projects - all from the safety of the ground.

Video

Included

• Monitor with 4.3” LCD screen
• Camera with 4 x integral LED lights
• In car Adaptor
• Power Adaptor x 1
• USB charging cables x 2
• Protective Carry Case
• Camera attachment (1 x Spring Clip for mounting on gutter cleaning neck tool holder)
• Monitor spring clip (for securing monitor to pole).

Please Note: The Camera Mount for use with the telescopic pole, is not included as standard. You can find it here.

Telescoping SkyPole Sold Separately.

Specs

Camera Specifications:

• Image Sensor: 1/4 Inch CMOS
• Effective Pixels: 640 x 480
• View Angle: 45 Degrees
• Transmission Frequency: 2400~2483 MHz
• Modulation Mode: GFSK
• Unobstructed Effective Range: 164 ft / 50 Meters
• White LED light range: 6 ft / 2 Meters
• Power Supply: 5V VDC
• Charge Time: 2.5 Hours
• Working Time (full charge):3 hours (LED OFF）/ 2.5 hours(LED ON)
• Operation Temperature: 10~+50°C/+14~+122°F
• Dimensions: 130 x 30 x 58mm
• Weight: 100g

Monitor Specifications:

• Screen Size: 4.3 Inch TFT LCD
• Display Resolution: 480 x 272
• Unobstructed Effective Range: 164 ft /50 Meters
• Modulation Mode: GFSK
• Power Supply: 5V VDC
• Charge Time: 3 Hours
• Working Time (full charge):3 hours
• Operation Temperature: 10~+50°C/+14~+122°F
• Dimensions: 115 x 30 x 135mm
• Weight: 165g

Day or Night, no ladders, scaffolding, scissor lifts or cherry pickers required...

Our lightweight telescopic SkyPole elevates our wireless SkyCam up to 44ft (14 meters) to provide photo and video capture capability.  It can also be used as a water fed pole to dispense gutter brightening solution.

The commercial-grade carbon fiber SkyPole is one of the lightest poles on the market but is engineered to be tough and rigid.

Note: The camera is purchased separately: SkyVac SurveyCam High Reach Inspection System.

Also works with the Skyscraper HeadSkyVac®️ SkyScraper Head, SkyScraper Head and Brushes, Skyscraper Wire Brush, SkyScraper Speedi Brushes, and SkySweeper Brush.

Typical Usage

• Building inspection, indoors & outdoors
• Gutter & roof inspection
• Security & surveillance
• Plus many more applications...

Specifications

24 foot - 3.6 pounds, collapsed length 5.3 feet, 50% carbon fiber

34 foot - 5.5 pounds, collapsed length 6.4 feet, 100% carbon fiber

44 foot - 6.9 pounds, collapsed length 7.1 feet, 100% carbon fiber

Camera Mount - for securing the SkyVac camera onto the Skypole Telescopic Inspection system.

We’ve created a new design for the Camera Mount. Simply screw the mount onto the SkyPole Inspection System and then onto the SkyVac camera (both sold separately) to view out of reach gutters all from the safety of the ground.

*Camera mount included only

This connector is a Euro thread connector and can also be used on other poles with the same threading.

This is the "saddle" bracket style clamp that fits onto the top Carbon Fiber Tool Holder used with the Elite Pole System. Used for mounting the camera head at the top of the poles.

SkyVac Camera / SkyCam Smart Phone SD Card Reader

Description

Send images and videos of gutter, roof and chimney inspections directly to your customers or colleagues from your smart phone using the SkyCam Smart Phone SD Card Reader.

Simply download the iUSB app onto your smart phone. After taking images or videos with the SkyCam, remove the Micro SD Card from the SkyCam Monitor and insert into the Smart Phone SD Card Reader. Plug the SD Card Reader into your smart phone open the app and send images and videos directly to your client.

*SD card not included.

Included Items

SkyCam Smart Phone SD Card Reader

Specifications

Made for iPhone X/8/8 plus / iPhone 7/7 plus / iPhone6s / 6s plus/ 6/6 plus /5/5s/5c/iPod touch (6th generation)/iPad 4/iPadmini/iPad Air/iPad pro/Mac

Compatible File Format
File: txt.doc.ppt.xls.xlsx.pdf
Music: mp3.wma.wav.m4a.aac.m4r.ogg
Video: mov.mpg.vob.wmv.rmvb.avi.mp4.mkv.flv3gp.rm
Image: Jpg.jpeg.png.gif.bmp.tif.tiff

Computer Systems Supported
Windows xp / Vista / Win 7 / Win 10, Mac OS 9. X or later, Linux2.4.x,iOS8 or Later, Andriod 5.1

SkyVac Replacement Protective Camera Case Only

Replacement parts for SurveyCam™️

• Camera Only
• Monitor Only

 Specifications

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP

This is to purchase a replacement monitor for the SkyVac®️ recordable camera or live action (non recordable) camera.

*This does not include the camera head, accessories or bag.

This is a replacement wireless camera head (only) for the SkyVac®️ Recordable/Non-Recordable Inspection Camera System. Does not include any other accessories.

SkyCam Camera Ball-Joint Connector for Mount for the New SkyCam Version, recordable or non-recordable.

*Camera Not Included*
