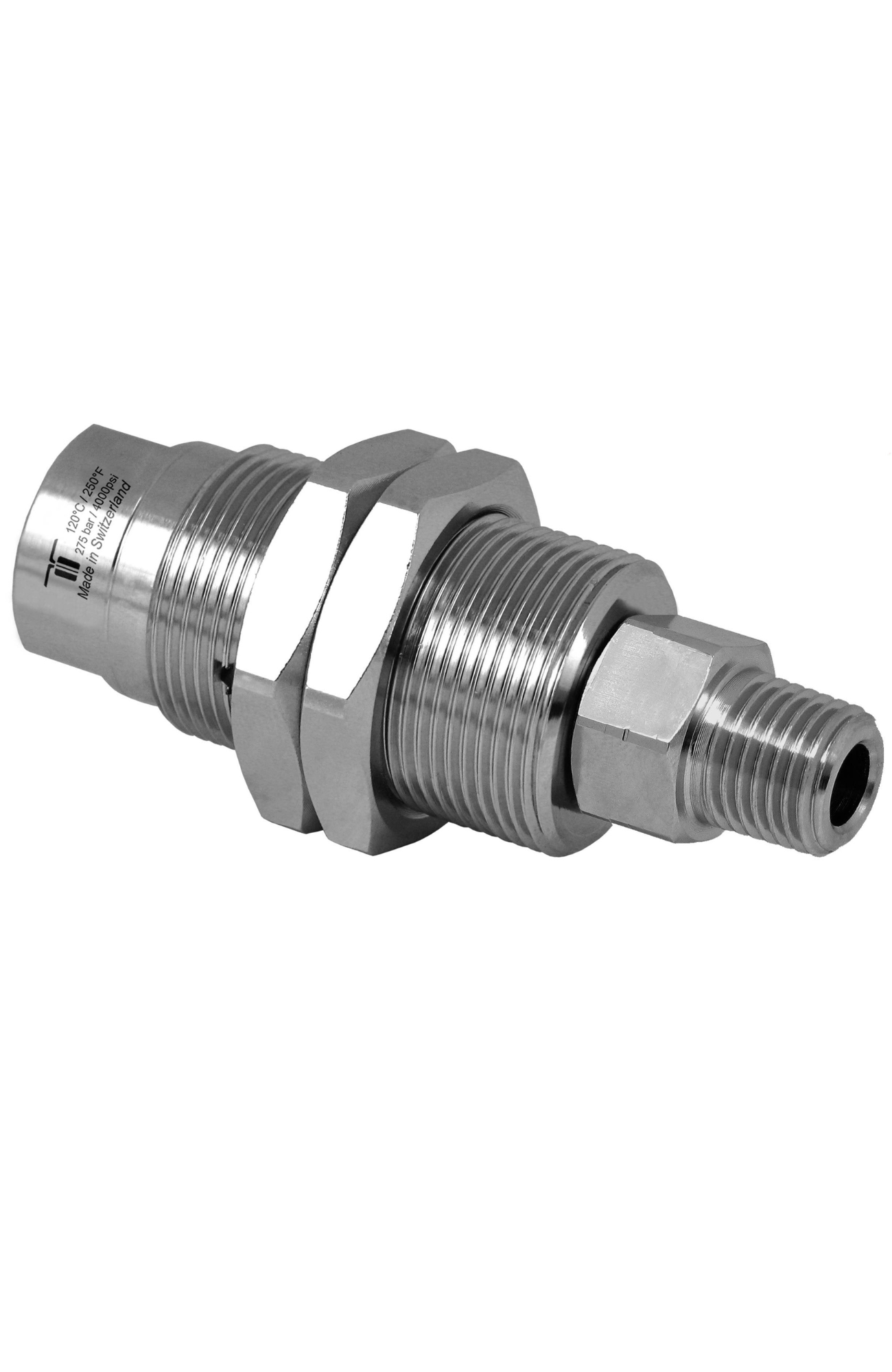

The Mosmatic DYG Swivel 57.153 is a high-performance, maintenance-free swivel designed for high-pressure, self-rotating applications. Crafted from brass with a corrosion-resistant nickel-plated finish, this swivel offers long-term durability and precision in industrial cleaning environments. Featuring a triple bearing system—two radial ball bearings and one thrust bearing—along with a rugged carbide seal system, it ensures smooth rotation and excellent sealing under demanding conditions. Its bulkhead fitting allows for secure and stable mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotating equipment

• Industrial and commercial cleaning solutions

Key Features

• Brass construction with nickel-plated corrosion-resistant finish

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for superior sealing performance

• Maintenance-free design for long-term reliability

• Bulkhead fitting for secure and stable mounting

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34” | Length: 3.14”

• Nominal Width (NW): 1/4” | Wrench Size (SW): 0.87”

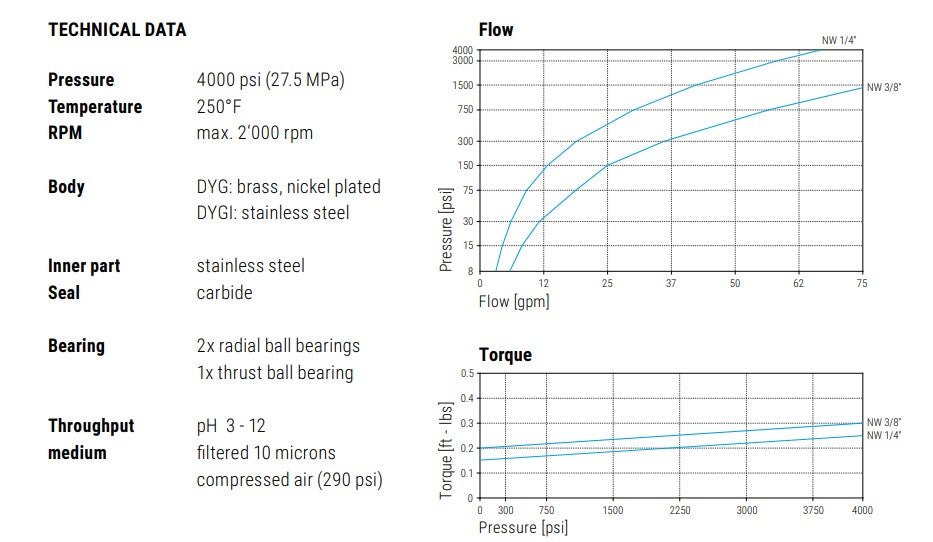

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.47

Weight: 8.5 oz

The Mosmatic DYG Swivel 57.154 is a precision-engineered, maintenance-free swivel designed for high-pressure, self-rotating cleaning systems. Built from durable brass and finished with a corrosion-resistant nickel plating, this swivel is ideal for demanding industrial and commercial environments. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and stable rotation. The integrated carbide seal system ensures maximum leak protection, while the bulkhead fitting provides secure and stationary mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary cleaning equipment

• Industrial and commercial cleaning systems

Key Features

• Nickel-plated brass construction for corrosion resistance and durability

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for long-lasting, leak-proof performance

• Maintenance-free design

• Bulkhead fitting for secure fixed installation

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTF

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.42”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.42

Length 2 (L2):

Weight: 8.2 oz

The Mosmatic DYG Swivel 57.653 is a high-performance, maintenance-free swivel built for high-pressure, self-rotating cleaning applications. Constructed from brass with a durable nickel-plated finish, this swivel delivers long-lasting corrosion resistance and precise operation in the toughest environments. It features a robust triple bearing system with two radial ball bearings and one thrust ball bearing for smooth, stable rotation. A carbide seal system enhances leak protection, while the bulkhead fitting ensures secure, stationary mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary equipment

• Industrial and commercial cleaning operations

Key Features

• Brass construction with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for superior sealing and longevity

• Maintenance-free design

• Bulkhead fitting for fixed mounting

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 3/8”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.13

Length 2 (L2): 0.47

Weight: 7.6 oz

The Mosmatic DYG Swivel 57.654 is a high-precision, maintenance-free swivel designed for high-pressure, self-rotating cleaning equipment. Built from durable brass with a corrosion-resistant nickel-plated finish, this swivel is ideal for demanding industrial and commercial environments. Featuring a triple bearing system—two radial ball bearings and one thrust ball bearing—it ensures smooth and consistent rotation. The carbide seal system enhances leak protection and extends operational life, while the bulkhead fitting allows for secure, fixed mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotating equipment

• Industrial and commercial cleaning applications

Key Features

• Brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for exceptional sealing and wear resistance

• Maintenance-free design

• Bulkhead fitting for fixed, secure mounting

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTF

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.42”

• Nominal Width (NW): 3/8”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTF

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.42

Length 2 (L2):

Weight: 7.4 oz

The Mosmatic DYG Swivel 57.453 (90-degree configuration) is a high-quality brass swivel designed for high-pressure, self-rotating cleaning systems. Featuring a durable nickel-plated finish and corrosion-resistant construction, this swivel is ideal for surface cleaners, parts washers, and tire cleaning equipment. It includes a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, efficient rotation under pressure. The integrated carbide seal system ensures superior leak protection, while the 90° bulkhead design allows for secure, space-efficient installation. Built to deliver long-lasting, maintenance-free performance in demanding environments.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary spray systems

• Industrial and commercial cleaning equipment

Key Features

• Durable brass body with corrosion-resistant nickel plating

• 90° swivel design for compact and vertical installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for high-performance sealing and wear resistance

• Maintenance-free operation

• Bulkhead fitting for secure, fixed mounting

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2) : 0.47

Weight: 10.7 oz

The Mosmatic DYG Swivel 57.063 is a high-precision, maintenance-free swivel engineered for high-pressure, self-rotating cleaning systems. Built with a corrosion-resistant brass body and nickel-plated finish, it offers long-lasting durability in industrial environments. Its advanced triple bearing system—two radial ball bearings and one thrust bearing—ensures smooth and reliable rotation under heavy use. Featuring a carbide seal system and bulkhead mounting design, this swivel delivers top-tier sealing, stability, and performance for a wide range of applications.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotating equipment

• Industrial and commercial cleaning solutions

Key Features

• Brass construction with nickel-plated corrosion-resistant finish

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for maximum durability and sealing

• Maintenance-free operation

• Bulkhead fitting for stable mounting

• Thread IN: 1/4” NPTF | Thread OUT: G3/8” M

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Diameter: 1.34” | Length: 3.14”

Nominal Width: 1/4” | Wrench Size: 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.39

Weight: 10.6 oz

The Mosmatic DYG Swivel 57.351 (90° configuration) is a high-performance brass swivel designed for high-pressure, self-rotating cleaning applications. With a durable nickel-plated finish and corrosion-resistant construction, it is ideal for surface cleaners, parts washers, and tire cleaning systems. This swivel features a precision-engineered triple bearing system—two radial ball bearings and one thrust bearing—ensuring smooth, stable rotation even under continuous high-pressure use. The integrated carbide seal system offers superior leak resistance, while the 90-degree bulkhead design allows for secure and space-saving mounting in tight applications. Built for longevity, this swivel is completely maintenance-free.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary nozzles

• Industrial and commercial pressure washing setups

Key Features

• Brass construction with corrosion-resistant nickel plating

• 90° swivel design for tight and compact installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for extended durability and leak prevention

• Maintenance-free design

• Bulkhead fitting for fixed and secure mounting

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.26”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 1/4” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.26

Length 2 (L2) : 0.43

Weight: 10.7 oz

The Mosmatic DYG Swivel 57.353 (90-degree configuration) is a high-performance brass swivel designed for high-pressure, self-rotating cleaning applications. With a durable nickel-plated finish and excellent corrosion resistance, this swivel is ideal for use in surface cleaners, parts washers, and tire cleaning systems. It features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, efficient rotation. The integrated carbide seal system ensures long-lasting leak protection. The 90° bulkhead design allows for compact and secure mounting, making it a reliable solution for tight installation spaces.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary spray systems

• Industrial and commercial pressure washing

Key Features

• Durable brass construction with corrosion-resistant nickel plating

• 90° swivel design for tight-space and vertical installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for superior sealing and durability

• Maintenance-free performance

• Bulkhead fitting for secure, fixed mounting

• Thread IN: 1/4” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2) : 0.43

Weight: 11.0 oz

The Mosmatic DYG Swivel 57.463 (90-degree configuration) is a high-quality, nickel-plated brass swivel engineered for high-pressure, self-rotating cleaning applications. Designed for use in surface cleaners, parts washers, and tire cleaning systems, this swivel offers corrosion resistance, long-lasting durability, and precision performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, stable rotation. The integrated carbide seal system ensures exceptional leak protection, while the 90° bulkhead design allows for secure, compact installation in tight spaces. Completely maintenance-free and built to perform under pressure.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotating nozzles

• Industrial and commercial pressure washing systems

Key Features

• Brass construction with corrosion-resistant nickel plating

• 90° swivel design for efficient use in compact installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for long-lasting, leak-free performance

• Maintenance-free operation

• Bulkhead fitting for fixed and secure mounting

• Thread IN: 3/8” NPTF | Thread OUT: G3/8” M

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2) : 0.39

Weight: 14.0 oz

The Mosmatic DYGI Swivel 57.056 is a precision-engineered, maintenance-free swivel designed for high-pressure, self-rotating applications. Crafted from brass with a corrosion-resistant nickel-plated finish, this swivel provides maximum durability and reliable performance in industrial and commercial cleaning environments. Its advanced triple bearing system—featuring two radial ball bearings and one thrust bearing—ensures smooth, stable operation under demanding conditions. The integrated carbide seal system enhances longevity and leak resistance, while the bulkhead fitting allows for secure, fixed mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaners

• High-pressure rotary equipment

• Industrial and commercial cleaning systems

Key Features

• Durable brass construction with nickel-plated, corrosion-resistant finish

• Triple bearing system: 2x radial ball bearings, 1x thrust ball bearing

• Carbide seal system for superior leak protection

• Maintenance-free design for reliable long-term use

• Bulkhead fitting for stable mounting

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.10”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 1/4” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.10

Length 2 (L2): 0.43

Weight: 8.5 oz

The Mosmatic DYGI Swivel 57.057 is a high-quality, stainless steel swivel engineered for high-pressure, self-rotating cleaning applications. Designed to meet the demands of industrial and commercial environments, this maintenance-free swivel features a triple bearing system—two radial ball bearings and one thrust bearing—for ultra-smooth rotation and stability. The durable stainless steel construction offers excellent corrosion resistance, while the integrated carbide seal system ensures long-lasting, leak-proof performance. With a bulkhead fitting for secure mounting, this swivel is built for precision, reliability, and durability.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

• High-pressure rotary cleaning systems

• Industrial and commercial cleaning operations

Key Features

• Stainless steel body for superior corrosion resistance

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for long-lasting leak protection

• Maintenance-free design

• Bulkhead fitting for secure mounting

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTF

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.42”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 1/4” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.42"

Diameter (D) (overall diameter): 1.42"

Length 1 (L1) (overall length) : 3.30

Weight: 8.2 oz

The Mosmatic DYGI Swivel 57.058 is a high-performance, stainless steel swivel built for demanding high-pressure, self-rotating cleaning systems. Designed for industrial and commercial use, this swivel offers superior corrosion resistance, precision engineering, and long-term reliability. It features a triple bearing system—two radial ball bearings and one thrust bearing—for smooth, controlled rotation, even under high load. The integrated carbide seal system ensures leak-free operation, while the bulkhead fitting allows for secure, fixed mounting in a variety of equipment setups.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaners

• High-pressure rotating cleaning equipment

• Industrial and commercial cleaning operations

Key Features

• Durable stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for enhanced durability and sealing performance

• Maintenance-free design for continuous, reliable use

• Bulkhead fitting for stable and secure mounting

• Thread IN: 1/4” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.42"

 Diameter (D) (overall diameter): 1.42"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.47

Weight: 7.4 oz

The Mosmatic DYGI Swivel 57.059 is a high-performance, maintenance-free swivel built for high-pressure, self-rotating cleaning systems. Manufactured from robust brass and finished with corrosion-resistant nickel plating, this swivel is engineered for durability and long-term reliability in industrial and commercial cleaning environments. The precision triple bearing system—featuring two radial ball bearings and one thrust ball bearing—delivers smooth and stable rotation. A carbide seal system ensures long-lasting leak protection, while the bulkhead fitting provides secure, fixed mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

• High-pressure rotary cleaning tools

• Industrial and commercial cleaning systems

Key Features

• Durable brass construction with nickel-plated, corrosion-resistant finish

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for enhanced sealing and durability

• Maintenance-free design for consistent performance

• Bulkhead fitting for secure, fixed mounting

• Thread IN: 1/4” NPTF | Thread OUT: 3/8” NPTF

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.42”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.42

Length 2 (L2):

Weight: 8.6 oz

The Mosmatic DYGI Swivel 57.068 is a premium stainless steel swivel engineered for high-pressure, self-rotating cleaning equipment. Designed for durability and peak performance in tough industrial and commercial environments, it features a corrosion-resistant stainless steel body and a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, stable rotation. The integrated carbide seal system ensures long-lasting leak resistance, while the bulkhead fitting provides secure, fixed installation. Built to deliver uncompromising reliability and performance.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary cleaning equipment

• Commercial and industrial cleaning systems

Key Features

• High-grade stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial and 1x thrust ball bearing

• Carbide seal system for exceptional sealing and wear resistance

• Maintenance-free design for long-term use

• Bulkhead fitting for secure and stable mounting

• Thread IN: 1/4” NPTF | Thread OUT: G3/8” M

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.14”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.42"

Diameter (D) (overall diameter): 1.42"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.39

Weight: 10.6 oz
