The Mosmatic WDG Swivel 40.031 is a compact, high-quality swivel designed to deliver efficient performance in high-pressure hose reels, ceiling booms, and cleaning systems. Made from nickel-plated brass, this swivel is built for corrosion resistance and long service life. It features a sliding bearing for smooth rotation and an O-ring NBR seal for dependable leak protection. With a ⅜” NPTF inlet and ¼” NPTM outlet, this swivel is ideal for systems that require connection adaptation. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures up to 200°F.

Applications

• Pressure washers and hose reels

• Surface cleaners and spray guns

• Compact and mobile washdown systems

• Equipment with mixed NPT thread sizes

• Industrial and commercial cleaning applications

Features

• Durable nickel-plated brass construction for corrosion resistance

• Sliding bearing allows smooth and stable rotation

• Thread IN: 3/8” NPTF | Thread OUT: 1/4” NPTM

• Compact size: Height – 1.02” | Overall Length – 1.89”

• Nominal Width (NW): 1/4”

• Rated for 2200 psi operating pressure

• Handles temperatures up to 200°F

• Supports up to 30 RPM rotational speed

• Equipped with O-ring NBR seal for leak-free operation

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.47

Lenght 6 (L6): 0.25

Weight: 9.6 oz

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

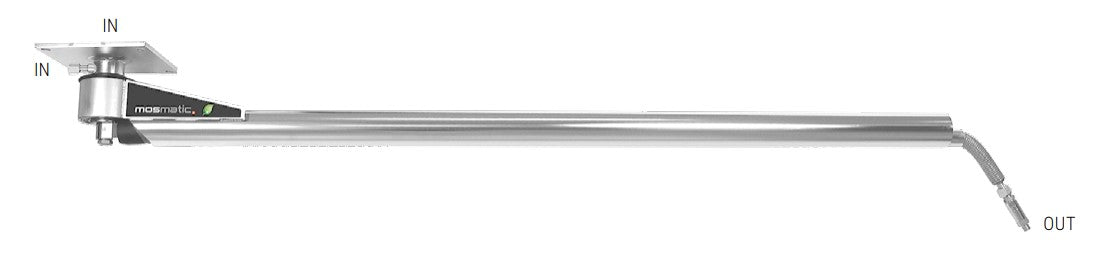

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 7'5",Weight 24.5 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 8'2",Weight 25 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 9'10",Weight 30.2 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The dual ceiling boom is commonly installed as tunnel prep, detail or fleet wash applications. This is the area where they are most frequently used. If used in a self-service car wash, we recommended to connect the foam brush to the upper boom and the high pressure wand to the lower boom.

• A classic for the prep station
• Delivered ready for installation
• 2x360° booms on one stem

L1 6'3",L2 6'9",Weight 44 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Replacement spring for the Mosmatic boom. It sits at the end of the boom between the boom and the gun.

The Mosmatic DGL Swivel 31.053 is a high-performance brass, nickel-plated swivel engineered to manage both thrust and radial forces in high-flow, high-pressure cleaning systems. Ideal for automatic car washes, hose reels, and industrial wash systems, this swivel ensures reliable, maintenance-free operation even in the most demanding environments.

Equipped with a triple bearing system—two radial ball bearings and one thrust ball bearing—the DGL 31.053 delivers consistent rotation and extended durability. The O-ring NBR seal system provides robust leak protection, with optional EPDM or FKM seals for enhanced chemical resistance. Corrosion resistance, compact form, and a bulkhead fitting design make this swivel a go-to solution for professionals seeking quality and precision.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Wash arms and gantry systems

• High-flow pressure washing equipment

• Industrial cleaning machinery

Key Features

• Design: Inline swivel with bulkhead fitting

• Material: Brass, nickel plated

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple (2x radial, 1x thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 3/8" NPTM

• Overall Diameter: 0.98”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Corrosion Resistance: Yes

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGL Swivel 31.653 is a high-performance brass, nickel-plated swivel designed to handle thrust and radial forces in demanding, high-flow applications. Engineered for use in automatic car wash systems, high-pressure hose reels, and other industrial-grade cleaning setups, this swivel offers exceptional durability and flow efficiency.

It features a triple bearing system with 2 radial ball bearings and 1 thrust ball bearing for maximum reliability and rotational performance. A robust O-ring NBR seal system is included, with optional upgrades to EPDM or FKM for enhanced chemical resistance. Its corrosion-resistant construction ensures longevity, and it's fully maintenance-free, making it a dependable choice for continuous-use environments.

Applications

• Automatic car wash systems

• High-pressure hose reel setups

• Industrial washdown equipment

• Vehicle cleaning systems

• Self-rotating cleaning heads

Key Features

• Model: Mosmatic DGL 31.653

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting: Bulkhead fitting

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98”

• Overall Length: 2.63”

• Nominal Width (NW): 3/8”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.63"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.5 oz

The Mosmatic DGLI Swivel 31.902 is a high-precision stainless steel swivel, engineered for thrust and radial force applications in demanding environments. Designed for high-flow systems, this swivel is ideal for automatic car washes and high-pressure hose reels.

This model features a triple bearing system with two radial and one thrust ball bearing, offering optimal stability and durability. The O-ring NBR seal system ensures a secure seal under pressure, with optional EPDM or FKM seals available for enhanced chemical resistance. Its corrosion-resistant stainless steel body and bulkhead mount design provide long-term reliability with zero maintenance requirements.

Applications

• Automatic car wash systems

• Gantry and tunnel wash equipment

• High-pressure hose reels

• Industrial cleaning systems

• High-flow water transfer

Key Features

• Model: Mosmatic DGLI 31.902

• Material: Stainless Steel

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Seal Type: O-ring NBR (EPDM or FKM optional)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Corrosion Resistant: Yes

• Mounting Style: Bulkhead

• Overall Diameter: 0.98”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range:

  • Up to 90°F at 1000 RPM

  • Up to 250°F at 30 RPM

• Maintenance: Maintenance-free design

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.8 oz

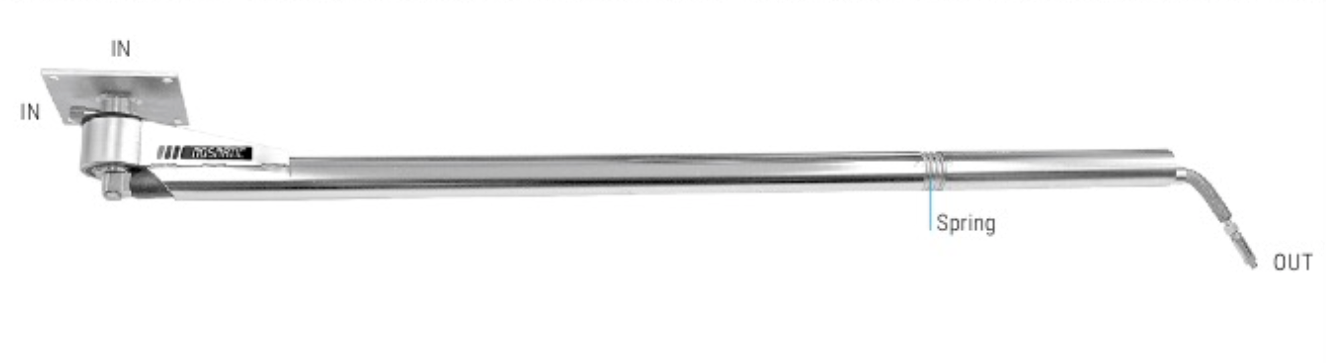

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 5'1", A 15', B 36" C 59" D 30", Weight 23 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 5'9", A 17', B 40" C 67" D 34", Weight 26 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 9",Weight 26 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 9'10",Weight 27 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 5'3",Weight 25 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12
