The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 5'9",Weight 25.5 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 6'9",Weight 27 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

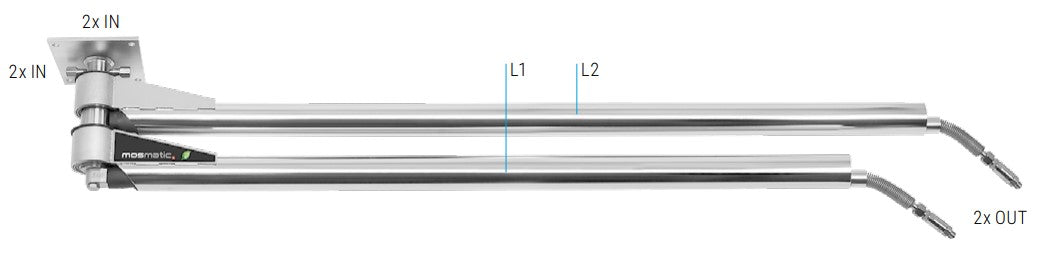

The dual ceiling boom is commonly installed as tunnel prep, detail or fleet wash applications. This is the area where they are most frequently used. If used in a self-service car wash, we recommended to connect the foam brush to the upper boom and the high pressure wand to the lower boom.

• A classic for the prep station
• Delivered ready for installation
• 2x360° booms on one stem

L1 4'9", L2 5'3, Weight 39 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

The dual ceiling boom is commonly installed as tunnel prep, detail or fleet wash applications. This is the area where they are most frequently used. If used in a self-service car wash, we recommended to connect the foam brush to the upper boom and the high pressure wand to the lower boom.

• A classic for the prep station
• Delivered ready for installation
• 2x360° booms on one stem

L1 7'5", L2 8'2", Weight 48 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Specifications:

Nominal Width (NW): 5/16"

Pressure: 5800psi

Temperature: 300°F

Total Length: L=66"

2 x cut ring fitt.

Thrust and radial forces, high flow, automatic car wash systems, high pressure hose reels

• High speed triple bearing system
• Corrosion resistant
• Solid construction
• Long service life
• Maintenance free

G1 1/4"NPTF G2 3/8"NPTM

Technical data

• Pressure: 4000 psi(27.5 MPa)
• Temperature: 90°F(at 1’000 rpm), 250°F (at 30 rpm)
• RPM: max. 1’000 rpm)
• Body: DGL: brass, nickel plated, DGLI: stainless steel/li>
• Inner part: Stainless steel
• Seal: O-ring NBR (optional: EPDM or FKM)
• Bearing: 2x radial ball bearings, 2x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

The Mosmatic DGLI Swivel 31.948 is a high-performance stainless steel swivel engineered for applications involving thrust and radial forces in high-pressure, high-flow environments. This premium swivel is built for use in automatic car wash systems, high-pressure hose reels, and other demanding cleaning systems.

Equipped with a durable triple bearing system (2 radial and 1 thrust ball bearing), this swivel ensures smooth, long-lasting performance. It features an O-ring NBR seal system with optional upgrades to EPDM or FKM seals for enhanced chemical resistance. Designed with a corrosion-resistant stainless steel body, this swivel offers maintenance-free operation for the highest level of reliability and efficiency.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reel systems

• Mobile and industrial cleaning applications

• Wash bays and gantry wash setups

• Surface and undercarriage cleaning tools

Key Features

• Model: Mosmatic DGLI 31.948

• Material: Stainless Steel

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 3/8" NPTF

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting Type: Bulkhead fitting

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98”

• Overall Length: 2.87”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Diameter (D) (overall diameter): 0.98"

Weight: 6.8 oz

The Mosmatic DGLI Swivel 31.947 is a high-precision stainless steel swivel designed for applications with both radial and thrust forces. Built for high-flow, high-pressure cleaning systems, it is perfect for automatic car washes, hose reels, and industrial environments requiring durability and top performance.

This model features a triple bearing system with two radial and one thrust ball bearing, offering smooth operation and longevity. The O-ring NBR seal system ensures reliable sealing, with optional upgrades to EPDM or FKM for enhanced chemical resistance. With a corrosion-resistant stainless body, bulkhead mounting, and a maintenance-free design, the DGLI 31.947 guarantees high efficiency and low downtime.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reels

• Gantry wash systems

• Industrial and commercial cleaning equipment

• High-volume pressure washer systems

Key Features

• Model: DGLI 31.947

• Design: Inline swivel, bulkhead mount

• Material: Stainless steel construction

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple bearing system (2 radial, 1 thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 3/8" NPTM

• Overall Diameter: 0.98”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGLI Swivel 31.946 is a stainless steel swivel engineered for high-flow and high-pressure cleaning applications. Ideal for use in automatic car wash systems, hose reels, and other industrial setups, it effectively handles thrust and radial forces in continuous-use environments.

This high-performance swivel features a triple bearing system (2x radial ball bearings and 1x thrust ball bearing) for smooth operation and extended service life. Its O-ring NBR seal system ensures a secure, leak-resistant fit and is optionally available in EPDM or FKM for specialized applications. Designed with a bulkhead fitting for easy mounting, the 31.946 model is maintenance-free, corrosion-resistant, and built to Mosmatic's high precision standards.

Applications

• Automatic and touchless car wash systems

• High-pressure hose reels

• Self-rotating cleaning devices

• Industrial wash equipment

• Mobile pressure wash units

Key Features

• Model: Mosmatic DGLI 31.946

• Material: Stainless steel

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTF

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting Style: Bulkhead fitting

• Corrosion Resistance: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98”

• Overall Length: 2.75”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.75"

Diameter (D) (overall diameter): 0.98"

Weight: 6.4 oz

The Mosmatic DGLI Swivel 31.945 is a stainless steel, high-flow swivel designed to handle both thrust and radial forces in automated car wash systems and high-pressure hose reels. Its durable construction and precision engineering make it a top choice for long-lasting, maintenance-free performance in industrial and commercial cleaning environments.

This swivel is built with a triple bearing system—featuring 2x radial ball bearings and 1x thrust ball bearing—for smooth, stable operation under demanding conditions. The integrated O-ring NBR seal system ensures reliable leak prevention and is optionally available in EPDM or FKM for compatibility with more aggressive chemicals. Its corrosion-resistant stainless steel body, bulkhead fitting, and compact design make it ideal for tight installations and continuous-duty cycles.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Robotic and gantry wash systems

• Industrial and commercial cleaning equipment

• High-flow pressure washer connections

Key Features

• Design: Straight inline swivel

• Material: Stainless steel

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple (2x radial, 1x thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTM

• Overall Diameter: 0.98”

• Overall Length: 2.55”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting Style: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4 NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.62"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.43"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGLI Swivel 31.943 is a high-performance stainless steel swivel engineered for demanding applications involving thrust and radial forces. Ideal for automatic car wash systems and high-pressure hose reels, this swivel supports high flow and delivers reliable performance under pressure.

Designed with a triple bearing system—featuring two radial ball bearings and one thrust bearing—the DGLI 31.943 ensures smooth operation and longevity. It comes with a durable O-ring NBR seal system, with optional EPDM or FKM upgrades for improved chemical resistance. Corrosion-resistant and maintenance-free, this swivel provides precision and durability in every application.

Applications

• Automatic and tunnel car washes

• High-pressure hose reel systems

• Commercial vehicle wash bays

• Industrial cleaning equipment

• Self-rotating cleaning tools

Key Features

• Model: Mosmatic DGLI 31.943

• Material: Stainless Steel

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): G3/8" M

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting: Bulkhead fitting

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGLI Swivel 31.942 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-flow, high-pressure cleaning applications. Built for automatic car wash systems and hose reels, it delivers unmatched durability, smooth rotation, and long-term reliability.

This model features a triple bearing system—two radial ball bearings and one thrust bearing—along with a dependable O-ring NBR seal system (optional: EPDM or FKM). Its corrosion-resistant stainless steel construction and bulkhead mount design make it ideal for harsh environments and continuous operation with minimal maintenance.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reels

• Commercial wash bays

• Agricultural and industrial equipment cleaning

• Water recovery systems

Key Features

• Model: Mosmatic DGLI 31.942

• Material: Stainless Steel

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTF

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing Type: Triple bearing (2 radial, 1 thrust)

• Mounting Style: Bulkhead

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free design

• Overall Diameter: 0.98”

• Overall Length: 2.87”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Maximum Pressure: 4000 PSI

• Maximum RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Diameter (D) (overall diameter): 0.98"

Weight: 6.5 oz

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 4'0", A 11' 6", B 29" C 45" D 23", Weight 18 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 2'9", A 8', B 22" C 31" D 16", Weight 15 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12
