The Mosmatic WDCL Swivel 43.363 is a high-performance, nickel-plated brass swivel designed for demanding high-pressure applications. Engineered for durability and smooth operation, it features dual radial ball bearings that support higher rotational speeds and reduce wear under load. The O-ring NBR seal ensures long-lasting leak protection, while its robust build accommodates pressures up to 4000 psi and temperatures up to 250°F. With a higher max RPM of 200, this swivel is ideal for more dynamic setups in commercial and industrial cleaning systems.

Applications

• High-pressure hose reels for commercial cleaning

• Ceiling boom arms in auto wash bays and garages

• Pressure washers in industrial and mobile setups

• Car wash and detailing systems

• Equipment requiring durable high-RPM swivel connections

Key Features

• Heavy-duty brass body with nickel plating for corrosion resistance

• Dual radial ball bearings for enhanced rotation and longevity

• Thread IN: ½” NPTF | Thread OUT: ½” NPTM

• Dimensions: Height – 1.81” | Overall Length – 2.87”

• Nominal Width (NW): ½”

• Handles 4000 psi maximum pressure

• Operates at temperatures up to 250°F

• High rotational capacity: Max RPM – 200

• O-ring NBR seal for reliable, leak-free performance

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.87

Height (H): 1.81

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 2.87

Length 3 (L3): 1.14

Length 4 (L4) :1.97

Length 5 (L5) :0.59

Weight:15.3 oz

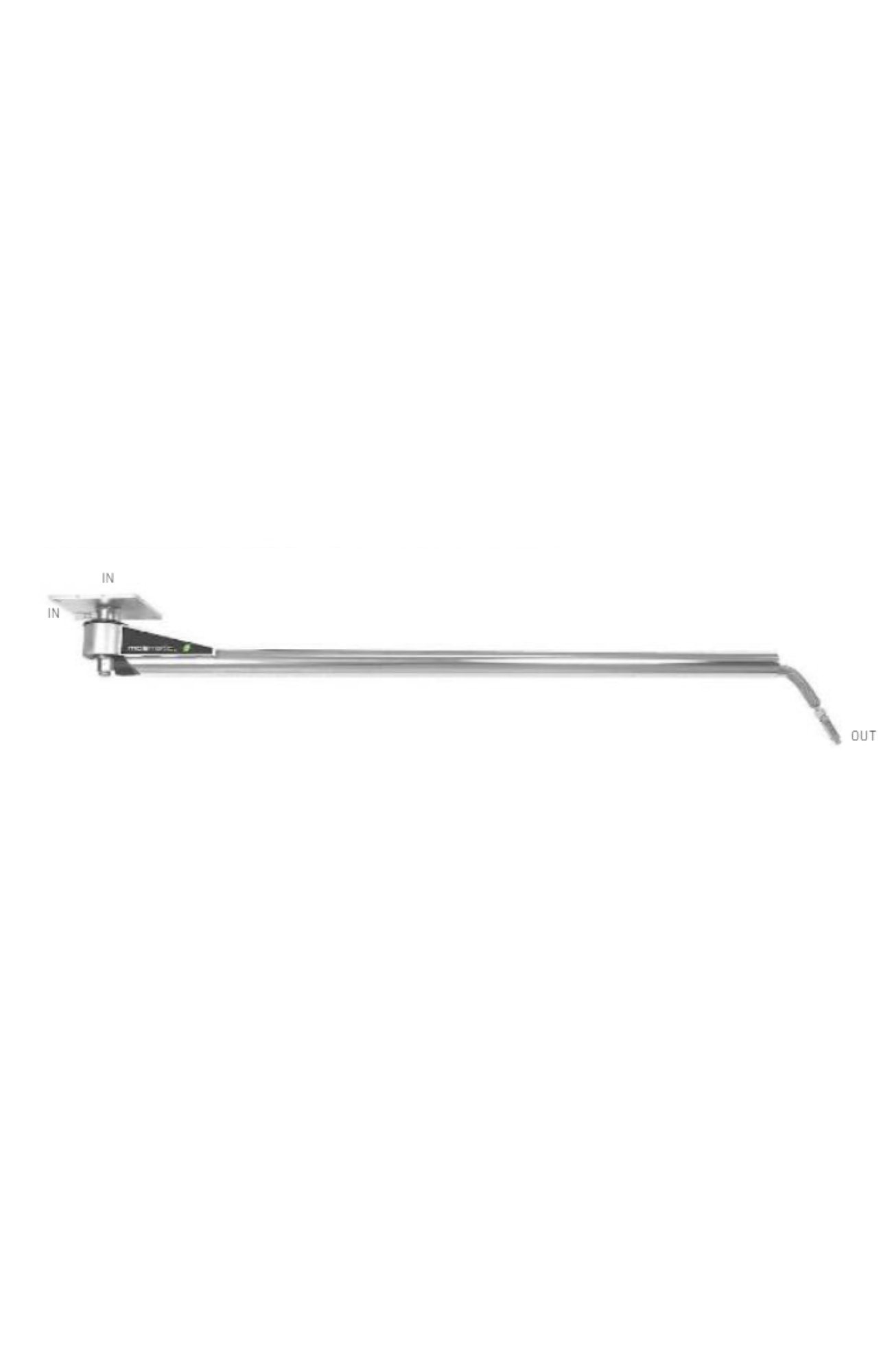

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 6'3",Weight 23 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 4'9",Weight 21lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Wall-mounted booms area ideal for outdoor areas or in wash bays where ceiling mounts are not an option. The wall bracket is designed for the boom to return to the resting position you selected.

• 180° smooth rotation
• Insulated HP-hose
• Multiple industry application

L1 4'9", Weight 22 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

*Please Note: If you are referencing the North American Mosmatic Catalog for 2017 there is a misprint. This wand 903.655 is actually a straight wand (not bent).

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length, GL=Grip length, Nozzle not included.

L 28", GL 12", G1 straight, IN G1/4"M, OUT G1/4"M, Weight 0.9 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Nominal width: 1/4"
• Throughput medium: pH 3-12

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length (without HP-Gun), GL=Grip length, Nozzle not included.

L 24", GL 12", G1 straight WS Yes, DG yes, IN G3/8"F, OUT 1/4" NPTF, Weight 2.5 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Nominal width: 1/4"
• Throughput medium: pH 3-12

The Mosmatic WDG Swivel 40.231 is a robust, nickel-plated brass swivel engineered for high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed to meet the demands of commercial and industrial environments, it features a sliding bearing for smooth rotation and an O-ring NBR seal to ensure long-lasting, leak-resistant operation. With a 1/2” NPTF inlet and 1/2” NPTM outlet, this swivel provides reliable flow performance in larger diameter systems. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures of up to 200°F, making it ideal for versatile, high-pressure cleaning setups.

Applications

• Hose reels and ceiling booms

• Industrial pressure cleaning

• Washdown systems with 1/2" NPT connections

• Fluid handling in OEM and factory environments

• Heavy-duty rotary connections

Features

• Nickel-plated brass construction for corrosion resistance and durability

• Sliding bearing for consistent, low-friction rotation

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM

• Dimensions: Height – 1.57” | Overall Length – 2.48”

• Nominal Width (NW): 1/2”

• Rated for 2200 psi working pressure

• Handles temperatures up to 200°F

• Operates at speeds up to 30 RPM

• O-ring NBR seal provides dependable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.94

Height (H): 1.57

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.48

Length 3 (L3): 1.14

Length 4 (L4): 1.42

Length 5 (L5): 0.43

Lenght 6 (L6): 0.28

Weight: 13.5 oz

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 2", connection top, Weight 18 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The Mosmatic Foam Head - 29.129 is a high-performance foam application tool designed to enhance cleaning results in self-serve car washes, industrial environments, and food-grade sanitation. Built with durable stainless steel, this 7" foam head is engineered for long-lasting use and superior foam generation.

Equipped with an integrated air injector nozzle, the foam head produces thick, consistent foam, improving chemical saturation and making dirt removal faster and more effective. Its adjustable flat spray nozzle allows for on-the-fly customization, enabling operators to adapt foam output for various applications, from precise spot treatment to broad coverage.

The unit features a G1/4" F thread-in connection and a 1.9 nozzle size, making it compatible with most standard spray wands and foam systems. Designed to handle pressures up to 4500 PSI, temperatures up to 212°F, and supporting a maximum flow rate of 12 GPM, this foam head performs reliably across a wide pH range (3–12). Lightweight, ergonomic, and easy to install, it’s a smart upgrade for any professional cleaning operation.

Applications

• Self-service car wash systems

• Food industry cleaning and sanitation

• Industrial equipment wash bays

• Fleet and commercial vehicle washing

• Facility maintenance and pressure washing

Features

• Durable Stainless Steel Body: Built for high-pressure, high-temperature use

• Adjustable Spray Pattern: Flat nozzle for customizable foam coverage

• Integrated Air Injector: Delivers rich, consistent foam output

• High-Pressure Rated: Withstands up to 4500 PSI and 212°F

• Wide Chemical Compatibility: Supports pH 3–12 cleaning agents

• Easy Installation: G1/4" F thread-in fits most spray wands

• Efficient Throughput: Handles up to 12 GPM

• Ideal for Versatile Cleaning: Suits car wash, industrial, and food service

Specs

Material Type: Stainless Steel

Pressure: 4500 psi

Temperature:  212°F

Thread In: G1/4"F

Length: 7"

Throughput: max 12 gpm

Throughput medium: ph 3-12

Weight: 0.4 lbs

Accessories

The Mosmatic DGS Swivel 30.052 is a brass, nickel-plated swivel engineered for performance in high and low pressure cleaning systems, hydraulic hose connections, and ceiling boom setups. With a compact and durable design, it ensures smooth rotation under high pressure, thanks to its low-torque, sealed stainless steel bearing system.

This swivel includes 1x radial ball bearing and 1x thrust ball bearing, supported by a reliable O-ring NBR seal system (with optional EPDM or FKM for customized sealing). Built for easy integration and long-term reliability, it offers maintenance-free operation and superior corrosion resistance.

Applications

• Pressure washing systems

• Hydraulic hose assemblies

• Ceiling and wall-mounted boom arms

• Industrial and commercial hose connections

• Water and chemical transfer lines

Key Features

• Model: Mosmatic DGS 30.052

• Material: Brass, nickel-plated

• Thread IN (G1): 1/4” NPTF

• Thread OUT (G2): 1/4” NPTF

• Seal System: O-ring NBR (Optional: EPDM or FKM)

• Bearings: 1x thrust and 1x radial ball bearing

• Low Torque Design: Smooth rotation at max pressure

• Maintenance-Free: Sealed stainless steel bearings

• Corrosion Resistant: Built for harsh environments

• Overall Diameter: 0.86”

• Overall Length: 2.52”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.75”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.75"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.52"

Diameter (D) (overall diameter): 0.86"

Weight: 4.9 oz

The Mosmatic DGS Swivel 30.153 is a premium brass, nickel-plated swivel designed for high and low pressure cleaning systems, hose connections, and hydraulic applications. Built for durability and smooth operation, this swivel ensures low torque performance under full pressure, ideal for commercial and industrial setups.

Engineered with sealed stainless steel bearings—including one thrust and one radial ball bearing—this swivel offers exceptional rotational efficiency and longevity. The integrated O-ring NBR sealing system (with optional EPDM or FKM materials) ensures tight sealing even in challenging environments.

Applications

• High and low-pressure hose connections

• Ceiling and wall-mounted booms

• Hydraulic equipment

• Commercial and industrial cleaning

• Automatic car washes

• Hose reels and rotating arms

Key Features

• Model: Mosmatic DGS 30.153

• Material: Brass, nickel-plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust + 1x radial ball bearing

• Low Torque: Smooth rotation at full pressure

• Maintenance-Free: Sealed stainless steel bearing system

• Overall Diameter: 0.98”

• Overall Length: 2.36”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.36"

Lenght 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 4.6 oz

The Mosmatic WDG Swivel 40.029 is a high-quality, nickel-plated brass swivel engineered for use in high-pressure hose reels, ceiling booms, and cleaning equipment. Designed for compact and reliable performance, it features a sliding bearing for smooth rotation and an O-ring NBR seal for dependable leak prevention. With 1/4” NPTF inlet and 3/8” NPTM outlet, it enables efficient flow transition between fittings. This swivel is rated for 2200 psi, operates up to 30 RPM, and withstands temperatures of up to 200°F, making it a dependable component in commercial cleaning systems.

Applications

• Washdown and fluid handling systems

• Medium-pressure hose reels

• Systems needing thread size transition

• OEM integration with spatial constraints

• Industrial cleaning tools

Features

• Durable nickel-plated brass body for corrosion resistance

• Sliding bearing design for controlled, consistent rotation

• Thread IN: ¼” NPTF | Thread OUT: ⅜” NPTM

• Extended body: Height – 1.02” | Overall Length – 2.56”

• Nominal Width (NW): ¼”

• Rated for 2200 psi operating pressure

• Withstands temperatures up to 200°F

• Operates at up to 30 RPM

• O-ring NBR seal ensures reliable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.56

Length 3 (L3): 1.14

Length 4 (L4): 1.77

Length 5 (L5): 0.51

Lenght 6 (L6): 0.27

Weight: 11.7 oz

The Mosmatic WDB Swivel 43.251 is a precision-engineered, nickel-plated brass swivel designed for high-pressure cleaning applications. Ideal for use in hose reels, ceiling booms, and pressure washers, this compact swivel features a sliding bearing for reliable, smooth rotation under load. Sealed with a durable O-ring NBR, it delivers long-lasting leak protection in tough environments. With a thread configuration of 1/4” NPTF (inlet) to 1/4” NPTM (outlet), this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it a powerful solution for compact, high-pressure systems.

Applications

• High-pressure hose reels

• Overhead or wall-mounted ceiling booms

• High-pressure washers and cleaning systems

• Stationary and mobile wash bays

• Car wash equipment and service stations

Key Features

• Durable nickel-plated brass construction for corrosion protection

• Sliding bearing design for smooth and controlled rotation

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Compact dimensions: Height – 1.06” | Overall Length – 1.89”

• Nominal Width (NW): 1/4”

• Handles pressures up to 4000 psi

• Operates at temperatures up to 250°F

• Supports 30 RPM for low-speed, high-pressure applications

• O-ring NBR seal for reliable, leak-resistant performance

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.10

Length 5 (L5): 0.39

Weight:10.0 oz
