Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

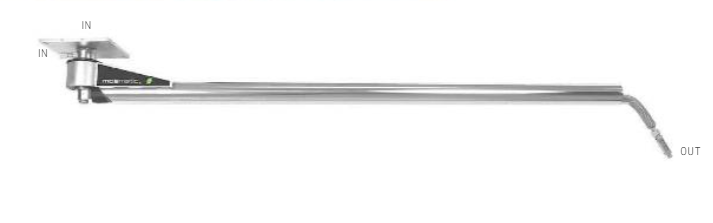

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 4",Weight 19.5 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

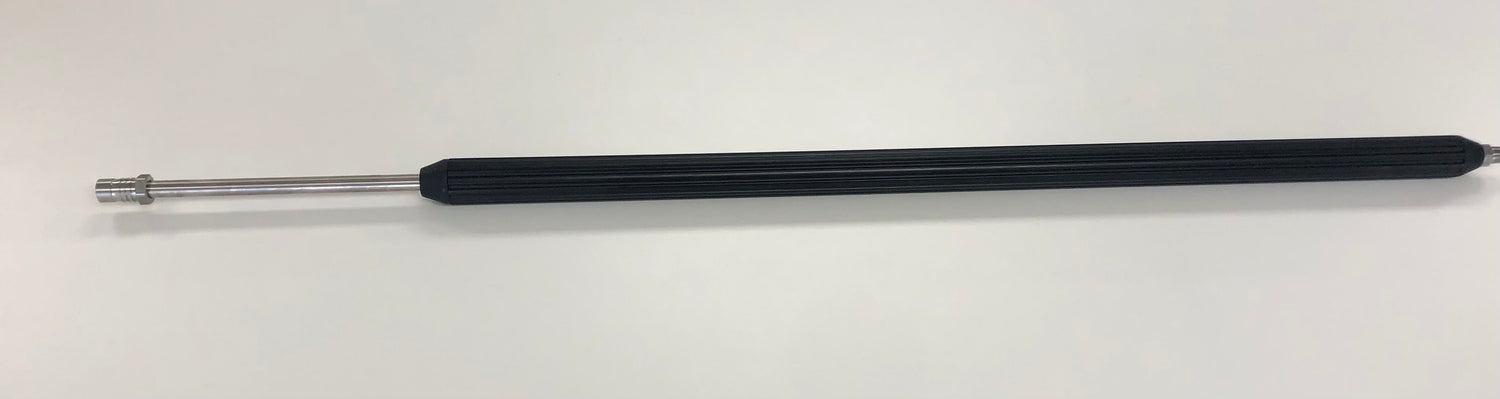

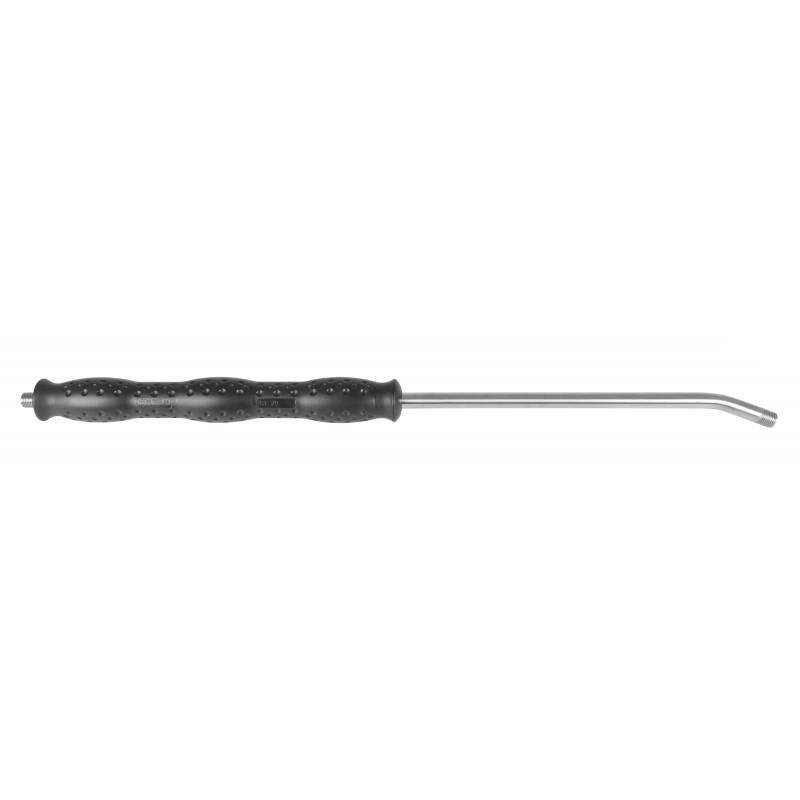

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• Nozzle not included.

 G1/4 M X G1/4 M - Weight 0.9 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Nominal width: 1/4"
• Throughput medium: pH 3-12

PLEASE NOTE: This is for the bent wand and does not come with the end tip or protective rubber nozzle guard

Custom Wand Build, Non-Catalog Item

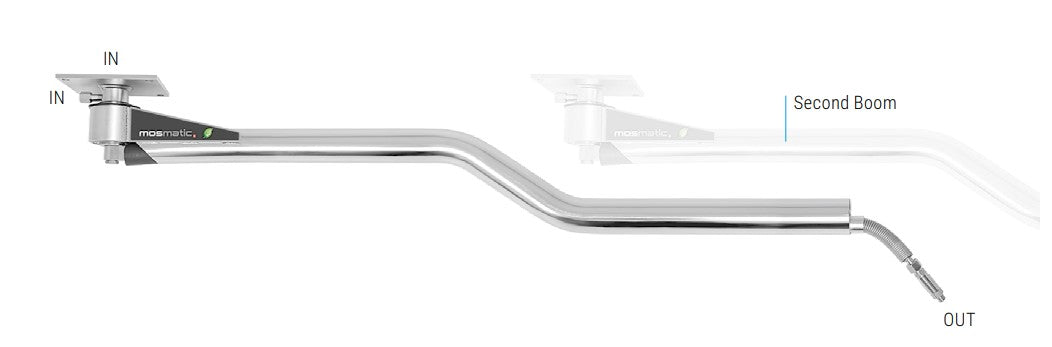

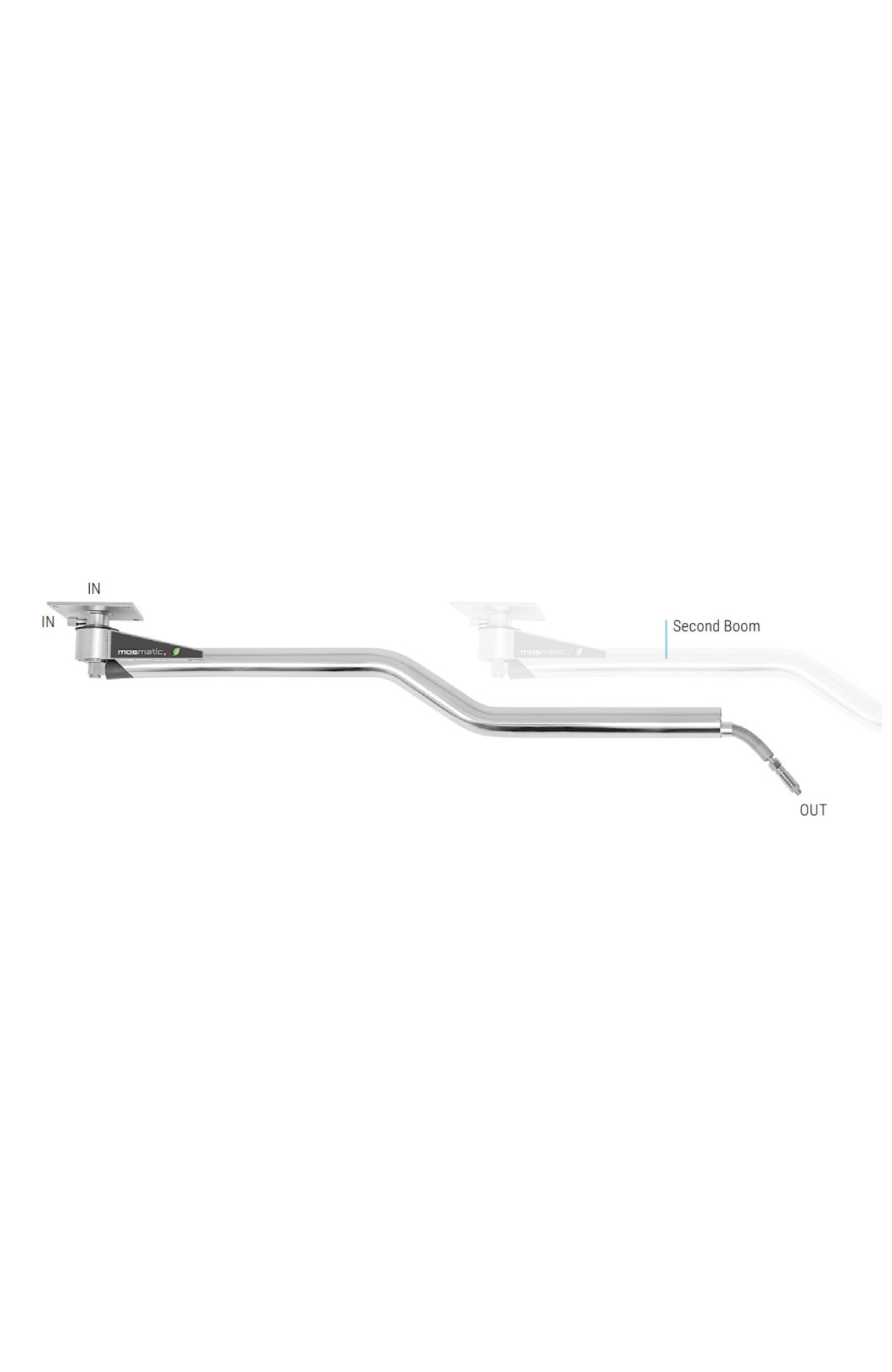

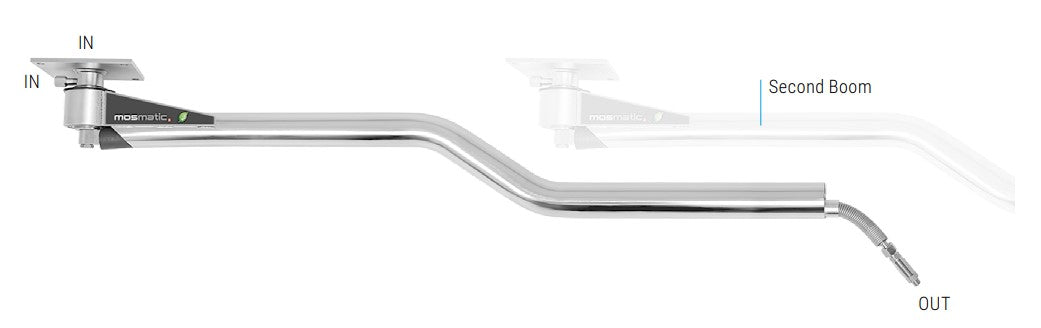

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 4'0", A 11' 6", B 29" C 45" D 23", Weight 18 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 2'9", A 8', B 22" C 31" D 16", Weight 15 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Mosmatic splash guards are a must prevent water from entering into pay station coin/card slots causing unwanted damage. Choose between the standard version and the flexible version. The flexible version has spring-loaded mounting, adding extra endurance. Existing units already equipped with a Mosmatic splash guard, can be easily upgraded to the new system

• Delivered ready to install
• A must for every pay station
• Protects the coin slot

Bracket version: round, Weight 0.2 lbs

Mosmatic splash guards are a must prevent water from entering into pay station coin/card slots causing unwanted damage.Choose between teh standard version and the flexible version.The flexible version has spring-loaded mounting, adding extra endurance. Existing units already equipped with a Mosmatic splash guard, can be easily upgraded to the new system

• Delivered ready to install
• A must for every pay station
• Protects the coin slot

Bracket version: angular, Weight 0.2 lbs

Mosmatic splash guards are a must prevent water from entering into pay station coin/card slots causing unwanted damage.Choose between teh standard version and the flexible version.The flexible version has spring-loaded mounting, adding extra endurance. Existing units already equipped with a Mosmatic splash guard, can be easily upgraded to the new system

• Delivered ready to install
• A must for every pay station
• Protects the coin slot

Bracket version: round, Weight 0.2 lbs

Mosmatic splash guards are a must prevent water from entering into pay station coin/card slots causing unwanted damage. Choose between the  standard version and the flexible version. The flexible version has spring-loaded mounting, adding extra endurance. Existing units already equipped with a Mosmatic splash guard, can be easily upgraded to the new system

• Delivered ready to install
• A must for every pay station
• Protects the coin slot

Bracket version: round, Weight 0.2 lbs

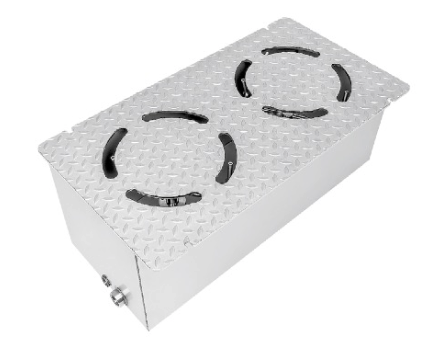

The TUW stationary is perfect for fixed ramp over or sub-floor undercarriage wash systems. Industrial grade stainless plates and boxes come complete with quad bearing swivels and welded balanced rotor arms. The high lift wash design removes heavy debris adn cleans without damage to the vehicles undercarriage. Whether a new install or system upgrade this is sue to impres

• Compact and solid construction
• Equipped with stabilizer nozzles
• Modular design
• Requires 4x EG-nozzles, according to your pump specifications

Dimentions(L/W/h 29.5"X11.8"X10.8", Weight 70.5 lbs, Swivel 2x DYT, Rator Arm 8"/10", Stab. Nozzle/Adapter 4x 14.901

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• RPM: up to 2000 rpm
• Water connection : 3/4"NPTF
• Water drain : 1"NPTF
• Throughput medium: pH 3-12

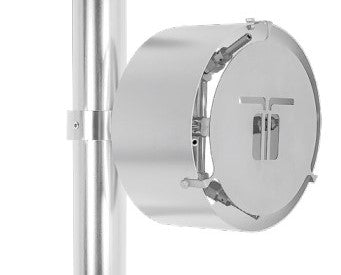

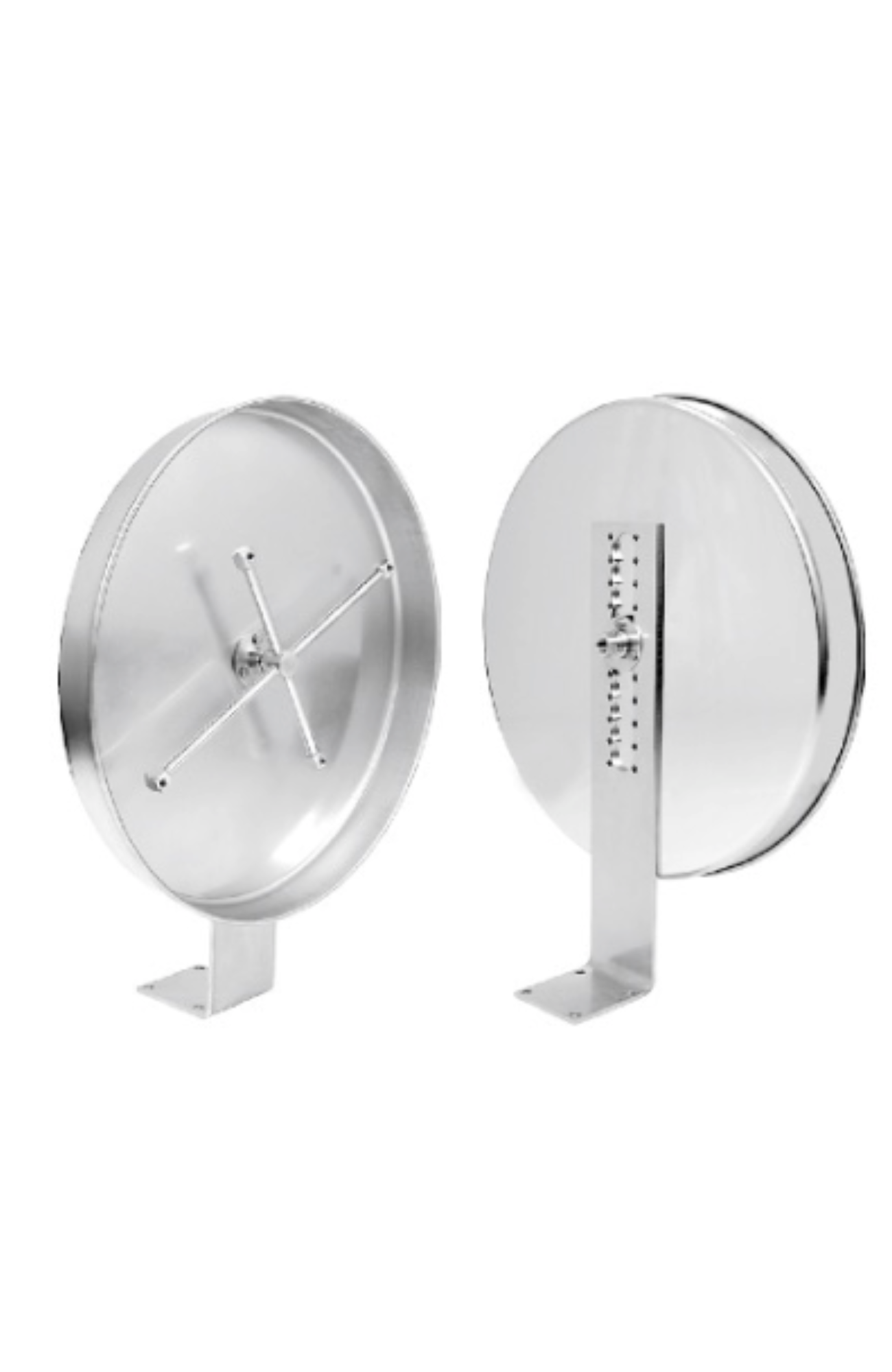

The Mosmatic Wheelblaster Pro is the new standard for vehicle wash systems. The complete wash head can be placed nearby anyway you wish and has variable height and swing adjustment. The unit comes equipped with 4 stablizer nozzles. The four 0° tips inserts (sold separately) and stabilzers increase the distance and impact to achieve optimal cleaning. It is possible to cover a larger cleaning area by mounting various cleaning heads on the 39" high stand. Chose the correct EG nozzle to match your pump.

• Polished stainless steel
• Equipped with stabilizer nozzles
• Seamless height and angle adjustable
• Multple cleaning heads can be installed
• High impact at distance
• Requires 4x EG-nozzles, according to your pump specifications

Swivel DYTIs, Rator Arm 6"/6", Stab. Nozzle/Adapter 4x 14.901, Stand -no, Weight 9.2 lbs

Cleaning Radius

• Distance - 10", Cleaning Surface - 18"
• Distance - 20", Cleaning Surface - 28"
• Distance - 30", Cleaning Surface - 38"
• Distance - 40", Cleaning Surface - 48"

Technical data

• Pressure: 4000 psi 27.5 MPa)
• Temperature: 250°F
• RPM: up to 2000 rpm
• Water connection : 3/4"NPTF
• Throughput medium: pH 3-12

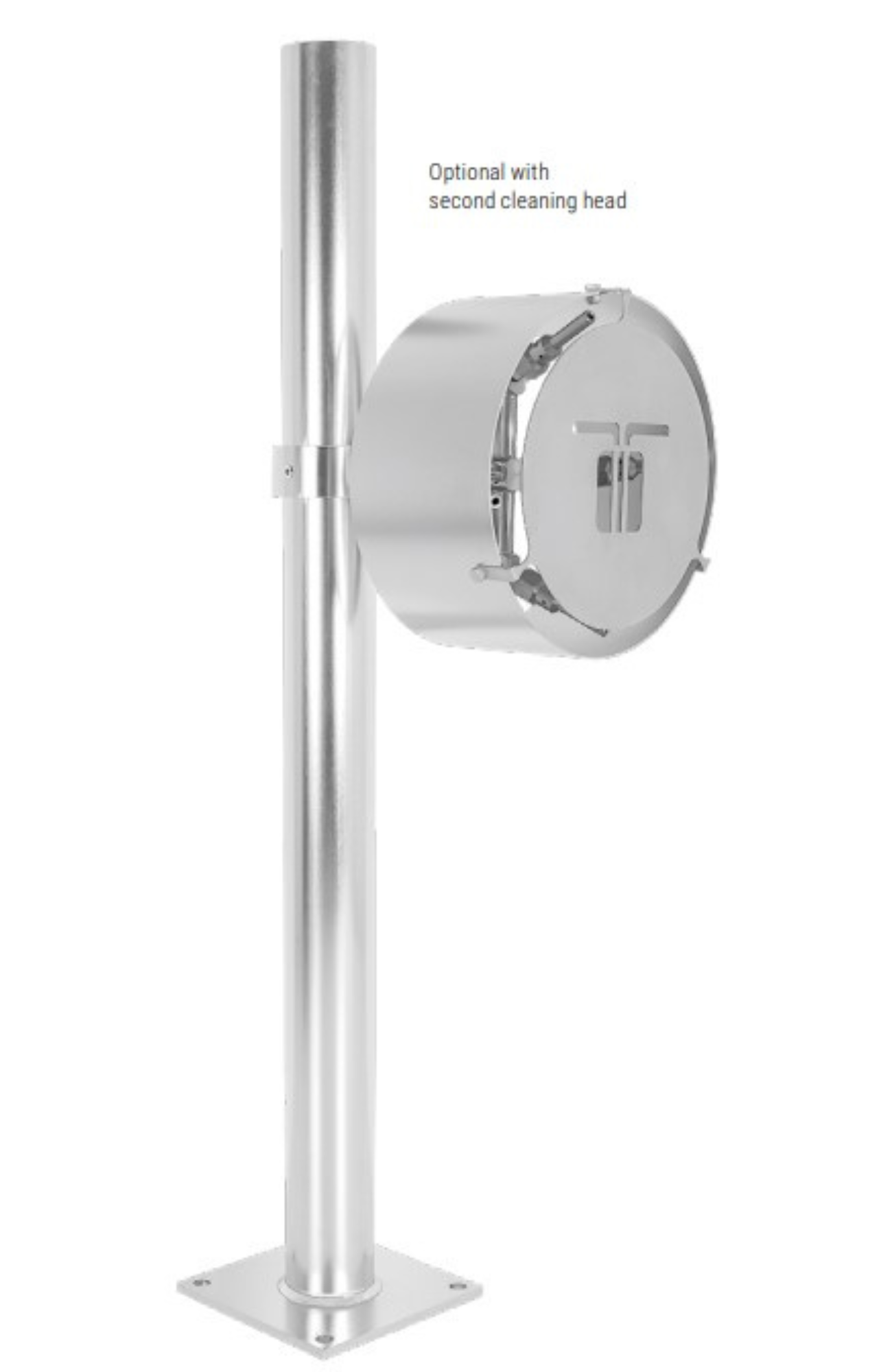

The Mosmatic WheelBlaster Pro with Stand - 84.546 is a cutting-edge wheel and underbody cleaning system engineered for maximum impact and flexibility in professional vehicle wash environments. Constructed from polished stainless steel, this heavy-duty cleaning unit is built to perform in high-demand applications, delivering superior cleaning power for wheels, chassis, and hard-to-reach vehicle components.

The adjustable wash head allows seamless control of height and cleaning angle, ensuring optimal coverage and precision. Equipped with a rotor arm, DYTI swivel, and four stabilizer nozzles, this system delivers high-impact cleaning at a distance—up to 48" of coverage from 40" away. The 39” stainless steel stand supports the mounting of multiple heads for even greater surface area reach and operational efficiency.

Designed for use in environments with pressures up to 4000 PSI, temperatures up to 250°F, and rotational speeds of up to 2000 RPM, the WheelBlaster Pro is compatible with a wide range of chemicals (pH 3–12) and features a ⅜” NPTF thread-in. This unit arrives fully equipped and ready for integration—nozzles not included.

Applications

• Commercial car wash tunnels and bays

• Fleet and truck wash systems

• Public transportation vehicle maintenance

• Agriculture and construction equipment cleaning

• Heavy-duty industrial cleaning systems

Features

• Polished Stainless Steel Construction: Built for corrosion resistance and long-term durability

• Adjustable Cleaning Angle & Height: Customizable wash head for precision cleaning

• High Impact at Distance: Cleans up to 48" from 40" away

• Rotor Arm with DYTI Swivel: Smooth, controlled rotation up to 2000 RPM

• Stabilizer Nozzles Included: Four nozzles increase reach and cleaning power (main nozzles sold separately)

• Mount Multiple Heads: 39” stand allows expansion for broader cleaning coverage

• High-Pressure & Temperature Tolerance: Rated for 4000 PSI and 250°F

• Chemical Compatibility: Operates effectively with cleaning agents from pH 3 to 12

• Thread-In Connection: Standard ⅜” NPTF inlet

Included

Wheelblaster Head: Yes

Stand: Yes

Swivel: DYTIs

Rotor arm: 6"/6"

Stablizier Nozzle : 4x 14.901

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜” NPTF

Diameter: 10"

Throughput medium: ph 3-12

Weight: 27.0 lbs

The Mosmatic WheelBlaster WBL 21" - 84.519 is a high-performance wheel and undercarriage cleaning solution, built for demanding vehicle wash environments. Crafted from polished stainless steel, this premium 21” unit delivers powerful, high-impact cleaning while maintaining exceptional durability and chemical resistance.

Designed with a DYT swivel featuring a quadruple bearing system, this model ensures ultra-smooth rotation, extended service life, and outstanding performance under continuous use. The unit includes a rotor arm and four stabilizer nozzles, increasing impact strength and cleaning distance for maximum coverage and precision.

Engineered to handle pressures up to 4000 PSI, temperatures up to 250°F, and rotation speeds up to 2000 RPM, the WBL 21" offers unmatched efficiency in vehicle wash systems. The unit connects via a ⅜” NPTF thread-in inlet and includes four 1/8” NPTF nozzle ports, and is chemically compatible with agents ranging from pH 3 to 12.
Note: High-pressure nozzles are not included.

Applications

• Tunnel car washes and automated wash bays

• Fleet and heavy truck cleaning systems

• Bus, train, and public transport maintenance

• Commercial vehicle detailing and service centers

• Agricultural and industrial vehicle wash operations

Features

• Quadruple Bearing System: Enhanced durability and smooth rotation

• Polished Stainless Steel Construction: Corrosion-resistant and built to last

• 21” Rotor Arm: Wide coverage for faster, more efficient cleaning

• DYT Swivel with Rotor Arm: Ensures reliable, high-speed 360° operation

• 4 Stabilizer Nozzles: Improves distance and cleaning power (main nozzles not included)

• High Performance Ratings: Handles up to 4000 PSI and 250°F

• Nozzle Configuration: ⅜” NPTF thread-in, 4x 1/8” NPTF nozzle ports

• Chemical Compatibility: Supports solutions within pH 3–12 range

Included

Wheelblaster Head: No

Stand: No

Swivel: DYT

Rotor arm: 18.5"/14"

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜” NPTF

Throughput medium: ph 3-12

Weight: 18.7 lbs

The Mosmatic WheelBlaster WBL 21" - 84.514 is a high-performance cleaning tool specifically designed for professional vehicle wash systems. With its polished stainless steel construction and advanced design, this 21-inch wheel blaster delivers exceptional cleaning power for wheels, wheel wells, and underbody components.

Equipped with a DYF swivel, rotor arm, and four stabilizer nozzles, the WBL 21" offers enhanced reach and impact force for deep, effective cleaning. The nozzle configuration increases the cleaning radius and ensures thorough dirt and debris removal in a fraction of the time. Its triple bearing system ensures smoother rotation, improved longevity, and reduced maintenance, making it ideal for high-volume, high-speed wash applications.

Designed to operate under high pressures up to 4000 PSI, temperatures up to 250°F, and rotational speeds up to 2000 RPM, this unit excels in high-demand environments. It features a ⅜” NPTF thread-in inlet and four 1/8” NPTF nozzle ports. With chemical compatibility ranging from pH 3 to 12, this wheel blaster integrates seamlessly into existing wash systems.
Note: Cleaning nozzles are not included.

Applications

• Tunnel and rollover car washes

• Commercial fleet and truck wash stations

• Public transit and heavy vehicle maintenance

• Detail shops and service centers

• High-volume vehicle wash bays

Features

• Polished Stainless Steel Body: Corrosion-resistant and built for durability

• 21” Rotor Arm: Wide cleaning coverage for maximum efficiency

• DYF Swivel with Rotor Arm: Smooth 360° operation for even cleaning results

• 4 Stabilizer Nozzles: Increased impact and coverage (main HP nozzles not included)

• High-Pressure & Temperature Rating: Operates at up to 4000 PSI and 250°F

• Nozzle Connections: Inlet thread ⅜” NPTF, nozzle ports 4x 1/8" NPTF

• High-Speed Performance: Rotational speed up to 2000 RPM

• Chemical Compatibility: Suitable for pH 3–12 cleaning agents

• Triple Bearing System: Provides smooth operation and extended lifespan

Included

Wheelblaster Head: No

Stand: No

Swivel: DYF

Rotor arm: 18.5"/14"

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜” NPTF

Throughput medium: ph 3-12

Weight: 16.1 lbs
