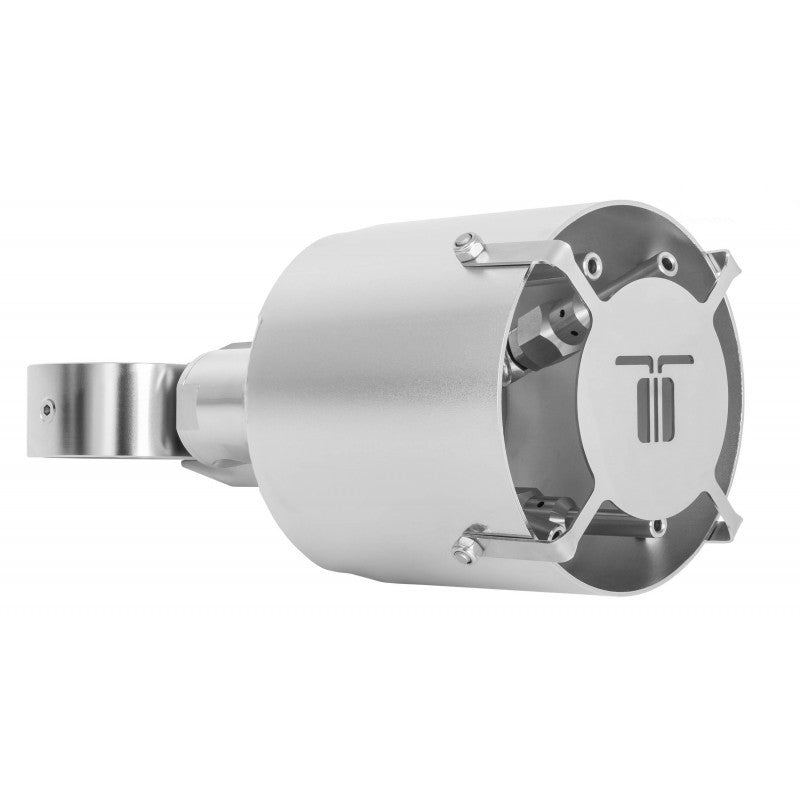

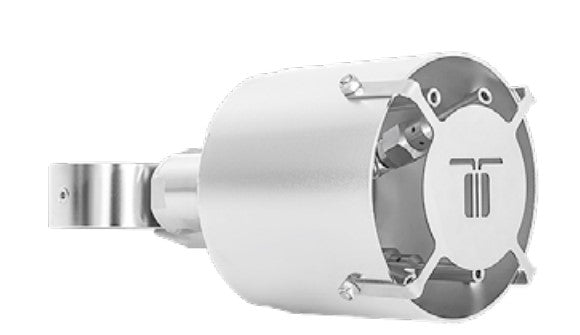

The Mosmatic Wheelblaster Pro is the new "must have" for vehicle wash system. The wash head is moveable and the desire cleaning angle and height can be selected according to the application. The unit comes equipped with 4 stabilizer nozzles. That increase the distance and impact to achieve optimal cleaning. It is possible to cover a larger cleaning area by mounting various cleaning heads on the 39" high stand. Choose the correct EG nozzle to match your pump. (Nozzles not included.)

• Polished stainless steel
• Equipped with stabilizer nozzles
• Seamless height and angle adjustable
• Multiple cleaning heads can be installed
• High impact at a distance

 Video

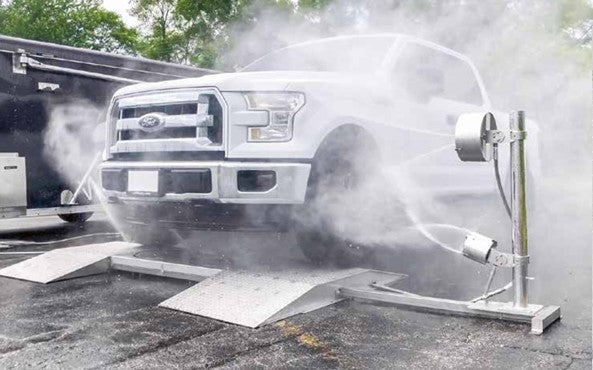

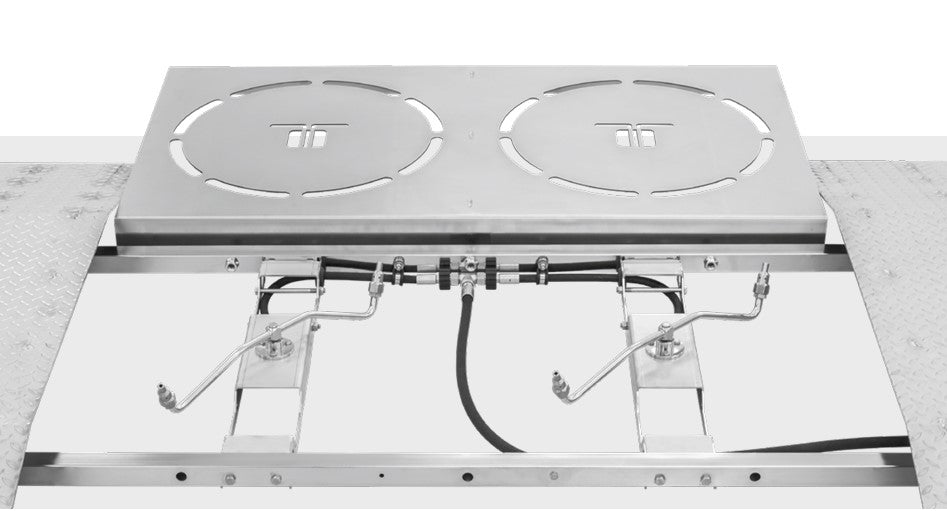

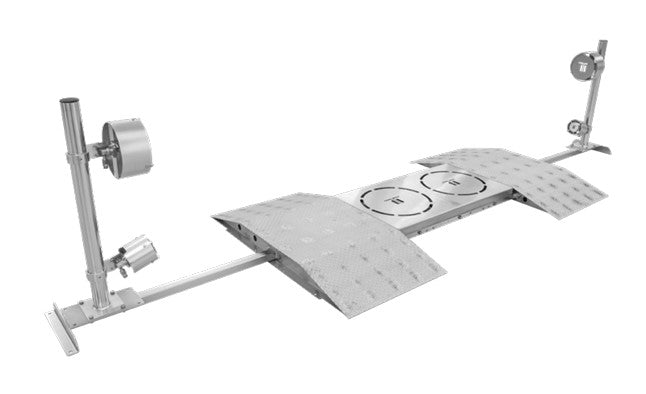

The Mosmatic Undercarriage Cleaner with Ramp – 80.506 is a premium stainless steel vehicle wash system designed for efficient and thorough underbody cleaning. Built for professional and commercial use, this system includes essential components such as the ramp, rigger, Low Volume WBP140 and WBP250 units, and stand. It is engineered to deliver consistent performance at pressures up to 1000 PSI and temperatures up to 250°F.

With compatibility across a wide pH range (3–12), it accommodates various cleaning agents while maintaining durability and corrosion resistance. A minimum ground clearance of 4.8" is required for operation, and the system spans 4' 9.6" in length, offering wide coverage for vehicles of all sizes. Accessories such as the extension, collision protection, high-performance pump, and hose kit can be added for expanded functionality. Nozzles are not included.

Note: Always consult local regulations regarding wastewater runoff compliance.

Applications

• Fleet maintenance and vehicle wash bays

• Commercial undercarriage cleaning systems

• Industrial cleaning requiring chemical compatibility

• High-pressure vehicle wash stations

• Car wash facilities focused on detailed chassis cleaning

Features

• Includes: 1x Ramp, 2x Rigger, 2x Low Volume WBP140 & 2x WBP250, 2x Stand

• Compatible Accessories: Extension, Collision Protection, Pump, Hose Kit

• Material: Heavy-duty stainless steel construction

• Pressure Rating: Up to 1000 PSI

• Temperature Tolerance: Operates up to 250°F

• Chemical Compatibility: pH 3–12 for a wide range of cleaners

• Length: 4' 9.6" for full vehicle width coverage

• Minimum Clearance: Requires 4.8" for effective use

• Modular System: Designed for easy upgrades and part replacement

Video

Included

1x Ramp

2x Rigger

2x Low Volume WBP140

2x Low Volume WBP250

2x Stand

Optional Items:

Extension

Collision Protection

High Performance Pump

Hose Kit

Specs

Material Type: Stainless steel

Pressure: 1000 PSI

Temperature: 250°F

RPM:

Thread In (Water connection for ramp) : ⅜” NPTM

Thread In (Water connection for WBP (Wheel Blaster Pro)): 4x 3/8" NPTF

Length: 4' 9.6"

Width: 16' 5.6"

Height : 4.73"

Min Ground Clearance: (if applicable): 4.8"

Throughput medium: ph 3-12

Weight: 512 lbs
