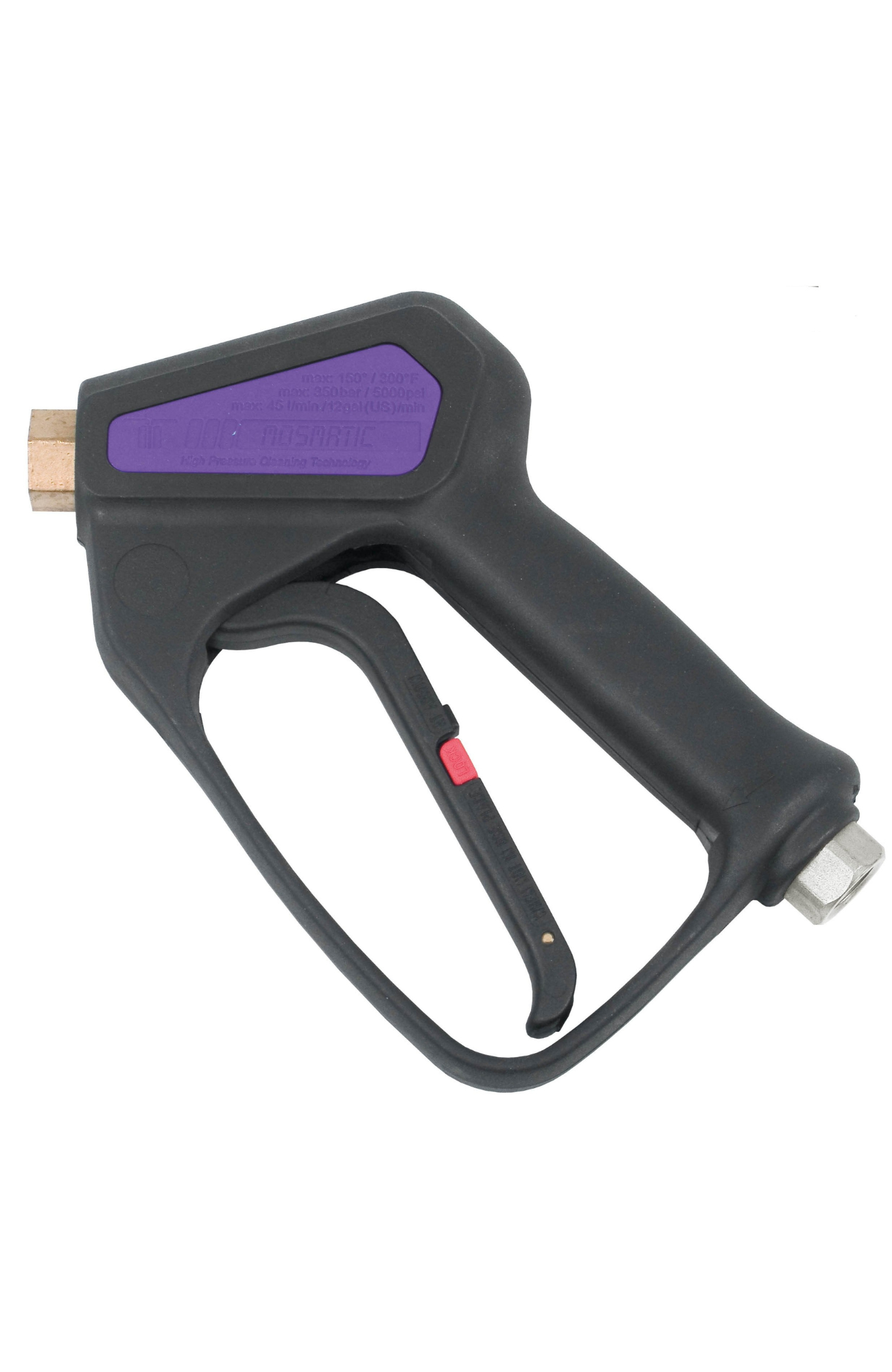

The Mosmatic HP Gun <Neo> - 29.081 is built for high-demand cleaning environments where performance, durability, and user comfort are critical. Designed with an ergonomic grip, this gun features advanced Low Trigger Force technology—reducing holding force by 90% and trigger effort by 40%—helping minimize operator fatigue during extended use. Engineered to handle extreme conditions, it supports a maximum pressure of 5000 PSI and a temperature rating up to 300°F. With a 3/8” NPTF inlet and a 1/4” NPTF outlet, this gun delivers secure, professional-grade connections for consistent, long-lasting performance.

Applications

• Industrial and heavy-duty pressure washing

• Commercial fleet and vehicle cleaning

• Equipment and machinery maintenance

• Agricultural and farm operations

• Construction site cleaning tasks

Features

• Ergonomically molded handle for comfort and control

• Low Trigger Force: 90% reduced holding, 40% less trigger effort

• High pressure capacity up to 5000 PSI

• Withstands temperatures up to 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Rugged design for professional and industrial use

Specs

Pressure: 5000 psi

Temperature: 300°F

Weep Function: No

Low Trigger Force: Yes

Groove: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Color: Purple

Weight: 1.3lbs

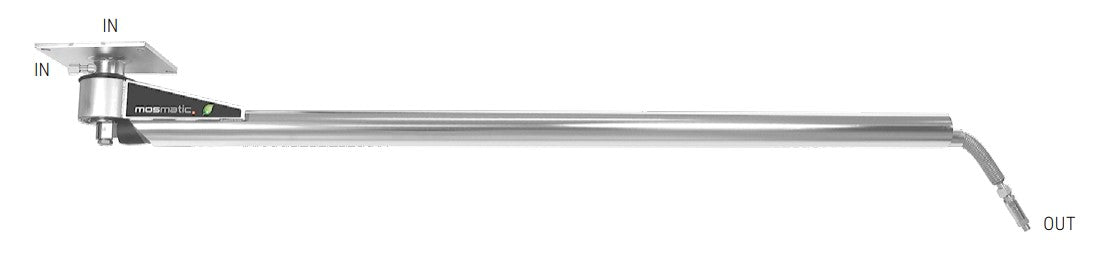

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 5'3",Weight 22lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length, GL=Grip length, Nozzle not included.

L 20", GL 8", G1 straight, IN 1/4"NPTM, OUT G3/8" M+ 1/8" NPTF, Weight 1.1 lbs

Mosmatic Pipe Plug SS for Boom VER G1/4"kM iSW7 DIN 906

Accessories

Stabilizer Housing 1/4” NPTM, 3.7”, Weight 0.2 lbs

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 6'3",Weight 23 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The Mosmatic DGS Swivel 30.654 is a high-quality brass, nickel-plated swivel engineered for high and low-pressure cleaning, hydraulic hose connections, ceiling booms, and other industrial applications. Designed for smooth performance under pressure, it features very low torque, sealed stainless steel bearings, and maintenance-free operation.

With a robust design including 1x thrust and 1x radial ball bearing, and an O-ring NBR seal system (upgradeable to EPDM or FKM), this swivel ensures reliable rotation at high PSI, making it an ideal solution for demanding environments.

Applications

• Pressure washers and cleaning systems

• Hydraulic and pneumatic hose assemblies

• Ceiling booms and rotary arms

• Car wash equipment

• Hose reels and industrial setups

Key Features

• Model: Mosmatic DGS 30.654

• Material: Brass, nickel plated

• Thread IN (G1): 3/8” NPTF

• Thread OUT (G2): 3/8” NPTF

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust, 1x radial ball bearing

• Low Torque Operation: Smooth rotation at high pressure

• Maintenance-Free: Sealed stainless steel bearings

• Overall Diameter: 0.98”

• Overall Length: 2.71”

• Nominal Width (NW): 3/8”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.71"

Diameter (D) (overall diameter): 0.98"

Weight: 5.6 oz

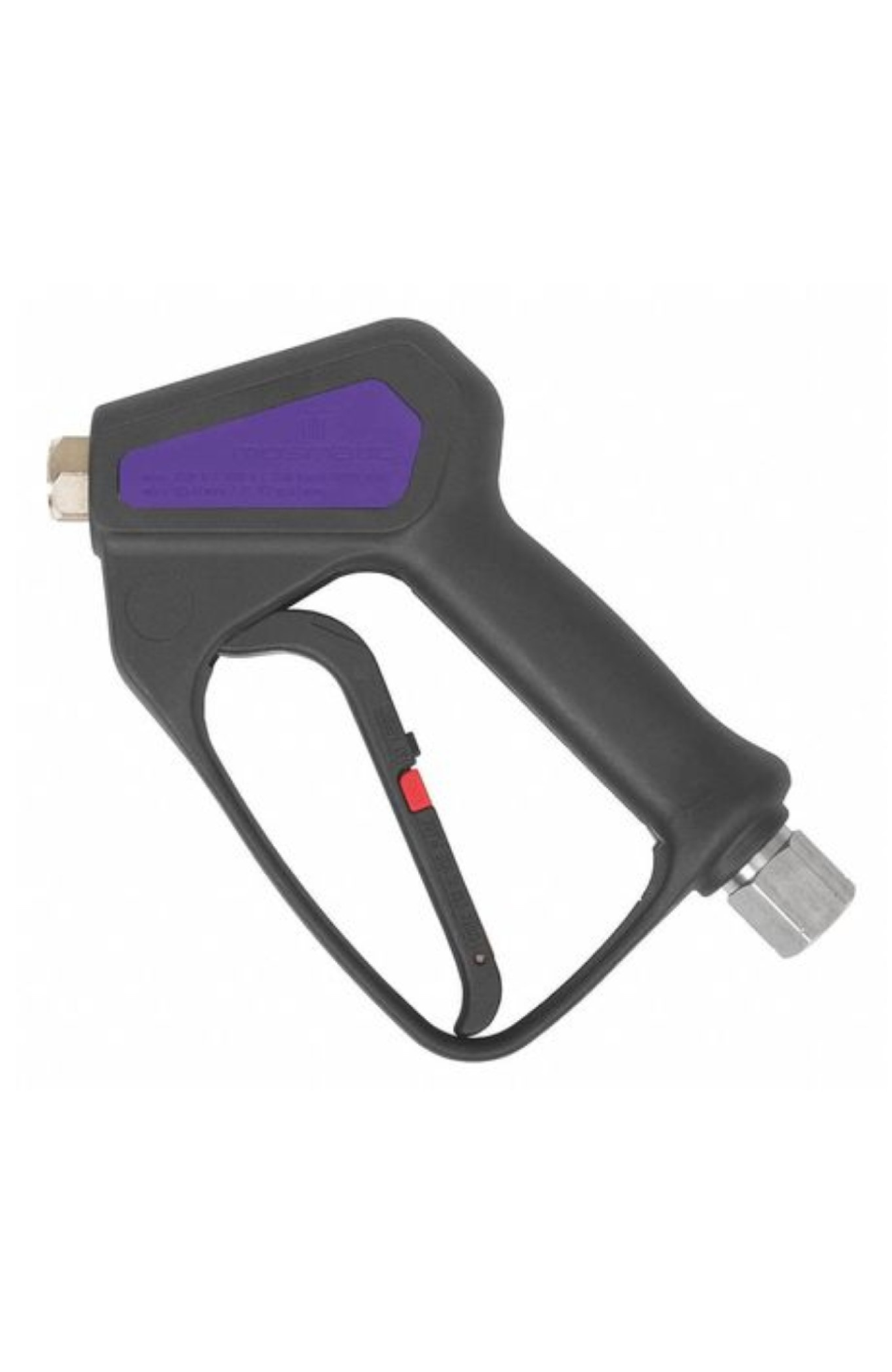

The Mosmatic HP Gun <Neo> - 29.134 is engineered for maximum performance, comfort, and reliability in demanding cleaning environments. Designed with an ergonomic molded grip and Low Trigger Force technology, it reduces holding force by 90% and trigger effort by 40%, making extended operation easy and comfortable. This model features a built-in swivel for enhanced maneuverability and a Weep function, allowing water to continually leak to prevent freezing during cold weather use. Rated for up to 5000 PSI and 300°F, the gun is built to handle heavy-duty, professional cleaning applications. It includes a 3/8” NPTF inlet and a 1/4” NPTF outlet for secure and reliable connections.

Applications

• Cold-weather and winter cleaning operations

• Industrial and commercial pressure washing

• Fleet and vehicle maintenance

• Agricultural equipment cleaning

• Construction machinery and site washdowns

Features

• Ergonomic molded handle for operator comfort

• Low Trigger Force: 90% reduced holding, 40% less trigger effort

• Integrated swivel for easy maneuverability

• Weep function prevents freezing in cold conditions

• Handles up to 5000 PSI pressure

• Temperature rated up to 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Durable and professional-grade construction

Specs

Pressure: 5000 psi

Temperature: 300°F

Weep Function: Yes

Low Trigger Force: Yes

Groove: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Color: Purple

Weight: 1.3lbs

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length, GL=Grip length, Nozzle not included.

L 41", GL 32", G1 bent, IN 1/4"NPTM, OUT G3/8" M+ 1/8" NPTF, Weight 1.4 lbs

Accessories

Drop down extension for DDP, stainless steel extended by 30”, Weight 35.6 lbs

Wall-mounted booms area ideal for outdoor areas or in wash bays where ceiling mounts are not an option. The wall bracket is designed for the boom to return to the resting position you selected.

• 180° smooth rotation
• Insulated HP-hose
• Multiple industry application

L1 4'9", Weight 22 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 4'9",Weight 21lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

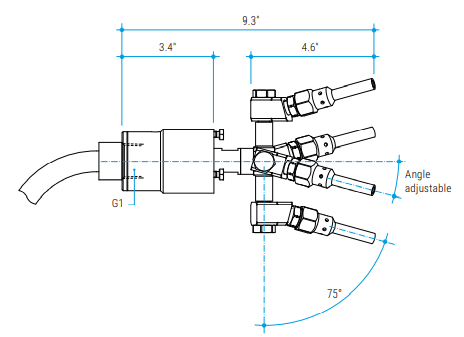

Thanks to the infinitely adjustable 360 spray angle, the rotation speed of this cleaning head can be adjusted as required. The four stabilizer nozzles make it possible to clean all kinds of surfaces from a further distance without pressure loss. Air injection nozzles expand and contain the water flow allowing longer distance of travel and provide that "punch impact" needed for heavy debris cleaning

Common applications: Train, Bus, Truck, Construction, Military Vehicles and Container Wash Systems.

• Complete hydro-driven head for vehicle washes
• Long range impact stabilizer nozzles
• Stainless steel construction
• High and low volume versions available

*Please Note: If you are referencing the North American Mosmatic Catalog for 2017 there is a misprint. This wand 903.655 is actually a straight wand (not bent).

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length, GL=Grip length, Nozzle not included.

L 28", GL 12", G1 straight, IN G1/4"M, OUT G1/4"M, Weight 0.9 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Nominal width: 1/4"
• Throughput medium: pH 3-12
