Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 2", connection top, Weight 18 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The Mosmatic WDG Swivel 40.231 is a robust, nickel-plated brass swivel engineered for high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed to meet the demands of commercial and industrial environments, it features a sliding bearing for smooth rotation and an O-ring NBR seal to ensure long-lasting, leak-resistant operation. With a 1/2” NPTF inlet and 1/2” NPTM outlet, this swivel provides reliable flow performance in larger diameter systems. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures of up to 200°F, making it ideal for versatile, high-pressure cleaning setups.

Applications

• Hose reels and ceiling booms

• Industrial pressure cleaning

• Washdown systems with 1/2" NPT connections

• Fluid handling in OEM and factory environments

• Heavy-duty rotary connections

Features

• Nickel-plated brass construction for corrosion resistance and durability

• Sliding bearing for consistent, low-friction rotation

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM

• Dimensions: Height – 1.57” | Overall Length – 2.48”

• Nominal Width (NW): 1/2”

• Rated for 2200 psi working pressure

• Handles temperatures up to 200°F

• Operates at speeds up to 30 RPM

• O-ring NBR seal provides dependable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.94

Height (H): 1.57

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.48

Length 3 (L3): 1.14

Length 4 (L4): 1.42

Length 5 (L5): 0.43

Lenght 6 (L6): 0.28

Weight: 13.5 oz

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length (without HP-Gun), GL=Grip length, Nozzle not included.

L 24", GL 12", G1 straight WS Yes, DG yes, IN G3/8"F, OUT 1/4" NPTF, Weight 2.5 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Nominal width: 1/4"
• Throughput medium: pH 3-12

Accessories

Extension for Ceiling-Booms, stainless steel extended by 4”, Weight 11.2 lbs

Accessories

HP-Hose Comfort NW 3/8”, lightweight construction, inner core PES, 12’, IN 3/8”NPTM, OUT 3/8”NPTM Weight 1.1 lbs

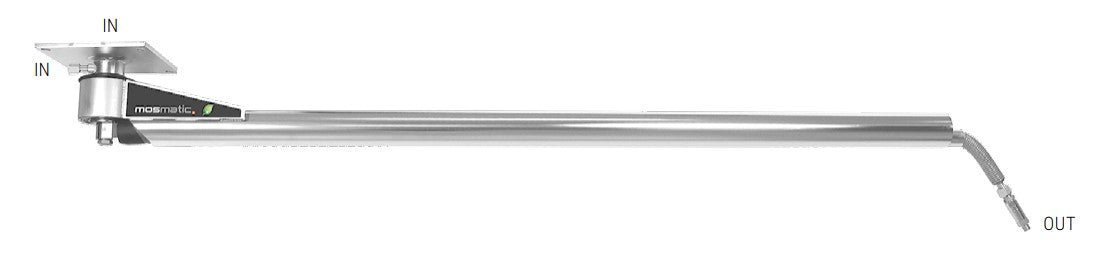

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 6'9",Weight 24 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

Whenever extended lengths and maximum flexibility are required, the wall-boom-extension is perfect for the job. Prime examples are truck wash bays, mining facilities, air craft maintenance and manufacturing plants. When combined correctly, a working radius of 39' is possible.

• Smooth, comfortable operation
• Extended work radius
• Solid construction
• Add ceiling boom: DKP

B 8'2", L max 7'5", Weight 56 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

*DKP Ceiling Boom Sold Separately.

*Will need fitting 51.129 to attach to boom, Sold Separately

Accessories

Pulley (pulling force up to 30N), 1.5”, 2x Pipe clamp included, Weight 1.8 lbs

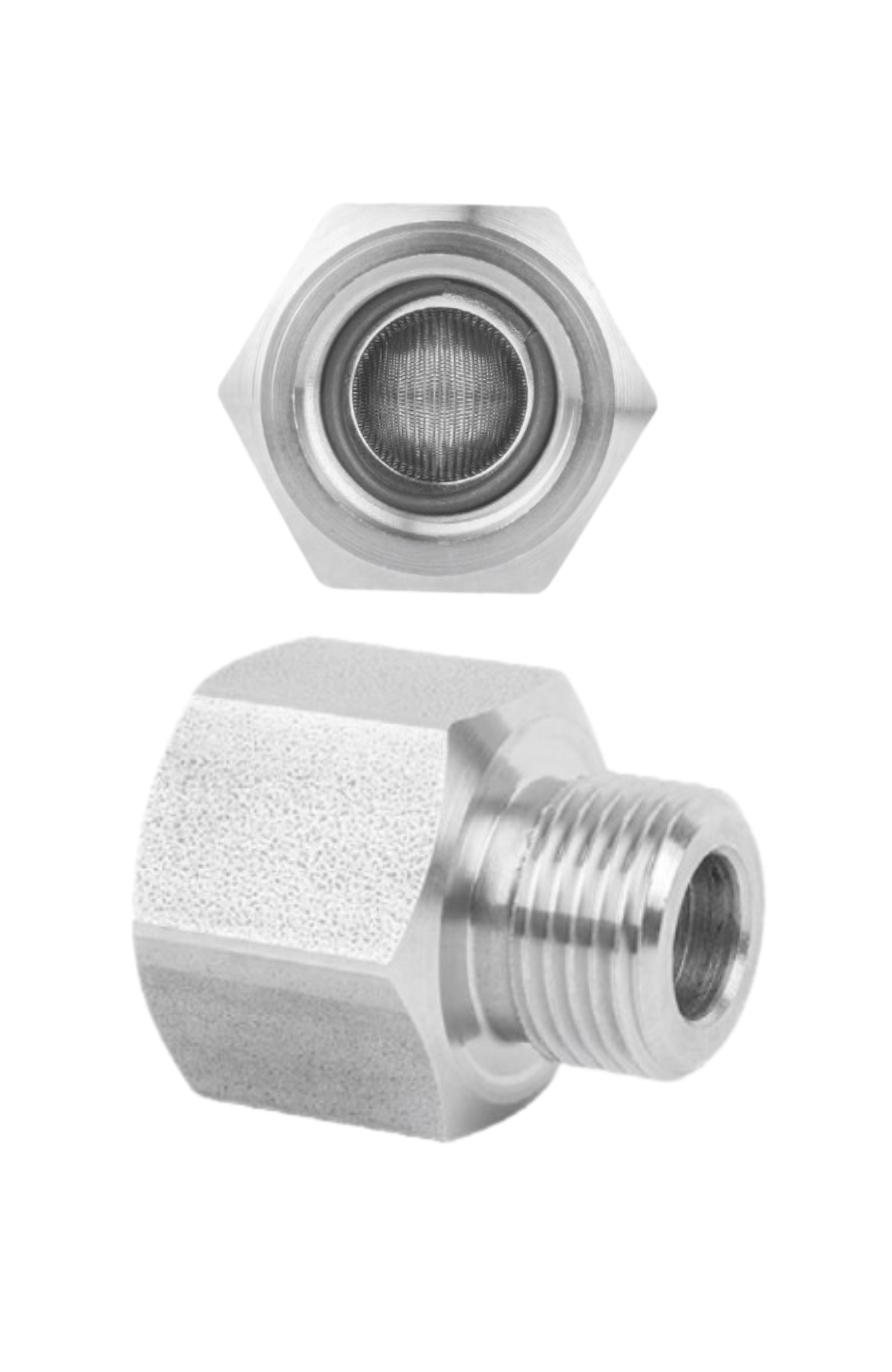

Optimize your reclaim wash system with the Mosmatic Adaptor with Sieve 53.012. Precision-crafted from 100% stainless steel, this high-quality adaptor is built for strength, corrosion resistance, and high-pressure performance in demanding environments.

The integrated 200 mesh sieve effectively minimizes debris flow, preventing particles from reaching the gun and vehicle surface. This ensures cleaner results and protects equipment over time. Designed for ease of use, it is simple to dismantle and clean. With 3/8" NPTF (Female) inlet and 3/8" NPTM (Male) outlet threads, it offers broad compatibility across pressure washing systems. Rated up to 4000 PSI, and with a wrench size (SW) of 0.87", the Mosmatic 53.012 provides a secure and straightforward installation.

Applications

• Reclaim water pressure washing systems

• Car wash equipment

• Industrial and commercial cleaning systems

Key Features

• Constructed from 100% stainless steel for maximum durability

• 200 mesh integrated sieve for fine debris filtration

• Thread Inlet: 3/8" NPTF (Female)

• Thread Outlet: 3/8" NPTM (Male)

• Wrench Size (SW): 0.87"

• Pressure Rating: Up to 4000 PSI

• Quick to dismantle and clean for easy maintenance

Specs

Material Type: Stainless Steel

Pressure: 4000psi

IN - 3/8" NPTF

OUT - 3/8" NPTM

Mesh Count - 200

SW - 0.87"

Weight - 0.13 lbs

The Mosmatic WDB Swivel 43.251 is a precision-engineered, nickel-plated brass swivel designed for high-pressure cleaning applications. Ideal for use in hose reels, ceiling booms, and pressure washers, this compact swivel features a sliding bearing for reliable, smooth rotation under load. Sealed with a durable O-ring NBR, it delivers long-lasting leak protection in tough environments. With a thread configuration of 1/4” NPTF (inlet) to 1/4” NPTM (outlet), this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it a powerful solution for compact, high-pressure systems.

Applications

• High-pressure hose reels

• Overhead or wall-mounted ceiling booms

• High-pressure washers and cleaning systems

• Stationary and mobile wash bays

• Car wash equipment and service stations

Key Features

• Durable nickel-plated brass construction for corrosion protection

• Sliding bearing design for smooth and controlled rotation

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Compact dimensions: Height – 1.06” | Overall Length – 1.89”

• Nominal Width (NW): 1/4”

• Handles pressures up to 4000 psi

• Operates at temperatures up to 250°F

• Supports 30 RPM for low-speed, high-pressure applications

• O-ring NBR seal for reliable, leak-resistant performance

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.10

Length 5 (L5): 0.39

Weight:10.0 oz

The Mosmatic WDG Swivel 40.029 is a high-quality, nickel-plated brass swivel engineered for use in high-pressure hose reels, ceiling booms, and cleaning equipment. Designed for compact and reliable performance, it features a sliding bearing for smooth rotation and an O-ring NBR seal for dependable leak prevention. With 1/4” NPTF inlet and 3/8” NPTM outlet, it enables efficient flow transition between fittings. This swivel is rated for 2200 psi, operates up to 30 RPM, and withstands temperatures of up to 200°F, making it a dependable component in commercial cleaning systems.

Applications

• Washdown and fluid handling systems

• Medium-pressure hose reels

• Systems needing thread size transition

• OEM integration with spatial constraints

• Industrial cleaning tools

Features

• Durable nickel-plated brass body for corrosion resistance

• Sliding bearing design for controlled, consistent rotation

• Thread IN: ¼” NPTF | Thread OUT: ⅜” NPTM

• Extended body: Height – 1.02” | Overall Length – 2.56”

• Nominal Width (NW): ¼”

• Rated for 2200 psi operating pressure

• Withstands temperatures up to 200°F

• Operates at up to 30 RPM

• O-ring NBR seal ensures reliable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.56

Length 3 (L3): 1.14

Length 4 (L4): 1.77

Length 5 (L5): 0.51

Lenght 6 (L6): 0.27

Weight: 11.7 oz

The Mosmatic DGS Swivel 30.153 is a premium brass, nickel-plated swivel designed for high and low pressure cleaning systems, hose connections, and hydraulic applications. Built for durability and smooth operation, this swivel ensures low torque performance under full pressure, ideal for commercial and industrial setups.

Engineered with sealed stainless steel bearings—including one thrust and one radial ball bearing—this swivel offers exceptional rotational efficiency and longevity. The integrated O-ring NBR sealing system (with optional EPDM or FKM materials) ensures tight sealing even in challenging environments.

Applications

• High and low-pressure hose connections

• Ceiling and wall-mounted booms

• Hydraulic equipment

• Commercial and industrial cleaning

• Automatic car washes

• Hose reels and rotating arms

Key Features

• Model: Mosmatic DGS 30.153

• Material: Brass, nickel-plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust + 1x radial ball bearing

• Low Torque: Smooth rotation at full pressure

• Maintenance-Free: Sealed stainless steel bearing system

• Overall Diameter: 0.98”

• Overall Length: 2.36”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.36"

Lenght 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 4.6 oz

The Mosmatic Foam Head - 29.129 is a high-performance foam application tool designed to enhance cleaning results in self-serve car washes, industrial environments, and food-grade sanitation. Built with durable stainless steel, this 7" foam head is engineered for long-lasting use and superior foam generation.

Equipped with an integrated air injector nozzle, the foam head produces thick, consistent foam, improving chemical saturation and making dirt removal faster and more effective. Its adjustable flat spray nozzle allows for on-the-fly customization, enabling operators to adapt foam output for various applications, from precise spot treatment to broad coverage.

The unit features a G1/4" F thread-in connection and a 1.9 nozzle size, making it compatible with most standard spray wands and foam systems. Designed to handle pressures up to 4500 PSI, temperatures up to 212°F, and supporting a maximum flow rate of 12 GPM, this foam head performs reliably across a wide pH range (3–12). Lightweight, ergonomic, and easy to install, it’s a smart upgrade for any professional cleaning operation.

Applications

• Self-service car wash systems

• Food industry cleaning and sanitation

• Industrial equipment wash bays

• Fleet and commercial vehicle washing

• Facility maintenance and pressure washing

Features

• Durable Stainless Steel Body: Built for high-pressure, high-temperature use

• Adjustable Spray Pattern: Flat nozzle for customizable foam coverage

• Integrated Air Injector: Delivers rich, consistent foam output

• High-Pressure Rated: Withstands up to 4500 PSI and 212°F

• Wide Chemical Compatibility: Supports pH 3–12 cleaning agents

• Easy Installation: G1/4" F thread-in fits most spray wands

• Efficient Throughput: Handles up to 12 GPM

• Ideal for Versatile Cleaning: Suits car wash, industrial, and food service

Specs

Material Type: Stainless Steel

Pressure: 4500 psi

Temperature:  212°F

Thread In: G1/4"F

Length: 7"

Throughput: max 12 gpm

Throughput medium: ph 3-12

Weight: 0.4 lbs

Accessories
