The Mosmatic DGLI Swivel 31.947 is a high-precision stainless steel swivel designed for applications with both radial and thrust forces. Built for high-flow, high-pressure cleaning systems, it is perfect for automatic car washes, hose reels, and industrial environments requiring durability and top performance.

This model features a triple bearing system with two radial and one thrust ball bearing, offering smooth operation and longevity. The O-ring NBR seal system ensures reliable sealing, with optional upgrades to EPDM or FKM for enhanced chemical resistance. With a corrosion-resistant stainless body, bulkhead mounting, and a maintenance-free design, the DGLI 31.947 guarantees high efficiency and low downtime.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reels

• Gantry wash systems

• Industrial and commercial cleaning equipment

• High-volume pressure washer systems

Key Features

• Model: DGLI 31.947

• Design: Inline swivel, bulkhead mount

• Material: Stainless steel construction

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple bearing system (2 radial, 1 thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 3/8" NPTM

• Overall Diameter: 0.98”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGLI Swivel 31.946 is a stainless steel swivel engineered for high-flow and high-pressure cleaning applications. Ideal for use in automatic car wash systems, hose reels, and other industrial setups, it effectively handles thrust and radial forces in continuous-use environments.

This high-performance swivel features a triple bearing system (2x radial ball bearings and 1x thrust ball bearing) for smooth operation and extended service life. Its O-ring NBR seal system ensures a secure, leak-resistant fit and is optionally available in EPDM or FKM for specialized applications. Designed with a bulkhead fitting for easy mounting, the 31.946 model is maintenance-free, corrosion-resistant, and built to Mosmatic's high precision standards.

Applications

• Automatic and touchless car wash systems

• High-pressure hose reels

• Self-rotating cleaning devices

• Industrial wash equipment

• Mobile pressure wash units

Key Features

• Model: Mosmatic DGLI 31.946

• Material: Stainless steel

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTF

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting Style: Bulkhead fitting

• Corrosion Resistance: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98”

• Overall Length: 2.75”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.75"

Diameter (D) (overall diameter): 0.98"

Weight: 6.4 oz

The Mosmatic DGLI Swivel 31.945 is a stainless steel, high-flow swivel designed to handle both thrust and radial forces in automated car wash systems and high-pressure hose reels. Its durable construction and precision engineering make it a top choice for long-lasting, maintenance-free performance in industrial and commercial cleaning environments.

This swivel is built with a triple bearing system—featuring 2x radial ball bearings and 1x thrust ball bearing—for smooth, stable operation under demanding conditions. The integrated O-ring NBR seal system ensures reliable leak prevention and is optionally available in EPDM or FKM for compatibility with more aggressive chemicals. Its corrosion-resistant stainless steel body, bulkhead fitting, and compact design make it ideal for tight installations and continuous-duty cycles.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Robotic and gantry wash systems

• Industrial and commercial cleaning equipment

• High-flow pressure washer connections

Key Features

• Design: Straight inline swivel

• Material: Stainless steel

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple (2x radial, 1x thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTM

• Overall Diameter: 0.98”

• Overall Length: 2.55”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting Style: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4 NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.62"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.43"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGLI Swivel 31.943 is a high-performance stainless steel swivel engineered for demanding applications involving thrust and radial forces. Ideal for automatic car wash systems and high-pressure hose reels, this swivel supports high flow and delivers reliable performance under pressure.

Designed with a triple bearing system—featuring two radial ball bearings and one thrust bearing—the DGLI 31.943 ensures smooth operation and longevity. It comes with a durable O-ring NBR seal system, with optional EPDM or FKM upgrades for improved chemical resistance. Corrosion-resistant and maintenance-free, this swivel provides precision and durability in every application.

Applications

• Automatic and tunnel car washes

• High-pressure hose reel systems

• Commercial vehicle wash bays

• Industrial cleaning equipment

• Self-rotating cleaning tools

Key Features

• Model: Mosmatic DGLI 31.943

• Material: Stainless Steel

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): G3/8" M

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting: Bulkhead fitting

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGLI Swivel 31.942 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-flow, high-pressure cleaning applications. Built for automatic car wash systems and hose reels, it delivers unmatched durability, smooth rotation, and long-term reliability.

This model features a triple bearing system—two radial ball bearings and one thrust bearing—along with a dependable O-ring NBR seal system (optional: EPDM or FKM). Its corrosion-resistant stainless steel construction and bulkhead mount design make it ideal for harsh environments and continuous operation with minimal maintenance.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reels

• Commercial wash bays

• Agricultural and industrial equipment cleaning

• Water recovery systems

Key Features

• Model: Mosmatic DGLI 31.942

• Material: Stainless Steel

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTF

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing Type: Triple bearing (2 radial, 1 thrust)

• Mounting Style: Bulkhead

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free design

• Overall Diameter: 0.98”

• Overall Length: 2.87”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Maximum Pressure: 4000 PSI

• Maximum RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Diameter (D) (overall diameter): 0.98"

Weight: 6.5 oz

The Mosmatic 29.152 Complete Brush Head is a premium cleaning tool designed for professional-grade wash systems. Equipped with 3.5" natural hogs hair bristles and a 1/2" NPTF thread inlet, this brush head ensures safe, scratch-free cleaning on delicate surfaces such as vehicle paint, glass, and chrome.

The longer bristle length offers extended reach and gentle flexibility, while the durable construction supports high-performance use in both manual and automated cleaning applications.

Applications

• Car wash systems and vehicle detailing centers

• Manual and automated surface cleaning tools

• Gentle cleaning of painted, chrome, and glass surfaces

• Commercial and industrial wash environments

Key Features

• 3.5" natural hogs hair bristles for ultra-soft, effective cleaning

• 1/2" NPTF thread inlet for standard, secure connection

• Provides scratch-free performance on sensitive surfaces

• Excellent water retention and bristle durability

• Built for professional car wash and detailing systems

• Ideal for use in high-traffic commercial cleaning setups

Specs

Material Type: Hogs Hair

Thread IN: 1/2" NPTF

Bristle Lenght: 3.5"

Weight: 1.6 lbs

The Mosmatic 29.151 Complete Brush Head is a high-quality cleaning attachment featuring 2.4" natural hogs hair bristles and a 1/2" NPTF thread inlet. Designed for gentle yet effective surface cleaning, this brush head is ideal for professional car wash systems and detailing applications requiring scratch-free performance.

The natural hogs hair bristles provide exceptional softness, excellent water retention, and long-lasting durability. Built for versatility, it integrates seamlessly with high-pressure wash tools and is well-suited for delicate surfaces like paint, chrome, and glass.

Applications

• Car wash systems and vehicle detailing

• Surface cleaning for painted, chrome, and glass finishes

• Manual and automated high-pressure cleaning tools

• Commercial and industrial wash bays

Key Features

• 2.4" hogs hair bristles for ultra-soft, scratch-free cleaning

• 1/2" NPTF thread inlet for secure, standard connection

• Excellent water absorption and bristle durability

• Compatible with Mosmatic and other wash system components

• Ideal for delicate surfaces in professional wash settings

• Built for long-term, heavy-duty use

Specs

Material Type: Hogs Hair

Thread IN: 1/2" NPTF

Bristle Lenght: 2.4"

Weight: 1.5 lbs

The Mosmatic HP Gun <Neo> - 29.142 is expertly designed to provide superior comfort, durability, and performance in even the toughest cleaning conditions. Featuring an ergonomic molded handle and advanced Low Trigger Force technology, it reduces holding force by 90% and trigger effort by 40%, helping minimize operator fatigue during extended use. This model is also equipped with a Weep function that allows water to continuously leak, preventing freezing in cold temperatures. Rated for up to 5000 PSI and 300°F, it includes a 3/8” NPTF inlet and a 1/4” NPTF outlet to ensure secure, professional-grade connections.

Applications

• Cold-weather and winter pressure washing

• Industrial and commercial cleaning

• Automotive and truck wash stations

• Agricultural machinery maintenance

• Construction site cleaning

Features

• Ergonomic molded handle for superior comfort

• Low Trigger Force: 90% reduced holding, 40% less trigger effort

• Weep function prevents freezing during cold weather

• Handles pressures up to 5000 PSI

• Max temperature rating of 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Built for rugged, professional use

Specs

Pressure: 5000 psi

Temperature: 300°F

Weep Function: Yes

Low Trigger Force: Yes

Groove: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Color: Purple

Weight: 1.3lbs

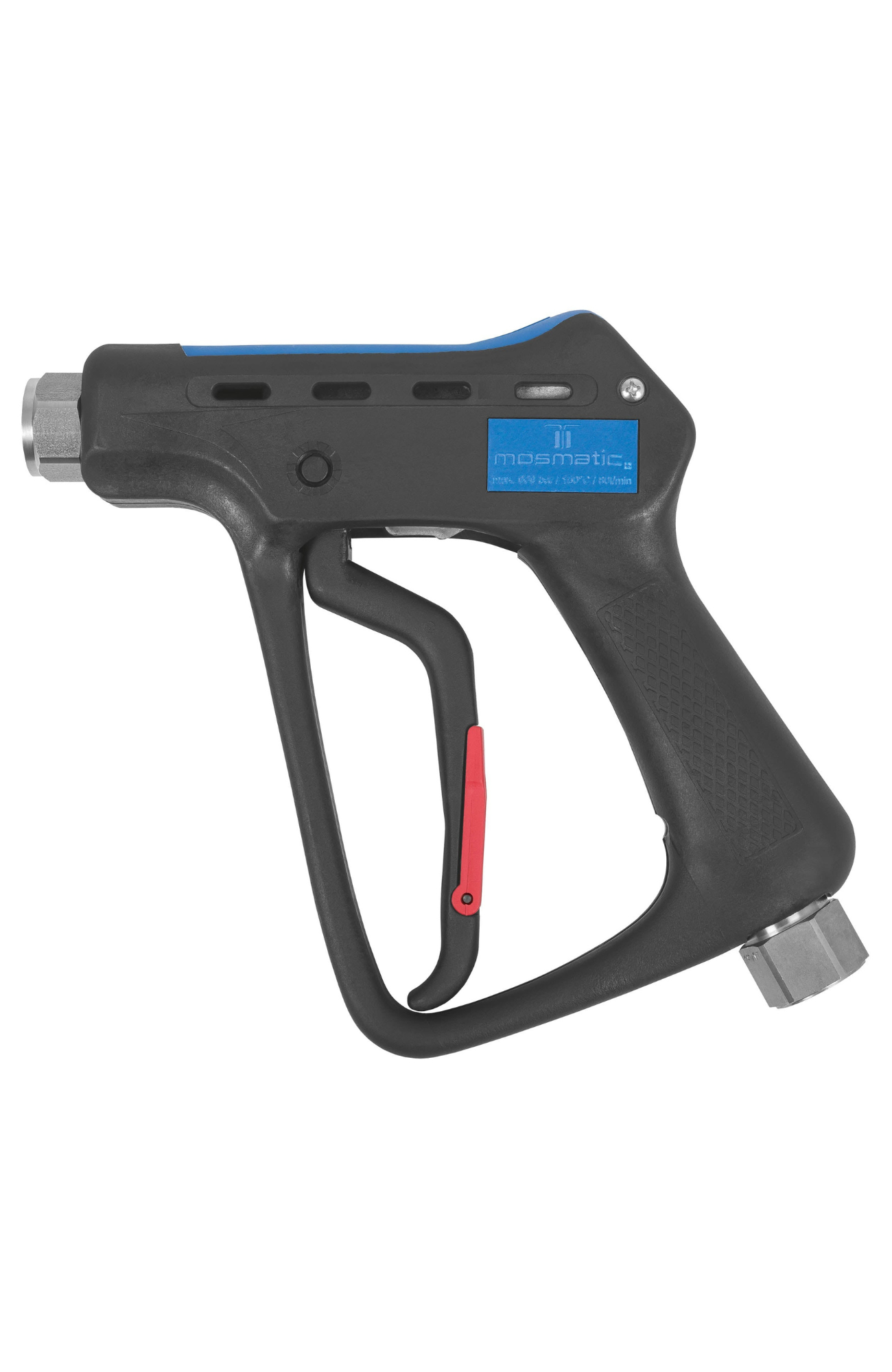

The Mosmatic HP Gun <Neo> - 29.136 is built for extreme performance and durability, making it the perfect choice for heavy-duty industrial cleaning tasks. Featuring an ergonomic molded design for maximum operator comfort, this high-pressure gun is engineered to handle pressures up to 8700 PSI and temperatures up to 300°F. It is equipped with a 1/2” NPTF inlet and a 1/2” NPTF outlet, ensuring secure, reliable connections even in the most demanding environments. Designed for power, precision, and long service life, the Mosmatic Neo series is ideal for the toughest cleaning challenges.

Applications

• Heavy-duty industrial cleaning

• Commercial equipment and machinery maintenance

• Construction site pressure washing

• Agricultural and farming equipment cleaning

• Fleet and large vehicle wash facilities

Features

• Ergonomic molded handle for operator comfort

• Extreme high-pressure capacity up to 8700 PSI

• Max temperature rating of 300°F

• Thread Inlet: 1/2” NPTF

• Thread Outlet: 1/2” NPTF

• Heavy-duty, professional-grade construction

• Designed for long-lasting durability and performance

Specs

Pressure: 8700 psi

Temperature: 300°F

Weep Function: No

Low Trigger Force: No

Groove: No

Swivel: No

Thread In: 1/2" NPTF

Thread Out: 1/2" NPTF

Color: Blue

Weight: 1.5lbs

The Mosmatic 29.127 wand holder is a heavy-duty, floor-mounted unit designed for professional car wash environments where freeze protection and durability are essential. Featuring an integrated 0.8" weep connection, this model prevents water from stagnating or freezing by enabling constant drainage or flow-through.

Constructed from polished stainless steel and engineered with a wide 3.9" inner diameter, it accommodates larger or foam-insulated lances, making it suitable for self-serve bays using bulkier cleaning tools. The 28.3" height offers full support for commercial-length spray wands in a clean, upright position.

This model is perfect for wash bays exposed to outdoor conditions or colder climates, where reliability and protection are critical.

Applications:

• Self-serve car wash bays

• Truck and fleet washing facilities

• Cold-weather pressure washing environments

• Industrial washdown stations

Features:

• Floor-mounted for secure wand support

• Built-in 0.8" weep connection to prevent freeze damage

• Large 3.9" diameter fits oversized or insulated lances

• High-polish stainless steel finish for corrosion resistance

• Durable design for indoor or outdoor installation

Specs:

Product Type: Wand Holder
Category: Car Wash
Brand: Mosmatic
Part Number: 29.127
Material: Polished Stainless Steel
Nominal: N/A
Pressure: N/A
Temperature: N/A
Threading In: N/A
Threading Out: N/A
Weight: 7.9 lbs

Mosmatic offers a wide variety of high pressure trigger guns. From our relax actions guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available.

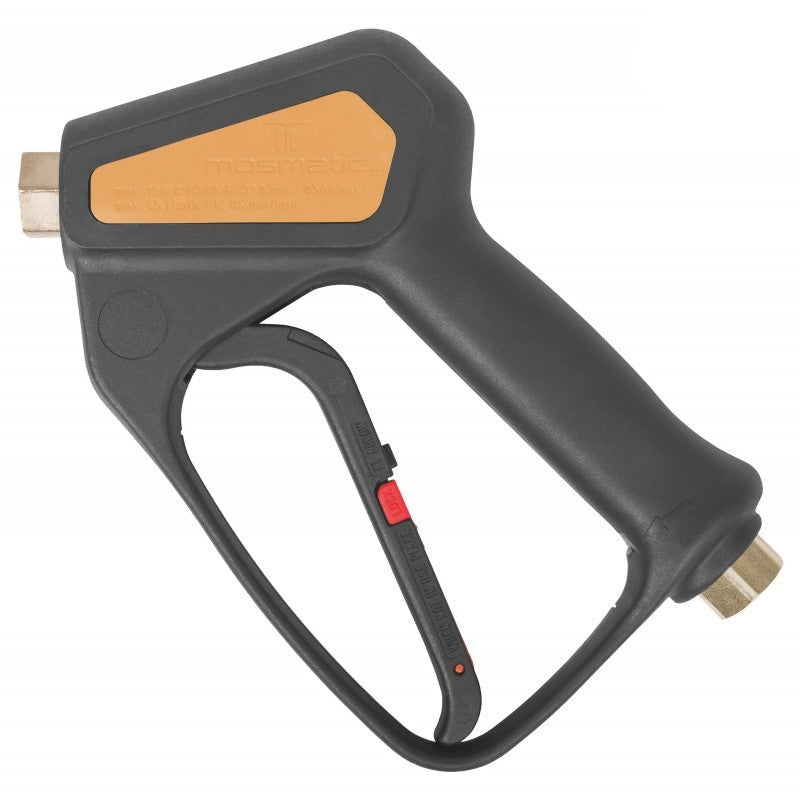

• 500 Bar Rated
• Relax trigger force
• * No swivel inlet or weep function *

7300psi-bar 300° in:G3/8"F out:G1/4"F

Inlet Thread: G3/8 F

Outlet Thread: G1/4 F

Color: Red

Bar Pressure: 500

Temperature (°C)150 / 302°F

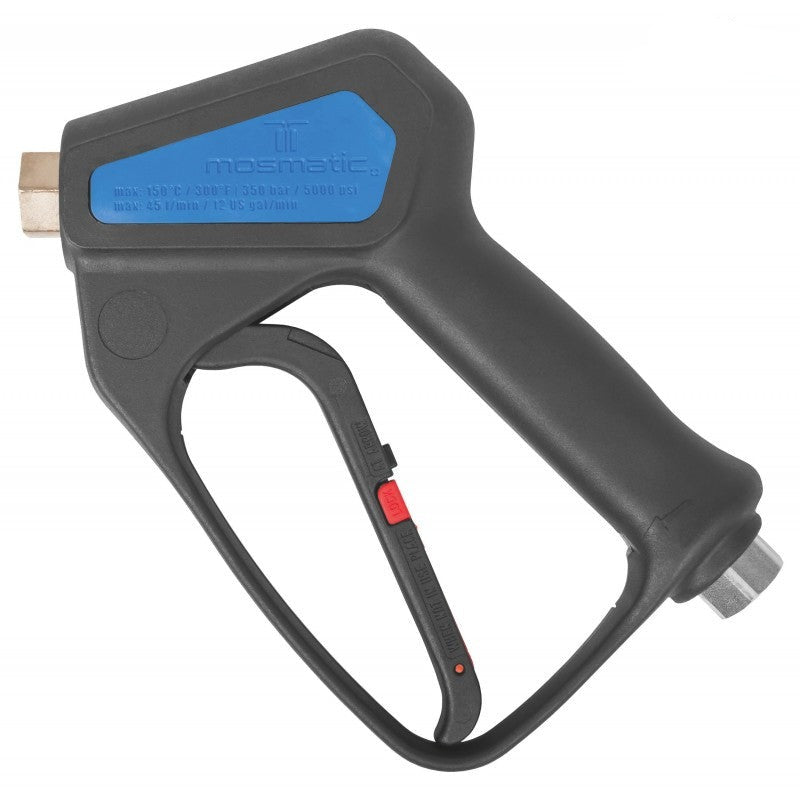

Mosmatic offers a wide variety of high pressure trigger guns. From our relax action guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available. Select your gun according to the required pressure rating and the following options.

RA – Relaxed Trigger Action

WS – Weep Option

DG – Swivel Inlet

Inlet Thread: G3/8 F

Outlet Thread: G1/4 F

Color: Orange

Bar Pressure: 310

Temperature (°C)150

Mosmatic offers a wide variety of high pressure trigger guns. From our relax actions guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available.

LAZ in:G3/8"F out:G1/4"F

Inlet ThreadG3/8 F

Outlet ThreadG1/4 F

Bar Pressure350

Temperature (°C)150 / 302°F

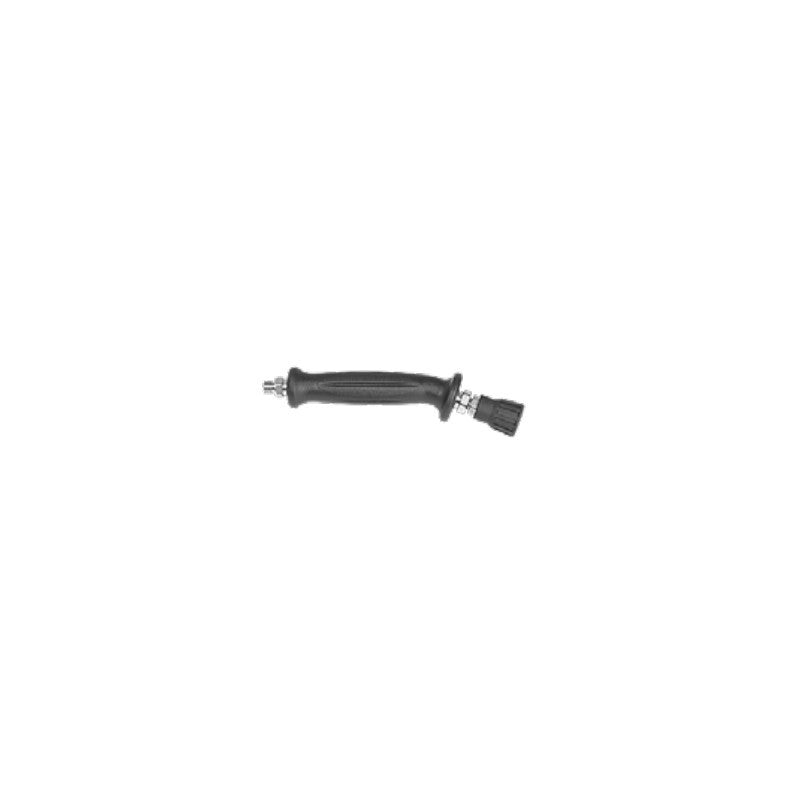

The Mosmatic 29.085 Hand Grip is an ergonomically designed accessory that enhances user comfort and control during high-pressure cleaning. Made from durable polypropylene (PP), this lightweight hand grip helps minimize operator fatigue and improves grip stability in extended or demanding applications.

It features a 3/8" NPTM thread inlet and 1/8" NPTF thread outlet, offering seamless compatibility with a wide range of pressure washer tools and accessories.

Applications

• Pressure washer spray wands and hoses

• Industrial and commercial cleaning systems

• Surface cleaners and hand-held accessories

• Car wash and detailing equipment requiring added grip support

Key Features

• Ergonomic polypropylene (PP) grip for user comfort

• Thread Inlet: 3/8" NPTM | Thread Outlet: 1/8" NPTF

• Lightweight design for better handling and reduced strain

• Compatible with various high-pressure cleaning setups

• Durable and reliable for long-term professional use

Specs

Material Type: polypropylene (PP)

Thread IN: 3.8" NPTF

Thread OUT: 1/8" NPTF

Weight: 0.7 lbs
