The Mosmatic DGR Swivel - 34.311 is a premium stainless steel swivel designed to withstand both radial and thrust forces in high-pressure applications. Featuring a quadruple bearing system with two radial and two thrust ball bearings, this swivel delivers smooth, reliable performance even under heavy load. It is ideal for industrial or food service use where high flow, corrosion resistance, and durability are essential. Built from high-grade stainless steel, it ensures long-term resistance to harsh environments and demanding conditions.

Applications:

• Industrial high-pressure systems

• Food and beverage processing equipment

• Sanitation and washdown systems

• Chemical and fluid transfer operations

Key Features:

• Corrosion-resistant stainless steel construction

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• High-flow design for efficient performance

• Handles both thrust and radial force loads

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM

• Nominal Width (NW): 3/4"

• Diameter: 2.17"

• Overall Length: 5"

• Max Pressure: 3000 PSI

• Max RPM: 150

• Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.65

Wrench Size 2 (SW2): 1.26

Diameter (D): 2.17

Length 1 (L1) (overall length): 5

Length 2 (L2): 3.66

Length 3 (L3): 0.59

Weight: 51oz

The Mosmatic DGR Swivel - 34.612 is a heavy-duty stainless steel swivel designed to handle both thrust and radial forces in high-pressure, high-flow applications. Ideal for industrial and food service environments, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—that provides maximum strength, smooth rotation, and long-lasting durability. The corrosion-resistant stainless steel construction ensures reliable performance even in harsh chemical and sanitary environments.

Applications:

• High-pressure industrial fluid systems

• Food and beverage processing and sanitation lines

• Chemical transfer and washdown systems

• High-capacity automated cleaning and rinsing systems

Key Features:

• Corrosion-resistant stainless steel body

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Supports both radial and thrust loads

• High-flow performance for large-scale operations

• Thread IN: 2" NPTF | Thread OUT: 2" NPTF

• Nominal Width (NW): 2"

• Diameter: 3.54"

• Overall Length: 6.70"

• Max Pressure: 3000 PSI

• Max RPM: 70

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 70

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 2"NPTF

Thread Out: G2 2"NPTF

Nominal Width (NW): 2"

Wrench Size 1 (SW1): 2.95

Wrench Size 2 (SW2): 2.56

Diameter (D): 3.54"

Length 1 (L1) (overall length): 6.70"

Length 2 (L2): 4.57

Weight: 133oz

The Mosmatic DGR Swivel - 34.611 is a robust stainless steel swivel designed for high-pressure, high-flow applications requiring both thrust and radial force handling. Built for industrial and food service environments, this swivel features a quadruple bearing system—including two radial and two thrust ball bearings—for optimal rotational performance and durability under load. Its stainless steel construction ensures long-term corrosion resistance, making it ideal for harsh operating conditions involving chemicals, water, or cleaning agents.

Applications:

• High-pressure industrial fluid systems

• Food and beverage sanitation and processing lines

• Chemical transfer and mixing systems

• High-flow automated washdown and spray equipment

Key Features:

• Stainless steel body for maximum corrosion resistance

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Engineered to handle both radial and thrust forces

• High-flow capacity for demanding operations

• Thread IN: 2" NPTF | Thread OUT: 2" NPTM

• Nominal Width (NW): 2"

• Diameter: 3.54"

• Overall Length: 6.54"

• Max Pressure: 3000 PSI

• Max RPM: 70

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 70

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 2"NPTF

Thread Out: G2 2"NPTM

Nominal Width (NW): 2"

Wrench Size 1 (SW1): 2.95

Wrench Size 2 (SW2): 2.44

Diameter (D): 3.54"

Length 1 (L1) (overall length): 6.54"

Length 2 (L2): 4.57

Length 3 (L3): 0.87

Weight: 132oz

The Mosmatic DGR Swivel - 34.542 is a robust stainless steel swivel engineered to handle both thrust and radial forces in high-pressure, high-flow systems. Ideal for industrial and food-grade applications, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for smooth, efficient, and long-lasting performance. Its corrosion-resistant construction ensures durability in harsh environments, while the high-flow design supports demanding cleaning and fluid transfer operations.

Applications:

• High-pressure fluid transfer systems

• Food and beverage processing equipment

• Sanitation and washdown systems

• Industrial chemical and water handling

Key Features:

• Heavy-duty stainless steel for corrosion resistance

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Built to handle both radial and thrust force loads

• High-flow design for continuous-duty applications

• Thread IN: 1 1/4" NPTF | Thread OUT: 1 1/4" NPTF

• Nominal Width (NW): 1 1/4"

• Diameter: 2.36"

• Overall Length: 5.65"

• Max Pressure: 3000 PSI

• Max RPM: 130

• Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 130

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/4"NPTF

Thread Out: G2 1 1/4"NPTF

Nominal Width (NW): 1 1/4"

Wrench Size 1 (SW1): 2

Wrench Size 2 (SW2): 173

Diameter (D): 2.36"

Length 1 (L1) (overall length): 5.65"

Length 2 (L2): 3.98

Weight: 61oz

The Mosmatic DGR Swivel - 34.541 is a premium stainless steel swivel engineered for high-flow, high-pressure applications requiring robust support for both thrust and radial forces. Designed for demanding industrial and food service environments, this swivel includes a quadruple bearing system with two radial ball bearings and two thrust ball bearings for smooth, reliable rotation under load. Its corrosion-resistant stainless steel body ensures long-lasting durability, even in harsh conditions. Optimized for performance and flow efficiency, this swivel is ideal for large-scale fluid handling operations.

Applications:

• Industrial high-pressure systems

• Food and beverage processing equipment

• Chemical transfer and sanitation systems

• High-flow rotary unions and automated machinery

Key Features:

• Corrosion-resistant stainless steel construction

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Handles both radial and thrust forces efficiently

• High-flow design for demanding applications

• Thread IN: 1 1/4" NPTF | Thread OUT: 1 1/4" NPTM

• Nominal Width (NW): 1 1/4"

• Diameter: 2.36"

• Overall Length: 5.57"

• Max Pressure: 3000 PSI

• Max RPM: 130

• Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 130

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/4"NPTF

Thread Out: G2 1 1/4"NPTM

Nominal Width (NW): 1 1/4"

Wrench Size 1 (SW1): 2

Wrench Size 2 (SW2): 1.73

Diameter (D): 2.36"

Length 1 (L1) (overall length): 5.57"

Length 2 (L2): 3.98

Length 3 (L3): 0.71

Weight: 62oz

The Mosmatic DGR Swivel - 34.512 is a premium stainless steel swivel engineered for high-pressure systems that require handling of both thrust and radial forces. Built for demanding industrial and food service applications, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—ensuring smooth, stable rotation under load. Designed for high-flow performance and long-term durability, its corrosion-resistant stainless steel body withstands aggressive cleaning agents, chemicals, and harsh environments.

Applications:

• Industrial high-pressure fluid and washdown systems

• Food processing and sanitation operations

• Chemical and water transfer lines

• High-capacity automated cleaning systems

Key Features:

• Rugged stainless steel construction for superior corrosion resistance

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Designed to handle both radial and thrust loads

• High-flow design for heavy-duty fluid transfer

• Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTF

• Nominal Width (NW): 1 1/2"

• Diameter: 3.15"

• Overall Length: 6.06"

• Max Pressure: 3000 PSI

• Max RPM: 100

• Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 100

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/2"NPTF

Thread Out: G2 1 1/2"NPTF

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.56

Wrench Size 2 (SW2): 2.17

Diameter (D): 3.15"

Length 1 (L1) (overall length): 6.06"

Length 2 (L2): 4.09

Weight: 114oz

The Mosmatic DGR Swivel - 34.511 is a heavy-duty stainless steel swivel designed for high-pressure applications where both thrust and radial forces are present. Built for performance in industrial and food service environments, this swivel includes a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for maximum stability and smooth operation under demanding conditions. Its corrosion-resistant stainless steel body supports high flow rates and provides exceptional durability in harsh environments, making it ideal for continuous-duty fluid systems.

Applications:

• High-pressure industrial fluid handling

• Food processing and sanitation systems

• Chemical transfer operations

• Automated washdown and cleaning systems

Key Features:

• High-strength stainless steel for corrosion resistance

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Supports both radial and thrust force applications

• High-flow design for large-volume operations

• Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM

• Nominal Width (NW): 1 1/2"

• Diameter: 3.15"

• Overall Length: 6.06"

• Max Pressure: 3000 PSI

• Max RPM: 100

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 100

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/2"NPTF

Thread Out: G2 1 1/2"NPTM

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.56

Wrench Size 2 (SW2): 2.17

Diameter (D): 3.15"

Length 1 (L1) (overall length): 6.06"

Length 2 (L2): 4.09

Length 3 (L3): 0.79

Weight: 111oz

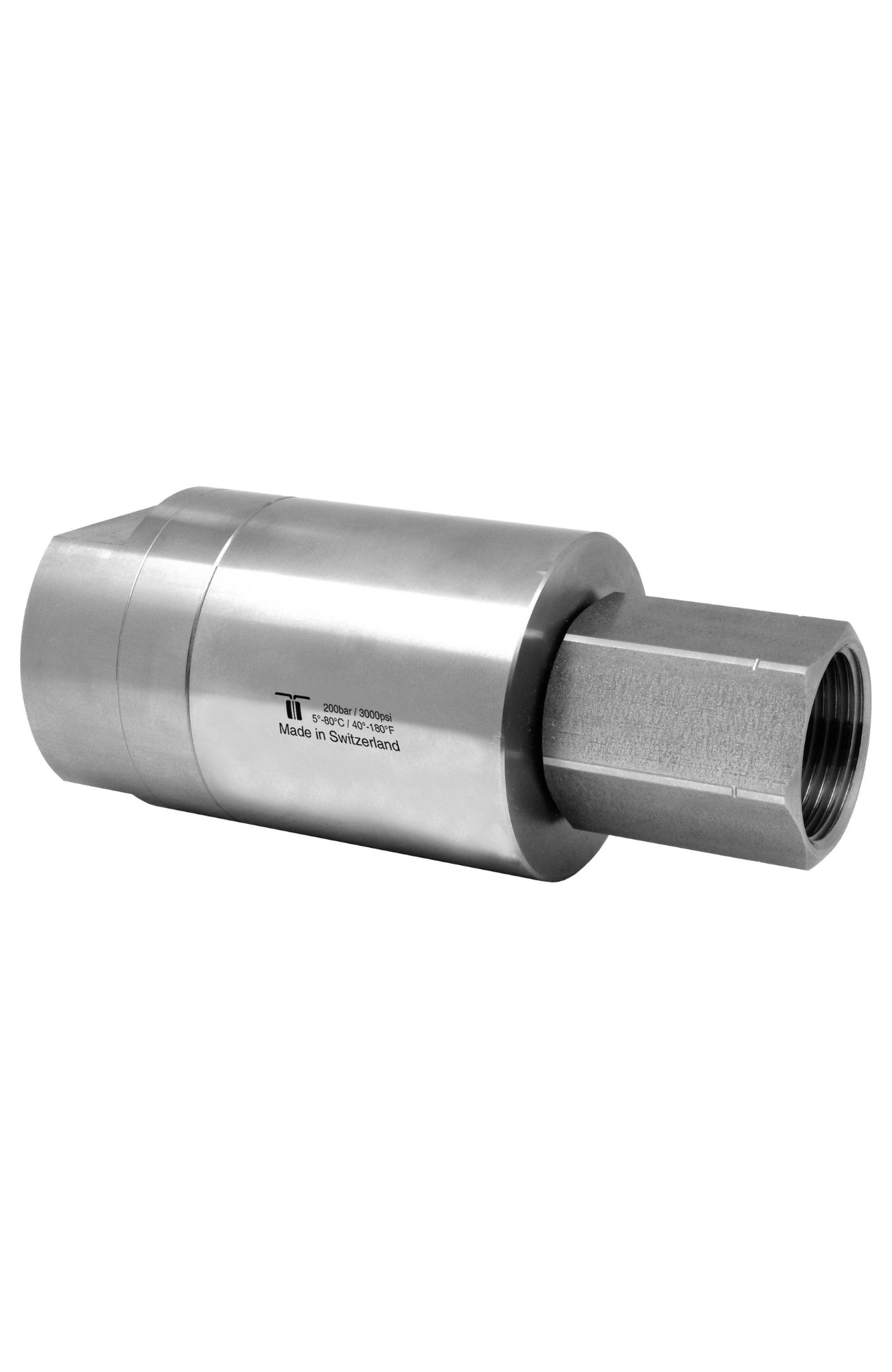

The Mosmatic DGR Swivel - 34.412 is a stainless steel swivel built to manage both thrust and radial forces in high-pressure environments. Ideal for industrial and food service applications, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for maximum rotational stability and performance. Its corrosion-resistant construction and high-flow design make it suitable for harsh, continuous-duty operations involving water, chemicals, or sanitation fluids.

Applications:

• High-pressure industrial fluid systems

• Food and beverage processing lines

• Sanitation and washdown equipment

• Chemical and water transfer operations

Key Features:

• Corrosion-resistant stainless steel body

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Designed to handle both radial and thrust loads

• Optimized for high-flow and high-pressure performance

• Thread IN: 1" NPTF | Thread OUT: 1" NPTF

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 5.55"

• Max Pressure: 3000 PSI

• Max RPM: 130

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 130

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTF

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 3.78

Wrench Size 2 (SW2): 1.42

Diameter (D): 2.36"

Length 1 (L1) (overall length): 5.55"

Length 2 (L2): 3.78

Weight: 60oz

The Mosmatic DGR Swivel - 34.411 is a high-performance stainless steel swivel engineered for use in high-pressure systems where both thrust and radial forces are present. Ideal for industrial and food service applications, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for optimal load distribution and smooth rotation. Built for high-flow applications, its stainless steel body provides excellent corrosion resistance in harsh environments, ensuring long-lasting durability and consistent performance.

Applications:

• Industrial high-pressure fluid systems

• Food processing and sanitary washdown equipment

• Chemical handling and transfer systems

• High-flow rotary joints in automated processes

Key Features:

• Corrosion-resistant stainless steel construction

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Designed to handle both thrust and radial loads

• High-flow capability for efficient performance

• Thread IN: 1" NPTF | Thread OUT: 1" NPTM

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 5.31"

• Max Pressure: 3000 PSI

• Max RPM: 130

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 130

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTM

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.81

Wrench Size 2 (SW2): 1.42

Diameter (D): 2.36"

Length 1 (L1) (overall length): 5.31"

Length 2 (L2): 3.78

Length 3 (L3): 0.71

Weight: 59oz

The Mosmatic DGR Swivel - 34.312 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-pressure environments. Perfect for industrial and food service applications, this swivel features a quadruple bearing system with two radial ball bearings and two thrust ball bearings, ensuring smooth, stable operation under heavy load. Its corrosion-resistant stainless steel construction makes it suitable for harsh, high-moisture, or chemical environments, while the high-flow design enhances system efficiency.

Applications:

• Industrial high-pressure cleaning systems

• Food and beverage processing equipment

• Sanitation and washdown systems

• Chemical transfer and fluid handling

Key Features:

• Corrosion-resistant stainless steel body

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Supports both radial and thrust load applications

• High-flow performance for continuous-duty systems

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF

• Nominal Width (NW): 3/4"

• Diameter: 2.17"

• Overall Length: 5.55"

• Max Pressure: 3000 PSI

• Max RPM: 150

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTF

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.65

Wrench Size 2 (SW2): 1.26

Diameter (D): 2.17"

Length 1 (L1) (overall length): 5.55"

Length 2 (L2): 3.66

Weight: 53 oz

The Mosmatic DGR Swivel - 34.212 is a high-performance stainless steel swivel engineered to withstand both thrust and radial forces in high-pressure, high-flow environments. Designed for industrial and food service applications, it features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for smooth, stable, and long-lasting performance. Its corrosion-resistant construction makes it ideal for use in harsh environments involving water, chemicals, or sanitation processes. With high-flow capacity and robust design, it delivers reliable results in demanding systems.

Applications:

• High-pressure industrial cleaning systems

• Food processing and sanitation lines

• Chemical and fluid transfer systems

• Automated washdown and spray equipment

Key Features:

• Heavy-duty stainless steel body for corrosion resistance

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Designed for both radial and thrust force applications

• High-flow capacity for performance-intensive operations

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF

• Nominal Width (NW): 1/2"

• Diameter: 1.97"

• Overall Length: 4.92"

• Max Pressure: 3000 PSI

• Max RPM: 200

• Operating Temperature: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 200

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTF

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 1.50

Wrench Size 2 (SW2): 1.06

Diameter (D): 1.97"

Length 1 (L1) (overall length): 4.92"

Length 2 (L2): 3.43

Weight: 41.0oz

The Mosmatic DGR Swivel - 34.211 is a heavy-duty stainless steel swivel designed for high-pressure applications involving both thrust and radial forces. Engineered for durability and performance, this swivel is ideal for industrial and food service environments where high flow and corrosion resistance are essential. It features a robust quadruple bearing system—two radial ball bearings and two thrust ball bearings—for optimal load handling and smooth operation. Its stainless steel construction ensures resistance to harsh chemicals and corrosion, making it a reliable solution for demanding operational conditions.

Applications:

• Industrial high-pressure systems

• Food service and sanitation equipment

• Chemical and fluid transfer systems

• High-flow rotary connections

Key Features:

• Heavy-duty stainless steel construction for corrosion resistance

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Designed to handle both thrust and radial forces

• High-flow performance under continuous pressure

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM

• Nominal Width (NW): 1/2"

• Diameter: 1.97"

• Overall Length: 4.69"

• Max Pressure: 3000 PSI

• Max RPM: 200

• Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 200

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 1.50

Wrench Size 2 (SW2): 1.06

Diameter (D): 1.97"

Length 1 (L1) (overall length): 4.69"

Length 2 (L2): 3.43"

Length 3 (L3): 0.59"

Weight: 41.0oz
