The Mosmatic 55.253 DYCI Swivel is a high-flow, high-pressure stainless steel swivel built for self-rotating applications like surface cleaners and parts washers. Designed for intense industrial and commercial cleaning environments, this swivel provides reliable, smooth rotation and long service life.

Featuring a triple bearing system - with two radial ball bearings and one thrust ball bearing - the swivel offers exceptional rotational stability and efficiency. Its carbide seal system ensures high durability and leak prevention under demanding use. Integrated weep holes provide a clear indication of seal failure, allowing for proactive maintenance. Rated for 5000 PSI, 2000 RPM, and 250°F, this swivel is a top-tier component for high-performance cleaning tools.

Applications

• Commercial surface cleaners

• High-pressure parts washers

• Self-rotating nozzles and spray arms

• Industrial cleaning and automation systems

• Robotic and rotary pressure washing tools

Key Features

• Thread In: M22x1.5 Male

• Thread Out: G3/8" Male

• Material: 100% stainless steel construction

• Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation

• Seal Type: Carbide seal for high durability under pressure

• Weep Holes: Provide early warning for seal failure

• Pressure Capacity: Up to 5000 PSI

• High-Speed Capability: Up to 2000 RPM

• Temperature Resistance: Up to 250°F

• Compact & Durable: Engineered for consistent, long-term use

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: M22x1.5M
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.79"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

The Mosmatic 55.163 DYCI Swivel is a premium stainless steel swivel built for high-flow, high-pressure, self-rotating applications such as surface cleaners and parts washers. Precision-engineered for performance and durability, this swivel is ideal for use in commercial and industrial cleaning systems.

It features a triple bearing system - comprising two radial ball bearings and one thrust ball bearing - for stable, smooth rotation. A carbide seal system ensures long-lasting sealing performance, while integrated weep holes provide early warning in the event of seal failure. With a pressure capacity of 5000 PSI, it’s designed to operate efficiently at up to 2000 RPM and 250°F, delivering consistent, high-performance rotation.

Applications

• High-pressure surface cleaners

• Self-rotating cleaning nozzles and tools

• Industrial parts washers

• Automated or robotic cleaning systems

• Commercial pressure washing setups

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: Full stainless steel construction

• Triple Bearing System: Includes 2 radial and 1 thrust bearing

• Seal System: Durable carbide seal for high-pressure performance

• Weep Holes: Built-in for early seal failure detection

• High Pressure & Speed Rated: 5000 PSI / 2000 RPM

• Temperature Resistant: Up to 250°F

• Compact & Reliable: Efficient form factor with dual wrench flats

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

The Mosmatic 55.153 DYCI Swivel is a high-performance swivel designed for high-flow, high-pressure, self-rotating applications such as surface cleaners, spray bars, and parts washers. Crafted from stainless steel, it offers exceptional durability, chemical resistance, and smooth rotation in demanding environments.

This swivel features a triple bearing system - including two radial ball bearings and one thrust ball bearing - that ensures consistent rotational performance, even under extreme pressure and speed. A carbide seal system provides long-lasting leak protection, while integrated weep holes offer early seal failure detection, helping you maintain system integrity and avoid downtime.

Applications

• Commercial and industrial surface cleaners

• Parts washing equipment

• Rotating high-pressure cleaning systems

• Spray bars and automated cleaning tools

• Equipment operating in corrosive or high-temperature environments

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: 3/8" NPT Male

• Material: Full stainless steel body and internal components

• Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation

• Seal Type: Carbide for high durability

• Weep Holes: Allow early detection of seal failure

• Max Pressure: 5000 PSI

• Temperature Tolerance: Up to 250°F

• High-Speed Rated: Handles up to 2000 RPM

• Efficient Design: Compact size and dual wrench flats for easy installation

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.43"
Length 4 (L4): 0.12"
Weight: 23.0 oz

The Mosmatic 55.203 DYCI Swivel is a high-quality, stainless steel swivel engineered for high-flow, high-pressure, self-rotating applications including surface cleaners and parts washers. It’s designed for continuous operation in demanding environments, delivering smooth, efficient rotation and long-lasting durability.

This model features a triple bearing system - with two radial ball bearings and one thrust bearing - to ensure stability and performance at high speeds and pressures. A carbide seal system provides reliable leak protection, and weep holes offer early detection of seal wear or failure. With a pressure rating of 5000 PSI, temperature tolerance up to 250°F, and speed capacity of 2000 RPM, this swivel is built for professional-grade results.

Applications

• Surface cleaners for commercial and industrial use

• Self-rotating high-pressure cleaning tools

• Parts washing equipment

• Rotary nozzles and spray bars

• Automated and robotic cleaning systems

Key Features

• Thread In: M21x1.5 Male

• Thread Out: G3/8" Male

• Triple Bearing System: 2 radial + 1 thrust bearing

• Seal Type: High-durability carbide seal

• Built-In Weep Holes: For seal failure warning

• Stainless Steel Construction: Resists corrosion and wear

• Max Pressure: 5000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Compact & Durable: Engineered for long-term, high-performance use

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: M21x1.5M
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.75"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

The Mosmatic 55.063 DYCI Swivel is a high-flow, high-pressure swivel designed specifically for self-rotating applications such as surface cleaners and parts washers. Precision-crafted from stainless steel, this swivel offers superior corrosion resistance, durability, and performance under demanding conditions.

Engineered with a triple bearing system - including two radial ball bearings and one thrust bearing - it ensures stable rotation, even at high RPMs. It features a carbide seal system for long-lasting sealing and integrated weep holes to provide early warning of seal wear or failure. Built to handle pressures up to 5000 PSI, this swivel is ideal for professional-grade cleaning tools that require smooth rotation and high flow rates.

Applications

• High-flow rotating surface cleaners

• Pressure washer part washers

• Self-rotating spray tools

• Industrial and commercial cleaning systems

• Equipment requiring reliable high-speed swivel performance

Key Features

• Thread In: 1/4" NPT Female

• Thread Out: G3/8" Male

• Material: Full stainless steel construction

• Triple Bearing System: 2 radial + 1 thrust bearing

• Seal System: Carbide seal for extended life

• Weep Holes: Built-in for early seal failure detection

• High Pressure Capability: Up to 5000 PSI

• Temperature Tolerance: Rated up to 250°F

• High-Speed Operation: Supports up to 2000 RPM

• Compact Size: Efficient design for easy installation in tight setups

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/4" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

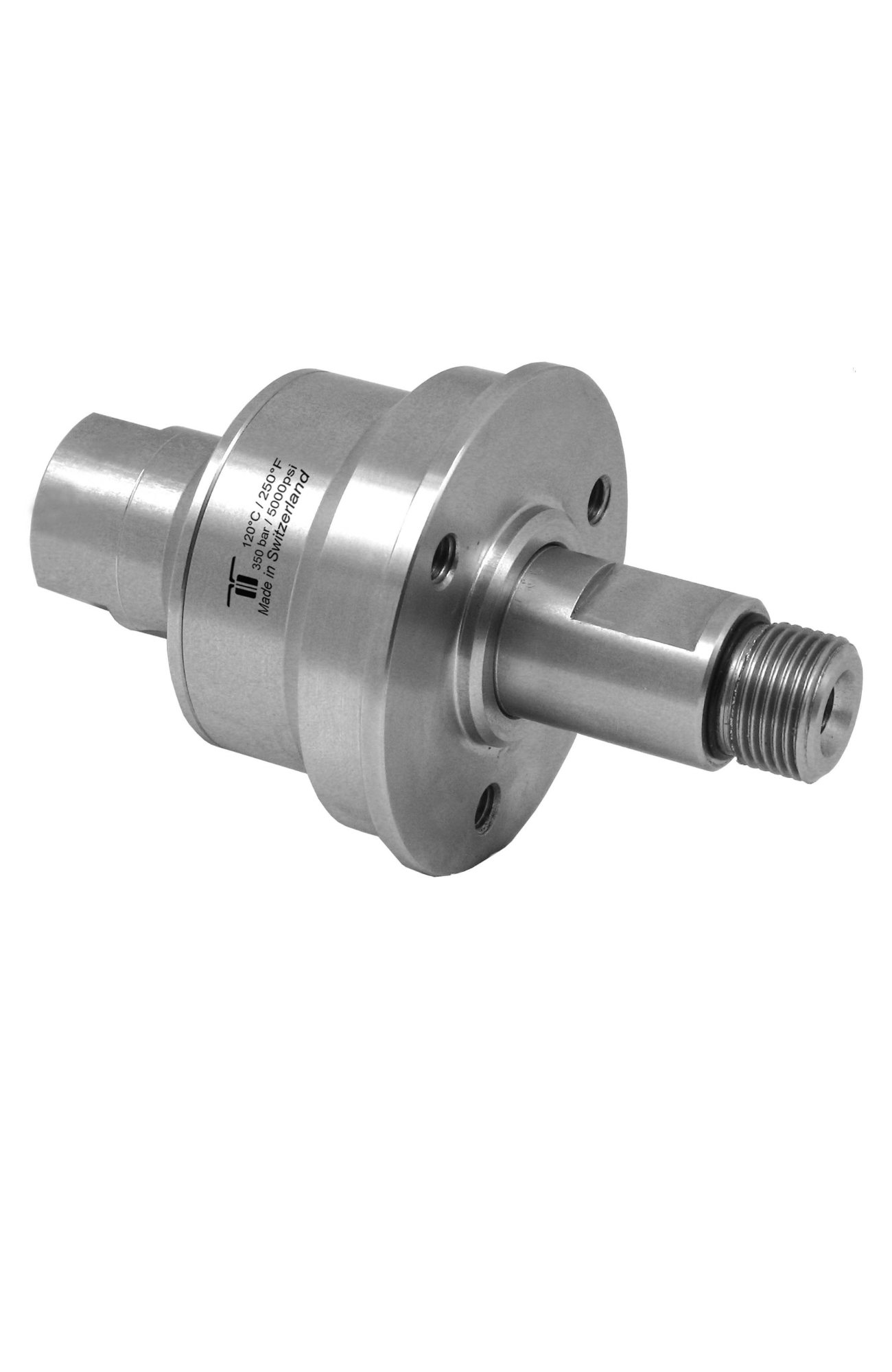

The Mosmatic DYCI Swivel 55.051 is engineered for durability and performance in high-flow, high-pressure applications. Made from premium stainless steel, this self-rotating swivel is ideal for demanding industrial environments where reliability is critical. Equipped with a triple bearing system—featuring two radial ball bearings and one thrust ball bearing—it ensures smooth rotation and extended service life.

This swivel also includes a carbide seal system and weep holes that provide early warning of seal failure, adding an extra layer of protection and performance integrity. With a pressure rating of up to 5000 PSI, the DYCI 55.051 is built to handle tough jobs with precision.

Applications

• Surface cleaners

• High-pressure part washers

• Industrial cleaning equipment

• Self-rotating wash systems

Key Features

• Durable stainless steel construction for long-lasting use

• Triple bearing system (2x radial, 1x thrust) for smooth rotation

• Carbide seal system with weep holes for seal failure alert

• Rated for up to 5000 PSI

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Overall diameter: 2.36” | Overall length: 2.28”

• Nominal width (NW): 1/4” | Wrench size (SW): 0.87” & 0.63"

Specs

Pressure: 5000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: 1/4"NPTF

Thread Out: 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW1): 0.87

Wrench Size (SW2): 0.63

Diameter (D1) (overall diameter): 2.36"

Diameter 2 (D2): 1.10"

Length 1 (L1) (overall length): 2.28"

Length 2 (L2): 1.46"

Length 3 (L3): 0.39"

Length 4 (L4): 0.12"

Weight: 23 oz
