The Mosmatic DGVI Swivel 32.763 delivers exceptional performance in high-pressure applications. Crafted from durable stainless steel, this swivel is built for HP-guns, hydraulic systems, and tangle-free hose reel setups. Its single bearing system with a thrust ball bearing ensures smooth live rotation under pressure.

Designed for durability and reliability, this swivel includes an O-ring NBR seal system (optional EPDM or FKM), supports up to 7300 PSI, and offers maintenance-free operation. Perfect for professionals needing compact power in a corrosion-resistant form factor.

Applications

• High-pressure hose reels

• Hydraulic systems

• Pressure washer guns (HP-Guns)

• Industrial cleaning equipment

• Tangle-free hose applications

Features

• Material: Stainless steel construction

• Thread IN: 3/8” NPTM

• Thread OUT: 3/8” NPTM

• Overall Length: 2.48”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 7300 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Advantages: Compact, corrosion resistant, maintenance free, live rotation under full load

Specs

Pressure: 7300 psi (50 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.48"

Lenght 2 (L2): 0.43"

Lenght 3 (L3): 0.47"

Weight: 5.4 oz

The Mosmatic HP Gun <Aero> - 29.025 delivers high-performance cleaning with an ergonomic design for superior comfort and control. Perfect for professional applications, this heavy-duty gun handles pressures up to 4000 PSI and temperatures up to 300°F. Built for reliability and long-lasting performance, it features a 3/8” NPTF inlet and a 1/4” NPTF outlet to ensure secure and consistent connections. Whether you're working in industrial, commercial, or automotive settings, the Mosmatic HP Gun provides the power and durability needed for demanding tasks.

Applications

• Industrial cleaning operations

• Commercial pressure washing

• Automotive detailing and truck washing

• Agricultural equipment maintenance

• Construction site cleaning

Features

• Ergonomically molded handle for maximum comfort

• High-pressure capacity up to 4000 PSI

• Handles temperatures up to 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Durable and professional-grade construction

Specs

Pressure: 4000 psi

Temperature: 300°F

Weep Function: No

Low Trigger Force: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Weight: 1.1lbs

The Mosmatic DGVI Swivel 32.774 is engineered for high-pressure cleaning and fluid applications, offering smooth and reliable rotation under pressure. Designed with premium stainless steel, this swivel ensures corrosion resistance and durability in the most demanding environments.

Built for HP-Guns, hose reels, and hydraulic systems, it features a single thrust ball bearing and an O-ring NBR seal system (with optional EPDM or FKM). Maintenance free and compact, this swivel prevents hose tangling while enabling live rotation at maximum pressure.

Applications

• High-pressure hose reels

• Hydraulic systems

• HP-Guns and pressure washing equipment

• Tangle-free hose management

• Industrial and commercial cleaning setups

Features

• Material: Full stainless steel construction

• Thread IN (G1): 1/4” NPTF

• Overall Length: 3.00”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal System: O-ring NBR (Optional EPDM or FKM)

• Performance: Maintenance-free, corrosion-resistant, compact design

Specs

Pressure: 5000 psi (35 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

D (Diameter): ø0.47

Thread In: G1 1/4" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.00"

Weight: 5.0 oz

The Mosmatic DKS Swivel Coupling 70.152 is a high-quality, precision-engineered swivel designed for high-pressure cleaning, hose connections, and quick coupling applications. Manufactured from durable, nickel-plated brass, this swivel is corrosion-resistant and built for long-lasting performance in industrial and commercial environments.

Featuring a single thrust ball bearing and a robust ceramic seal system, the 70.152 ensures smooth 360° rotation and leak-resistant operation under pressure. Its flanged design enables easy, secure installation, while integrated weep holes provide a built-in visual indicator of seal wear or failure—helping to reduce unexpected downtime.

This model includes a Quick Connect Thread In of M22x1.5 F and a Thread Out of ¼” NPTF, with a nominal width of ¼”. Designed for up to 3600 PSI, it also withstands temperatures up to 250°F, supports speeds of up to 30 RPM, and is compatible with media in the pH 3–12 range as well as 10-micron filtered compressed air (290 PSI).

Applications

• High-pressure hose and spray systems

• Industrial and commercial cleaning equipment

• Quick-connect fittings for pressure washers

• Surface cleaners and rotary spray arms

• Car wash installations and systems

• Pneumatic and compressed air tool connections

Key Features

• Nickel-plated brass construction for durability and corrosion resistance

• High-performance ceramic seal system

• Single thrust ball bearing for smooth, controlled rotation

• Flanged design for easy and secure installation

• Weep holes for early seal failure detection

• Thread In: M22x1.5 F | Thread Out: ¼” NPTF

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Overall Diameter: 1.34” | Overall Length: 1.96”

• Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Thread Out: G2 1/4"NPTF

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.75"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.96

Length 2 (L2):

Weight: 3.7 oz

The Mosmatic DKS Swivel Coupling 70.151 is a high-performance, nickel-plated brass swivel engineered for high-pressure cleaning systems and industrial hose applications. Designed to deliver reliable, leak-free performance under demanding conditions, this swivel features a robust ceramic seal system and a single thrust ball bearing for smooth rotational operation.

The integrated flange allows for quick and secure installation, while built-in weep holes provide a visible warning in the event of seal failure—helping to reduce downtime and maintenance costs. The coupling features a Quick Connect Thread In of M22x1.5 F and a Thread Out of ¼” NPTM, offering wide compatibility with standard hose and equipment fittings.

With a pressure rating up to 3600 PSI, a maximum temperature tolerance of 250°F, and support for pH 3–12 media and 10-micron filtered compressed air (290 PSI), the DKS 70.151 is ideal for use in professional-grade cleaning and connection systems.

Applications

• High-pressure cleaning and spraying systems

• Industrial and commercial hose assemblies

• Quick-connect setups for pressure washers

• Surface cleaning tools and rotary nozzles

• Pneumatic tool connections

• Car wash installations and maintenance equipment

Features

• Nickel-plated brass for corrosion resistance and durability

• Ceramic seal system for long-term performance

• Smooth rotation with single thrust ball bearing

• Flanged design for simple installation

• Built-in weep holes indicate seal failure

• Thread In: M22x1.5 F | Thread Out: ¼” NPTM

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Dimensions: 1.34” diameter | 1.76” overall length

• Suitable for pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Thread Out: G2 1/4"NPTM

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.67"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.76

Length 2 (L2): 0.43

Weight: 3.7 oz

HP-Guns, hose connections, hydraulics, tangle-free applications.

• Live rotation under maximum pressure
• Single bearing system
• Stainless steel internal parts
• Corrosion resistant
• Reinforced inner shaft
• Maintenance free

G1 (M) 3/8”NPTM, G2 1/2”NPTM, NW 1/4”, SW1 0.94, SW2 1.06, L1 2.91, L2 0.43, Weight 7.5oz

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• RPM max. 30 rpm
• Body: stainless steel, brass, nickel plated
• Inner part: Stainless steel
• Seal: O-ring NBR (optional: EPDM or FKM
• Throughput: 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

The Mosmatic DGV Swivel 32.861 is a brass, nickel-plated high-pressure swivel engineered for hose connections, hydraulics, and HP-gun applications. Designed for live rotation under maximum pressure, this swivel offers durable corrosion resistance, a compact profile, and smooth operation thanks to its single thrust ball bearing and NBR O-ring seal system (also available in EBDM or FKM). Built to last in high-demand environments, it’s maintenance-free and reliable for consistent performance.

Applications

• High-pressure HP-Guns

• Hydraulic and pneumatic hose systems

• Tangle-free hose reel configurations

• Industrial cleaning tools and machines

Features

• Material: Brass, nickel-plated

• Thread Type: 1/2” NPTM inlet x 1/2” NPTM outlet

• Overall Length: 2.91”

• Nominal Width: 3/8”

• Wrench Size: 1.06”

• Maximum Pressure: 4000 PSI

• Max RPM: 30

• Temperature Range: Up to 250°F

• Seal System: O-ring NBR (EBDM/FKM optional)

• Bearing: 1x thrust ball bearing

• Corrosion Resistant and Maintenance Free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 1.06"

Length 1 (L1) (overall length) : 2.91"

Lenght 2 (L2): 0.59"

Lenght 3 (L3): 0.59"

Weight: 8.2 oz

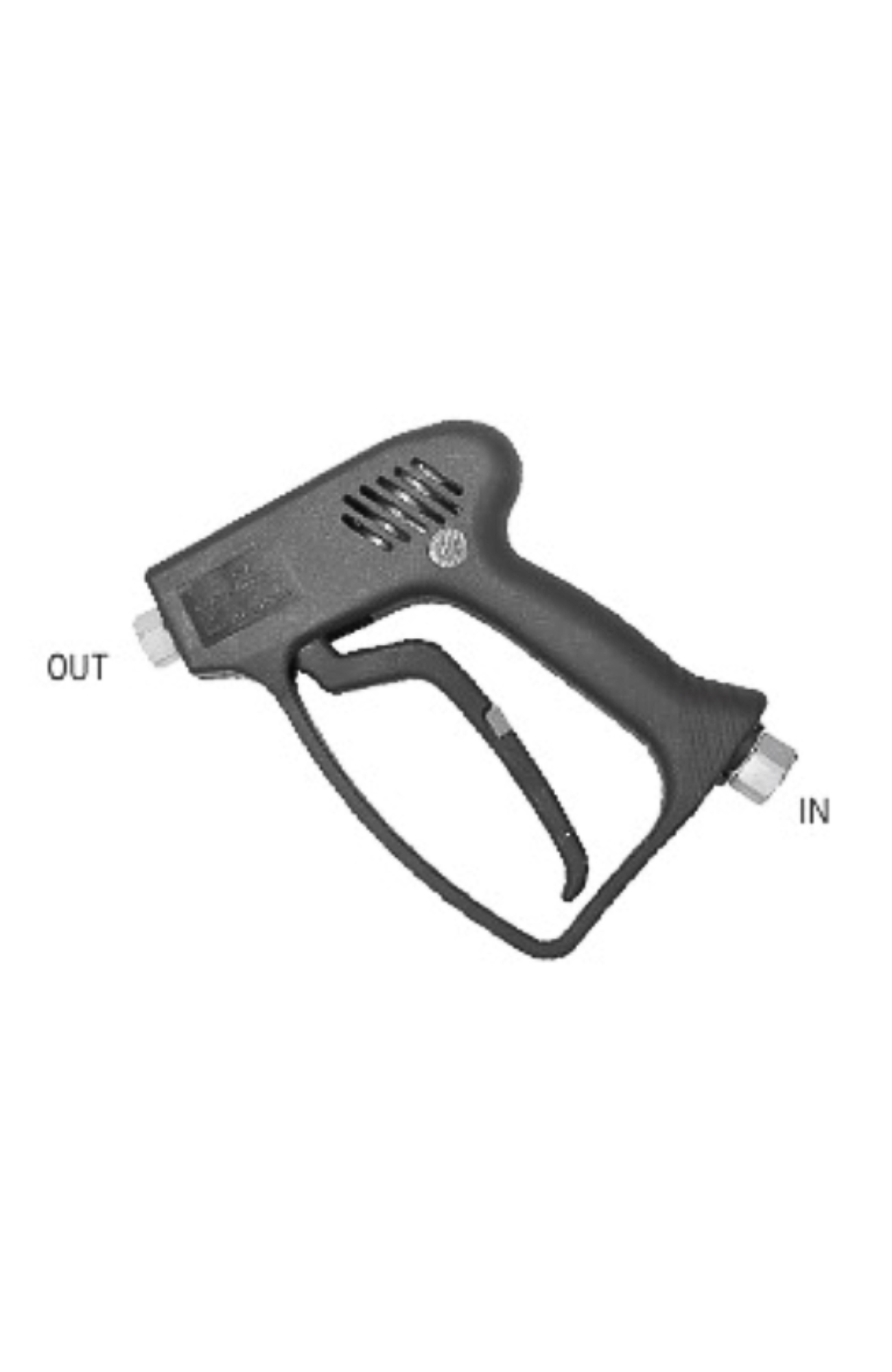

The Mosmatic HP Gun <Nano> - 29.082 delivers outstanding performance in a compact, lightweight design. Engineered for maximum user comfort, it features an ergonomically molded handle along with a Groove design for enhanced grip and control. Its built-in Weep function allows a continuous water flow to prevent freezing in cold temperatures, making it ideal for winter and cold-weather applications. With a high-pressure capacity of 4000 PSI and a maximum temperature rating of 300°F, this gun is built for heavy-duty, professional use. It includes a 3/8” NPTF thread inlet and a 1/4” NPTF thread outlet for secure and reliable operation.

Applications

• Cold climate and winter pressure washing

• Industrial and commercial cleaning

• Automotive detailing and truck washing

• Agricultural equipment maintenance

• Construction site washdowns

Features

• Compact, lightweight design for easy handling

• Ergonomic molded grip for operator comfort

• Weep function to prevent freezing in cold conditions

• Groove feature for improved stability and control

• Supports up to 4000 PSI pressure

• Temperature rated up to 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Durable construction for professional-grade performance

Specs

Pressure: 4000 psi

Temperature: 300°F

Weep Function: Yes

Low Trigger Force: No

Groove: Yes

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Weight: 1.8lbs

The Mosmatic HP Gun <Nano> - 29.063 combines compact design with powerful performance, making it ideal for high-pressure cleaning applications. Designed with an ergonomic molded grip, this lightweight gun reduces user fatigue while ensuring precision and control. Built to handle pressures up to 4000 PSI and temperatures up to 300°F, the Nano series offers outstanding durability in a smaller form factor. Featuring a 3/8” NPTF inlet and a 1/4” NPTF outlet, this gun guarantees secure, reliable connections for professional-grade performance.

Applications

• Automotive and motorcycle detailing

• Commercial and industrial pressure washing

• Equipment maintenance and cleaning

• Agricultural machinery cleaning

• Construction site cleanup

Features

• Compact, lightweight design for ease of use

• Ergonomic molded handle for operator comfort

• Handles up to 4000 PSI pressure

• Temperature rated up to 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Rugged construction for long service life

Specs

Pressure: 4000 psi

Temperature: 300°F

Weep Function: No

Low Trigger Force: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Weight: 1.8lbs

This special Mosmatic wand is pre-built with an HP Gun, Lance and Gun Nozzle. The solid construction and the unique workmanship ensure longevity and value.

• HP-Gun with relax action and swivel
• Variable handle
• Total length 52"
• Pressure up to 4000 psi
• Temperature up to 250°
• No Weep
• DG Swivel in handle
• Nozzle 29.119
• Weight 4.4 lbs
• Inlet 3/8"
• Comes with adjustable side grip

HP-Guns, hose connections, hydraulics, tangle-free applications.

• Maintenance free
• Multitude of configurations
• Live rotation at maximum pressure
• Compact design

DGK-06 3/8"NPT-M 3/8"NPT-F

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• RPM max. 30 rpm
• Body: stainless steel, brass, nickel plated
• Inner part: Stainless steel
• Seal: O-ring NBR (optional: EPDM or FKM
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

The Mosmatic HP Gun <Neo> - 29.142 is expertly designed to provide superior comfort, durability, and performance in even the toughest cleaning conditions. Featuring an ergonomic molded handle and advanced Low Trigger Force technology, it reduces holding force by 90% and trigger effort by 40%, helping minimize operator fatigue during extended use. This model is also equipped with a Weep function that allows water to continuously leak, preventing freezing in cold temperatures. Rated for up to 5000 PSI and 300°F, it includes a 3/8” NPTF inlet and a 1/4” NPTF outlet to ensure secure, professional-grade connections.

Applications

• Cold-weather and winter pressure washing

• Industrial and commercial cleaning

• Automotive and truck wash stations

• Agricultural machinery maintenance

• Construction site cleaning

Features

• Ergonomic molded handle for superior comfort

• Low Trigger Force: 90% reduced holding, 40% less trigger effort

• Weep function prevents freezing during cold weather

• Handles pressures up to 5000 PSI

• Max temperature rating of 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Built for rugged, professional use

Specs

Pressure: 5000 psi

Temperature: 300°F

Weep Function: Yes

Low Trigger Force: Yes

Groove: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Color: Purple

Weight: 1.3lbs

The Mosmatic HP Gun <Neo> - 29.136 is built for extreme performance and durability, making it the perfect choice for heavy-duty industrial cleaning tasks. Featuring an ergonomic molded design for maximum operator comfort, this high-pressure gun is engineered to handle pressures up to 8700 PSI and temperatures up to 300°F. It is equipped with a 1/2” NPTF inlet and a 1/2” NPTF outlet, ensuring secure, reliable connections even in the most demanding environments. Designed for power, precision, and long service life, the Mosmatic Neo series is ideal for the toughest cleaning challenges.

Applications

• Heavy-duty industrial cleaning

• Commercial equipment and machinery maintenance

• Construction site pressure washing

• Agricultural and farming equipment cleaning

• Fleet and large vehicle wash facilities

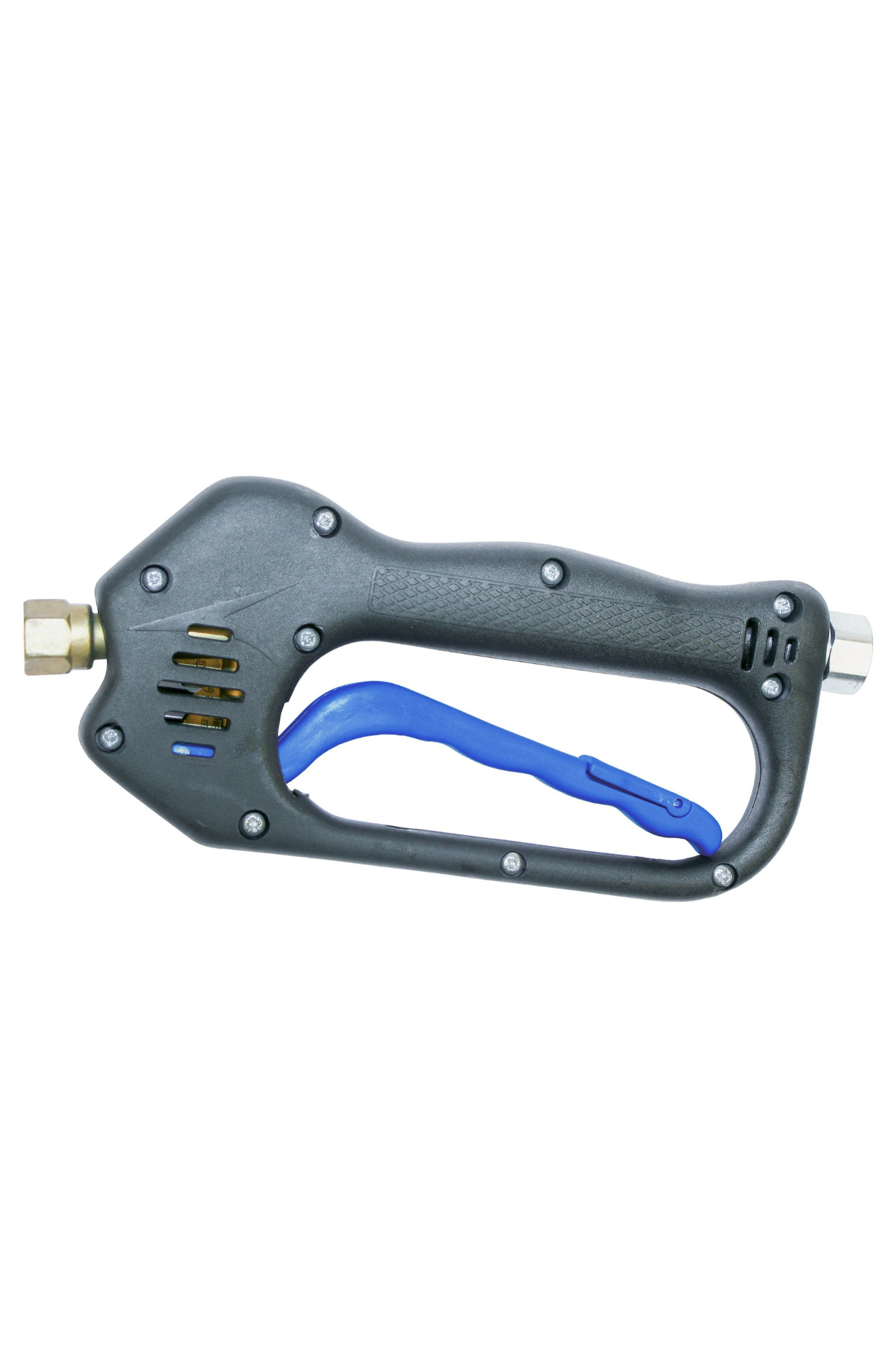

Features

• Ergonomic molded handle for operator comfort

• Extreme high-pressure capacity up to 8700 PSI

• Max temperature rating of 300°F

• Thread Inlet: 1/2” NPTF

• Thread Outlet: 1/2” NPTF

• Heavy-duty, professional-grade construction

• Designed for long-lasting durability and performance

Specs

Pressure: 8700 psi

Temperature: 300°F

Weep Function: No

Low Trigger Force: No

Groove: No

Swivel: No

Thread In: 1/2" NPTF

Thread Out: 1/2" NPTF

Color: Blue

Weight: 1.5lbs

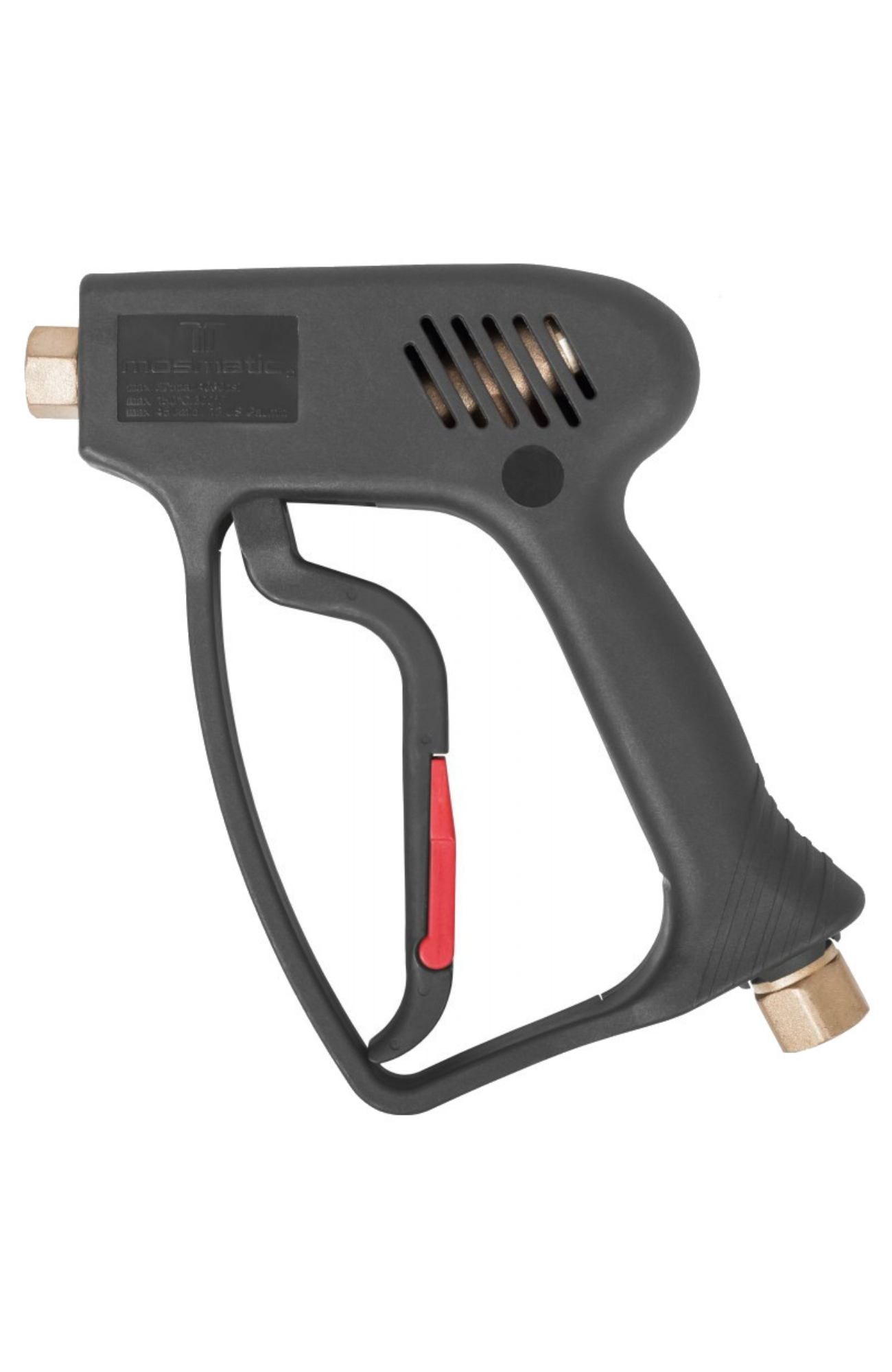

Mosmatic offers a wide variety of high pressure trigger guns. From our relax actions guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available.

• 500 Bar Rated
• Relax trigger force
• * No swivel inlet or weep function *

7300psi-bar 300° in:G3/8"F out:G1/4"F

Inlet Thread: G3/8 F

Outlet Thread: G1/4 F

Color: Red

Bar Pressure: 500

Temperature (°C)150 / 302°F
