The Mosmatic DGE Swivel - 34.753 is a precision-engineered stainless steel swivel built for high-pressure, high-flow applications in demanding environments. Designed to manage thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for long-lasting, stable performance. Ideal for pharmaceutical, food processing, industrial cleaning, and automatic car wash systems, it offers a corrosion-resistant design, a 5000 PSI pressure rating, and heat resistance up to 250°F.

Applications:

• Pharmaceutical manufacturing and clean-in-place systems

• Food and beverage processing and sanitation lines

• Automatic car wash sprayers and rinsing systems

• Industrial washdown and fluid transfer systems

Key Features:

• Durable stainless steel body for corrosion resistance

• With 1x thrust ball bearing and 2 x sliding bearings

• High-flow design supports efficient liquid transfer

• Withstands both thrust and radial loads

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM

• Nominal Width (NW): 1/2"

• Diameter: 1.65"

• Overall Length: 2.17"

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 5000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Stainless Steel

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 1.38

Diameter (D1): 1.65

Length 1 (L1) (overall length): 2.17"

Length 2 (L2): 2.17

Length 3 (L3): 0.59

Weight: 18.9oz

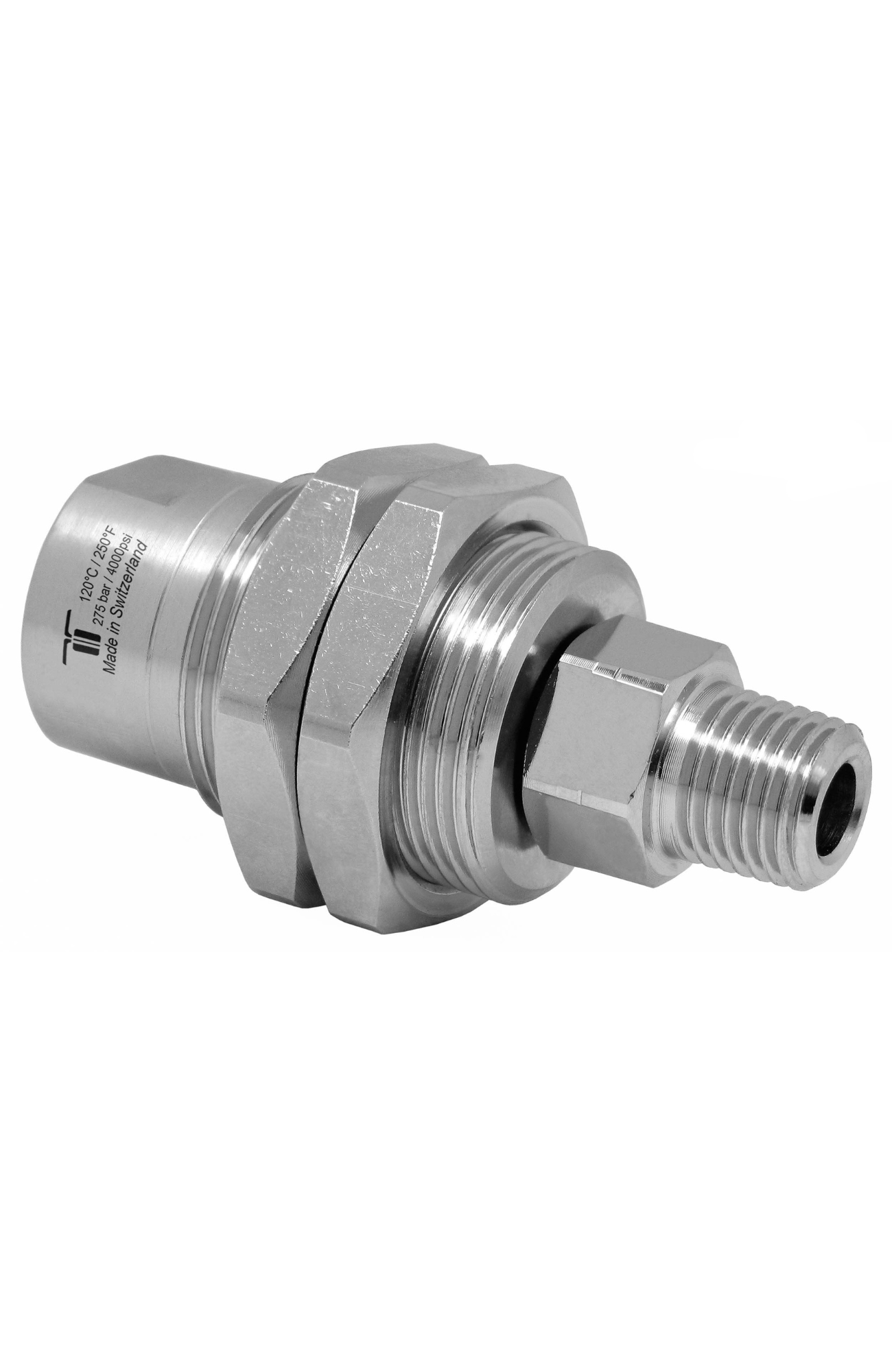

The Mosmatic DGG Swivel 33.163 is a high-quality, nickel-plated brass swivel engineered for demanding high-pressure and self-rotating cleaning applications. Designed with precision and durability in mind, it features a triple bearing system (2x radial ball bearings and 1x thrust bearing) for optimized rotational performance and longevity.

This swivel includes a reliable O-ring NBR seal system, with optional upgrades to EPDM or FKM seals for enhanced chemical resistance. Built to be corrosion-resistant and maintenance-free, the DGG 33.163 is ideal for both stationary and rotating systems.

Applications:

• High-pressure cleaning equipment

• Self-rotating surface cleaners

• Parts washers

• Tire and underbody cleaning systems

• Industrial wash systems

Key Features:

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple system – 2x radial, 1x thrust

• Thread IN (G1): 3/8” NPTF

• Thread OUT (G2): G3/8” M

• Overall Diameter: 1.34”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting: Bulkhead fitting

• Operation: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.39"

Weight: 8.4 oz

The Mosmatic 59.663 DYT Swivel is a rugged, stainless steel swivel built for high-pressure, self-rotating cleaning systems that must withstand significant thrust and radial force. Ideal for surface cleaners and heavy-duty parts washers, this swivel ensures long-lasting durability and efficient performance.

Engineered with a quadruple bearing system - featuring two radial ball bearings and two thrust ball bearings - this swivel offers smooth, stable rotation even under heavy loads. The carbide seal system guarantees excellent sealing performance, and integrated weep holes serve as an early warning system for seal failure. Rated for 5000 PSI, 2000 RPM, and temperatures up to 250°F, this swivel is ideal for tough, industrial cleaning environments.

Applications

• Surface cleaners for commercial and industrial pressure washing

• Rotating nozzles and spray bars

• High-pressure parts washers

• Robotic and automated self-rotating tools

• Equipment subject to high-speed and high-load operation

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: 100% stainless steel housing and internals

• Quadruple Bearing System: 2 radial + 2 thrust ball bearings

• Seal Type: Carbide for long-lasting, high-pressure performance

• Seal Failure Warning: Integrated weep holes

• Max Pressure: 5000 PSI

• Max Temperature: 250°F

• Max RPM: 2000

• Optimized for Durability: Designed for extended use under extreme conditions

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.88"
Length 2 (L2): 4.36"
Length 3 (L3): 0.48"
Weight: 53.7 oz

The Mosmatic 59.453 DYT 90° Swivel is a high-performance stainless steel swivel designed to handle high-pressure, self-rotating cleaning applications where both thrust and radial forces are present. Ideal for surface cleaners and parts washers in demanding industrial environments, this swivel offers durable construction and smooth, stable rotation.

This 90-degree swivel is equipped with a quadruple bearing system, which includes 2 radial ball bearings and 2 thrust ball bearings, ensuring balanced performance and extended service life under continuous load. A carbide seal system provides advanced leak protection, and weep holes offer early warning in case of seal failure.

Engineered to withstand up to 5000 PSI, 2000 RPM, and 250°F, the 59.453 swivel is built for precision, reliability, and long-lasting use in pressure cleaning systems that require angled flow paths.

Applications

• 90° surface cleaners for commercial and industrial cleaning

• High-pressure parts washers

• Self-rotating nozzles and spray systems

• Robotic and automated wash systems

• Cleaning equipment with space-saving or angled connection needs

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: 3/8" NPT Male

• Configuration: 90° swivel for compact or directional setups

• Material: Stainless steel body and internals

• Bearing System: 2 radial + 2 thrust ball bearings

• Seal Type: Long-life carbide seal system

• Seal Monitoring: Built-in weep holes for failure alerts

• Max Pressure: 5000 PSI

• Max Temperature: 250°F

• Max RPM: 2000

• Durable & Compact: Engineered for high-load, continuous-duty use

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.43"
Weight: 53.7 oz

The Mosmatic DYT- Swivel 59.051 is engineered for demanding high-pressure cleaning applications. Manufactured from high-quality stainless steel, this swivel is built for durability, precision, and long-lasting performance. Ideal for self-rotating equipment, surface cleaners, and parts washers, the DYT swivel ensures smooth rotation while handling both thrust and radial forces.

Its advanced quadruple bearing system features two radial ball bearings and two thrust ball bearings, delivering exceptional stability and efficiency. The carbide seal system ensures maximum leak protection, while integrated weep holes provide an early warning of seal failure for proactive maintenance.

Designed to operate at pressures up to 5000 PSI, the Mosmatic DYT- Swivel 59.051 delivers reliable performance in even the toughest environments.

Applications:

• High-Pressure Cleaning Systems

• Surface Cleaners

• Parts Washers

• Self-Rotating Cleaning Equipment

• Industrial and Commercial Cleaning Solutions

Features:

• Heavy-duty stainless steel construction for corrosion resistance

• Quadruple bearing system: 2x radial ball bearings & 2x thrust ball bearings

• Advanced carbide seal system for long-lasting performance

• Integrated seal failure warning through weep holes

• Thread Inlet: ¼” NPTF | Thread Outlet: ¼” NPTM

• Max Pressure: 5000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 2.36”

• Overall Length: 4.21”

• Nominal Width (NW): ¼”

• Wrench Size (SW): 0.63”

Specs

Pressure: 5000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: ¼” NPTF

Thread Out: ¼” NPTM

Nominal Width (NW): ¼”

Wrench Size (SW): 0.63

Diameter (D): 2.36”

Length 1 (L1) : 2.76

Length 2 (L2) (overall length): 4.21"

Length 3 (L3): 0.39"

Weight: 51.7 oz

The Mosmatic DYGI Swivel 57.358 (90-degree) is a precision-engineered stainless steel swivel built for high-pressure, self-rotating cleaning applications. Designed for long-term durability in industrial and commercial environments, it features a corrosion-resistant stainless steel body and advanced triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and stable performance. The integrated carbide seal system delivers reliable leak protection, while the 90° design and bulkhead fitting allow for secure mounting in compact spaces. Maintenance-free and built to perform under pressure.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotary nozzles

• Industrial and commercial cleaning equipment

Key Features

• Premium stainless steel construction for maximum corrosion resistance

• 90° swivel design ideal for tight or angled installations

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for long-lasting sealing performance

• Maintenance-free for extended service life

• Bulkhead fitting for fixed, secure mounting

• Thread IN: 1/4” NPTF | Thread OUT: 3/8” NPTM

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.42”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.42"

 Diameter (D) (overall diameter): 1.42"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2) : 0.47

Weight: 11.0 oz

The Mosmatic 39.907 DXTI Swivel is a high-speed, high-performance stainless steel swivel built for self-rotating cleaning systems where low torque, high RPMs, and reliability are essential. Designed for parts washers, tire cleaners, and high-pressure (HP) cleaning technology, this swivel combines precision engineering with rugged durability.

This model features a quadruple bearing system - 2 radial and 2 thrust ball bearings - for enhanced stability under rotation. Its ceramic seal system resists wear, heat, and chemicals, making it ideal for demanding industrial use. A side weep connection allows for easy monitoring and capture of fluid discharge, protecting surrounding components and systems.

With support for 2500 PSI, 2000 RPM, and 250°F, the 39.907 DXTI swivel is built to deliver long-lasting, smooth rotation in even the most intensive cleaning applications.

Applications

• Self-rotating parts washer systems

• Tire cleaning equipment

• High-pressure (HP) industrial cleaning systems

• Spray arms and rotating nozzles

• Robotic or automated cleaning tools requiring high speed and low torque

Key Features

• Thread In: 3/4" NPT Female

• Thread Out: G1/2" Male

• Material: Stainless steel construction

• Seal Type: High-performance ceramic seal for heat and chemical resistance

• Quadruple Bearing System: 2 radial + 2 thrust stainless steel ball bearings

• Low Torque Design: Ideal for high-speed rotary cleaning

• Side Weep Connection: Allows fluid capture and seal failure monitoring

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Built for Demanding Use: Engineered for heavy-duty and continuous operation

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/4" NPTF
Thread Out: G1/2" M
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.84"
Length 1 (L1): 3.44"
Length 2 (L2): 4.92"
Length 3 (L3): 0.48"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.97"
Weight: 57.9 oz

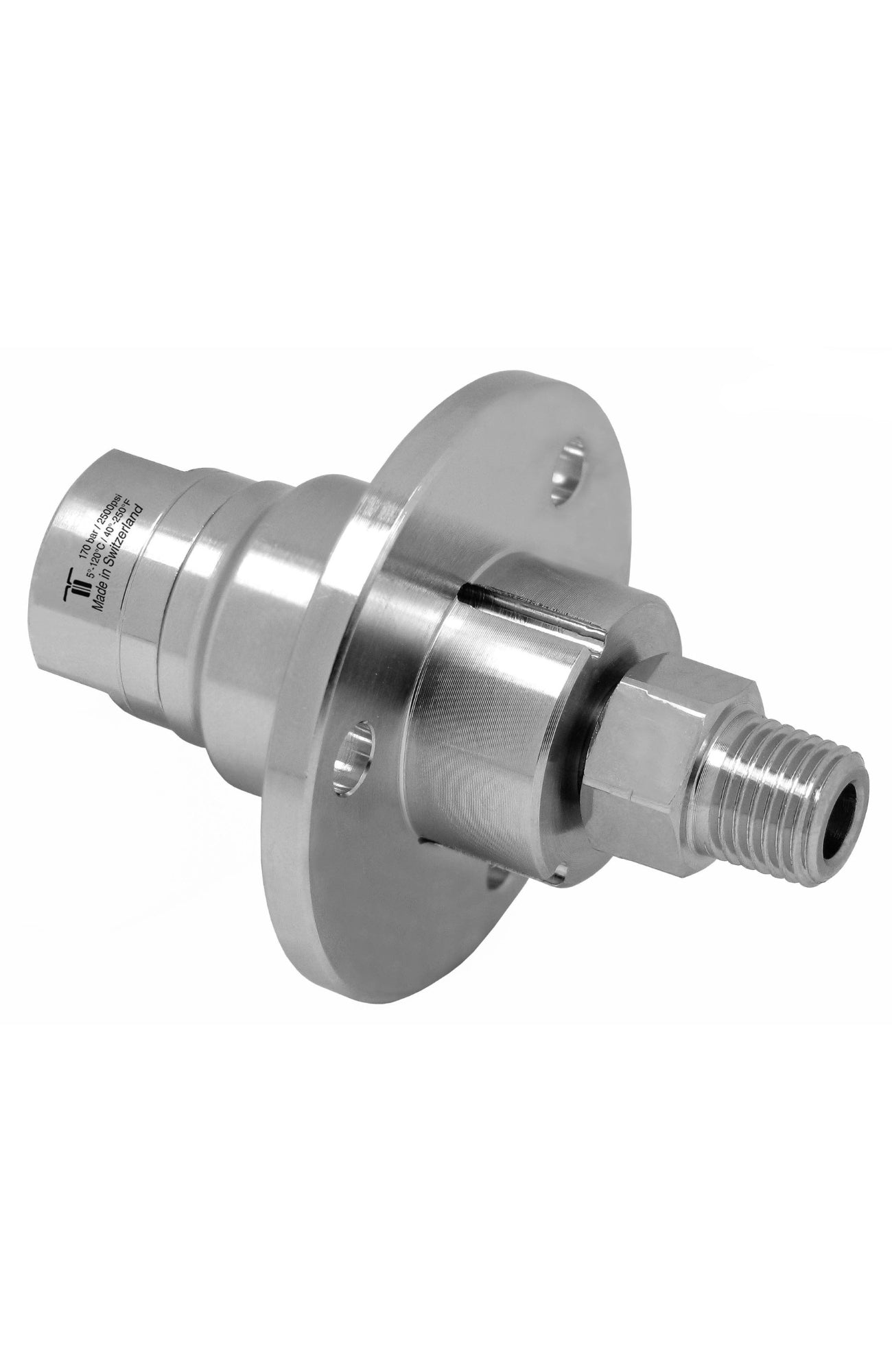

The Mosmatic DXFI Swivel - 38.158 is a high-efficiency stainless steel swivel built for high-RPM, high-pressure cleaning systems. Perfectly suited for self-rotating tools, industrial surface cleaners, tire and wheel washing systems, and parts washers, this swivel delivers smooth, reliable performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—that ensures stable rotation and extended service life. The integrated ceramic seal system offers excellent resistance to wear, heat, and pressure. With weep holes for early seal failure detection and a flange mount for easy installation, this swivel is built for demanding, high-speed applications.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners for commercial and industrial use

• Parts washers and degreasing systems

• Tire and wheel cleaning stations

Key Features:

• Corrosion-resistant stainless steel construction

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Long-life ceramic seal system for high-performance sealing

• Seal failure detection via integrated weep holes

• Flange mount for quick, secure installation

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Max Pressure: 2500 PSI

• Max Speed: 2000 RPM

• Operating Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Stainless Steel

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 13.5oz

The Mosmatic DXF Swivel - 38.153 is a high-performance stainless steel swivel designed for high-RPM and high-pressure cleaning equipment. Built for longevity and reliability, it is ideal for self-rotating tools, surface cleaners, parts washers, and tire cleaning systems. This swivel features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and consistent rotation. A durable ceramic seal system ensures long-term leak protection under extreme conditions, while integrated weep holes serve as an early warning system for seal failure. Its flange mount allows for quick and secure installation.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners for industrial and commercial use

• Tire and wheel washing systems

• Parts washers and cleaning stations

Key Features:

• Stainless steel construction for corrosion resistance and durability

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Advanced ceramic seal system for high-speed applications

• Integrated weep holes for seal failure detection

• Flange mount for quick and stable installation

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 2500 PSI

• Max RPM: 2000

• Operating temperature: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 13.5oz

The Mosmatic DXF Swivel - 38.063 is a high-performance stainless steel swivel designed for high-RPM, self-rotating cleaning applications. Ideal for use in surface cleaners, tire and wheel cleaning systems, and industrial parts washers, this swivel ensures reliable performance under demanding conditions. It features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, long-lasting rotation. The integrated ceramic seal system offers exceptional resistance to pressure and temperature, while built-in weep holes provide early warning of seal failure. Its flange mount design ensures fast and secure installation in any setup.

Applications:

• Self-rotating cleaning tools

• Surface cleaners for industrial and commercial use

• Tire and wheel cleaning systems

• Parts washers and high-RPM cleaning applications

Key Features:

• Stainless steel body for maximum corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal for extended high-RPM use

• Seal failure indicator via integrated weep holes

• Flange mount for easy and secure installation

• Thread IN: G1 1/4" NPTF | Thread OUT: G2 G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 13.0oz

The Mosmatic DXF Swivel - 38.051 is a precision-engineered stainless steel swivel designed for high-RPM and high-performance cleaning systems. Ideal for self-rotating tools, surface cleaners, parts washers, and tire cleaning equipment, this swivel features a triple bearing system—two radial ball bearings and one thrust ball bearing—for maximum rotational efficiency and durability. The advanced ceramic seal system ensures extended service life under demanding conditions, while integrated weep holes provide seal failure detection for added safety. A flange mount design allows for quick and secure installation in a variety of industrial cleaning setups.

Applications:

• High-RPM self-rotating cleaning tools

• Surface cleaners

• Parts washers

• Tire and wheel cleaning equipment

Key Features:

• Stainless steel construction for superior corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal system for high-speed applications

• Seal failure warning via integrated weep holes

• Flange mount for fast and easy installation

• Thread IN: G1 1/4" NPTF | Thread OUT: G2 1/4" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Pressure rated to 2500 PSI

• Max RPM: 2000

• Temperature range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 12.1oz

The Mosmatic DXG 90° Swivel 37.463 is a high-precision nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning applications. Ideal for surface cleaners, parts washers, and tire cleaning systems, this 90-degree swivel is built to deliver exceptional durability and smooth operation in tough environments. It features a triple bearing system with two radial ball bearings and one thrust ball bearing for consistent, stable rotation. The ceramic seal system ensures extended leak-free performance under high-pressure conditions. With a corrosion-resistant finish, bulkhead fitting for secure mounting, and a maintenance-free design, this swivel is ready for demanding professional use.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning tools

• High-RPM self-rotating cleaning equipment

• Commercial and industrial pressure washing

Key Features

• Nickel-plated brass body for excellent corrosion resistance

• 90-degree configuration for compact or angular setups

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for long-lasting, leak-free performance

• Designed for high-RPM, self-rotating applications

• Bulkhead fitting for secure mounting

• Maintenance-free operation

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" M

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2): 0.39

Weight: 13.4 oz

The Mosmatic DXLI 36.358 90-Degree Swivel is a premium stainless steel swivel, expertly designed for high-pressure, high-speed cleaning applications. With a robust ceramic seal system and a triple bearing configuration (2x radial, 1x thrust), it delivers maximum durability and smooth rotation under intense operating conditions.

Engineered for reliability and performance, this maintenance-free swivel is ideal for use in automated cleaning equipment, parts washers, and tire cleaning systems. Its compact 90° design allows for flexible installations in tight spaces, while offering excellent corrosion resistance and lasting performance.

Applications:

• High-pressure cleaning systems

• Parts washers and degreasers

• Tire and wheel cleaning equipment

• Self-rotating cleaning tools

• Industrial wash bays

Key Features:

• Stainless steel construction for superior corrosion resistance

• Triple bearing system for high-RPM performance

• Long-life ceramic seal system

• Thread IN: 1/4" NPTF

• Thread OUT: 3/8" NPTM

• 90° compact design for tight installations

• Overall Diameter: 0.98”

• Overall Length: 3.30”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F to 250°F (4°C to 121°C)

• Bulkhead fitting for easy mounting

• Maintenance-free and precision built

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.30"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 7.1 oz

The Mosmatic DGF Swivel 35.351 is a professional-grade brass swivel designed for demanding high-pressure cleaning applications. Engineered with a nickel-plated finish for durability and corrosion resistance, this swivel ensures long-lasting performance in industrial environments. It incorporates a robust triple bearing system—featuring two radial ball bearings and one thrust ball bearing—for smooth, reliable rotation in both static and dynamic operations. Compatible with a variety of systems, the DGF swivel is an essential component for improving functionality and efficiency in pressure-based cleaning technologies.

Applications

• High-pressure cleaning technology

• Parts washer systems

• Tire cleaning equipment

• Self-rotating cleaning applications

Key Features

• Durable brass body with nickel-plated finish

• Triple bearing design: 2x radial, 1x thrust ball bearings

• O-ring made of NBR (Nitrile Butadiene Rubber) for superior sealing

• Thread IN: 1/4" NPTF to Thread OUT: 1/4" NPTM

• Overall diameter: 2.36” | Length: 1.45” | NW: 1/4"

• Handles pressure up to 4000 PSI

• Operates at up to 1000 RPM

• Temperature tolerance: 90°F at 1000 RPM, 250°F at 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 13.0oz
