The Mosmatic DGF Swivel - 35.153 is a high-quality swivel engineered for precision and durability in high-pressure cleaning environments. Made from solid brass with a corrosion-resistant nickel-plated finish, this swivel is built for long-lasting performance in demanding applications such as tire cleaning systems, parts washers, and self-rotating cleaning equipment. It features a reliable triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth operation under high pressure and rotational stress. A robust O-ring NBR seal ensures excellent resistance to wear, heat, and fluid exposure.

Applications:

• High-pressure cleaning systems

• Tire and wheel washers

• Parts washing machines

• Self-rotating cleaning devices

Key Features:

• Durable brass construction with nickel plating for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR seal for reliable, leak-free performance

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Rated up to 4000 PSI

• Max RPM: 1000

• Operating Temperature: 90°F @ 1000 RPM / 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 10.4oz

The Mosmatic DGF Swivel - 35.063 is a high-performance swivel built to meet the rigorous demands of industrial cleaning systems. Made from durable brass and finished with corrosion-resistant nickel plating, this swivel delivers long-lasting reliability in high-pressure environments. Its precision-engineered triple bearing system—featuring two radial ball bearings and one thrust ball bearing—ensures smooth rotation and extended service life. Designed with an O-ring NBR seal, this swivel is ideal for applications involving self-rotating tools, tire cleaning equipment, and parts washers.

Applications:

• High-pressure cleaning technology

• Tire cleaning equipment

• Parts washers

• Self-rotating cleaning systems

Key Features:

• Durable brass construction with nickel-plated finish

• Triple bearing system: 2x radial and 1x thrust ball bearing

• Reliable sealing with O-ring NBR

• Thread IN: 1/4" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1.4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 4000 PSI

• Max RPM: 1000

• Temperature range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1.4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 12.0oz

The Mosmatic DGF Swivel - 35.051 is a high-performance swivel designed for demanding high-pressure cleaning applications. Constructed from durable brass with a nickel-plated finish, this swivel ensures longevity and corrosion resistance. It features a precision-engineered triple bearing system (2x radial ball bearings and 1x thrust ball bearing) for smooth operation and extended service life. Engineered with an O-ring NBR seal, the DGF Swivel is ideal for self-rotating systems, tire cleaners, and parts washers operating under high loads and rotational speeds.

Applications:

• High-pressure cleaning systems

• Parts washers

• Tire cleaning equipment

• Self-rotating cleaning tools

Key Features:

• Brass construction with nickel plating for durability

• Triple bearing system: 2 radial + 1 thrust ball bearing

• Sealing: O-ring NBR

• Thread IN: 1/4" NPTF | Thread OUT: 1/4"

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Pressure rating: Up to 4000 PSI

• Max RPM: 1000

• Max Temperature: 90°F @ 1000 RPM / 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 10.4oz

The Mosmatic DGE Swivel - 34.875 is a compact, high-flow swivel engineered to handle thrust and radial forces in high-pressure environments. Built with a nickel-plated brass housing and a stainless steel interior, it delivers superior corrosion resistance and durability in industrial and food-grade settings. Featuring a one thrust ball bearing, ensuring dependable performance, this swivel provides smooth, low-RPM operation and long-lasting reliability. Rated for 2900 PSI and up to 250°F, it is ideal for applications requiring robust performance in tight spaces.

Applications:

• High-pressure cleaning and fluid systems

• Food and beverage sanitation and processing equipment

• Chemical transfer and washdown operations

• Industrial hose reels and rotary connections

Key Features:

• Nickel-plated brass body with stainless steel interior

• With 1x thrust ball bearing

• Engineered to manage both thrust and radial forces

• Corrosion-resistant for industrial and sanitary use

• Compact design with high-flow capability

• Thread IN: 1" NPTF | Thread OUT: 1" NPTM

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 1.42"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTM

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Diameter (D1): 2.36"

Diameter 2 (D2): 2.83

Length 1 (L1) (overall length): 1.42"

Length 2 (L2): 2.52

Length 3 (L3): 0.71

Length 4 (L4): 1.18

Length 5 (L5): 0.83

Weight: 74.2oz

The Mosmatic DGE Swivel - 34.765 is a rugged, high-flow stainless steel swivel designed for high-pressure applications where thrust and radial forces must be managed reliably. Equipped with 1x thrust ball bearing and 2x sliding bearings, this swivel delivers stable, low-RPM rotation and long-term durability. Its corrosion-resistant stainless steel construction makes it ideal for demanding environments such as pharmaceutical processing, food and beverage sanitation, automatic car wash systems, and industrial fluid handling.

Applications:

• Food and beverage cleaning and transfer systems

• Pharmaceutical production and CIP processes

• Rotary spray arms in car wash systems

• Industrial chemical handling and washdown

Key Features:

• Corrosion-resistant stainless steel housing

• With 1x thrust ball bearing and 2 x sliding bearings

• Handles both thrust and radial loads under high pressure

• High-flow design with smooth low-RPM operation

• Thread IN: 1" NPTF | Thread OUT: 1" NPTF

• Nominal Width (NW): 1"

• Diameter: 2.35"

• Overall Length: 3.54"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Stainless Steel

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTF

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Wrench Size 2 (SW2): 1.97

Diameter (D1): 2.35"

Length 1 (L1) (overall length): 3.54"

Length 2 (L2): 2.56

Weight: 44oz

The Mosmatic DGE Swivel - 34.755 is a precision-engineered stainless steel swivel built for high-pressure and high-flow applications. Designed to handle both thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings, delivering smooth, reliable rotation even in demanding conditions. Corrosion-resistant and rated for 2900 PSI, this swivel is ideal for use in pharmaceutical, food service, automatic car wash, and industrial fluid systems where hygiene, performance, and durability are essential.

Applications:

• Food and beverage sanitation systems

• Pharmaceutical processing and CIP systems

• Industrial washdown and high-pressure cleaning

• Automatic car wash rotary spray systems

Key Features:

• Heavy-duty stainless steel construction for superior corrosion resistance

• With 1x thrust ball bearing and 2 x sliding bearings

• Handles both thrust and radial forces in low-RPM environments

• High-flow capability with consistent performance

• Thread IN: 1" NPTF | Thread OUT: 1" NPTM

• Nominal Width (NW): 1"

• Diameter: 2.35"

• Overall Length: 3.74"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Stainless Steel

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTM

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Wrench Size 2 (SW2): 1.97

Diameter (D1): 2.35"

Length 1 (L1) (overall length): 3.74"

Length 2 (L2): 2.56

Length 3 (L3): 0.71

Weight: 40.3oz

The Mosmatic DGE Swivel - 34.754 is a high-performance stainless steel swivel engineered for high-pressure, high-flow operations across a variety of demanding environments. Designed to support both thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for smooth, reliable operation. With a pressure rating of 5000 PSI and temperature resistance up to 250°F, it’s perfect for applications in pharmaceutical manufacturing, food processing, industrial cleaning, and automatic car wash systems.

Applications:

• Pharmaceutical fluid handling and CIP systems

• Food and beverage sanitation and spray lines

• Car wash sprayers and rotary connections

• Industrial washdown and chemical systems

Key Features:

• Rugged stainless steel construction for corrosion resistance

• With 1x thrust ball bearing and 2 x sliding bearings

• High-flow capacity for demanding applications

• Supports both radial and thrust forces at low RPM

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM

• Nominal Width (NW): 3/4"

• Diameter: 1.97"

• Overall Length: 3.66"

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 5000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Stainless Steel

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.06

Wrench Size 2 (SW2): 1.58

Diameter (D1): 1.97"

Length 1 (L1) (overall length): 3.66"

Length 2 (L2): 2.58

Length 3 (L3): 0.63

Weight: 27.8oz

The Mosmatic DGR Swivel - 34.311 is a premium stainless steel swivel designed to withstand both radial and thrust forces in high-pressure applications. Featuring a quadruple bearing system with two radial and two thrust ball bearings, this swivel delivers smooth, reliable performance even under heavy load. It is ideal for industrial or food service use where high flow, corrosion resistance, and durability are essential. Built from high-grade stainless steel, it ensures long-term resistance to harsh environments and demanding conditions.

Applications:

• Industrial high-pressure systems

• Food and beverage processing equipment

• Sanitation and washdown systems

• Chemical and fluid transfer operations

Key Features:

• Corrosion-resistant stainless steel construction

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• High-flow design for efficient performance

• Handles both thrust and radial force loads

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM

• Nominal Width (NW): 3/4"

• Diameter: 2.17"

• Overall Length: 5"

• Max Pressure: 3000 PSI

• Max RPM: 150

• Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.65

Wrench Size 2 (SW2): 1.26

Diameter (D): 2.17

Length 1 (L1) (overall length): 5

Length 2 (L2): 3.66

Length 3 (L3): 0.59

Weight: 51oz

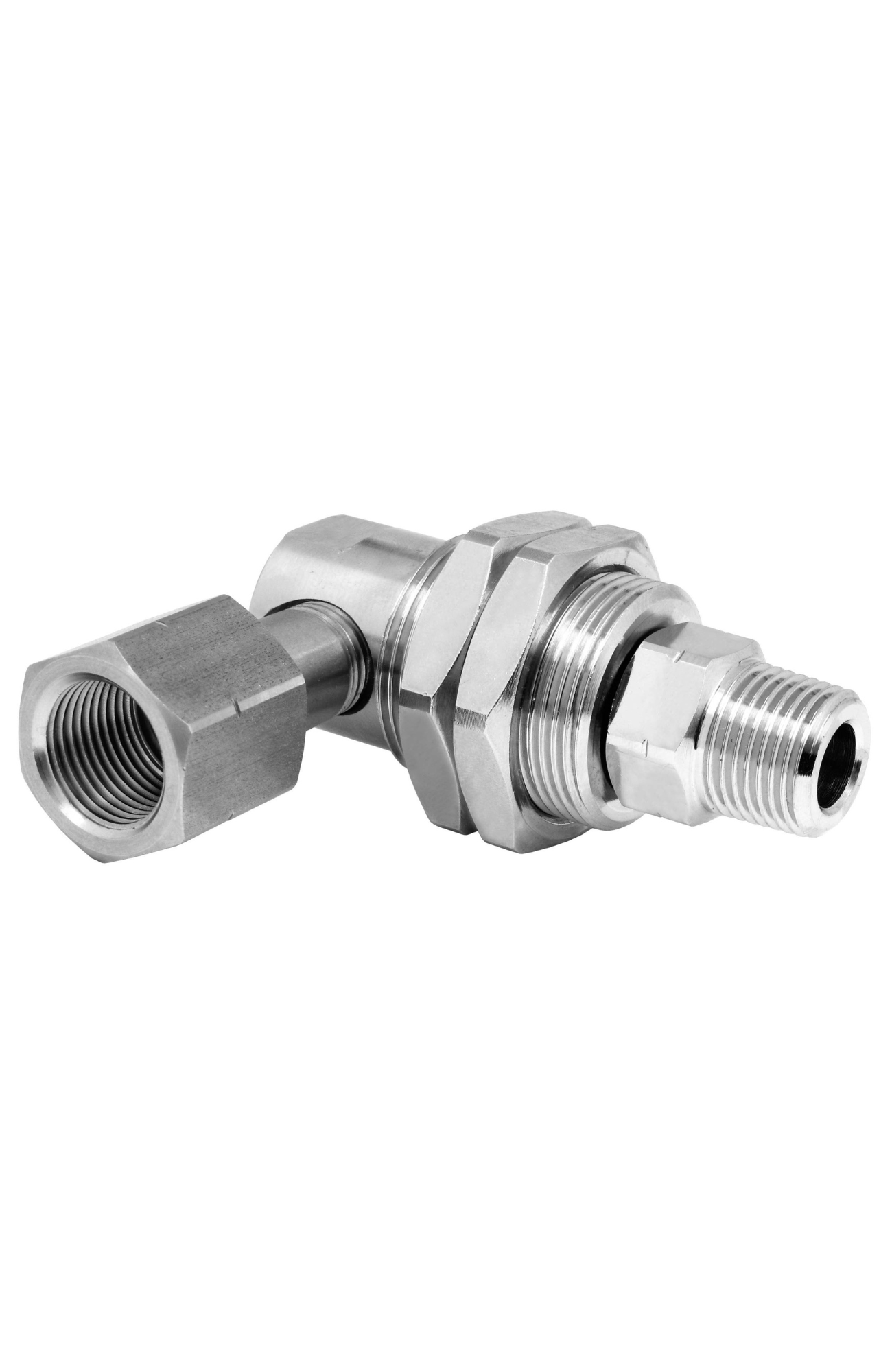

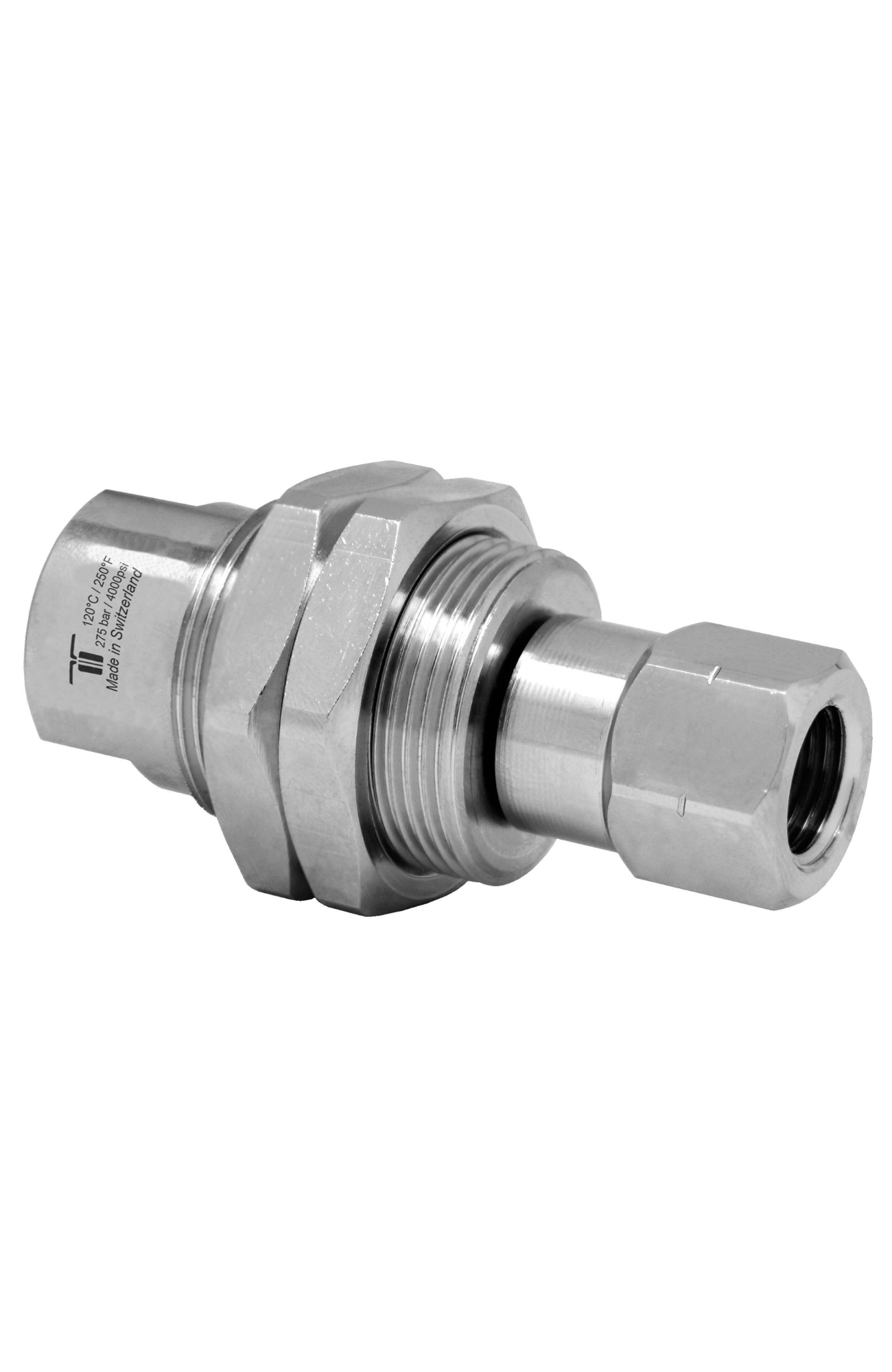

The Mosmatic DGGI Swivel 33.907 is a high-precision stainless steel swivel designed for high-pressure cleaning systems and self-rotating equipment. Engineered for durability and performance, this swivel features a triple bearing system—two radial and one thrust bearing—for smooth operation and extended service life.

Its O-ring NBR seal system (with optional EPDM or FKM alternatives) ensures excellent sealing performance under a variety of temperatures and pressures. This swivel is corrosion-resistant, maintenance-free, and ideal for applications requiring reliability at high speeds and pressures.

Applications:

• Self-rotating high-pressure cleaning systems

• Tire and undercarriage washers

• Industrial parts washers

• Wash bays and automated wash systems

• Food-grade and chemical wash-down equipment

Key Features:

• Material: High-grade stainless steel for corrosion resistance and hygiene-critical applications

• Seal Type: O-ring NBR standard (EPDM or FKM optional for chemical compatibility)

• Bearing System: Triple bearing setup (2x radial, 1x thrust) for high-speed rotation

• Mounting Type: Bulkhead fitting for secure and stable installation

• Thread Inlet (G1): 1/4" NPTF

• Thread Outlet (G2): G3/8" M

• Overall Diameter: 1.42”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI (276 bar)

• Max RPM: 1000

• Max Temperature: 90°F at 1000 RPM; 250°F at 30 RPM

• Maintenance: 100% maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.42"

Diameter (D) (overall diameter): 1.42"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.39"

Weight: 8.7 oz

The Mosmatic DGG Swivel 33.653 is a high-quality brass, nickel-plated swivel engineered for demanding high-pressure cleaning systems. Ideal for parts washers, tire cleaners, and self-rotating cleaning applications, it offers superior performance and reliability.

This swivel features a triple bearing system with 2x radial ball bearings and 1x thrust ball bearing for long service life and smooth rotation. Designed with an O-ring NBR seal system (also available with optional EPDM or FKM seals), the 33.653 is maintenance-free and corrosion-resistant.

Built for precision and durability, the DGG 33.653 handles up to 4000 PSI, with performance suited for both high-speed and high-temperature applications.

Applications:

• High-pressure cleaning systems

• Self-rotating surface cleaners

• Parts washing systems

• Tire and undercarriage cleaning equipment

• Industrial and automotive cleaning setups

Key Features:

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple bearing system (2x radial, 1x thrust)

• Thread IN (G1): 3/8” NPTF

• Thread OUT (G2): 3/8” NPTM

• Overall Diameter: 1.34”

• Overall Length: 2.63”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Maximum Pressure: 4000 PSI

• Maximum RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting: Bulkhead fitting

• Operation: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.47"

Weight: 7.6 oz

The Mosmatic DGG Swivel 33.463 (90 Degrees) is a brass, nickel-plated high-pressure swivel engineered for efficient operation in self-rotating and automated cleaning systems. With its compact 90° design and robust construction, it’s the ideal solution for tire cleaning, parts washers, and surface cleaners in industrial or commercial environments.

This swivel features a triple bearing system consisting of 2x radial ball bearings and 1x thrust ball bearing, enabling smooth, controlled rotation under pressure. It includes a reliable O-ring NBR seal system, with optional EPDM or FKM seals for enhanced chemical resistance. Built for corrosion resistance and maintenance-free performance, the DGG 33.463 is designed to withstand high RPMs and pressures in demanding applications.

Applications

• High-pressure rotating cleaning systems

• Tire and underbody washing equipment

• Industrial parts washers

• Surface cleaners and rotating nozzles

• Automated washing systems

Key Features

• Design: 90° angled swivel

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing Type: Triple bearing (2x radial, 1x thrust)

• Thread IN (G1): 3/8” NPTF

• Thread OUT (G2): G3/8” M

• Overall Diameter: 1.34”

• Overall Length: 2.75”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.75"

Length 2 (L2): 0.39"

Weight: 12.1 oz

The Mosmatic DGG Swivel 33.353 (90 Degrees) is a brass, nickel-plated swivel designed for high-pressure, self-rotating cleaning applications. With a durable 90° configuration, it’s perfect for systems requiring compact, directional rotation such as tire cleaners, parts washers, and industrial surface cleaners.

This high-performance swivel features a triple bearing system—2x radial ball bearings and 1x thrust ball bearing—for optimal rotation under pressure. The O-ring NBR seal system ensures leak-free performance, and can be optionally upgraded to EPDM or FKM seals for increased chemical compatibility. Built for corrosion resistance, bulkhead mounting, and maintenance-free operation, the DGG 33.353 ensures reliability in even the harshest cleaning environments.

Applications

• High-pressure rotating cleaning systems

• Parts washing equipment

• Tire and undercarriage cleaning systems

• Industrial surface cleaners

• Self-rotating cleaning heads

Key Features

• Design: 90° angled swivel

• Material: Brass, nickel plated

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2x radial, 1x thrust)

• Thread IN (G1): 1/4” NPTF

• Thread OUT (G2): 3/8” NPTM

• Overall Diameter: 1.34”

• Overall Length: 2.75”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting Type: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 3/8” NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.75"

Length 2 (L2): 0.47"

Weight: 8.5 oz

The Mosmatic DGG Swivel 33.152 is a precision-engineered brass, nickel-plated swivel built for demanding high-pressure cleaning and self-rotating applications. This swivel is ideal for use in tire cleaners, industrial parts washers, and automated cleaning equipment.

Its advanced triple bearing system—featuring two radial ball bearings and one thrust ball bearing—ensures smooth, reliable rotation even under continuous high pressure. The O-ring NBR sealing system offers dependable leak resistance and can be optionally configured with EPDM or FKM seals for chemical compatibility. Corrosion-resistant and maintenance-free, this swivel is designed for long-lasting performance in tough environments.

Applications

• High-pressure cleaning systems

• Parts washers

• Self-rotating cleaning heads

• Tire and underbody wash systems

• Industrial automated cleaning equipment

Key Features

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2x radial, 1x thrust)

• Thread IN (G1): 3/8” NPTF

• Thread OUT (G2): 1/4” NPTF

• Overall Diameter: 1.34”

• Overall Length: 2.75”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting Type: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 1/4” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.75"

Weight: 8.7 oz

The Mosmatic DGG Swivel 33.063 is a high-performance brass, nickel-plated swivel engineered for high-pressure cleaning applications and self-rotating equipment. With a triple bearing system (2x radial and 1x thrust bearing), this swivel ensures smooth, low-resistance rotation and long-lasting performance.

It features a durable O-ring NBR seal system, with optional EPDM or FKM seal materials available for varied environmental compatibility. The bulkhead mount design allows secure integration into tire washers, parts cleaners, or other automated systems.

Applications:

• Self-rotating cleaning heads

• Tire and wheel cleaning systems

• High-pressure parts washers

• Stationary and mobile wash equipment

• Rotating spray arm assemblies

Key Features:

• Material: Brass, nickel-plated for durability and corrosion resistance

• Seal System: O-ring NBR (optional EPDM or FKM for added chemical resistance)

• Bearings: Triple bearing configuration (2x radial, 1x thrust)

• Mounting: Bulkhead design for secure installation

• Thread IN: 1/4" NPTF

• Thread OUT: G3/8" M

• Overall Diameter: 1.34”

• Overall Length: 2.59”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.87”

• Maximum Pressure: 4000 PSI

• Maximum RPM: 1000

• Maximum Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

• Maintenance: Maintenance-free, high-precision operation

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 G3/8” M

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.39"

Weight: 8.7 oz
