Mosmatic – Dual Ceiling Boom - DDP - 4ft 9in - 67.409

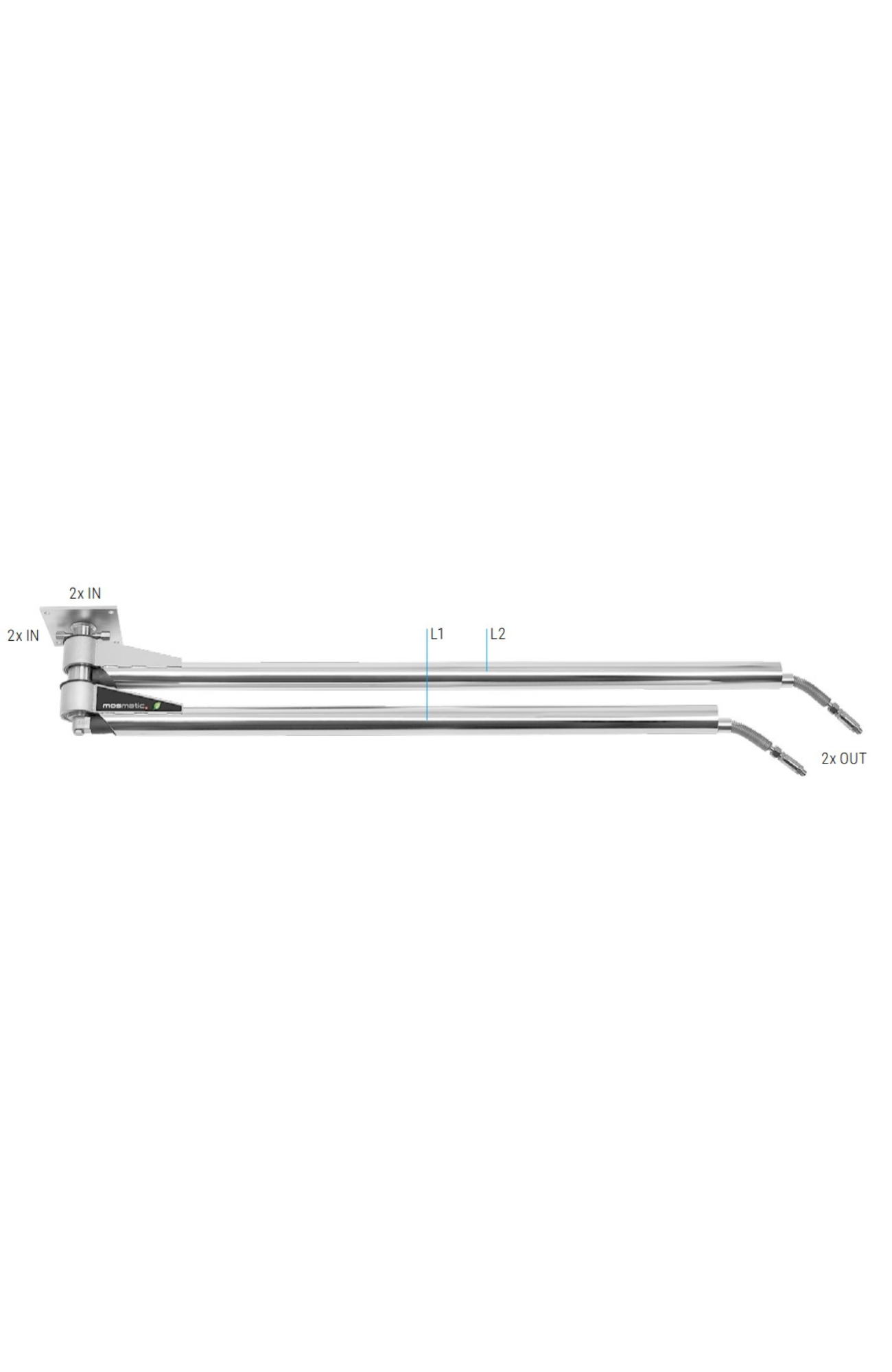

The Mosmatic Dual Ceiling Boom DDP (67.409) is a premium dual-arm ceiling boom built for high-efficiency performance in tunnel prep stations, fleet wash bays, and detailing operations. With boom lengths of 4 ft 9 in and 5 ft 3 in, both mounted on a single vertical stem, this setup allows operators to handle two separate functions simultaneously—ideal for foam brush and high-pressure wand combinations in self-service car washes.

Both booms rotate 360° independently, featuring a sealed bearing design for durability and smooth, low-maintenance operation. Rated for up to 4000 PSI and 250°F, the DDP is compatible with water, oil, and air at a pH range of 3–12. Supplied ready for installation with 3/8" NPTF inlets (top and side) and 3/8" outlets, this dual boom is an environmentally responsible solution for high-demand washing environments.

Applications

• Tunnel wash prep stations

• Fleet and commercial vehicle wash bays

• Self-service car washes (foam + pressure setups)

• Auto detail bays for rinse and dry systems

• Dual-purpose wash environments

Key Features

• Dual ceiling booms: 4 ft 9 in and 5 ft 3 in lengths

• Two 360° rotating booms on one support post

• Pre-assembled and ready for installation

• Sealed bearing design for longevity and minimal maintenance

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated to 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Eco-friendly, rugged industrial performance
