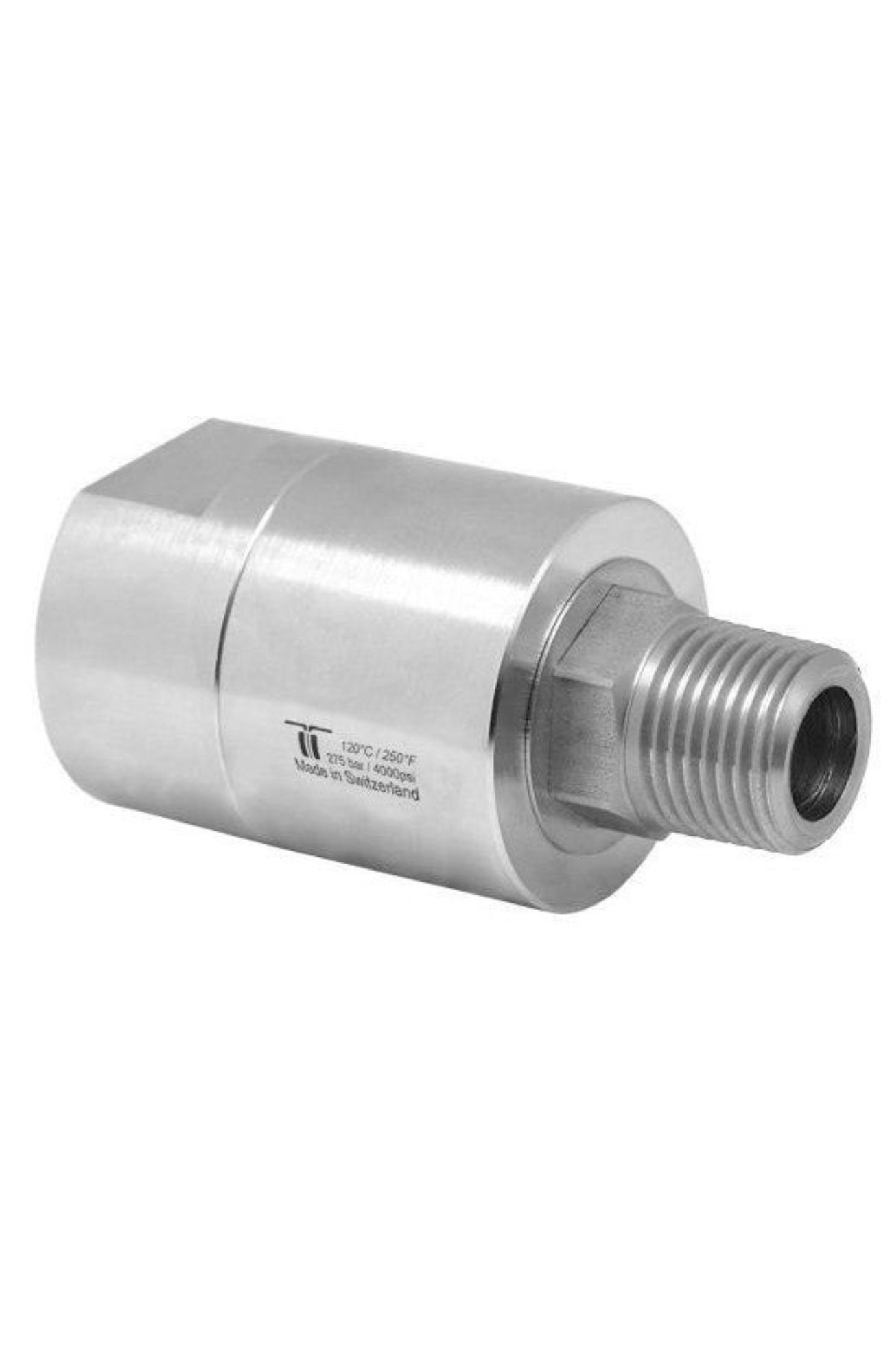

Mosmatic – DGEI Swivel - 34.756 - G1 1 1/4"NPTF to G2 1 1/4"NPTM

The Mosmatic DGE Swivel - 34.756 is a high-performance stainless steel swivel engineered for high-pressure applications involving both thrust and radial forces. Its durable construction and smooth, low-RPM rotation make it ideal for use in pharmaceutical processing, food service sanitation, automatic car washes, and industrial cleaning systems. This swivel includes a quadruple bearing system featuring 1x thrust ball bearing and 2x sliding bearings for maximum stability and reliability. Rated for up to 2900 PSI and temperatures up to 250°F, it delivers efficient high-flow operation in demanding environments.

Applications:

• Food and beverage washdown and fluid transfer

• Pharmaceutical clean-in-place (CIP) systems

• Industrial high-pressure cleaning systems

• Rotary joints in automatic car wash spray arms

Key Features:

• Corrosion-resistant stainless steel body for hygienic applications

• Quadruple bearing system: 1x thrust ball bearing + 2x sliding bearings

• Handles both thrust and radial loads with consistent performance

• Designed for high-flow, low-RPM operation

• Thread IN: 1 1/4" NPTF | Thread OUT: 1 1/4" NPTM

• Nominal Width (NW): 1 1/4"

• Diameter: 2.35"

• Overall Length: 4.51"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F
