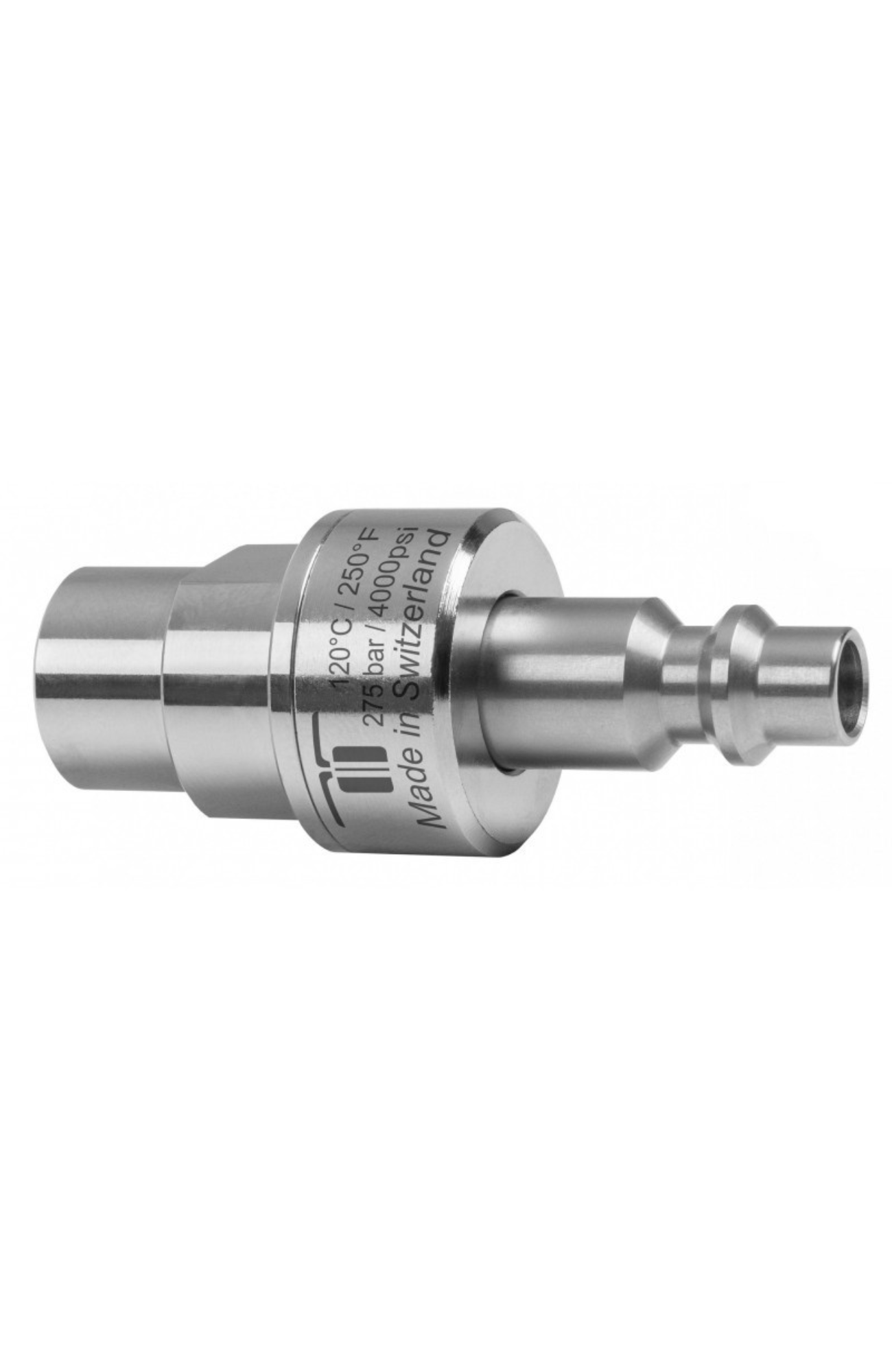

Mosmatic DGK Swivel - 32.986 - G1 G1/4" F

The Mosmatic DGK Swivel 32.986 is engineered to enhance precision and control for compressed air and paint guns. Featuring a nickel-plated brass/stainless steel body, this swivel ensures corrosion resistance and extended service life in professional environments.

Equipped with a thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), the swivel allows for smooth 360° rotation at high pressure. Designed with an ISO-6150 B-profile plug nipple, it supports versatile connections, making it a top-tier choice for industrial-grade spray and air gun applications.

Applications

• Compressed air tools

• Spray and paint guns

• Pneumatic equipment

• Automotive detailing

• Industrial and workshop use

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): G1/4" Female

• Plug Nipple: ISO-6150 B-profile

• Connection Size (S1): 1/4"

• Overall Length: 2.24"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.67"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Benefits: Easy rotation, plug-and-play design, enhanced mobility
