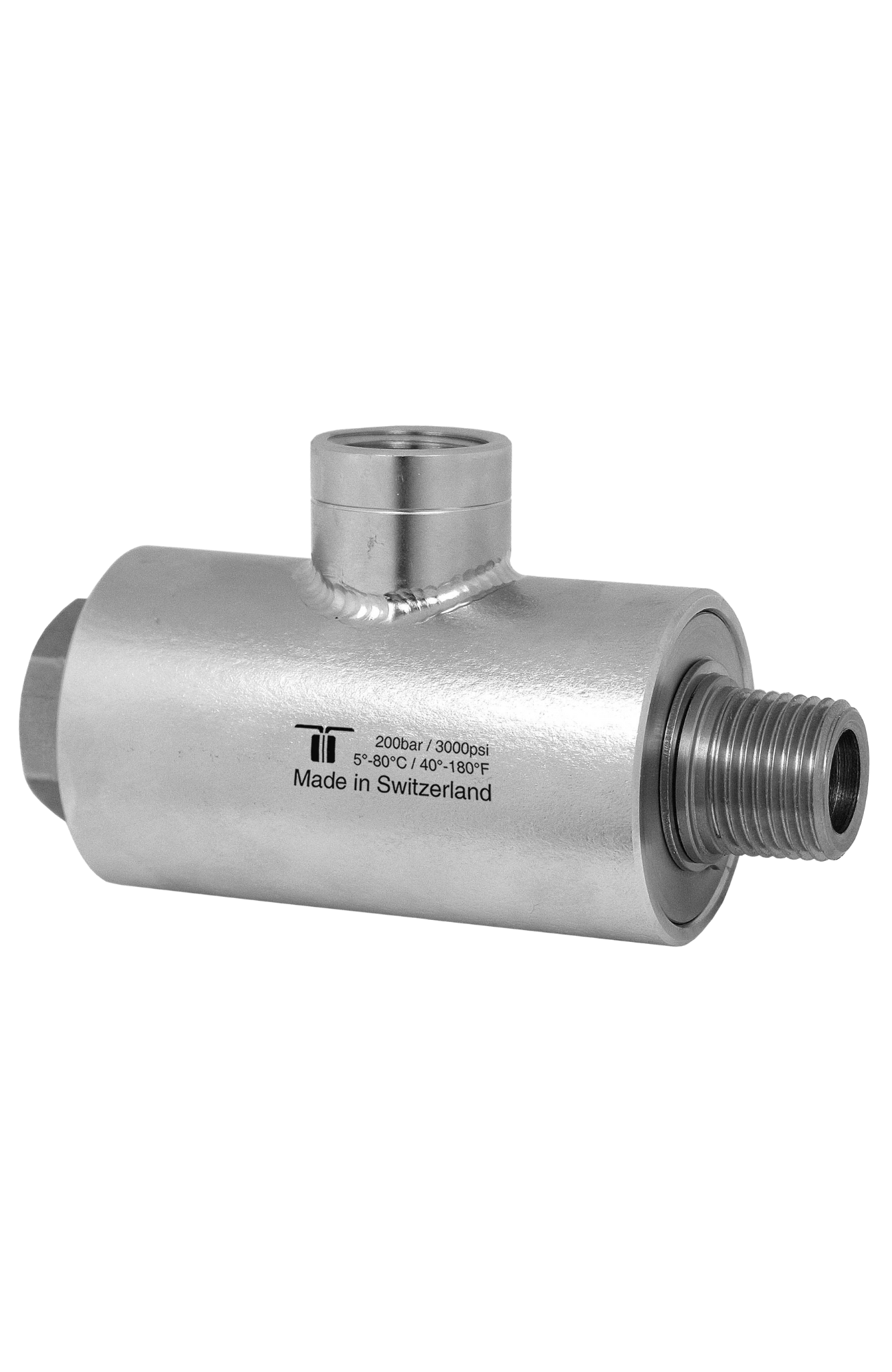

Mosmatic Rotary Unions - WDRS Swivel - (No Front to Back Forces Allowed) - G1 1/2"NPTF G2 1/2"NPTM - 41.261

Automatic car wash, industrial application, high pressure hose reels, high flow

• Dual bearing system
• Complete stainless steel construction
• Rugged design
• Maintenance free

G1 (F) 1/2”NPTF, G2 (M) 1/2”NPTM, NW 1/2”, SW 1.06, H 1.57, L1 4.33, L2 3.15, L3 0.60, L4 2.36, D 1.77, max RPM 150, Weight 28oz

Technical data

• Pressure: 150-3000 psi (1-20 MPa)
• Temperature: 40°F-180°F
• RPM: see chart (max. rpm)
• Torque: max. 37 ft-lbs
• Body: stainless steel
• Inner part: Stainless steel
• Seal: O-ring NBR (optional: EPDM or FKM)
• Bearing: 2x radial ball bearings
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)
