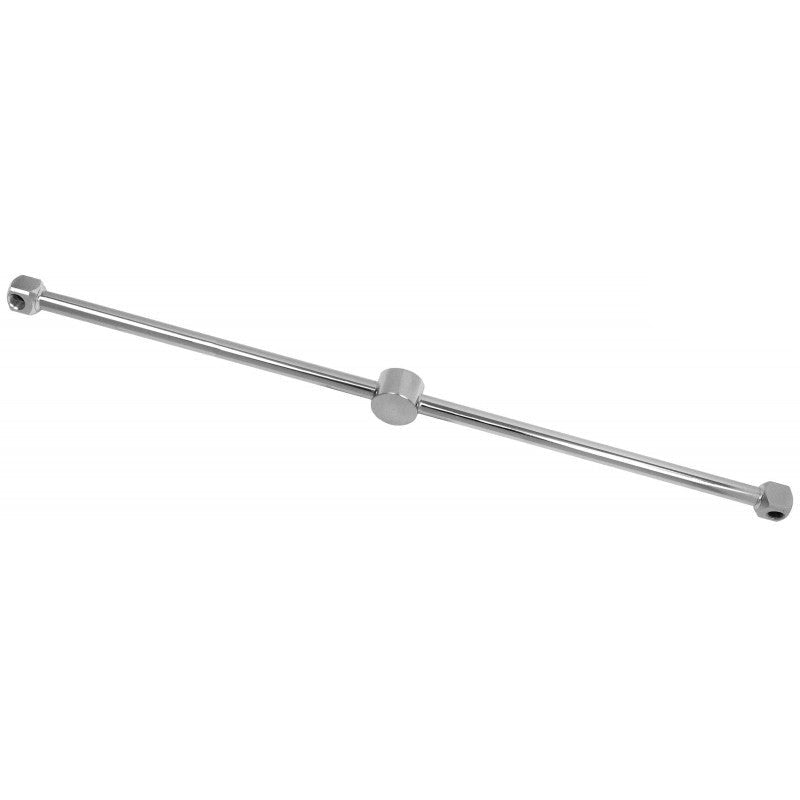

Mosmatic high pressure rotor arms are constructed of Stainless Steel and come in a variety of configurations. Welded and balanced to eliminate dangerous vibrations and ensure smooth performance.

TKA-4w4¼ D 4"/ 4" G1/2"F 4x1/4"NF 4000psi

• Polished stainless steel arm
• Can withstand up to 2500 psi

• Precision welded and balanced

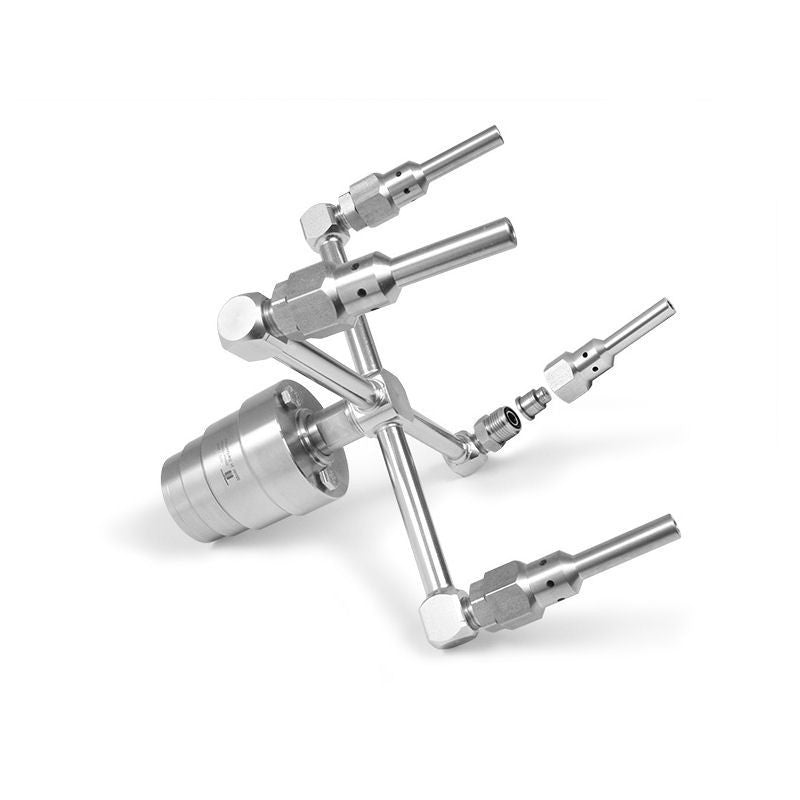

 Fits the following machines:

Spider

• Complete Spider - 81.934
• Complete Spider - 81.935
• Complete Spider - 81.936

Mosmatic high pressure rotor arms are constructed of Stainless Steel and come in a variety of configurations. Welded and balanced to eliminate dangerous vibrations and ensure smooth performance.

TKA-FL-2cp2 D 18" G3/8"F 2x1/8"NF H=30

• Polished stainless steel arm
• Can withstand up to 7300 psi

• Precision welded and balanced


 Fits the following machines:

Gum Remover

• FL-AHB-KAU 520 - 80.786

• FL-AHK-KAU 520 - 80.787

Professional

• FL-AH 520 - 80.784
• FL-AHY 520 - 80.189

 Contractor

• FL-PH 520 - 80.774
• FL-PB 520 - 80.679


Commercial

• FL-CG 520 - 80.770
• FL-CR 520 - 80.771
• FL-RY 520 - 80.159

 Video

 Mosmatic high pressure rotor arms are constructed of Stainless Steel and come in a variety of configurations. Welded and balanced to eliminate dangerous vibrations and ensure smooth performance.

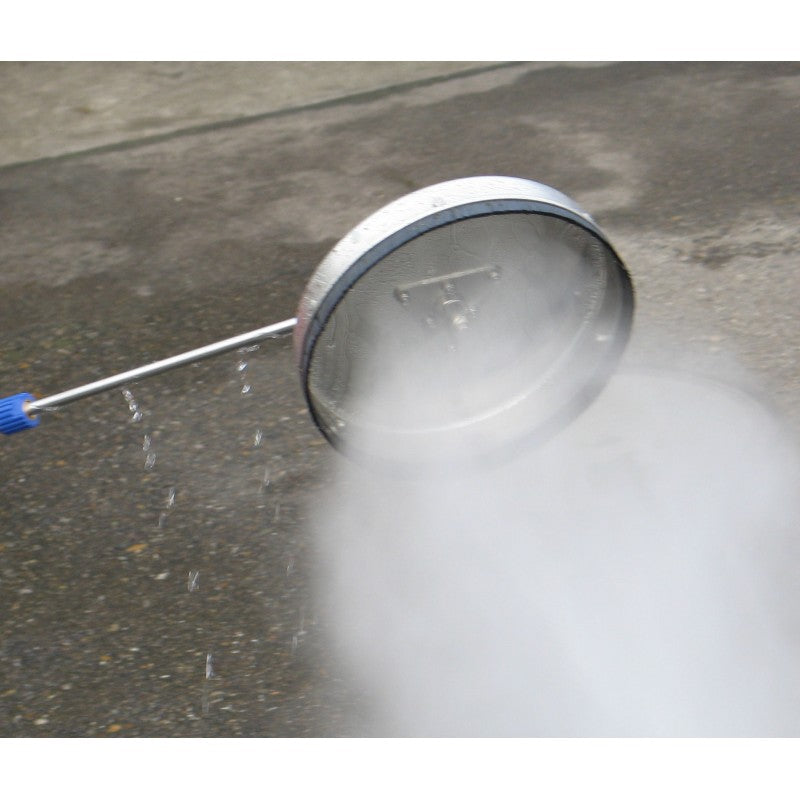

Fits 300MM Rotary Surface Cleaners

TKA-2w3 – Single arm with three nozzle holders. ( center nozzle )

TKAk-2w3 D 10" M12x1-F 3x1/8"NF

• Polished stainless steel arm 250mm
• Used on Mosmatic 300mm Rotary Cleaners
• 3 x 1/8" Nozzle Holders
• Includes center plug
• Precision welded and balanced

Data sheet

Part Number:  82.623

Inlet Thread:  M12x1 F

Outlet Thread:  1/8 NPTF

Bar Pressure

275

Temperature (°C)

120

Diameter (Mm)

250

Replacement Rotor Arm for Graffiti Remover FL-ABB 300 & FL-ABB 200

Turbo-rotor-arm 4000osi w-fixed-11`stainless, welded

TKAk-2p3 D 10" M12x1-F 3x1/8"NF

Mosmatic high pressure rotor arms are constructed of stainless steel and come in a variety of configurations. Welded and balanced to eliminate dangerous vibrations and ensure smooth performance:

• Polished stainless steel
• Solid yet light construction
• Precision welded and balanced

Diameter 38"

Nozzles not included.

Technical Data

• Pressure: 4000 (27.5 MPa also available as 7300psi (50 MPa)
• Temperature:250°F
• Body and pipe: Stainless steel
• IN G3/8"F
• Out (for nozzles) 1/4"NPTF
• Throughput medium pH 3-12

High pressure rotor arms are constructed of stainless steel and come in a variety of configurations. Welded and balanced to eliminate dangerous vibrations and ensure smooth performance.

• Polished Stainless Steel
• Solid yet light construction
• Precision welded and balanced

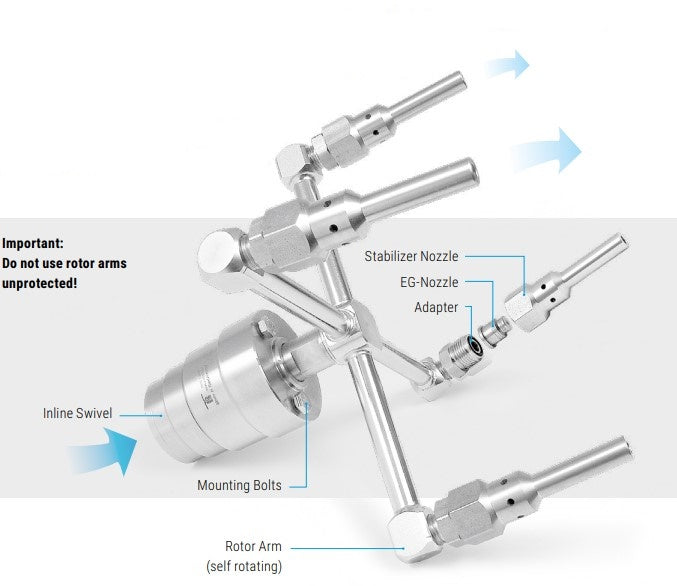

Important: Do not use rotor arms unprotected!

Technical Data

Pressure 4000 psi (27.5 MPa)

also available as 7300 psi (50MPa)

Temperature 250 degrees

Body and Pipe: stainless steel

Out (for nozzles) 1/4" NPTF / 1/8" NPTF

Throughput medium pH 3-12

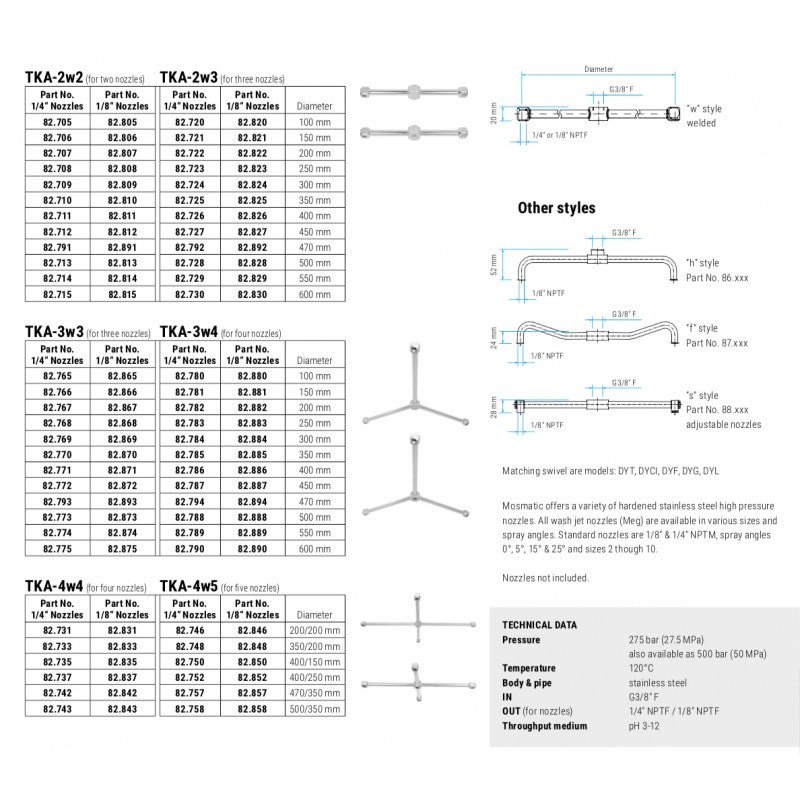

4 Styles Available:

"w" Style Welded- specified as 82.xxx

"h" Style- specified as 86.xxx

"f" Style- specified as 87.xxx

"s" Style- specified as 88.xxx

 Matching Swivel models are models: DYT, DYCI, DYF, DYG, DYL

Mosmatic offers a variety of hardened stainless steel high pressure nozzles. All wash jet nozzles (meg) are available in various sizes and spray angles. Standard nozzles are 1/8" & 1/4" NPTM, spray angles 0 degree, 5 degrees, 15 degrees & 25 degrees and sizes 2 through 10.

High pressure rotor arms are constructed of stainless steel and come in a variety of configurations. Welded and balanced to eliminate dangerous vibrations and ensure smooth performance.

• Polished Stainless Steel
• Solid yet light construction
• Precision welded and balanced

Important: Do not use rotor arms unprotected!

Technical Data

Pressure 4000 psi (27.5 MPa)

also available as 7300 psi (50MPa)

Temperature 250 degrees

Body and Pipe: stainless steel

Out (for nozzles) 1/4" NPTF / 1/8" NPTF

Throughput medium pH 3-12

4 Styles Available:

"w" Style Welded- specified as 82.xxx

"h" Style- specified as 86.xxx

"f" Style- specified as 87.xxx

"s" Style- specified as 88.xxx

 Matching Swivel models are models: DYT, DYCI, DYF, DYG, DYL

Mosmatic offers a variety of hardened stainless steel high pressure nozzles. All wash jet nozzles (meg) are available in various sizes and spray angles. Standard nozzles are 1/8" & 1/4" NPTM, spray angles 0 degree, 5 degrees, 15 degrees & 25 degrees and sizes 2 through 10.

Mosmatic Rotor arms can withstand up to 4000 psi, are precision wielded and balanced. This rotor arm can be used on:

• Mosmatic Contractor Series Surface Cleaner
• Mosmatic Commercial Series Surface Cleaner
• Mosmatic Roof Cleaner

The Mosmatic TKA-2w3 Rotor Arm (SKU: 82.892) is designed for professional high-pressure cleaning solutions. Crafted from high-grade stainless steel, this rotor arm features a 18.5” diameter with two arms and three nozzle connections for expanded cleaning coverage. Each unit is precisely welded and dynamically balanced to eliminate vibrations, ensuring smooth and safe operation. Built to endure pressures up to 4000 PSI and temperatures up to 250°F, it supports chemical usage within a pH range of 3–12, making it ideal for a variety of industrial cleaning applications.

Applications:

• Industrial surface cleaning

• Underbody car wash systems

• Agricultural and heavy equipment cleaning

• Commercial and municipal cleaning systems

Features:

• 18.5” diameter rotor arm with 2 arms and 3 nozzle ports

• Thread IN: G3/8” NPTF

• Thread OUT: 1/8” NPTF

• Stainless steel construction for corrosion resistance

• Welded and precision-balanced for vibration-free performance

• Max pressure: 4000 PSI

• Max temperature: 250°F

• Chemical resistance: pH 3–12

• Maintenance-free, durable design

Important: Do not use rotor arms unprotected!

Nozzles not included

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless steel

Throughput/medium: ph 3-12

Thread In: G3/8" F

Thread Out (for nozzles): 1/8" NPTF

Diameter: 18.5"

Contact Us for availability of other styles.

Mosmatic high-pressure rotor arms are expertly built from stainless steel, offering unmatched strength and precision. Each arm is welded and dynamically balanced to eliminate dangerous vibrations, ensuring smooth, reliable operation.
The TKA-3w3 82.875 features three arms and three nozzle connections, with a Thread IN of G3/8” NPTF to Thread OUT of 1/8” NPTF, and a robust 24” diameter. Ideal for high-demand cleaning applications, this rotor arm handles pressures up to 4000 PSI and temperatures up to 250°F.

Applications

• Professional and commercial surface cleaners

• Industrial equipment and vehicle wash systems

• Large surface pressure washing

• High-volume cleaning operations

Features

• High-grade stainless steel construction

• Three-arm design with three nozzle connections

• Welded and precision-balanced for vibration-free operation

• Thread IN: G3/8” NPTF | Thread OUT: 1/8” NPTF

• Diameter: 24"

• Max Pressure: 4000 PSI

• Max Temperature: 250°F

• Suitable for pH 3–12 cleaning mediums

Important: Do not use rotor arms unprotected!

Nozzles not included

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless steel

Throughput/medium: ph 3-12

Thread In: G3/8" F

Thread Out (for nozzles): 1/8" NPTF

Diameter: 24"

Contact Us for availability of other styles.

Mosmatic’s high-pressure rotor arms are precision-engineered from durable stainless steel for superior reliability and performance. Each rotor arm is welded and dynamically balanced to eliminate dangerous vibrations, delivering smooth, safe operation.
The TKA-3w3 82.871 features three arms with three nozzle connections, a Thread IN of G3/8” NPTF to Thread OUT of 1/8” NPTF, and a diameter of 16”. Built for high-pressure applications, it supports up to 4000 PSI and withstands temperatures up to 250°F, suitable for various industrial cleaning uses.

Applications

• Industrial surface cleaning equipment

• Commercial fleet and vehicle wash systems

• Heavy-duty ground and concrete cleaning

• High-pressure wash bays and cleaning stations

Features

• Premium stainless steel construction for corrosion resistance

• Three-arm design with three nozzle outlets

• Welded and dynamically balanced for smooth operation

• Thread IN: G3/8” NPTF | Thread OUT: 1/8” NPTF

• Diameter: 16"

• Max Pressure: 4000 PSI

• Max Temperature: 250°F

• Handles throughput medium pH 3–12

Important: Do not use rotor arms unprotected!

Nozzles not included

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless steel

Throughput/medium: ph 3-12

Thread In: G3/8" F

Thread Out (for nozzles): 1/8" NPTF

Diameter: 16"

Contact Us for availability of other styles.

Mosmatic high-pressure rotor arms are built from premium stainless steel for maximum durability. Each arm is welded and precision-balanced to eliminate dangerous vibrations, ensuring smooth and safe operation.
The TKA-3w3 82.869 features three arms with three nozzle connections, a Thread IN of G3/8” NPTF to Thread OUT of 1/8” NPTF, and a diameter of 12”. Designed to handle up to 4000 PSI and temperatures up to 250°F, this rotor arm is ideal for demanding cleaning tasks across a range of industries.

Applications

• High-pressure surface cleaners

• Industrial cleaning machines

• Vehicle and fleet wash systems

• Heavy-duty floor and ground cleaning equipment

Features

• Durable stainless steel construction

• Three-arm, three-nozzle configuration

• Welded and dynamically balanced

• Thread IN: G3/8” NPTF | Thread OUT: 1/8” NPTF

• Diameter: 12"

• Max Pressure: 4000 PSI

• Max Temperature: 250°F

• Suitable for pH 3–12 cleaning agents

Important: Do not use rotor arms unprotected!

Nozzles not included

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless steel

Throughput/medium: ph 3-12

Thread In: G3/8" F

Thread Out (for nozzles): 1/8" NPTF

Diameter: 12"

Contact Us for availability of other styles.

Mosmatic high-pressure rotor arms are crafted from durable stainless steel, expertly welded and dynamically balanced to ensure vibration-free, smooth performance.
The TKA-3w3 82.868 model is designed with three arms and three nozzle connections, featuring a Thread IN of G3/8” NPTF to Thread OUT of 1/8” NPTF, and a 10” diameter. Engineered to withstand up to 4000 PSI and temperatures up to 250°F, it handles a broad range of cleaning chemicals with a pH range from 3 to 12.

Applications

• High-pressure surface cleaners

• Industrial cleaning equipment

• Commercial and fleet wash systems

• Heavy-duty floor and pavement washers

Features

• Premium stainless steel construction

• Balanced for safe, vibration-free operation

• Three-arm design with three nozzle ports

• Thread IN: G3/8” NPTF | Thread OUT: 1/8” NPTF

• Diameter: 10"

• Max Pressure: 4000 PSI

• Max Temperature: 250°F

• Compatible with pH 3–12 cleaning media

Important: Do not use rotor arms unprotected!

Nozzles not included

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless steel

Throughput/medium: ph 3-12

Thread In: G3/8" F

Thread Out (for nozzles): 1/8" NPTF

Diameter: 10"

Contact Us for availability of other styles.

Mosmatic high-pressure rotor arms deliver maximum durability and smooth operation, made from high-quality stainless steel. Each arm is expertly welded and balanced to eliminate dangerous vibrations during use.
The TKA-3w3 82.867 features three arms and three nozzle connections, a Thread IN of G3/8” NPTF, a Thread OUT of 1/8” NPTF, and an 8” diameter. Built to handle up to 4000 PSI and 250°F, it’s optimized for high-pressure cleaning with media pH between 3 and 12.

Applications

• High-pressure surface cleaning

• Industrial and commercial cleaning systems

• Car wash operations

• Floor and pavement cleaners

Features

• Corrosion-resistant stainless steel construction

• Precision-welded and dynamically balanced

• Three arms with three nozzle ports

• Thread IN: G3/8” NPTF | Thread OUT: 1/8” NPTF

• Diameter: 8"

• Max Pressure: 4000 PSI

• Max Temperature: 250°F

• Chemical compatibility: pH 3–12

Important: Do not use rotor arms unprotected!

Nozzles not included

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless steel

Throughput/medium: ph 3-12

Thread In: G3/8" F

Thread Out (for nozzles): 1/8" NPTF

Diameter: 8"

Contact Us for availability of other styles.
