High rpm, high pressure, self rotating applications, wall cleaners, parts washers

• Easy rotation under maximum pressure
• Flange for easy installation
• Sealed stainless steel bearings
• Maintenance free

DYW-06 G1/4"F M12x1-M 5000psi

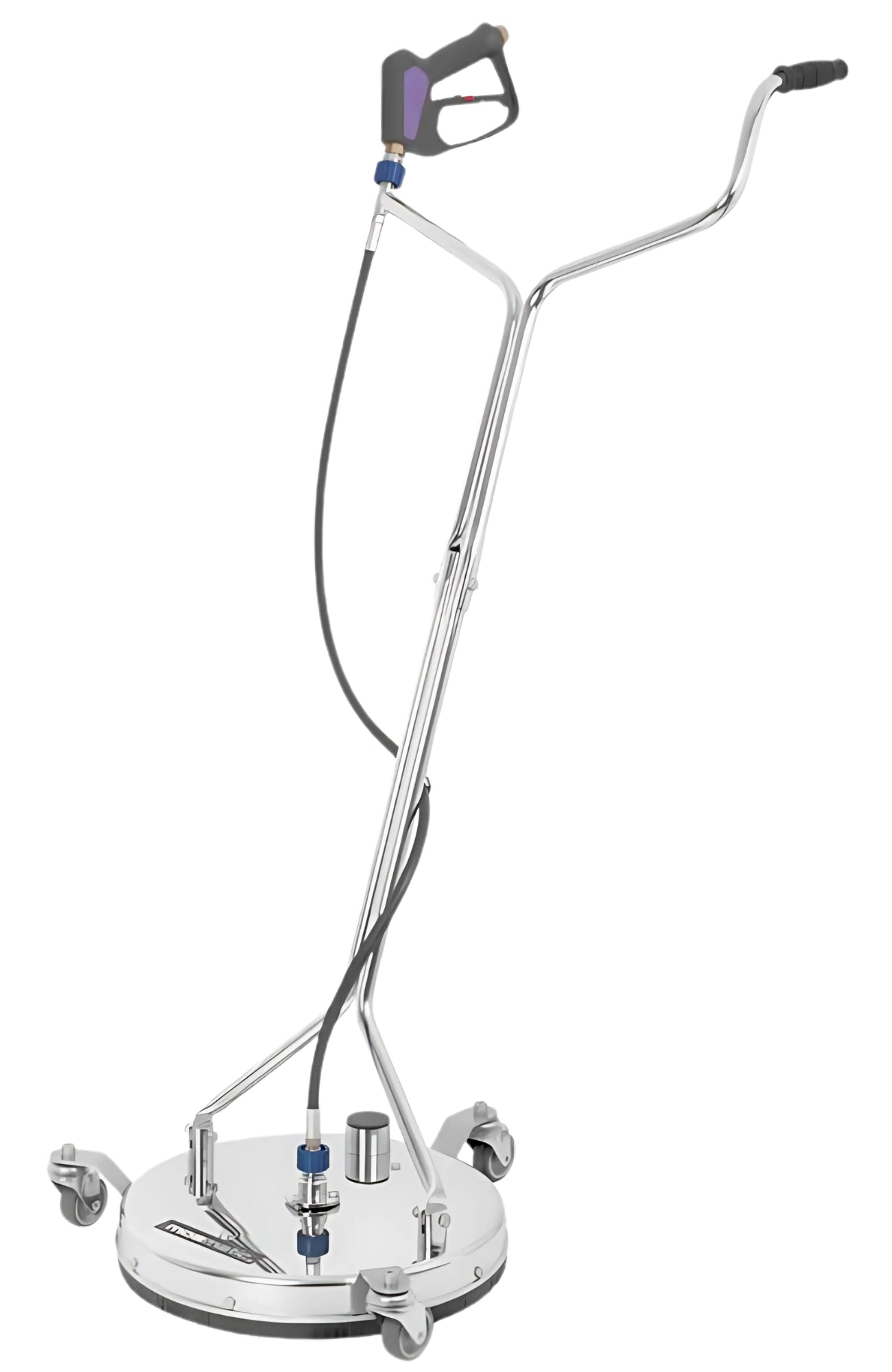

Swivel for Surface Cleaner, Carbide/ss

Technical data

• Pressure: 5000 psi(35 MPa)
• Temperature: 250 °F
• RPM: max. 2’000 rpm)
• Body: brass, nickel plated, stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

Accessories

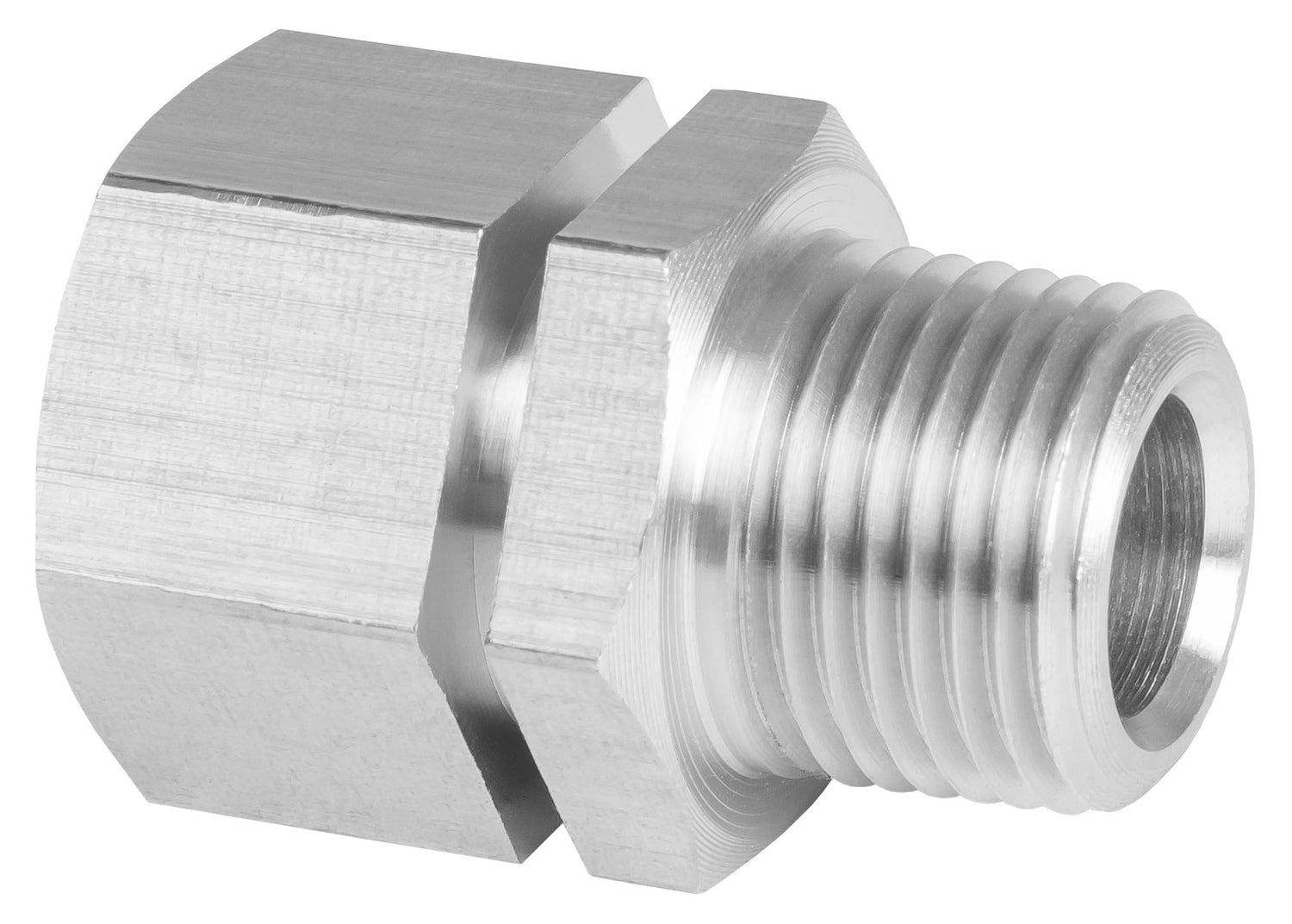

VER R3/8"-M G3/8"-F

Accessories

VER R1/48"-M G1/4"-F

The Mosmatic WDEI Low Pressure Swivel 43.495 is a durable, high-quality stainless steel swivel engineered for use in low-pressure hose reel and fluid handling systems. It features a smooth-operating sliding bearing for reliable rotation and is sealed with a standard O-ring NBR, with optional EPDM or FKM seals available to accommodate aggressive chemicals or elevated temperatures. With 1” NPTF inlet and outlet threads, this swivel supports 725 psi, operates at 30 RPM, and performs in environments up to 250°F, making it a trusted choice for industrial washdown and general fluid transfer applications.

Applications

• Low-pressure industrial hose reels

• Washdown and rinse systems

• Water and fluid handling systems

• OEM hose reel assemblies and system builds

Features

• Stainless steel construction for durability and corrosion resistance

• Sliding bearing ensures smooth rotational performance

• Thread IN: 1” NPTF | Thread OUT: 1” NPTF

• Dimensions: Overall Diameter – 2.35” | Overall Length – 3.06”

• Nominal Width (NW): 1”

• Rated for 725 psi working pressure

• Handles temperatures up to 250°F

• Supports 30 RPM rotational speed

• O-ring NBR seal standard, with EPDM or FKM options for chemical compatibility

Specs

Pressure: 725 psi (5 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTF

Nominal Width (NW): 1"

Wrench Size (SW): 1.61

Length 1 (L1): 3.35

Length 2 (L2) (overall length): 3.06

Length 3 (L3): 2.17

Length 4 (L4): 1.89

Diameter (D1): 2.35

Weight: 39.5 oz

The Mosmatic WDEI Low Pressure Swivel 43.494 is a rugged, stainless steel swivel designed specifically for hose reels in low to moderate pressure applications. This compact and reliable swivel features a sliding bearing for smooth, consistent rotation and comes standard with an O-ring NBR seal, with optional EPDM or FKM seal materials available to meet specific chemical or temperature requirements. With 3/4” NPTF inlet and outlet ports, it handles working pressures up to 725 psi, rotational speeds up to 30 RPM, and temperatures up to 250°F, making it a dependable component in washdown and fluid handling systems.

Applications

• Low-pressure hose reel systems

• Commercial and industrial washdown applications

• Water and fluid distribution equipment

• OEM hose reel integration and fluid systems

Features

• Stainless steel construction provides corrosion resistance and strength

• Sliding bearing allows smooth, low-friction operation

• Thread IN: 3/4” NPTF | Thread OUT: 3/4” NPTF

• Compact design: Overall Diameter – 1.24” | Overall Length – 2.03”

• Nominal Width (NW): 3/4”

• Rated for 725 psi operating pressure

• Maximum temperature: 250°F

• Supports up to 30 RPM rotational speed

• Equipped with O-ring NBR seal, optional EPDM or FKM for enhanced media compatibility

Specs

Pressure: 725 psi (5 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTF

Nominal Width (NW): 3/4"

Wrench Size (SW): 1.42

Length 1 (L1): 2.95

Length 2 (L2) (overall length): 2.74

Length 3 (L3): 1.89

Length 4 (L4): 1.73

Diameter (D1): 2.03

Weight: 29.6 oz

The Mosmatic WDEI Low Pressure Swivel 43.492 is a compact, high-quality stainless steel swivel engineered for low-pressure hose reel and fluid handling systems. Designed for durability and ease of use, it features a sliding bearing for smooth rotation and a standard O-ring NBR seal, with optional EPDM or FKM sealing options for enhanced chemical or temperature resistance. With 3/8” NPTF inlet and outlet threads, this swivel is rated for 725 psi, operates at 30 RPM, and handles temperatures up to 250°F, making it ideal for commercial washdown, rinsing, and general utility hose reel applications.

Applications

• Low-pressure hose reels

• Washdown and rinsing systems

• Light-duty fluid transfer in industrial or commercial settings

• OEM equipment integration

Features

• Stainless steel construction for corrosion resistance and longevity

• Sliding bearing ensures smooth, stable rotation

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTF

• Dimensions: Overall Diameter – 1.24” | Overall Length – 1.86”

• Nominal Width (NW): 3/8”

• Rated for 725 psi operating pressure

• Withstands temperatures up to 250°F

• Operates at up to 30 RPM

• Sealed with O-ring NBR, with optional EPDM or FKM for special applications

Specs

Pressure: 725 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 3/8"

Wrench Size (SW): 0.87

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.86

Length 3 (L3): 1.14

Length 4 (L4): 1.24

Diameter (D1): 1.24

Weight: 7.8 oz

The Mosmatic WDEI Low Pressure Swivel 43.491 is a precision-engineered stainless steel swivel designed for low-pressure hose reel and fluid transfer systems. Built for long-lasting performance, it features a sliding bearing for smooth, reliable rotation and a standard O-ring NBR seal, with optional EPDM or FKM seal materials for extended chemical and temperature compatibility. With 1/4” NPTF inlet and outlet threads, this swivel is rated for up to 725 psi, operates at 30 RPM, and withstands temperatures up to 250°F, making it ideal for commercial washdown, rinsing, and general-purpose low-pressure applications.

Applications

• Low-pressure hose reels

• Commercial washdown and rinse systems

• Industrial fluid and chemical transfer lines

• OEM equipment and assemblies

Features

• Stainless steel construction for superior corrosion resistance

• Sliding bearing ensures smooth and consistent rotation

• Thread IN: ¼” NPTF | Thread OUT: ¼” NPTF

• Compact dimensions: Overall Diameter – 1.24” | Overall Length – 1.83”

• Nominal Width (NW): ¼”

• Rated for 725 psi working pressure

• Temperature resistance up to 250°F

• Operates at speeds up to 30 RPM

• Sealed with O-ring NBR, with optional EPDM or FKM for enhanced media compatibility

Specs

Pressure: 725 psi (5 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.83

Length 3 (L3): 1.14

Length 4 (L4): 1.20

Diameter (D1): 1.24

Weight: 8.8 oz

The Mosmatic WDEI low pressure Swivel 43.482 is a precision-engineered stainless steel swivel designed for hose reel systems requiring durable, corrosion-resistant components at moderate pressure levels. This swivel features a sliding bearing for smooth and stable rotation and comes equipped with a standard O-ring NBR seal, with optional EPDM or FKM seal variants available for compatibility with specific fluids or higher temperature ranges. With 3/8” NPTF inlet and outlet threads, it is rated for 725 psi, up to 30 RPM, and temperatures up to 250°F, making it an ideal solution for commercial and industrial hose reel assemblies.

Applications

• Low-pressure hose reels and air tools

• Light-duty pressure wash and sanitation systems

• Mobile wash carts and chemical dispensing

• OEM applications requiring compact swivels

Features

• Constructed from stainless steel for corrosion resistance and longevity

• Sliding bearing for smooth, low-friction rotational performance

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTF

• Dimensions: Overall Diameter – 1.24” | Overall Length – 2.18”

• Nominal Width (NW): 3/8”

• Rated for up to 725 psi working pressure

• Temperature tolerance: up to 250°F

• Operates at up to 30 RPM

• Standard O-ring NBR seal, with optional EPDM or FKM for specialized applications

Specs

Pressure: 725 psi (5 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 3/8"

Wrench Size (SW): 0.87

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.18

Length 3 (L3): 1.14

Length 4 (L4): 1.56

Diameter (D1): 1.24

Weight: 7.8 oz

Restore peak performance to your Mosmatic WDRS Swivel with the Mosmatic WDRS Repair Kit 41.934 - NW 2". This professional replacement kit includes a high-quality O-Ring NBR seal and a precision bearing set, engineered specifically for WDRS Swivels with a nominal width of 2 inches. Designed for high-pressure, high-flow environments, it is ideal for automatic car washes, industrial systems, and hose reel applications. Ensure long-lasting, leak-free swivel function with this essential maintenance solution.

Maintain optimal performance of your Mosmatic WDRS Swivel with the Mosmatic WDRS Repair Kit 41.933 - NW 1 1/2". This high-quality replacement kit includes a durable O-Ring NBR seal and a precision-engineered bearing set, designed specifically for WDRS Swivels with a nominal width of 1 1/2 inches. Ideal for high-flow and high-pressure environments such as automatic car washes, industrial systems, and hose reel applications, this kit ensures leak-free operation and long-lasting swivel functionality.

Extend the life and efficiency of your Mosmatic WDRS Swivel with the Mosmatic WDRS Repair Kit 41.932 - NW 1". This professional replacement kit includes a high-quality O-Ring NBR seal and precision bearing set, specifically engineered for WDRS Swivels with a nominal width of 1 inch. Ideal for use in automatic car washes, industrial systems, high-pressure hose reels, and high-flow applications, this kit helps restore leak-free swivel function and reliable performance under demanding conditions.

Restore the performance and reliability of your Mosmatic WDRS Swivel with the Mosmatic WDRS Repair Kit 41.931 - NW 3/4". This high-quality replacement kit includes a durable O-Ring NBR seal and a precision-engineered bearing set, specifically designed for WDRS Swivels with a nominal width of 3/4 inch. Ideal for demanding environments such as automatic car washes, industrial systems, high-pressure hose reels, and high-flow applications, this kit ensures leak-free, long-lasting swivel operation.

Maintain the high-performance standards of your Mosmatic WDRS Swivel with the Mosmatic WDRS Repair Kit 41.930 - NW 3/8" & 1/2". This professional-grade replacement kit includes a durable O-Ring NBR seal and a precision-engineered bearing set, designed for WDRS Swivels with nominal widths of 3/8 inch and 1/2 inch. Ideal for automatic car wash systems, industrial applications, high-pressure hose reels, and high-flow operations, this kit ensures reliable, leak-free performance and extends the service life of your equipment.

Optimize the performance and reliability of your Mosmatic WDRS Swivel with the Mosmatic WDRS Swivel Seal Kit 41.916 - NW 2". This high-quality replacement kit includes durable NBR O-rings, specifically designed for WDRS Swivels with a nominal width of 2 inches. Built for demanding environments such as automatic car washes, industrial systems, high-pressure hose reels, and high-flow applications, this kit ensures smooth, leak-free swivel operation and extended equipment life.
