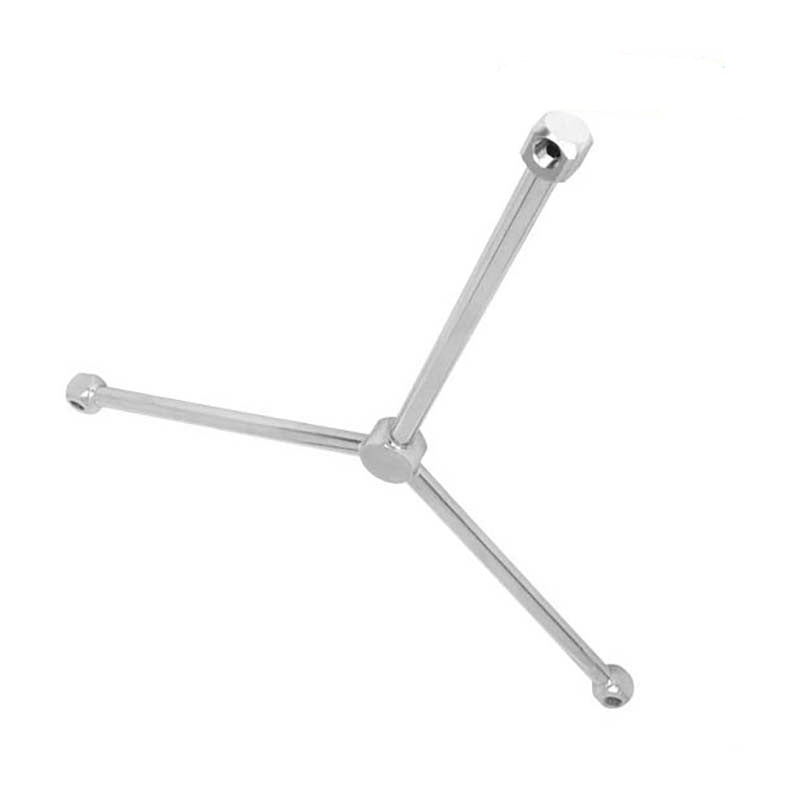

Turbo-rotor-arm w-fixed-11°, stainless, welded

• Polished stainless steel
• Length 700mm,  3 x 1/8" Nozzle Holders, 500 bar rated
• Solid yet light construction
• Used on 30" ( 750mm ) Mosmatic FL-CR750 500 bar Rotary Surface Cleaners
• Precision welded and balanced

TKA-FL-3cp3 D 27.5" G3/8"F 3x1/8"NF

Protect your surface cleaner with the Mosmatic Protective Plug for Vacuum Port 902-046. This high-quality plug ensures a secure and leak-free connection, compatible with various Mosmatic models. Ideal for preventing debris and moisture ingress, it enhances the longevity and performance of your cleaning equipment.

Upgrade your Mosmatic surface cleaners with the Professional 30" Brush Ring (80.993). This high-quality replacement part ensures efficient gum and debris removal, compatible with various Mosmatic models. Keep your cleaning equipment in top condition with our reliable brush rings.

Protection plate for WBC

WBC ø140 4xø7 INOX-1.4301

Please note this is designed to work with the Mosmatic Air Dryer. It has a wire attachment that runs through the hose that is longer than the hose.

Includes the hose and the air-gun (air blade)

Universal dryers are used for cars, motorcycles and boats.

If you are looking for the full Mosmatic Dry kit please see part number 60.397

The Mosmatic WDEI Swivel 43.474 is a high-performance stainless steel swivel engineered for use in heavy-duty hose reel and fluid transfer systems. Designed for high-pressure environments, it features a sliding bearing for smooth rotation under load and a dependable O-ring NBR seal, with optional EPDM or FKM for compatibility with aggressive chemicals or elevated temperatures. With 3/4” NPTF inlet and outlet threads, this swivel supports pressures up to 3000 psi, operates at 30 RPM, and handles temperatures up to 250°F, making it an ideal solution for industrial washdown, cleaning, and transfer operations.

Applications

• High-pressure hose reels

• Industrial washdown systems

• Commercial pressure washers

• Fluid and chemical handling systems

• OEM and equipment manufacturing

Features

• Stainless steel construction ensures corrosion resistance and long service life

• Sliding bearing enables smooth and controlled rotation

• Thread IN: 3/4” NPTF | Thread OUT: 3/4” NPTF

• Dimensions: Overall Diameter – 2.16” | Overall Length – 2.95”

• Nominal Width (NW): 3/4”

• Rated for 3000 psi operating pressure

• Max operating temperature: 250°F

• Supports rotational speeds up to 30 RPM

• Sealing system: O-ring NBR (optional EPDM or FKM for specialized media)

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTF

Nominal Width (NW): 3/4"

Wrench Size (SW): 1.42

Length 1 (L1): 2.95

Length 2 (L2) (overall length): 2.95

Length 3 (L3): 1.89

Length 4 (L4): 1.87

Diameter (D1): 2.16

Weight: 29.6 oz

The Mosmatic WDEI Swivel 43.475 is a heavy-duty stainless steel swivel designed for high-flow, high-pressure hose reel and fluid transfer systems. Engineered for performance and durability in demanding environments, it features a sliding bearing for smooth, stable rotation and a reliable O-ring NBR seal, with optional EPDM or FKM seal materials for specialized chemical and thermal compatibility. With 1” NPTF inlet and outlet threads, this swivel handles pressures up to 3000 psi, operates at 30 RPM, and withstands temperatures up to 250°F, making it a trusted component for industrial cleaning and washdown systems.

Applications

• High-pressure industrial hose reels

• Fluid transfer in commercial and manufacturing operations

• Heavy-duty washdown and cleaning systems

• Equipment assembly and OEM integrations

Features

• Stainless steel construction for superior corrosion and pressure resistance

• Sliding bearing enables smooth and consistent rotation

• Thread IN: 1” NPTF | Thread OUT: 1” NPTF

• Dimensions: Overall Diameter – 2.35” | Overall Length – 3.07”

• Nominal Width (NW): 1”

• Rated for 3000 psi working pressure

• Maximum operating temperature: 250°F

• Supports rotational speeds up to 30 RPM

• Sealing system includes O-ring NBR, with EPDM or FKM optional for enhanced chemical resistance

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTF

Nominal Width (NW): 1"

Wrench Size (SW): 1.61

Length 1 (L1): 3.35

Length 2 (L2) (overall length): 3.07

Length 3 (L3): 2.17

Length 4 (L4): 1.89

Diameter (D1): 2.35

Weight: 39.5 oz

The Mosmatic WDEI Swivel 43.473 is a heavy-duty stainless steel swivel designed for high-pressure hose reels and industrial fluid transfer systems. Engineered for reliability, it features a sliding bearing for smooth rotational movement and a standard O-ring NBR seal, with optional EPDM or FKM seal materials for enhanced chemical and temperature resistance. With 1/2” NPTF inlet and outlet threads, this swivel supports up to 5800 psi, operates at 30 RPM, and handles temperatures up to 250°F—making it ideal for rigorous commercial and industrial use.

Applications

• High-pressure hose reels

• Industrial washdown and rinsing systems

• Pressure washers and fluid transfer equipment

• OEM and commercial hose reel assemblies

Features

• Stainless steel construction ensures durability and corrosion resistance

• Sliding bearing allows smooth, stable rotation under pressure

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTF

• Dimensions: Overall Diameter – 1.57” | Overall Length – 2.27”

• Nominal Width (NW): 1/2”

• Rated for 5800 psi maximum working pressure

• Temperature tolerance up to 250°F

• Operates at speeds up to 30 RPM

• Sealed with O-ring NBR (optional EPDM or FKM available for special media compatibility)

Specs

Pressure: 5800 psi (40 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.94

Length 1 (L1): 1.97

Length 2 (L2) (overall length): 2.27

Length 3 (L3): 1.34

Length 4 (L4): 1.48

Diameter (D1): 1.57

Weight: 12.2 oz

The Mosmatic WDEI Swivel 43.471 is a compact, high-pressure stainless steel swivel engineered for use in hose reels and high-performance fluid systems. Designed for reliability in demanding environments, it features a sliding bearing for smooth, controlled rotation and a durable O-ring NBR seal, with optional EPDM or FKM materials available for enhanced compatibility with chemicals or higher temperatures. With 1/4” NPTF inlet and outlet ports, this swivel handles up to 5800 psi, operates at 30 RPM, and withstands temperatures up to 250°F, making it an ideal choice for industrial cleaning, washdown, and pressure hose applications.

Applications

• High-pressure hose reels

• Industrial washdown systems

• Pressure washing equipment

• Chemical and fluid transfer lines

Features

• Stainless steel construction for superior corrosion resistance

• Sliding bearing ensures smooth, stable rotation

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTF

• Dimensions: Overall Diameter – 1.25” | Overall Length – 1.91”

• Nominal Width (NW): 1/4”

• Rated for 5800 psi working pressure

• Maximum operating temperature: 250°F

• Max RPM: 30

• Sealing system includes O-ring NBR (optional EPDM or FKM available for specialized media)

Specs

Pressure: 5800 psi (40 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.91

Length 3 (L3): 1.14

Length 4 (L4): 1.28

Diameter (D1): 1.25

Weight: 9.3 oz

The Mosmatic WDEI Swivel 40.465 is a heavy-duty, stainless steel swivel engineered for high-performance in industrial hose reel and pressure systems. Designed for durability in harsh environments, it features a sliding bearing for smooth, low-resistance rotation and a standard O-ring NBR seal, with optional EPDM or FKM materials available for enhanced chemical and temperature compatibility. With a 1” NPTF inlet and 1” NPTM outlet, this swivel supports operating pressures up to 3000 psi, speeds up to 30 RPM, and temperatures up to 250°F—ideal for large-diameter hose applications where flow efficiency and strength are critical.

Applications

• Heavy-duty hose reels

• Industrial fluid transfer systems

• Pressure washer and cleaning systems

• OEM equipment and component integration

Features

• Stainless steel construction for corrosion and wear resistance

• Sliding bearing for reliable, smooth rotational performance

• Thread IN: 1” NPTF | Thread OUT: 1” NPTM

• Dimensions: Overall Diameter – 2.35” | Overall Length – 3.54”

• Nominal Width (NW): 1”

• Rated for up to 3000 psi working pressure

• Max temperature: 250°F

• Rotational speed: 30 RPM max

• O-ring NBR sealing (optional EPDM or FKM available for special media requirements)

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTM

Nominal Width (NW): 1"

Wrench Size (SW): 1.61

Length 1 (L1): 3.35

Length 2 (L2) (overall length): 3.54

Length 3 (L3): 1.89

Length 4 (L4): 2.36

Diameter (D1): 2.35

Weight: 37.7 oz

The Mosmatic WDEI Swivel 40.464 is a heavy-duty, stainless steel swivel built to deliver long-lasting performance in high-pressure hose reel systems. Engineered for strength and reliability, this swivel features a sliding bearing for smooth rotational movement and a standard O-ring NBR seal, with optional EPDM or FKM seals available to accommodate a wider range of chemicals and temperatures. Designed with 3/4” NPTF inlet to 3/4” NPTM outlet, it handles 3000 psi, supports up to 30 RPM, and operates in temperatures up to 250°F. Its durable construction and wide internal diameter make it ideal for industrial cleaning and fluid transfer systems.

Applications

• High-flow hose reel swivels

• Car wash booms and ceiling arms

• Industrial cleaning with water or chemicals

• Food-grade washdown systems

• Fluid transport under 3000 psi

Features

• Stainless steel construction for superior corrosion and wear resistance

• Sliding bearing ensures smooth and stable operation

• Thread IN: ¾” NPTF | Thread OUT: ¾” NPTM

• Dimensions: Overall Diameter – 2.16” | Overall Length – 3.34”

• Nominal Width (NW): ¾”

• Rated for up to 3000 psi working pressure

• Handles temperatures up to 250°F

• Max rotational speed: 30 RPM

• Equipped with O-ring NBR seal, optional EPDM or FKM available for specialized media compatibility

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTM

Nominal Width (NW): 3/4"

Wrench Size (SW): 1.42

Length 1 (L1): 2.95

Length 2 (L2) (overall length): 3.34

Length 3 (L3): 1.89

Length 4 (L4): 2.26

Diameter (D1): 2.16

Weight: 27.5 oz

The Mosmatic WDEI Swivel 40.461 is a high-pressure stainless steel swivel engineered for durability and high-performance in hose reel systems. Built with a sliding bearing for smooth rotation and sealed with a high-quality O-ring NBR—with optional EPDM or FKM for expanded chemical or thermal compatibility—this swivel is designed to handle extreme conditions. Featuring 1/4” NPTF inlet and 1/4” NPTM outlet, the WDEI 40.461 supports up to 5800 psi, 30 RPM, and 250°F, making it an ideal solution for demanding industrial hose reel applications where strength and reliability are critical.

Applications

• High pressure hose reels

• Industrial fluid handling systems

• Equipment requiring high-pressure swivel connections

Features

• Stainless steel construction for maximum strength and corrosion resistance

• Sliding bearing for smooth and stable rotation

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Dimensions: Overall Diameter – 1.26” | Overall Length – 2.13”

• Nominal Width (NW): 1/4”

• Rated for up to 5800 psi of operating pressure

• Handles temperatures up to 250°F

• Supports rotational speeds up to 30 RPM

• Sealing system includes O-ring NBR (optional EPDM or FKM seals available)

Specs

Pressure: 5800 psi (40 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.13

Length 3 (L3): 1.14

Length 4 (L4): 1.50

Diameter (D1): 1.26

Weight: 9.2 oz

Polished, Side Port

This item # is only for a package with a boom, where the extension is been added to the boom being purchased at the same time. For the individual item, please see item 901.876.

Polished, Side Port

This item # is only for a package with a boom, where the extension is been added to the boom being purchased at the same time. For the individual item, please see item 901.875.
