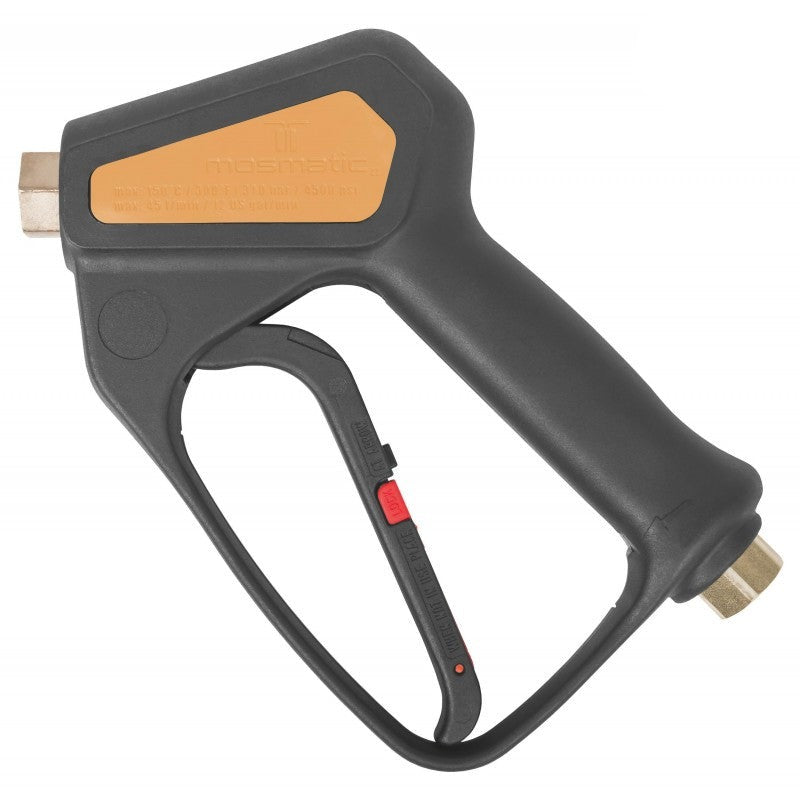

Mosmatic offers a wide variety of high pressure trigger guns. From our relax action guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available. Select your gun according to the required pressure rating and the following options.

RA – Relaxed Trigger Action

WS – Weep Option

DG – Swivel Inlet

Inlet Thread: G3/8 F

Outlet Thread: G1/4 F

Color: Orange

Bar Pressure: 310

Temperature (°C)150

Mosmatic offers a wide variety of high pressure trigger guns. From our relax actions guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available.

LAZ in:G3/8"F out:G1/4"F

Inlet ThreadG3/8 F

Outlet ThreadG1/4 F

Bar Pressure350

Temperature (°C)150 / 302°F

The Mosmatic DGK Swivel 32.986 is engineered to enhance precision and control for compressed air and paint guns. Featuring a nickel-plated brass/stainless steel body, this swivel ensures corrosion resistance and extended service life in professional environments.

Equipped with a thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), the swivel allows for smooth 360° rotation at high pressure. Designed with an ISO-6150 B-profile plug nipple, it supports versatile connections, making it a top-tier choice for industrial-grade spray and air gun applications.

Applications

• Compressed air tools

• Spray and paint guns

• Pneumatic equipment

• Automotive detailing

• Industrial and workshop use

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): G1/4" Female

• Plug Nipple: ISO-6150 B-profile

• Connection Size (S1): 1/4"

• Overall Length: 2.24"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.67"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Benefits: Easy rotation, plug-and-play design, enhanced mobility

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 G1/4" F

S1: 1/4"

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.67"

Length 1 (L1) (overall length) : 2.24"

Lenght 2 (L2): 0.94"

Lenght 3 (L3): 1.30"

Diameter 1 (D1): 0.46"

Diameter 2 (D2): 0.31"

Weight: 2.8 oz

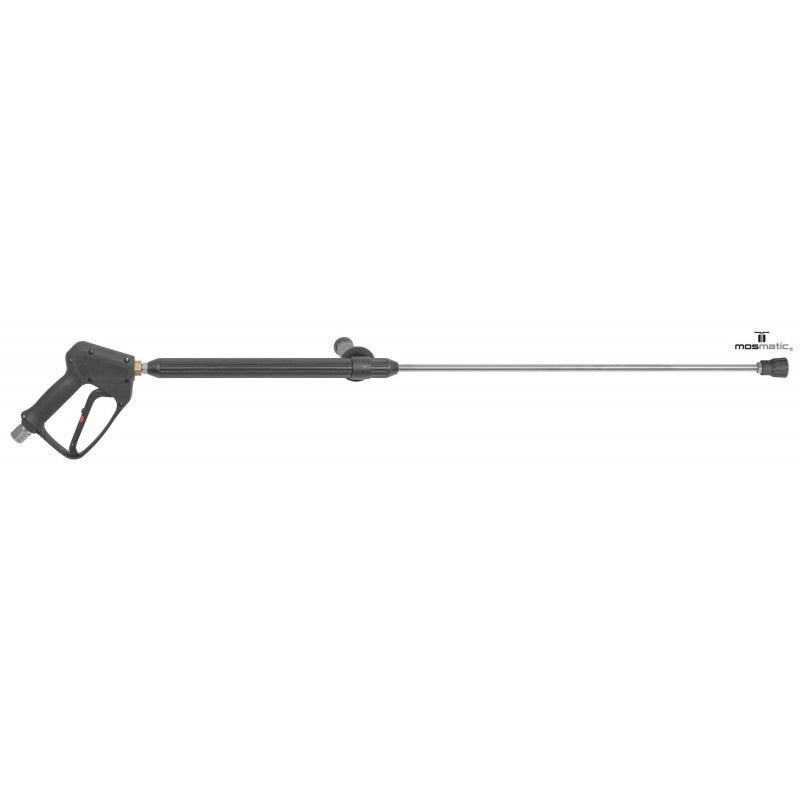

This complete cleaning lance with rotating spinner head was designed to clean tanks, plastic containers, trash cans and portable toilets. There are three nozzles included with the spinner head. Two are adjustable nozzles and are located on the side and one on the end of the unit. Side cleaning nozzles also prevent forward blowback.

• Complete solutions
• Delivered ready to install
• Ergonomic design
• Wand with nozzle + nozzle guard

This complete cleaning lance with rotating spinner head was designed to clean tanks, plastic containers, trash cans and portable toilets. There are three nozzles included with the spinner head. Two are adjustable nozzles and are located on the side and one on the end of the unit. Side cleaning nozzles also prevent forward blowback.

• Complete solutions
• Delivered ready to install
• Ergonomic design

The Mosmatic DGVI Swivel 32.773 is a high-performance stainless steel swivel connector designed for use in high-pressure hose reels, hydraulic systems, and HP-Guns. With a 1/4” NPTM inlet, this swivel delivers live rotation under pressure for smooth, tangle-free hose movement.

Built for durability and corrosion resistance, it features a single thrust ball bearing and a reliable O-ring NBR seal system. The compact design makes it perfect for tight installations in industrial and commercial cleaning systems.

Applications

• High-pressure hose reels

• Hydraulic equipment

• Pressure washing and HP-Guns

• Tangle-free hose management

• Industrial cleaning systems

Features

• Material: Complete stainless steel construction

• Thread IN (G1): 1/4” NPTM

• Overall Length: 2.80”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 5000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Performance: Live rotation, corrosion resistant, maintenance free

Specs

Pressure: 5000 psi (35 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

D (Diameter): ø0.47

Thread In: G1 1/4" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.67"

Length 1 (L1) (overall length) : 2.80"

Lenght 2 (L2): 0.43"

Weight: 4.2 oz

The Mosmatic DKS 90° Swivel Coupling 70.582 is a high-quality, right-angle swivel designed for high-pressure cleaning, hose connections, and quick coupling applications where space-saving flexibility is essential. Constructed from nickel-plated brass, this swivel offers exceptional durability, corrosion resistance, and reliable performance in industrial and commercial environments.

This 90-degree swivel features a single thrust ball bearing for smooth rotational movement and an advanced ceramic seal system to ensure long-lasting, leak-free operation. Its flanged design allows for easy and secure installation, while integrated weep holes provide early visual indication of seal failure, promoting proactive maintenance.

The 70.582 model is equipped with a Quick Connect Thread In of M22x1.5F, a nominal width (NW) of 7/32”, and supports high-pressure systems up to 3600 PSI. It operates effectively at a maximum temperature of 250°F and a rotational speed of up to 30 RPM. Compatible with a range of media, including pH 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• High-pressure hose connections in tight or angled spaces

• Industrial and commercial cleaning systems

• Quick-connect pressure washer fittings

• Rotary surface cleaners and spray tools

• Pneumatic and compressed air tool systems

• Car wash installations and detailing setups

Features

• Durable nickel-plated brass construction for corrosion resistance

• 90° swivel design for optimal flexibility in limited spaces

• Smooth rotation with single thrust ball bearing

• Long-lasting ceramic seal system for leak protection

• Flanged design for easy and secure installation

• Seal failure warning through integrated weep holes

• Thread In: M22x1.5F

• Nominal Width (NW): 7/32”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Overall Diameter: 1.34” | Overall Length: 1.97”

• Suitable for pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Nominal Width (NW): 7/32”

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.97

Weight: 5.7 oz

The Mosmatic DKS Swivel Coupling 70.153 is a heavy-duty, high-pressure swivel coupling designed for industrial cleaning and hose connection applications. Crafted from corrosion-resistant, nickel-plated brass, this coupling delivers reliable performance and long-lasting durability in demanding environments.

It features a single thrust ball bearing and a ceramic seal system that provide smooth rotation and excellent sealing under high pressure. A flange ensures simple and secure installation, while integrated weep holes offer a built-in warning system for potential seal failure—minimizing downtime and enabling proactive maintenance.

With a Quick Connect Thread In of M22x1.5 F and a Thread Out of 3/8” NPTM, this swivel is built to handle pressures up to 3600 PSI and temperatures up to 250°F. It supports media with a pH range of 3–12 and filtered compressed air (10 microns) up to 290 PSI.

Applications

• Industrial and commercial high-pressure cleaning

• Hose and quick-connect coupling systems

• Surface cleaners and rotating nozzles

• Pneumatic and air-powered tool setups

• Car wash systems and maintenance equipment

• Pressure washing tools and accessories

Features

• Durable nickel-plated brass construction

• Long-lasting ceramic seal system

• Smooth performance with single thrust ball bearing

• Flange design for easy and secure installation

• Weep holes for visual seal failure indication

• Thread In: M22x1.5 F | Thread Out: 3/8” NPTM

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Dimensions: 1.34” diameter | 1.80” overall length

• Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Thread Out: G2 3/8"NPTM

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.75"

Wrench Size 2 (SW2):

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.80

Length 2 (L2): 0.47

Weight: 3.7 oz

The Mosmatic DKS Swivel Coupling 70.139 is a high-performance, nickel-plated brass swivel coupling designed for high-pressure cleaning, hose connections, and quick coupling applications. Built for reliability and efficiency, this swivel delivers superior corrosion resistance and smooth rotational function, making it ideal for industrial and commercial environments.

The swivel features a single thrust ball bearing and a precision-engineered ceramic seal system for leak-free operation and extended service life. A flanged design ensures easy and secure installation, while integrated weep holes act as an early warning system for seal failure, helping to prevent unexpected downtime.

With a Quick Connect Thread In of M22x1.5F and a Nominal Width (NW) of ¼”, this swivel coupling supports high-pressure systems up to 3600 PSI, operating at temperatures up to 250°F and a maximum speed of 30 RPM. Suitable for media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• High-pressure hose assemblies

• Industrial cleaning and spraying systems

• Quick-connect setups for pressure washers

• Rotary nozzles and surface cleaning tools

• Car wash equipment and detailing systems

• Pneumatic and compressed air tool connections

Features

• Durable nickel-plated brass construction for corrosion resistance

• Advanced ceramic seal system for long-lasting performance

• Single thrust ball bearing for smooth, reliable rotation

• Flanged design for easy and stable installation

• Integrated weep holes for early seal failure detection

• Thread In: M22x1.5F

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Dimensions: 1.34” overall diameter | 2.42” overall length

• Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Nominal Width (NW): ¼”

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.42

Weight: 3.0 oz

The Mosmatic DKS Swivel Coupling 70.132 is a precision-engineered, high-pressure swivel coupling designed for hose connections, cleaning systems, and quick coupling applications. Manufactured from nickel-plated brass, this swivel provides superior corrosion resistance and long-lasting performance in industrial and commercial environments.

The unit features a single thrust ball bearing and an advanced ceramic seal system, ensuring smooth rotation and effective sealing even under high-pressure conditions. The integrated flange offers easy, secure installation, while built-in weep holes serve as an early warning system for seal failure, helping to maintain operational efficiency.

This model includes a Quick Connect Thread In of M22x1.5F, with a nominal width (NW) of 7/32”, an overall diameter of 1.34”, and a length of 2.34”. Rated for up to 3600 PSI, with a maximum temperature of 250°F and a maximum speed of 30 RPM, the DKS 70.132 is suitable for media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• Industrial high-pressure cleaning systems

• Hose connection assemblies and quick coupling setups

• Surface cleaners and rotating spray tools

• Car wash systems and detailing equipment

• Pneumatic tool connections and compressed air lines

• Pressure washing accessories in commercial environments

Features

• Heavy-duty nickel-plated brass construction for corrosion resistance

• Long-life ceramic seal system for reliable sealing performance

• Smooth rotation with single thrust ball bearing

• Easy, stable installation with integrated flange design

• Seal failure warning through weep holes for proactive maintenance

• Thread In: M22x1.5F

• Nominal Width (NW): 7/32”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Overall Diameter: 1.34” | Overall Length: 2.34”

• Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Nominal Width (NW): 7/32”

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.34

Weight: 3.0 oz

The Mosmatic DKS Swivel Coupling 70.131 is a high-precision, nickel-plated brass swivel designed for high-pressure cleaning systems, hose connections, and quick-coupling applications. With a compact build and premium materials, it ensures exceptional durability and resistance to corrosion in industrial and commercial environments.

This model includes a single thrust ball bearing and a ceramic seal system, providing smooth rotation and long-term leak protection under pressure. The integrated flange design simplifies installation, while built-in weep holes serve as a seal failure warning system to support preventative maintenance.

With a Quick Connect Thread In of M22x1.5F, a nominal width (NW) of 1/8”, and an overall length of 2.26”, this swivel is rated for up to 3600 PSI and operates at temperatures up to 250°F. It's compatible with a broad range of media, including pH 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• Compact high-pressure cleaning equipment

• Industrial hose and fitting systems

• Surface cleaners and small rotating nozzles

• Precision pneumatic tools and compressed air lines

• Car wash accessories and detailing systems

• Quick-connect hose setups in commercial environments

Key Features

• Durable, corrosion-resistant nickel-plated brass construction

• Single thrust ball bearing for smooth rotational movement

• Advanced ceramic seal system for reliable sealing

• Integrated flange for fast and secure installation

• Weep holes for visual seal failure indication

• Thread In: M22x1.5F

• Nominal Width (NW): 1/8”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Overall Diameter: 1.34” | Overall Length: 2.26”

• Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Nominal Width (NW): 1⁄8”

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.26

Length 2 (L2):

Weight: 2.8 oz

The Mosmatic DKS Swivel Coupling 70.054 is a professional-grade, high-pressure swivel engineered for hose connections, quick coupling systems, and cleaning equipment. Constructed from nickel-plated brass, this swivel is built to resist corrosion and deliver long-lasting, dependable performance in industrial environments.

It features a single thrust ball bearing and a high-performance ceramic seal system for smooth rotation and effective sealing under high pressure. A flange design allows for quick and secure installation, while integrated weep holes provide an early warning of seal wear or failure to support proactive maintenance.

This model includes a Quick Connect Thread In of M21x1.5 F and a Thread Out of 3/8” NPTF, with a nominal width of ¼”. Designed to handle up to 3600 PSI, 30 RPM, and 250°F, the 70.054 swivel supports media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• High-pressure hose and cleaning equipment

• Quick connect couplings in industrial systems

• Surface cleaners and rotating spray nozzles

• Car wash equipment and maintenance setups

• Pneumatic tool and compressed air systems

• Commercial and industrial pressure washing

Features

• Corrosion-resistant nickel-plated brass body

• Long-life ceramic seal system

• Single thrust ball bearing for smooth operation

• Flange design for easy, stable installation

• Weep holes for seal failure indication

• Thread In: M21x1.5 F | Thread Out: 3/8” NPTF

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Overall Diameter: 1.34” | Length: 2.08”

• Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M21X1.5F

Thread Out: G2 3/8"NPTF

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.87"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.08

Length 2 (L2):

Weight: 3.6 oz

The Mosmatic DKS Swivel Coupling 70.053 is a precision-engineered, high-pressure swivel designed for demanding industrial and commercial cleaning applications. Constructed from corrosion-resistant, nickel-plated brass, this swivel ensures reliability and long service life under continuous use.

Equipped with a single thrust ball bearing and a robust ceramic seal system, it delivers smooth rotation and excellent leak protection. A flange simplifies installation, while integrated weep holes provide a seal failure warning for proactive maintenance. This model features a Quick Connect Thread In of M21x1.5 F and a Thread Out of 3/8” NPTM, making it compatible with a wide range of hose systems and equipment.

Rated for up to 3600 PSI and capable of withstanding temperatures up to 250°F, it’s built for tough environments and supports media in the pH 3–12 range with 10-micron filtered compressed air up to 290 PSI.

Applications

• High-pressure hose and cleaning systems

• Industrial and commercial washdown equipment

• Pneumatic tool connections

• Surface cleaners and rotary arms

• Quick-connect fittings in pressure washing setups

• Car wash installations

Features

• High-quality nickel-plated brass construction

• Smooth rotation with single thrust ball bearing

• Long-life ceramic seal system

• Flanged design for easy and secure installation

• Seal failure warning via built-in weep holes

• Thread In: M21x1.5 F” | Thread Out: 3/8” NPTM

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Dimensions: 1.34” diameter | 1.80” overall length

• Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M21X1.5F

Thread Out: G2 3/8"NPTM

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.75"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.80

Length 2 (L2): 0.47

Weight: 3.6 oz

The Mosmatic DKS Swivel Coupling 70.052 is a high-quality, heavy-duty swivel coupling designed for high-pressure cleaning, hose connections, and quick coupling systems. Built from nickel-plated brass, this durable swivel delivers exceptional corrosion resistance and long-lasting performance in tough industrial and commercial environments.

Engineered with a single thrust ball bearing and a ceramic seal system, the 70.052 model ensures smooth rotation and dependable sealing under pressure. A built-in flange allows for secure, straightforward installation, and integrated weep holes serve as early seal failure indicators to minimize downtime and prevent damage.

Featuring a Quick Connect Thread In of M21x1.5 F and a Thread Out of ¼” NPTF, this swivel is optimized for high-pressure systems operating up to 3600 PSI and temperatures up to 250°F. It supports a wide range of media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

• High-pressure cleaning equipment

• Industrial hose and coupling systems

• Pressure washer accessories

• Rotary surface cleaners and nozzles

• Car wash systems

• Pneumatic tool connections

Features

• Rugged nickel-plated brass construction

• Ceramic seal system for enhanced durability

• Smooth operation via single thrust ball bearing

• Flanged design for easy and secure installation

• Weep holes for early seal failure detection

• Thread In: M21x1.5 F | Thread Out: ¼” NPTF

• Nominal Width (NW): ¼”

• Max Pressure: 3600 PSI

• Max Temperature: 250°F

• Max RPM: 30

• Dimensions: 1.34” diameter | 1.96” overall length

• Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M21X1.5F

Thread Out: G2 1/4"NPTF

Nominal Width (NW): ¼”

Wrench Size 1 (SW1): 0.75"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.96

Length 2 (L2):

Weight: 3.6 oz
