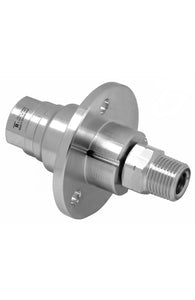

Mosmatic – DXF Swivel - 38.153 - G1 3/8"NPTF to G2 3/8"NPTM

The Mosmatic DXF Swivel - 38.153 is a high-performance stainless steel swivel designed for high-RPM and high-pressure cleaning equipment. Built for longevity and reliability, it is ideal for self-rotating tools, surface cleaners, parts washers, and tire cleaning systems. This swivel features a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and consistent rotation. A durable ceramic seal system ensures long-term leak protection under extreme conditions, while integrated weep holes serve as an early warning system for seal failure. Its flange mount allows for quick and secure installation.

Applications:

• High-RPM self-rotating cleaning equipment

• Surface cleaners for industrial and commercial use

• Tire and wheel washing systems

• Parts washers and cleaning stations

Key Features:

• Stainless steel construction for corrosion resistance and durability

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Advanced ceramic seal system for high-speed applications

• Integrated weep holes for seal failure detection

• Flange mount for quick and stable installation

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 2500 PSI

• Max RPM: 2000

• Operating temperature: 40°F to 250°F

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36”

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 13.5oz
