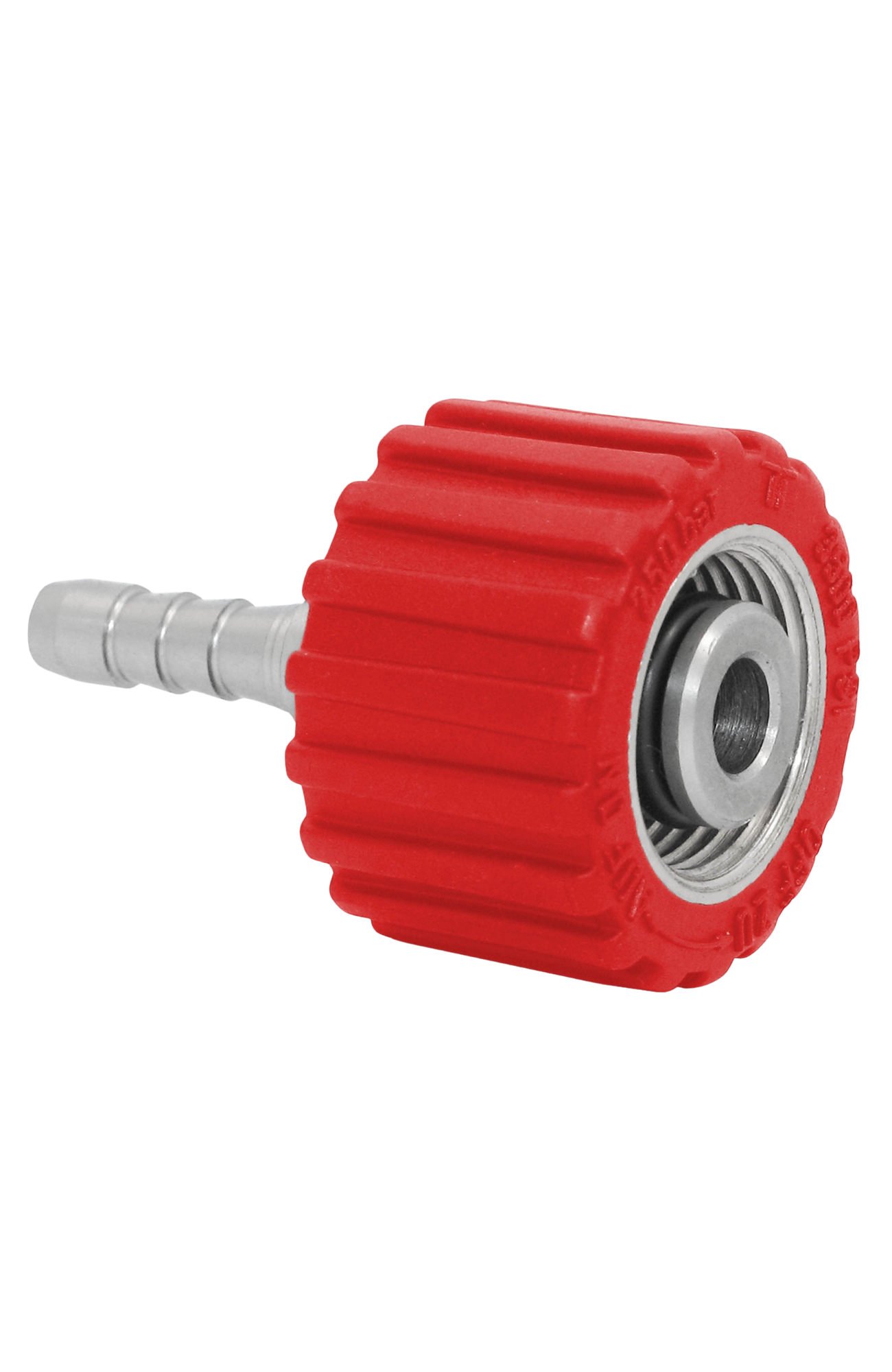

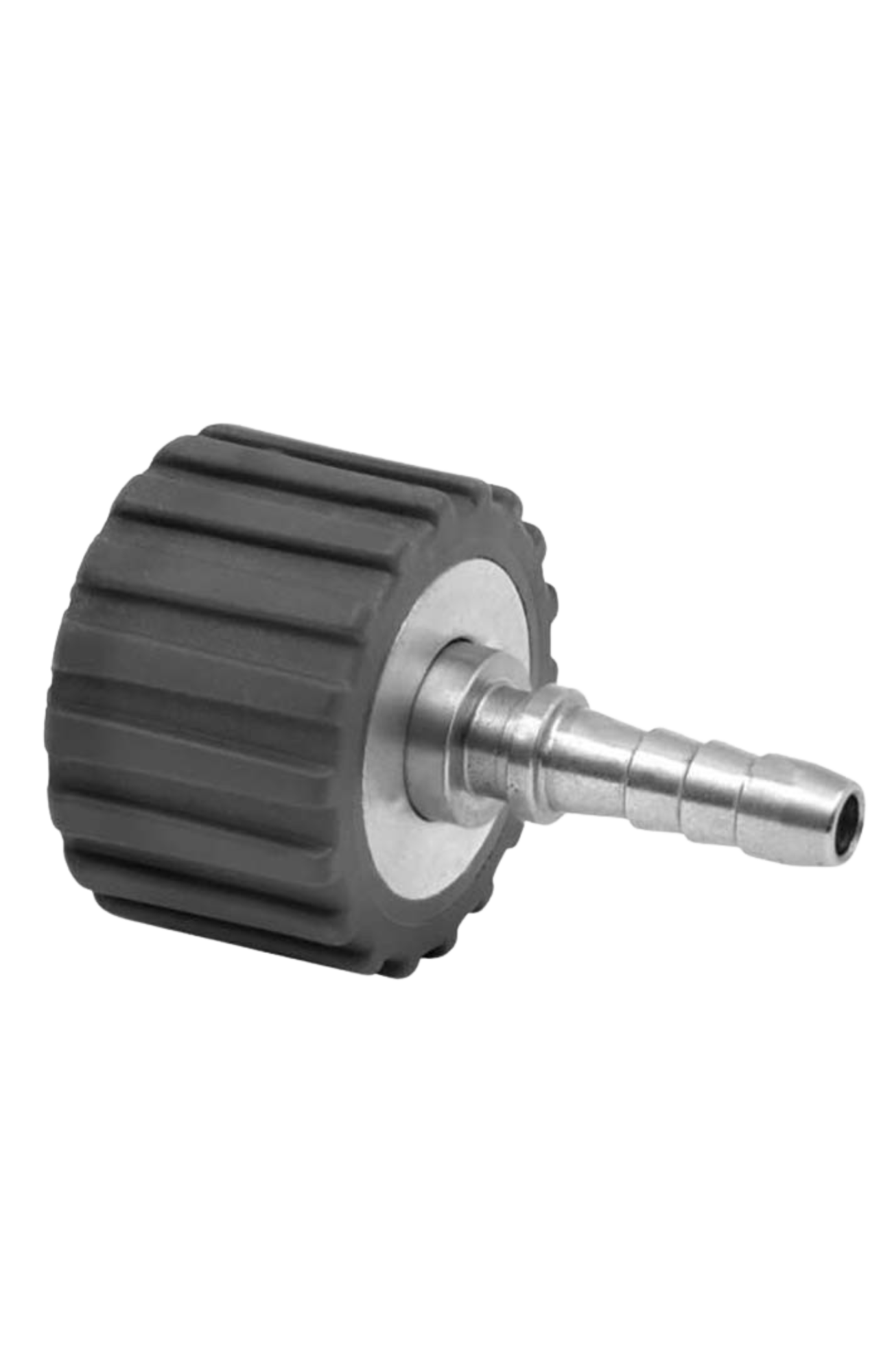

Mosmatic rotary unions DKS swivel coupling G1 M21X1.5F S1 1/4in 70.131

Mosmatic rotary unions DKS swivel coupling G1 M21X1.5F S1 1/4in 70.131

  • $32.45
  • Save $3.61
Shipping calculated at checkout.


High pressure cleaning, hose connections, quick coupling

  • Live rotation under maximum pressure
  • Single bearing system
  • Self-lubricating ball bearings
  • Easy to install

G1 (QV) M22x1.5F, S1 1/4”, NW 1/8”, L1 2.26, D1 0.27, D2 0.29, D3 0.37, Weight 2.8 oz, Color red

Technical data

    • Pressure: 3600 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
