Industrial Vacuums for Hazardous Materials

Dust Ignition Protected Electrically Operated Industrial Vacuums

Certified Class II Division 2 Groups F & G Hazardous Locations as defined in the National Electric Code (NFPA 70)

Certified EPL Dc (Equipment Protection Level)

PrestiVac dust ignition protected vacuums are designed to safely vacuum combustible dusts. Our dust ignition protected vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter are protected by enclosure so there is no source of ignition.

Note: This is an intermittent vacuum and not designed for continuous use.

Features:

• Powerful Motor - High Performance
• Static dissipating ESD safe
• All Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)
• RCT Removable Collection Tank system makes it easy to empty and clean
• Stainless steel storage bin for hose and accessories
• Quiet operation with only xx dB

Filtration System:

• 4-stage filtration for maximum performance and efficiency
• Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822

Applications:

Combustible dusts:

Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt, Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)



Included

• Static dissipating suction hose assembly
• Stainless steel double bend wand assembly
• Floor tool
• Crevice tool
• Round brush
• Suction Hose Assembly



Optional Accessories:

• Extension wand
• Single bend wand
• Wall brush
• Dust extraction Arm

Options:

• Grounding reel

Filtration Options:

• ULPA Filtration with an efficiency of 99.9995% @ 0.12 micron. Testing Method: IEST RP-CC034.3. H15. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.
• Activated Carbon Filtration System to adsorb fumes and vapors



Specifications

Air Watts: 652

Electricity: 120v /15a /1790w

Air Flow (CFM): 202

Vacuum Pressure: 110" H2O (water lift)

Collection Type: Dry

Capacity (gal): 15 gallon

Manuals

Prestivac Manual - EV-10-15-20-25 EX RCT SERIES



Industrial Vacuums for Hazardous Materials

Explosion Proof/Dust Ignition Proof Electrically Operated Industrial Vacuums

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70

Certified EPL Db and EPL Gb (Equipment Protection Level)

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible dusts. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practise as per OSHA.

Features:

• Single Phase Explosion Proof Motor
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)
• RCT Removable Collection Tank system makes it easy to empty and clean
• Stainless steel storage bin for hose and accessories

Filtration System:

• Conductive ESD safe filters
• HEPA^Plus* Filtration with an efficiency of 99.995% @ 0.2 micron

Applications:

• Anthrax
• Aspergillus Spores
• Bio-Hazard Materials
• Contaminated products
• Hazardous drugs
• Mold
• Nuisance dusts
• Penicillium Spores
• Potent Compounds
• Spores
• Stachybotrys Colonies
• Toxic dusts
• Viral Particulates

Combustible/Conductive* dusts

• Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
• Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
• Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt,  Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)

* NFPA guidelines recommend a maximum collection capacity of 5 lbs for combustible metals in a dry format. If you require a higher capacity, please see our Explosion Proof Immersion Separator Vacuums.



Included

• Static dissipating suction hose assembly
• Stainless steel double bend wand assembly
• Floor tool
• Crevice tool
• Round brush

Optional Accessories:

• Extension wand
• Single bend wand
• Wall brush
• Dust extraction Arm

Options:

• Grounding reel

Filtration Options:

• ULPA Filtration with an efficiency of 99.9995% @ 0.12 micron. Testing Method: IEST RP-CC034.3. H15. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.
• Activated Carbon Filtration System to adsorb fuel and solvent fumes and vapors



Specifications

Air Watts: 321

Electricity: 120v /12a /1300w

Air Flow (CFM): 145

Vacuum Pressure: 72" H2O (water lift)

Collection Type: Dry

Capacity (gal): 15 gallon



Manuals

Prestivac Manual - EX-10-15-20-25 RCT SERIES

Industrial Vacuums for Hazardous Materials

Explosion Proof Dust Ignition Proof Electrically Operated Immersion Separator Wet Mix Vacuum Cleaners

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70

Certified EPL Db and EPL Gb (Equipment Protection Level)

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible and conductive dusts. Our immersion separator system neutralizes explosive, conductive, combustible dust by submerging it into a neutralizing liquid bath, rendering it inert and eliminating any risk of fire or explosion. Our explosion proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practise as per OSHA. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up.

Features:

• Single Phase Explosion Proof Motor
• Static dissipating ESD safe
• All Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Stainless steel Drain valve assembly for easy emptying
• Complete with static dissipating suction hose and accessories
• RCT Removable Collection Tank system makes it easy to empty and clean
• Stainless steel storage bin for hose and accessories
• Includes Explosion Proof Electrical Plug*
• Plug 15A for Class I, Groups B, C, D & Class II Groups F & G
• Not included for Group E

Filtration System:

• 4-stage filtration system with cyclonic action for maximum performance and efficiency
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron
• Washable Conductive ESD safe filters
• Stainless steel mist eliminator
• Largest HEPAPlus* Filtration with over 21 sq. ft. of Media

Applications:

• Combustible, Conductive, Explosive, Flammable, Hazardous dusts
• Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
• Pyrotechnics
• Ammunitions
• Explosives
• Glowing media

Included

• Static Dissipating suction hose assembly (1.5" X 10')
• Stainless steel double bend wand assembly
• Floor tool
• Crevice tool
• Round brush
• Suction Hose Assembly

Optional Accessories:

• Extension wand
• Single bend wand
• Wall brush
• Dust extraction Arm

Options:

• Grounding reel
• Safety valve for gas vapors

Filtration Options:

• Activated Carbon Filtration System to adsorb fumes and vapors

Special Note: It is important that the metal dust recovered is COLD. No hot embers are to be recovered.



Specifications

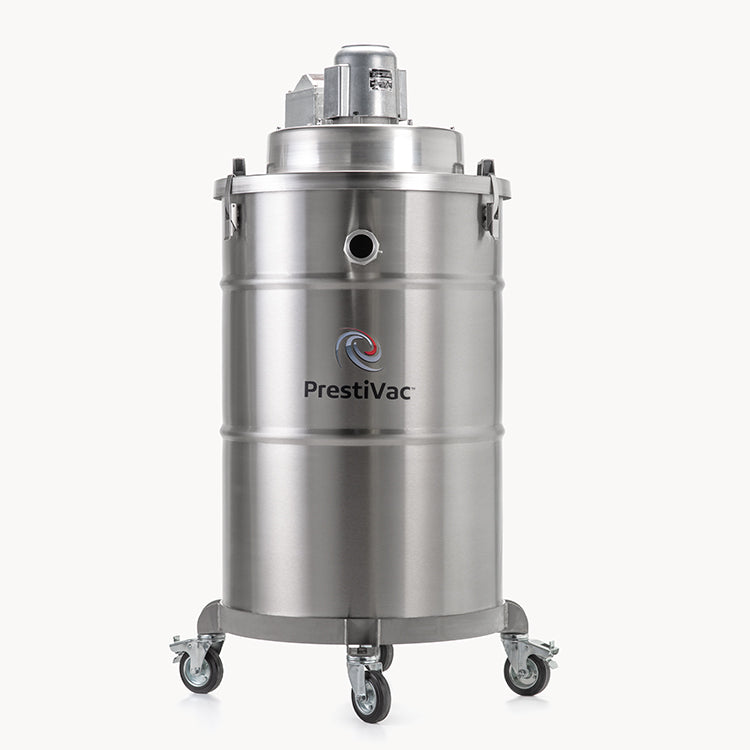

• Model: EX1-10/15 RCT IS
• Air Watts: 321
• Electricity: 120v 50/60Hz / 12a / 1300w
• Air Flow (CFM): 145
• Vacuum Pressure (H20): 72
• Collection Type: Dry
• Collection Capacity: 7 gallons (26L)
• Capacity (gal): 10

Manuals

Prestivac Manual - EX-10-15-20-25 RCT SERIES

Industrial Vacuums for Hazardous Materials

Explosion Proof/Dust Ignition Proof Electrically Operated Industrial Vacuums

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70

Certified EPL Db and EPL Gb (Equipment Protection Level)

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible dusts. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practise as per OSHA.

Features:

• Single Phase Explosion Proof Motor
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)

Filtration System:

• Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.

Applications:

• Anthrax
• Aspergillus Spores
• Bio-Hazard Materials
• Contaminated products
• Hazardous drugs
• Mold
• Nuisance dusts
• Penicillium Spores
• Potent Compounds
• Spores
• Stachybotrys Colonies
• Toxic dusts
• Viral Particulates

Combustible/Conductive* dusts

• Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
• Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
• Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt, Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)

* NFPA guidelines recommend a maximum collection capacity of 5 lbs for combustible metals in a dry format. If you require a higher capacity, please see our Explosion Proof Immersion Separator Vacuums.

Included

Explosion Proof/Dust Ignition Proof Electrically Operated Industrial Vacuums

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70.

Certified EPL Db and EPL Gb (Equipment Protection Level)

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible dusts. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practice as per OSHA.

Features:

• Single Phase Explosion Proof Motor
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)

Filtration System:

• Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.

Applications:

• Anthrax
• Aspergillus Spores
• Bio-Hazard Materials
• Contaminated products
• Hazardous drugs
• Mold
• Nuisance dusts
• Penicillium Spores
• Potent Compounds
• Spores
• Stachybotrys Colonies
• Toxic dusts
• Viral Particulates

Combustible/Conductive* dusts

• Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
• Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
• Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt, Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)

* NFPA guidelines recommend a maximum collection capacity of 5 lbs for combustible metals in a dry format. If you require a higher capacity, please see our Explosion Proof Immersion Separator Vacuums.

Included

The Prestivac EX-10-15-20-25 RCT Series dust ignition-protected vacuums are designed for the safe removal of explosive and combustible dusts. Built entirely with non-sparking metals and free of painted components, these vacuums are fully grounded and static dissipating, eliminating the risk of fire or explosion. This manual helps you operate, maintain, and maximize their performance.



*To avoid online checkout bots please use the discount code Free4me for checkout to confirm you are a real person. Thank you!

The Prestivac EV-10-15-20-25 EX RCT Series dust ignition-protected vacuums are engineered for the safe removal of combustible dusts. Fully grounded and static dissipating, they are constructed with non-sparking metals and have no painted components, eliminating fire or explosion risks. All electrical components, including the motor and starter, are securely enclosed to prevent any source of ignition. This manual helps you operate, maintain, and maximize their performance.



*To avoid online checkout bots please use the discount code Free4me for checkout to confirm you are a real person. Thank you!



Industrial Vacuums for Hazardous Materials

Dust Ignition Protected Electrically Operated Industrial Vacuums

Certified Class II Division 2 Groups F & G Hazardous Locations as defined in the National Electric Code (NFPA 70)

Certified EPL Dc (Equipment Protection Level)

PrestiVac dust ignition protected vacuums are designed to safely vacuum combustible dusts. Our dust ignition protected vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter are protected by enclosure so there is no source of ignition.

Note: This is an intermittent vacuum and not designed for continuous use.

Features:

• Powerful Motor - High Performance
• Static dissipating ESD safe
• All Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)
• RCT Removable Collection Tank system makes it easy to empty and clean
• Stainless steel storage bin for hose and accessories
• Quiet operation with only xx dB

Filtration System:

• 4-stage filtration for maximum performance and efficiency
• Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822

Combustible dusts:

Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt, Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)



Included

• Static dissipating suction hose assembly
• Stainless steel double bend wand assembly
• Floor tool
• Crevice tool
• Round brush
• Suction Hose Assembly



Optional Accessories:

• Extension wand
• Single bend wand
• Wall brush
• Dust extraction Arm

Options:

• Grounding reel

Filtration Options:

• ULPA Filtration with an efficiency of 99.9995% @ 0.12 micron. Testing Method: IEST RP-CC034.3. H15. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.
• Activated Carbon Filtration System to adsorb fumes and vapors



Specifications

Air Watts: 652

Electricity: 120v /15a /1790w

Air Flow (CFM): 202

Vacuum Pressure: 110" H2O (water lift)

Collection Type: Dry

Capacity (gal): 15 gallon

Manuals

Prestivac Manual - EV-10-15-20-25 EX RCT SERIES



Dust Ignition Protected Electrically Operated VACUUM CLEANER

PrestiVac dust ignition protected vacuums are designed to safely vacuum explosive, combustible dusts. Our dust ignition protected vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter, are protected by enclosure so there is no source of ignition. Absolute HEPAPlus* filtration with an efficiency of 99.995% @ 0.2 micron captures all the hazardous dust and ensures the exhaust air is clean, keeping the operator and the environment safe from exposure and contamination. This unit meets all NFPA codes and certified for: Class II Division 2 Groups F & G Hazardous Locations as defined in the National Electric Code (NFPA 70) EPL Dc (Equipment Protection Level)

Features:

• Powerful Motor - High Performance
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Quiet operation with only 72 dB
• 4 Wheel Cart
• 3 Year Warranty

Filtration System:

• 4-stage filtration for maximum performance and efficiency
• Washable Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron



Included

• Static Dissipating suction hose assembly 1.5” x 10’
• Wand 1.5” Pull Pin Type
• Floor Tool 1.5”
• Crevice tool
• Round brush



Specifications

• 365 Peak Air Watts
• 110" H20 Vacuum Pressure
• 100 CFM
• Dry Collection Only
• Collection Capacity 5 gallons
• 120v, 50/60Hz, 8A, 1020 Watts
• Dimensions: 20’’ x 20’’ x 29.5’’





Dust Ignition Protected Electrically Operated VACUUM CLEANER

PrestiVac dust ignition protected vacuums are designed to safely vacuum explosive, combustible dusts. Our dust ignition protected vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter, are protected by enclosure so there is no source of ignition. Absolute HEPAPlus* filtration with an efficiency of 99.995% @ 0.2 micron captures all the hazardous dust and ensures the exhaust air is clean, keeping the operator and the environment safe from exposure and contamination. This unit meets all NFPA codes and certified for: Class II Division 2 Groups F & G Hazardous Locations as defined in the National Electric Code (NFPA 70) EPL Dc (Equipment Protection Level)

Features:

• Powerful Motor - High Performance
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Quiet operation with only 72 dB
• 4 Wheel Cart
• 3 Year Warranty

Filtration System:

• Multi-stage filtration for maximum performance and efficiency
• Washable Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron



Included

• Static Dissipating suction hose assembly 1.5” x 10’
• Wand 1.5” Pull Pin Type
• Floor Tool 1.5”
• Crevice tool
• Round brush



Specifications

• 365 Peak Air Watts
• 110" H20 Vacuum Pressure
• 100 CFM
• Dry Collection Only
• Collection Capacity 12 gallons
• 120v, 50/60Hz, 8A, 1020 Watts
• Dimensions: 20’’ x 20’’ x 29.5’’





Dust Ignition Protected Electrically Operated VACUUM CLEANER

PrestiVac dust ignition protected vacuums are designed to safely vacuum explosive, combustible dusts. Our dust ignition protected vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter, are protected by enclosure so there is no source of ignition. Absolute HEPAPlus* filtration with an efficiency of 99.995% @ 0.2 micron captures all the hazardous dust and ensures the exhaust air is clean, keeping the operator and the environment safe from exposure and contamination. This unit meets all NFPA codes and certified for: Class II Division 2 Groups F & G Hazardous Locations as defined in the National Electric Code (NFPA 70) EPL Dc (Equipment Protection Level)

Features:

• Powerful Single Phase Dual Motors - High Performance
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Quiet operation with only 72 dB
• 4 Wheel Cart
• 3 Year Warranty

Filtration System:

• 4-Stage filtration for maximum performance and efficiency
• Washable Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron



Included

• Static Dissipating suction hose assembly 1.5” x 10’
• Wand 1.5” Pull Pin Type
• Floor Tool 1.5”
• Crevice tool
• Round brush



Specifications

• 365 Peak Air Watts
• 110" H20 Vacuum Pressure
• 200 CFM
• Dry Collection Only
• Collection Capacity 12 gallons
• 120v, 50/60Hz, 8A, 1020 Watts
• Dimensions: 20’’ x 20’’ x 29.5’’





Explosion Proof/Dust Ignition Proof Electrically Operated Immersion Separator Vacuum Cleaner

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F, and G Hazardous Locations as defined in the National
Electric Code (NEC) and NFPA 70
EPL Db and EPL Gb (Equipment Protection Level

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, flammable, combustible, and conductive dusts. Our immersion separator system neutralizes explosive, conductive, combustible dust by submerging it into a neutralizing liquid bath, rendering it inert and eliminating any risk of fire or explosion. Our explosion proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practise as per OSHA. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals.

Features:

• Single Phase Explosion Proof Motor
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Integrated Immersion Separator
• Includes Degassing Vent
• Drain Valve assembly with level indicator
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• RCT Removable Collection Tank system makes it easy to empty and clean
• Stainless steel storage bin for hose and accessories

Filtration System:

• Washable Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.
• Optional Impregnated Carbon Filter - activated carbon filter to neutralize chlorinated solvent vapors

Combustible/Conductive* dusts

• CLASS I DIVISION 1 GROUP D
• CLASS II DIVISIONS 1 & 2 GROUPS E,F & G

* NFPA guidelines recommend a maximum collection capacity of 5 lbs for combustible metals in a dry format. If you require a higher capacity, please see our Explosion Proof Immersion Separator Vacuums.

Included

Explosion Proof/Dust Ignition Proof Electrically Operated Industrial Vacuums

Certified Explosion proof/Dust ignition proof industrial vacuum certified Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70 Certified EPL Db and EPL Gb (Equipment Protection Level)

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible dusts. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. All the electrical components, including the motor and starter are totally enclosed so there is no source of ignition. Our explosion proof/dust ignition proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practise as per OSHA.

Features:

• Single Phase Explosion Proof Motor
• Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Static dissipating ESD safe
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)

Filtration System:

• 4-stage Filtration System for maximum performance and efficiency
• Conductive ESD safe filters
• HEPAPlus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.

Applications:

• Anthrax
• Aspergillus Spores
• Bio-Hazard Materials
• Contaminated products
• Hazardous drugs
• Mold
• Nuisance dusts
• Penicillium Spores
• Potent Compounds
• Spores
• Stachybotrys Colonies
• Toxic dusts
• Viral Particulates

Combustible/Conductive* dusts

• Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
• Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
• Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt, Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)

* NFPA guidelines recommend a maximum collection capacity of 5 lbs for combustible metals in a dry format. If you require a higher capacity, please see our Explosion Proof Immersion Separator Vacuums.

Included

Prestivac AV1-15 EX RCT HEPA Explosion Proof Air-Operated Pneumatic Industrial Vacuum - Division 1

PrestiVac explosion proof/dust ignition proof vacuums are specifically designed to safely vacuum explosive, combustible liquids and dusts. Our explosion proof/dust ignition proof vacuums are completely grounded and static dissipating because they are built entirely with non-sparking metals and do not have any painted components so there is no risk of fire or explosion from a spark or static build up. Compressed Air-Operated Vacuums do not have any electrical components that can overheat and be a source of ignition. Our explosion proof/dust ignition proof vacuums comply with NFPA 484 guidelines and are an effective tool for good housekeeping practice as per OSHA.

This vacuum comes equipped with cart and removable tank, and includes airline hose and suction hose with tools.



 II 2 GD c IIC T6 (85^oC)

Class I, Division 1, Groups A, B, C and D T6 and Class II, Division 1, Groups E, F, G Hazardous Locations as defined in the National Electric Code (NEC) and NFPA 70

Certified EPL Db and EPL Gb (Equipment Protection Level)



Features:

• Powerful Suction - High Performance
• Static dissipating ESD safe
• All Stainless steel construction makes it a solid unit that is easy to clean and sterilize
• Automatic Filter Shaker
• Complete with static dissipating suction hose and accessories
• Automatic suction shut off system when the collection tank is full of liquids (for Wet & Dry models)
• Stainless steel Drain valve assembly for easy emptying (for Wet & Dry models)
• RCT Removable Collection Tank system makes it easy to empty and clean
• Stainless steel storage bin for hose and accessories
• Quiet operation with only 72 dB

Filtration System :

• Conductive ESD safe filters
• HEPA^Plus* Filtration with an efficiency of 99.995% @ 0.2 micron. Testing Method: IEST RP-CC034.3. H14. MIL-STD 282 / A.S.T.M. - D2986-91. MPPS method EN 1822.

Applications:

Hazardous flammable/combustible gases, vapors and liquids:

• Class I Group A (Acetylene, etc.)
• Class I Group B (Butadiene, Ethylene Oxide, Hydrogen, etc.)
• Class I Group C (Acetaldehyde, Cyclopropane, Diethyl Ether, Ethylene, Isoprene, etc.)
• Class I Group D (Acetone, Ammonia, Benzene, Butane, Ethane, Ethanol, Gasoline, Methane, Octane, Pentane, Petroleum, Propane, Styrene, Turpentine, Vinyl Chloride, etc.)

Combustible/Conductive* dusts

• Class II Group E* metal dusts (Aluminum, Bronze, Chromium, Iron Carbonyl, Magnesium, Tantalum, Titanium, Zinc, Zirconium, and other commercial alloys)
• Class II Group F Carbonaceous dusts (Carbon black, Charcoal, coke, coal, etc.)
• Class II Group G combustible dusts ( Agricultural, Calcium, Chemical, Cocoa, Coffee, Corn, Cotton, Egg white, Epoxy resin, Flour, Grain, Lactose, Malt,  Melamine, Milk, Oat, Plastic, Rice, Sodium, Spices, Starch, Sugars, Sulfur, Tobacco, Vinyl, Wheat, Whey, Wood, etc.)

* NFPA guidelines recommend a maximum collection capacity of 5 lbs for combustible metals in a dry format. If you require a higher capacity, please see our Explosion Proof Immersion Separator Vacuums.
