Ionic Van Mounted Systems
Van Mounted Systems designed to give window cleaning professionals a powerful, mobile solution for delivering pure water on the go. These fully integrated setups allow you to carry filtration units, pumps, tanks, and hose reels directly in your vehicle, creating a streamlined workflow for high-efficiency exterior glass cleaning.
As an advanced component of modern window cleaning, van mounted systems provide continuous access to purified water for use with water fed poles and other exterior cleaning tools. By storing water and filtration equipment securely inside your van, you reduce setup time, minimize manual labor, and ensure consistent flow and pressure throughout the workday—ideal for residential routes, commercial contracts, and large multi-story projects.
This collection is perfect for window cleaning professionals who want to enhance productivity, expand service capabilities, and maintain a clean, organized mobile workspace. With reliable filtration, stable power options, and built-in water storage, these systems help create a seamless on-site workflow while reducing the need for frequent refilling or equipment adjustments.
Use these van mounted systems as part of a complete window cleaning operation to increase efficiency, reduce job times, and deliver spot-free, streak-free results with greater consistency. With the right mobile setup, you can take on more work each day while offering a higher standard of service to your customers.
Sort by:
Ionic Systems V4™️ Vehicle Mounted Pure Water Window Cleaning System (You Choose)
Ionic Systems V4™️ Vehicle Mounted Pure Water Window Cleaning System (You Choose)
V4™️ is version 4 of The Reach & Wash System first launched in 1997.
The V4™️ truck-mount pure water professional window cleaning system has seen significant improvements over the lifespan of its development. 10% weight reduction and a lower center of gravity has improved vehicle handling.
It boasts tech options to improve filter performance, RO membrane life and water quality.
Tech Features:
- PFS™️ Periodic Flush System - On start up this feature automatically flushes the Reverse Osmosis Membrane for a period of 2 minutes. Thereafter the RO flushes for 2 minutes every hour during the filling process.
- ROMS™️ Reverse Osmosis Maintenance System - At the end of each tank fill, pure water is diverted to the RO membrane housing. Leaving the RO membrane bathing in pure water between fills ensures that dissolved solids (found in tap water) do not foul the membrane. Further, dissolved solids that are not removed from the membrane surface during Periodic Auto Flush cycles are absorbed by the pure water during the "rest period" to be flushed away during the first flush on startup.
- PDI™️ - Perpetual De-ionization - This feature considerably extends DI resin contact time. Ultra purification is achieved by repeated exposure of purified water to the final DI polishing stage.
System Features:
- Digital Flow Control - Auto-compensating digital flow control allows precise operation of the pumps
- Dual TDS Monitoring - The TDS of the water at critical stages is monitored and shown on a control-mounted digital gauge
- Tank Sight Gauge - Fast and accurate view of the water level in the tank
- Fully Baffled Tank - Black polypropylene tank with advanced baffling for increased vehicle stability
- Twin Pumps - The V4™️ has two independently controlled pumps allowing more than one cleaning pole to be used at the same time (each produces up to 4 liters per minute per pole)
- Pump Activation
- Easy Refillable Filters - The filter media cartridge is simply replaced when spent
- Stainless Steel Chassis - Covered by our 10-year warranty
- Battery Charger - Integrated mains-powered CTEK battery charger (optional)
5 Stages of Filtration:
- Carbon
- Sediment
- Reverse Osmosis
- De-Ionization
- Perpetual De-Ionization
Special Note:
An Ionic Systems In-line Water Softener is highly recommended for use in hard water areas. It can prolong the life of the RO Membrane. These are sold separately and can be found here.
*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.
Styles
V4™️ Configurations (Choose from drop down list):
DiFUSE™️ (10 MEGΩ) (No Pump)
DiFuse is Ionic's cold pure water delivery truck-mount delivery system. Designed for quick pure water filling from a static water treatment system or emergency filling from a main water supply.
FUSE™️ (11 MEGΩ) (No Pump)
The FUSE™️ is a high performance, fully automatic, full five-stage RO/DI system. Fully automated fill with PFS™️ and PDI™️ are standard. Pure water production is up to 3 liters per minute dependent on the main water supply.
FUSION™️ (12 MEGΩ) (Pump)
FUSION™️ is a high performance, fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features. Pure water production up to 3 liters per minute at maximum operating pressure of 80 psi.
FUSION™️ S (Pump)
FUSION™️ S is an ultra high performance system designed for the most demanding customers as well as the world's hottest climates. Fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features and has stainless steel filter housings. Pure water production is up to 5 liters per minute at maximum operating pressure of 160 psi.
V4™️ THERMOPURE
The new V4™️ THERMOPURE fills the gap between Ionic's Zero™️ with zero Parts Per Billion (PPB) water quality and Ionic's cold water V4™️ The system provides a hot water experience. Previously your only option was to add the Ionic HotBox™️ alongside your system. Now it's a fully integrated hot water, pure water experience.
V4™️ STATIC
The V4™️ STATIC system does not contain any water storage. It is a delivery system only. The S version has a stainless steel container for the RO Membrane (the other canisters are Polyethylene. A fully stainless steel version is available (all canisters in stainless steel), please speak to your sale rep to get a custom quote.
The MEG Ω Difference
The MEG Ω is a small unit of measure, but ultra pure water in the MEG Ω range delivers faster, better spot free results that you can visibly see.
Video
Included
Standard on V4™️
- Heavy Duty Stainless Steel, fully welded, Crash-test Certified Component Chassis to FMVSS-208 Standard
- FMVSS-208 Cast Mounting Brackets
- Pump Control
- Hi-Density Polypropylene Spark Tested Baffled Tank
- Automatic Fill Shut Off
- Auto-compensating Pump Flow Control
5 Stages of Filtration:
- Carbon
- Sediment
- Reverse Osmosis
- De-Ionization
- Perpetual De-Ionization
Other Items to consider (sold separately):
- Water Softener
- Vehicle Side Ports
- Vehicle Side Electric Port
- Ionic Hydra Water Fed Pole & Fly Lead
- Hose Reels
- Roof or Side Pole Rack
- Spare Filters
- Professional Installation (Please contact us for quote)
Specifications
Available in different Tank Capacities
- 300 Liters = 79.25 Gallons, Height 44 in, Width 45 in, Depth 37 in
- 400 Liters = 105.67 Gallons, Height 44 in, Width 45 in, Depth 37 in
- 500 Liters = 132.08 Gallons, Height 44 in, Width 48 in, Depth 46 in
- 600 Liters = 158.50 Gallons, Height 44 in, Width 48 in, Depth 46 in
- 700 Liters = 184.92 Gallons, Height 44 in, Width 48 in, Depth 46 in
- 800 Liters = 211.33 Gallons, Height 44 in, Width 48 in, Depth 53 in
- 900 Liters = 237.75 Gallons, Height 44 in, Width 48 ini, Depth 53 in
- 1000 Liters = 264.17 Gallons, Height 44 in, Width 48 in, Depth 53 in
Manual
Click here to download the V4 Operator's Manual.
Click here to download the V4 Thermopure Operator's Manual.
The Pure20 Triton™ is a premium, high-performance manual fill RO/DI system designed for professional window cleaners seeking spotless results. Engineered with a fully welded stainless-steel chassis and FMVSS-208 crash certification, Triton offers unmatched durability and reliability.
With five-stage purification, 4040 HF5 reverse osmosis membrane, and a 7-liter refillable de-ionization tank, it delivers ultra-pure water at up to 370 L/hour. The auto-compensating flow controller, dual 100 PSI pumps, and automatic shut-off ensure efficient and consistent operation.
Optional automation upgrades include PFS™ (Periodic Flush System), ROMS™ (Reverse Osmosis Maintenance System), and PDI™ (Pure De-Ionization) for fully automated filling and superior membrane protection. The black polypropylene baffled tank enhances vehicle stability while maintaining water purity.
Key Features
- Fully welded, stainless steel chassis, crash-tested and certified to FMVSS-208
- 300-1000 Liter Black Polypropylene, Spark-tested tank, with full internal baffling
- Auto-Compensating Flow Controller
- Automatic Shut Off (when the tank is full)
- 4040 HF5 Reverse Osmosis Membrane (capable of producing over 370 Liters per hour)
- 0-inch 5 Micron and Carbon pre-filters (to protect the RO Membrane) in clear housings
- 7-Liter De-Ionization tank (fully refillable) filled with Ionic DI Resin
- Twin 100PSI Pumps with automatic shut-off
*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.
Triton available in several sizes. Please choose below.
Demo
Specs
79.3 Gallons (
211 Gallons (800 liters) 42" x 49" x 52"
264 Gallons (1000 liters) 42" x 49" x 52"
Manual
Ionic Systems Portage Fusion™️ Window Cleaning Pure Water Truck-Mount System
From $8,799.00 USD
Unit price perIonic Systems Portage Fusion™️ Window Cleaning Pure Water Truck-Mount System
From $8,799.00 USD
Unit price perThe Portage Fusion™ from Ionic Systems is the ultimate de-mountable pure water window cleaning system—designed for professionals who demand flexibility, performance, and safety. Easily slide the system in and out of your van or truck in minutes, giving you a fully functional work vehicle during the week and a personal one on weekends.
Efficient and Flexible Design
Available in 105-gallon (400L) and 211-gallon (800L) options, the Portage Fusion™ allows complete removal without tools—simply disconnect the battery quick connector, remove the mounting pin, and lift out the tank. Store it safely until your next job.
High-Performance Filtration
Engineered as a five-stage RO/DI system, the Fusion model includes Ionic’s advanced PFS™, ROMS™, and PDI™ technologies, producing up to 3 liters of ultra-pure water per minute (depending on supply pressure). It’s ideal for consistent, spotless window cleaning results on commercial and residential projects.
Smart, Ergonomic Construction
The Portage Fusion™ features an ergonomic layout for easy access to controls and filters, along with a convenient tool tray for poles and accessories. The 211-gallon model offers optional stainless steel hose reels accessible via side doors, ensuring efficient workflow on every job.
Engineered for Maximum Safety
Safety is built into every detail. Inspired by Ionic’s Thatcham crash test program, the Portage™ tank system incorporates FMVSS-208 compliant brackets and a design that minimizes forward tank movement in the event of a collision—protecting both the operator and vehicle occupants.
Simple Installation and Connectivity
Mounting in a Pickup Truck-
A fitting kit is not required for Portage™ tanks that are carried in pickup vehicles. It is however recommended that Portage™ tanks that completely fill the load space are selected. Although it is not a requirement, it is also recommended that Portage™ tanks are secured with ‘tie-down’ straps when transported in pickup type vehicles. If tie-down straps are not used then it is recommended to use wooden blocks to prevent lateral and front to back movement of the tank
Mounting in a Van or on a flatbed trailer-
It must be understood that in the event of a head-on collision an unsecured heavy load need only move the driver and passenger seats forward a small distance for the pre-tensioned seat belts to cause fatal compression injuries. For this reason a Portage™ fitting kit must be installed by a competent person in all vans even when a bulkhead is present. In the event of a head on collision the fitting kits resists the forward movement of the Portage™ tank. The fitting instructions must be followed in every detail.
12 Volt Connection-
Bearing in mind the demountable nature of the Portage™ tank system, the standard 12v connection is made by means of a quick connect fly-lead that plugs into the cigarette lighter. For more permanent installations are intended other more robust 12v power sources with split charging and quick connections are available as optional extras.
Professional-Grade Flexibility
Whether you’re operating a single van or managing a fleet, the Ionic Systems Portage Fusion™ delivers unmatched versatility, performance, and peace of mind. Contact your Clean Direct Representative to configure your system or request a custom quote.
*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.
Video
Included
Standard Features for the Portage™️ Fusion System
Included as standard:
- Main Unit with Tank
- Twin 12v Delivery Pumps
- Pressure Gauge
- Dual TDS Meter
- Automatic Fill Shut Off (after cycle completes)
- Auto-Compensating Pump Flow Control
- 12" Carbon Filter
- 12" Sediment Filter
- 12" DI Filter
- 4029 RO Filter
- PDI™️
- PFS™️ (Perpetual Flushing System)
- ROMS™️ (Reverse Osmosis Maintenance System)
- Plastic Housings for Carbon, Sediment & DI Filters
- Stainless Steel Housing for RO Membrane
Optional:
- Fitting Kit for Portage Fusion Van/Trailer (FKPF-V)
- Cast Mounting Brackets (FMVSS-208)
- Mountable Steel Hose Reels*
- Ionic RX Hose (sold as one length 328 ft. / 100m) (suitable for hot water)
- Variable Pump Control
- Dual 360º Stainless Steel Hose Reels (P-SHR x 2)
- Split Charger
- Stainless Steel Tank (ask us for custom quote)
*SPECIAL NOTE ABOUT HOSE REEL MOUNTING
The 211 gallon (800L) size Portage is designed with a top cover (with storage compartments) and has enough room to mount two hose reels towards the back of the unit.
Because the 105 gallon (400L) size Portage is shorter it does not have the same room to accommodate the hose reels so we have designed an optional custom size cover that has the ability to mount hose reels. This is an optional item, sold separately. Please ask your Clean Direct Rep for details.
Optional for Hard Water Areas:
In-line water softeners are highly recommended for use in hard water areas. TDS readings over 200 would be considered hard water area.
Specifications
Dimensions
105 Gallons (400 L) - Length = 4 ft 9 in, Width = 4 ft, Height = 1 ft 7 in
211 Gallons (800 L) - Length = 8 ft 2 in, Width = 4 ft, Height = 1 ft 7 in
Special Note
All Portage shipments require to be packed in a 6 sided crate for safe shipment from the UK manufacturing plant to our facility in NC. We do charge our actual cost for this crate to the customer as a separate line item. Please ask your Clean Direct Sales Rep to supply you a quote. Local pick up is also available but crate charge still applies.
Manual
Ionic Systems Portage User Manual for the full user guide and instructions.
Ionic Systems Portage™️ Delivery Unit Pure Water Truck-Mount System
From $4,399.00 USD
Unit price perIonic Systems Portage™️ Delivery Unit Pure Water Truck-Mount System
From $4,399.00 USD
Unit price per
“Finally a de-mountable tank system so I can use my van for work during the week and for play at the weekend.”
PRODUCT DESCRIPTION
NOTE: Portage™️ Delivery does not offer filtration. It is used when the water is already filtered. Please see Portage™️ Fusion for a fully capable filtration system.
Portage™️ is the perfect solution for a safe, de-mountable pure water window cleaning filtration system. Designed for professional window cleaners, this system easily slides in-and-out of your van or truck in a couple of minutes thus freeing up your vehicle for other needs.
This low-profile tank is available in:
- 105 gallons (400 liter)
- 211 gallons (800 liter)
Simply undo the battery quick connector, remove the mounting pin and the tank can be portaged out of your van and stored until needed for the next days work.
Configurations
Portage™ is available in a number of different specifications. The following two configurations suit the North American market.
Portage Delivery- Designed as a pure water delivery system (only) for quick pure water filling from a static water treatment system. Does not have any filtration features, simply designed for delivery with tank and pump.
Portage Fusion- Designed as a high-performance, fully automatic five-stage RO/DI system with 240vv mains powered boosted fill, PFS™️, ROMS™️, & PDI™️ are all standard features. (Pure water production up to 3 liters per minute dependent on mains water supply)
Please speak with your Clean Direct Rep to discuss other model types available for your area. It may be necessary for your rep to configure your system and send you a quote.
Ergonomic Design
The ergonomic design provides easy access to controls for easy operation and to the filter system for ease of maintenance. We’ve incorporated a handy tool tray for water fed poles, window cleaning tools and drinks cans.
Both the 158 Gallon & 211 gallon tanks have mounting points for the optional multi-position stainless steel hose reels. These are positioned for easy access via the side loading doors.
Unlike other flat tank systems, the underside of the Portage™ tank has been carefully designed to ensure that 100% of tank capacity runs to the 12v delivery pumps. So unless you’re parked on a steep incline you’ll be able to use every drop of the tanks water capacity even when the water level is low.
*Please check out our article on Winterizing your Ionic Window Cleaning SystemsHow to Winterize Your Ionic Window Cleaning System to keep your system in tip top shape through the winter.
Built with Safety In Mind
Window cleaner safety has always been our highest priority. The Portage™ design was inspired after re-watching hours of crash test footage from our 2003 Thatcham crash test program. The lifting forces generated during a certain phase of a head on crash are considerable. For that reason most of the clamping on our other FMVSS-208 tested designs can be found at the rear of the framework. In a head on crash with Portage™ fitted in a van the absence of clamps at the rear of the tank allows the tank to lift and be arrested by the roof of the van instead. The dimensions of the tank and the FMVSS-208 brackets that fix the tank securely to the chassis at the front combine to prevent the heavy water filled tank from colliding with the driver and passenger seats to avoid fatal crush injuries. The benefit of this design is that whilst security is maintained the tank can be removed in minutes leaving the vehicle free for other uses.
Mounting in a Pickup Truck-
A fitting kit is not required for Portage™ tanks that are carried in pickup vehicles. It is however recommended that Portage™ tanks that completely fill the load space are selected. Although it is not a requirement, it is also recommended that Portage™ tanks are secured with ‘tie-down’ straps when transported in pickup type vehicles. If tie-down straps are not used then it is recommended to use wooden blocks to prevent lateral and front to back movement of the tank
Mounting in a Van or on a flatbed trailer-
It must be understood that in the event of a head-on collision an unsecured heavy load need only move the driver and passenger seats forward a small distance for the pre-tensioned seat belts to cause fatal compression injuries. For this reason a Portage™ fitting kit must be installed by a competent person in all vans even when a bulkhead is present. In the event of a head on collision the fitting kits resists the forward movement of the Portage™ tank. The fitting instructions must be followed in every detail.
12 Volt Connection-
Bearing in mind the demountable nature of the Portage™ tank system, the standard 12v connection is made by means of a quick connect fly-lead that plugs into the cigarette lighter. For more permanent installations are intended other more robust 12v power sources with split charging and quick connections are available as optional extras.
Video
Included Items
Standard Features for the Portage™️ Delivery System
Included as standard:
- Main Unit with Tank
- Twin 12v Delivery Pumps
- Pressure Gauge
- Automatic Fill Shut Off (after cycle completes)
- Auto-Compensating Pump Flow Control
Optional:
- Fitting Kit for Portage Delivery Unit - Van/Trailer (FKPDU-V)
- Cast Mounting Brackets (FMVSS-208)
- Variable Pump Control
- Dual 360º Stainless Steel Hose Reels (P-SHR x 2)
- Split Charger
- Stainless Steel Tank (ask us for custom quote)
Optional for Hard Water Areas:
In-line water softeners are highly recommended for use in hard water areas. TDS readings over 200 would be considered hard water area.
Specifications
Dimensions
105 Gallons (400 L) - Length = 4 ft 9 in, Width = 4 ft, Height = 1 ft 7 in
211 Gallons (800 L) - Length = 8 ft 2 in, Width = 4 ft, Height = 1 ft 7 in
Special Note
All Portage shipments require to be packed in a 6 sided crate for safe shipment from the UK manufacturing plant to our facility in NC. We do charge our actual cost for this crate to the customer as a separate line item. Please ask your Clean Direct Sales Rep to supply you a quote. Local pick up is also available but crate charge still applies.
Manual
Click here for the Ionic Systems Portage User Manual.
This purchase is for upgrading your existing V4 or Zero Wash System to operate as a Disinfector. If you are looking for the full system then search for Disinfector Packages. Please contact us at 844-759-8227 to discuss this system in detail.

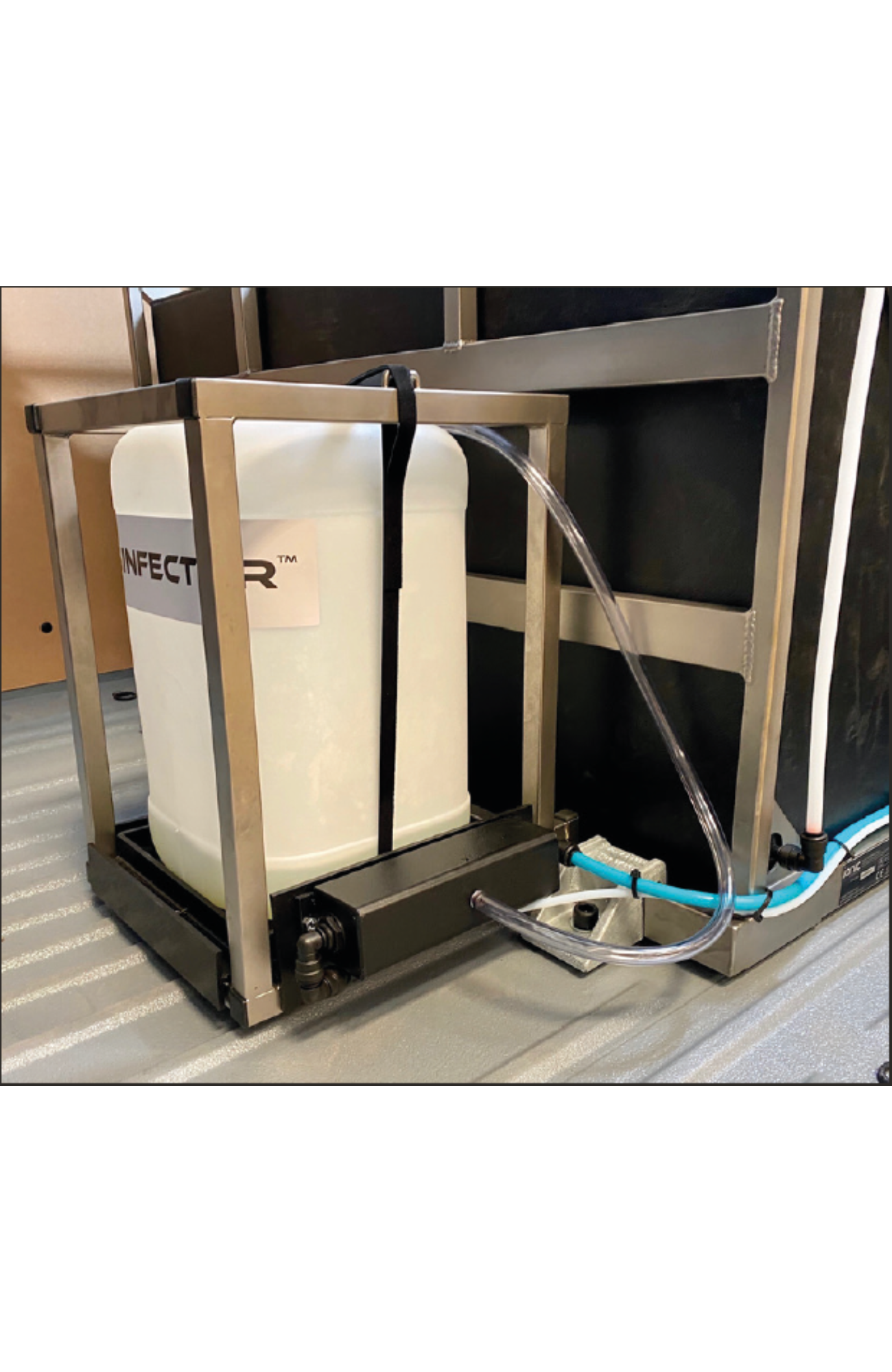

The Ionic Systems Disinfector is a vehicle mounted, high-capacity system for environmental cleaning and disinfection procedures. It facilitates rapid and thorough disinfection of environmental surfaces with water and hospital grade disinfectants such as Sodium Hypochlorite at 0.1% or greater.
Ionic’s Disinfector System comes in three sizes with a top capacity of 264 Gallons (1000 Liters). In operation the Disinfector can treat up to 6500 sq. ft. (600 sqm) per hour by a single operator. Up to four operatives may be deployed from a single van mounted system giving a working time of 2-3 hours before replenishing the storage tank with water.
For working at height spray application can be carried out up to 65 feet (20mtrs) from the safety of the ground using light weight composite telescopic poles. Hand held lances can be used for application up to 10 feet (3 mtrs). A range of up to 656 ft (200mtrs) in every direction is possible from a parked and secured vehicle with remote control as required. The system uses trusted 12v pumps and control system; chemical dosing takes place post pump to ensure reliability of the entire system.
“On inanimate surfaces human coronaviruses can remain infectious for up to 9 days. A surface disinfection with 0.1% sodium hypochlorite, 0.5% hydrogen peroxide or 62%–71% ethanol can be regarded as effective against coronaviruses within 1 min. A similar effect can be expected against the SARS-CoV-2”.
Video
Included
Disinfector Upgrade Includes:
- Disinfector Upgrade Main Unit
- Shipping Crate
- Stainless Steel Hose Reel Air+Water
- Air Hose Compressor to Reel

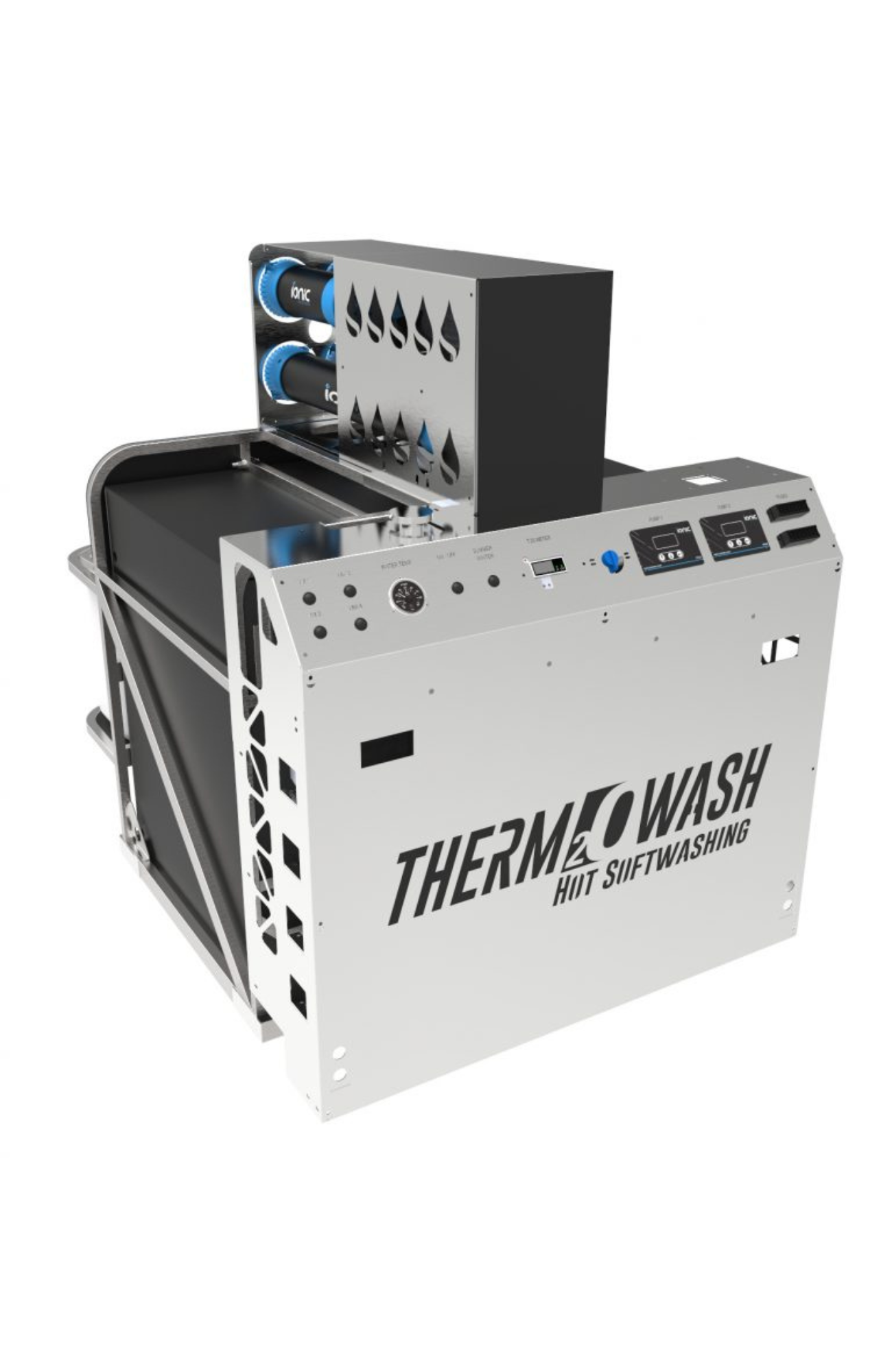

Ionic Systems Thermowash™️ Pure2o Hot Softwashing & Window Cleaning System
$19,249.00 USD
Unit price perIonic Systems Thermowash™️ Pure2o Hot Softwashing & Window Cleaning System
$19,249.00 USD
Unit price perThe Ionic Systems ThermoWash™️ Hot Softwashing System is a compact vehicle-mounted machine that delivers excellent cleaning results due to the combination of purified water and heat. It comes as a 211 Gallon (800 Liter) sized tank system.
Most other soft wash systems use cold, unpurified water, normally drawn from the spigot. In this scenario the chemicals used in the cleaning process have to overcome the minerals in the water; therefore, more chemical is needed than necessary, particularly in hard-water areas. This drives up chemical costs and drives more pollution.
During the colder months and especially when heavy soil is encountered the answer for most soft washers is to add more chemical, which leads to more neutralizer, time and water for rinsing. All of these additions drive up overall job costs.
ThermoWash™️ easily achieves the optimal temperature of 131º to 140º. This drastically improves the effectiveness of pure water when combined with pure water and the right cleaning agent. This delivers superior cleaning results with less environmental impact.
The operator can draw up to four separate chemicals or detergents and set chemical mixes at his desired strength based upon the specific application. The chemicals are mixed inline with the pure water after the pump so no chemicals come in contact with the pump. This eliminates the need to flush the pump.
As a window cleaning system, ThermoWash™️ is a fully automatic four stage RO/DI system with PFS™️ (Periodic Flush System), ROMS™️ (Reverse Osmosis Maintenance System & PDI™️ (Perpetual Deionization) as standard.
Other Required Products (ordered separately):
- Fitting Kit for ThermoWash
- Crate for shipping
- Quantity 2 Spray Lane
Hot water cleans better!
When heated, pure water becomes an even more powerful cleaning agent, Winter or Summer, adding the compact Hotbox™ to your cold water van-mounted system will give you Initial cleans on even the dirtiest most neglected windows and surfaces. These become a breeze, saving you valuable water and time to fit more work into your day!
In the Winter frozen hoses and cold hands become a thing of the past, clearly the HotBox™ is an upgrade that’ll pay for itself and add to your profit in a very short time.
Hot Water is now more popular than ever when it comes to choosing a new system, but cold-water systems can be upgraded to hot with the HotBox™ from Ionic Systems.
Drawing diesel from either the vehicle’s own tank or a separate remote tank, the HotBox™ is simple to operate and incorporate their own battery charging system. The HotBox™️ uses the same diesel burners as the Thermopure™️ Systems and are capable of hot water within minutes of activation. Available in 5.2kW Mini or 9kW Maxi versions, Hotbox™️ is powerful enough to provide piping hot water all year round.
Perfect for hot and tinted glass. Cut through baked-on dirt. Clean really dirty structures, cladding, metal surfaces, etc. Clean during really cold weather...melt ice and snow.
Video
Cleaning News
Cleaning News
Cleaning News
