Day or Night, no ladders, scaffolding, scissor lifts or cherry pickers required...

Our lightweight telescopic SkyPole elevates our wireless SkyCam up to 44ft (14 meters) to provide photo and video capture capability.  It can also be used as a water fed pole to dispense gutter brightening solution.

The commercial-grade carbon fiber SkyPole is one of the lightest poles on the market but is engineered to be tough and rigid.

Note: The camera is purchased separately: SkyVac SurveyCam High Reach Inspection System.

Also works with the Skyscraper HeadSkyVac®️ SkyScraper Head, SkyScraper Head and Brushes, Skyscraper Wire Brush, SkyScraper Speedi Brushes, and SkySweeper Brush.

Typical Usage

• Building inspection, indoors & outdoors
• Gutter & roof inspection
• Security & surveillance
• Plus many more applications...

Specifications

24 foot - 3.6 pounds, collapsed length 5.3 feet, 50% carbon fiber

34 foot - 5.5 pounds, collapsed length 6.4 feet, 100% carbon fiber

44 foot - 6.9 pounds, collapsed length 7.1 feet, 100% carbon fiber

Camera Mount - for securing the SkyVac camera onto the Skypole Telescopic Inspection system.

We’ve created a new design for the Camera Mount. Simply screw the mount onto the SkyPole Inspection System and then onto the SkyVac camera (both sold separately) to view out of reach gutters all from the safety of the ground.

*Camera mount included only

This connector is a Euro thread connector and can also be used on other poles with the same threading.

This is the "saddle" bracket style clamp that fits onto the top Carbon Fiber Tool Holder used with the Elite Pole System. Used for mounting the camera head at the top of the poles.

SkyVac Camera / SkyCam Smart Phone SD Card Reader

Description

Send images and videos of gutter, roof and chimney inspections directly to your customers or colleagues from your smart phone using the SkyCam Smart Phone SD Card Reader.

Simply download the iUSB app onto your smart phone. After taking images or videos with the SkyCam, remove the Micro SD Card from the SkyCam Monitor and insert into the Smart Phone SD Card Reader. Plug the SD Card Reader into your smart phone open the app and send images and videos directly to your client.

*SD card not included.

Included Items

SkyCam Smart Phone SD Card Reader

Specifications

Made for iPhone X/8/8 plus / iPhone 7/7 plus / iPhone6s / 6s plus/ 6/6 plus /5/5s/5c/iPod touch (6th generation)/iPad 4/iPadmini/iPad Air/iPad pro/Mac

Compatible File Format
File: txt.doc.ppt.xls.xlsx.pdf
Music: mp3.wma.wav.m4a.aac.m4r.ogg
Video: mov.mpg.vob.wmv.rmvb.avi.mp4.mkv.flv3gp.rm
Image: Jpg.jpeg.png.gif.bmp.tif.tiff

Computer Systems Supported
Windows xp / Vista / Win 7 / Win 10, Mac OS 9. X or later, Linux2.4.x,iOS8 or Later, Andriod 5.1

SkyVac Replacement Protective Camera Case Only

Replacement parts for SurveyCam™️

• Camera Only
• Monitor Only

 Specifications

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP

This is to purchase a replacement monitor for the SkyVac®️ recordable camera or live action (non recordable) camera.

*This does not include the camera head, accessories or bag.

This is a replacement wireless camera head (only) for the SkyVac®️ Recordable/Non-Recordable Inspection Camera System. Does not include any other accessories.

SkyCam Camera Ball-Joint Connector for Mount for the New SkyCam Version, recordable or non-recordable.

*Camera Not Included*

SkyVac High Reach Inspection Camera Systems

Elevate your inspection capabilities with SkyVac’s professional-grade camera systems—designed for precision, accessibility, and performance. Choose from two cutting-edge options: the SurveyCam High-Reach Inspection System for HD recording and playback, or the Real Time Camera System for instant, live-view monitoring. Both solutions are optimized for high-level inspection and gutter cleaning tasks, helping you deliver fast, accurate results directly from ground level.

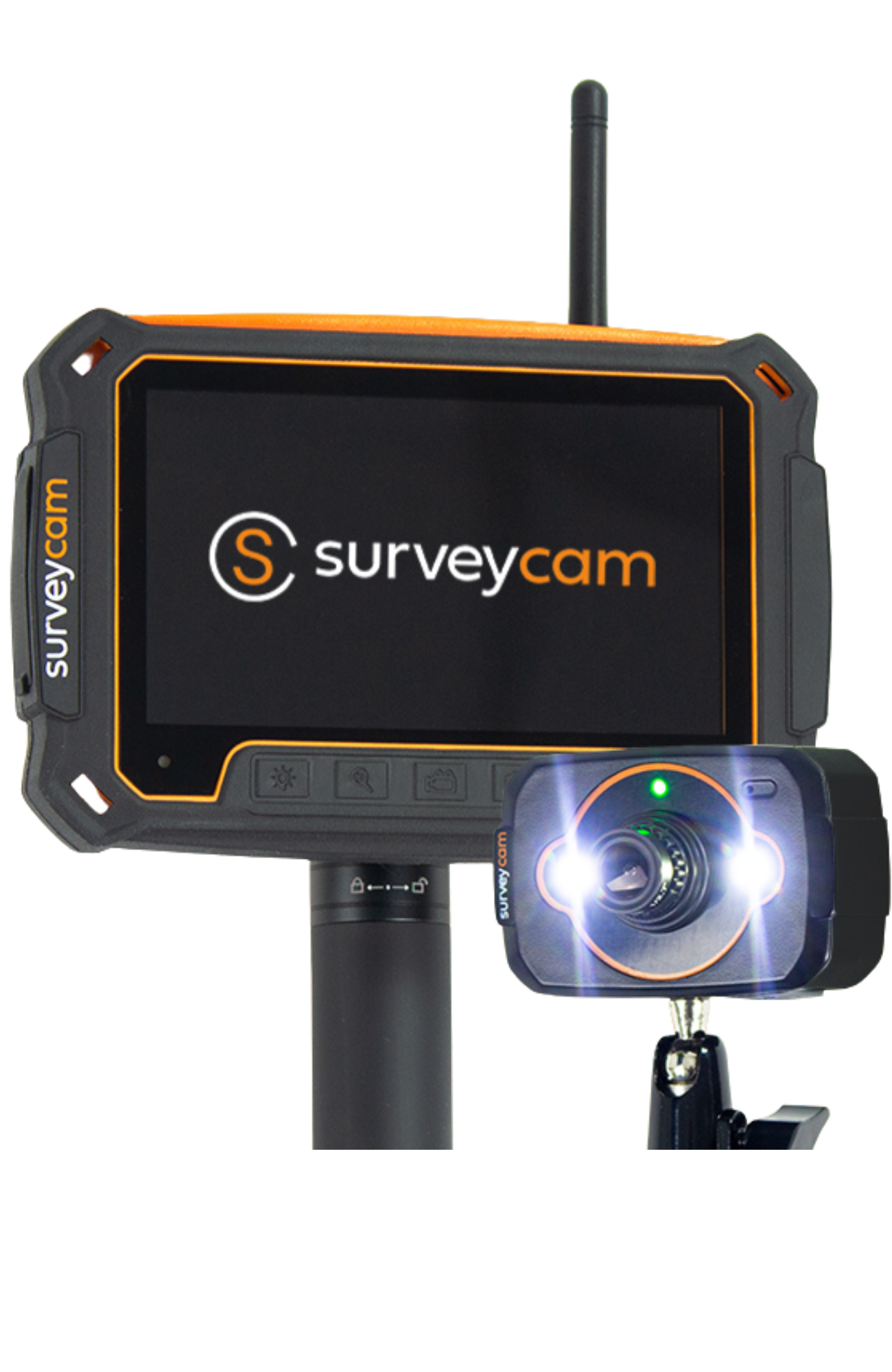

SurveyCam High-Reach Inspection System

Ideal for contractors, surveyors, and cleaning professionals who require visual documentation, the SurveyCam features a large 5” HD monitor and a high-definition camera with LED lighting and 3x zoom. Capture and review images and video on-site with SD card playback. The encrypted, 100m-range signal ensures uninterrupted, secure transmission—perfect for sensitive projects. Lightweight and weather-resistant, the system includes a rechargeable battery (3-hour runtime) and protective camera case.

Features:

• 5” HD monitor with sunshade and 3x zoom

• Recordable video and image capture with Micro SD support

• Secure encrypted signal up to 100m with GFSK modulation

• Lightweight camera (65g) and monitor system (225g)

• LED camera lighting with 2m range

• Rechargeable battery with 3-hour usage

• Foam-lined, weatherproof carrying case

• Not compatible with iPhones

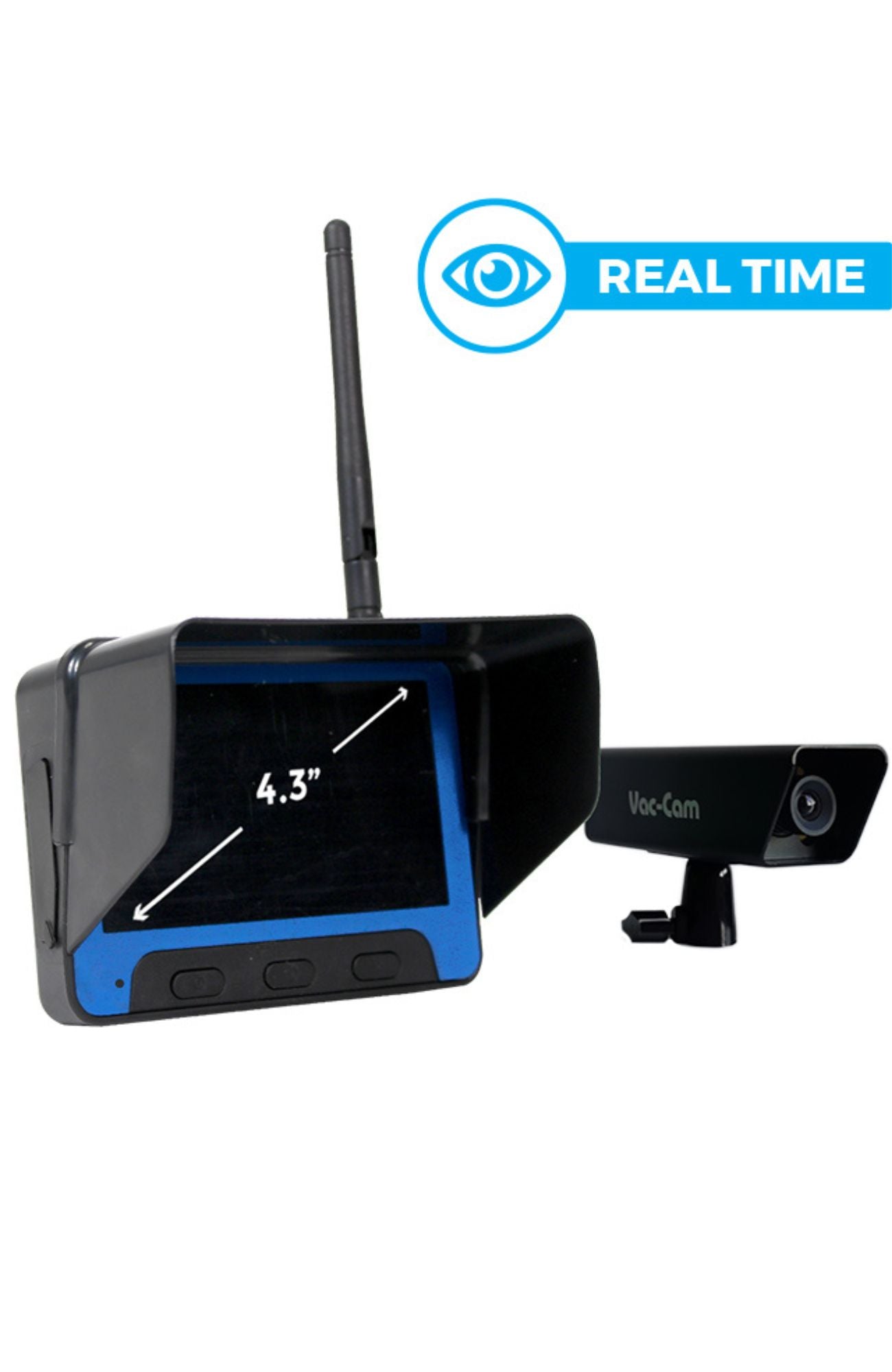

Real Time Camera System

Designed for quick inspections and client demonstrations, the Real Time Camera System offers immediate viewing via a 4.3” color LCD monitor—no apps, wires, or Wi-Fi required. Lightweight, easy to mount, and ready for use in all weather conditions, this system provides up to 50m live viewing range with no recording functionality. Ideal for professionals looking to showcase gutter conditions or job progress instantly.

Features:

• 4.3” color LCD monitor with detachable sun visor

• Real-time live viewing up to 50m range

• Instant pairing, no app or Wi-Fi required

• Lightweight, weather-ready (IP4 rated) components

• LED-lit overhead camera for clear visibility

• Adjustable monitor brightness

• Non-recordable; live view only

Applications

• Gutter inspections and cleaning

• Roof and chimney surveys

• High-reach property inspections

• Commercial and residential maintenance

• Visual documentation for client reporting

• Secure surveillance (SurveyCam only)

Videos

Specs

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max. Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP

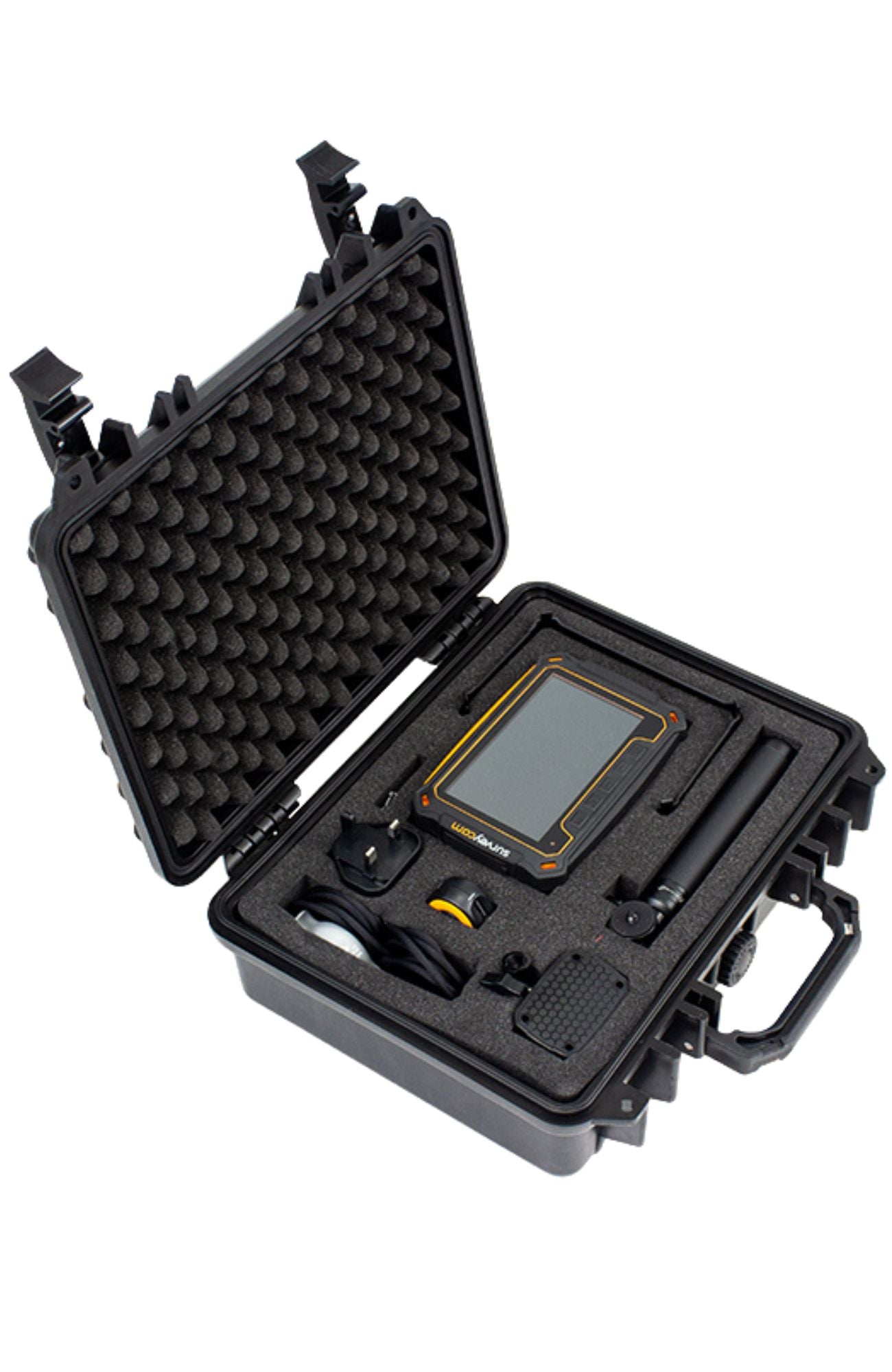

SurveyCam® Photographic Case:

• Dimensions: 13"x 11" x 5"
• Watertight seal around lid
• Foam protected storage compartments
• Secure double throw latches
• Soft grip handle
• Holes on either edge for padlocking
• Injection Molded high quality Polypropylene

"Real Time" Camera Specifications:

• Image Sensor: 1/4 Inch CMOS
• Effective Pixels: 640 x 480
• View Angle: 45 Degrees
• Transmission Frequency: 2400~2483 MHz
• Modulation Mode: GFSK
• Unobstructed Effective Range: 164 ft / 50 Meters
• White LED light range: 6 ft / 2 Meters
• Power Supply: 5V VDC
• Charge Time: 2.5 Hours
• Working Time (full charge):3 hours (LED OFF）/ 2.5 hours(LED ON)
• Operation Temperature: 10~+50°C/+14~+122°F
• Dimensions: 130 x 30 x 58mm
• Weight: 100g

"Real Time" Monitor Specifications:

• Screen Size: 4.3 Inch TFT LCD
• Display Resolution: 480 x 272
• Unobstructed Effective Range: 164 ft /50 Meters
• Modulation Mode: GFSK
• Power Supply: 5V VDC
• Charge Time: 3 Hours
• Working Time (full charge):3 hours
• Operation Temperature: 10~+50°C/+14~+122°F
• Dimensions: 115 x 30 x 135mm
• Weight: 165g

Please Note: The Camera Mount for use with the telescopic pole, is not included as standard. You can find it here.

Telescoping SkyPole Sold Separately.

Manuals

SurveyCam User Manual

"Real Time" Camera System Manual
