Ionic Systems

The Ionic Systems Caddy™ Handheld System delivers pure water cleaning power in a compact, portable design. Perfect for professional window cleaners, it allows efficient water-fed cleaning anywhere a water supply is available. Choose from four configurations — Single DI, Double DI, Triple DI, or Triple Multi-Stage (DI, Carbon & RO) — each mounted in a durable metal frame with a comfortable carry strap for easy transport.

Engineered for reliability and performance, the Caddy™ produces up to 1 liter per minute of purified water at optimal pressure (60 psi), enabling streak-free results even at heights of up to 45 ft. Ideal for both soft-water (DI) and hard-water (RO) regions, it’s the go-to solution for spotless, professional-grade window cleaning on the go.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

If you are needing a water softener caddy then click here.

Video

Included

Single, Double or Triple Caddy with metal frame and carrying strap.

OR

Single Di Caddy with metal wallmount.

Manual

Ionic Systems DI Caddy Manual

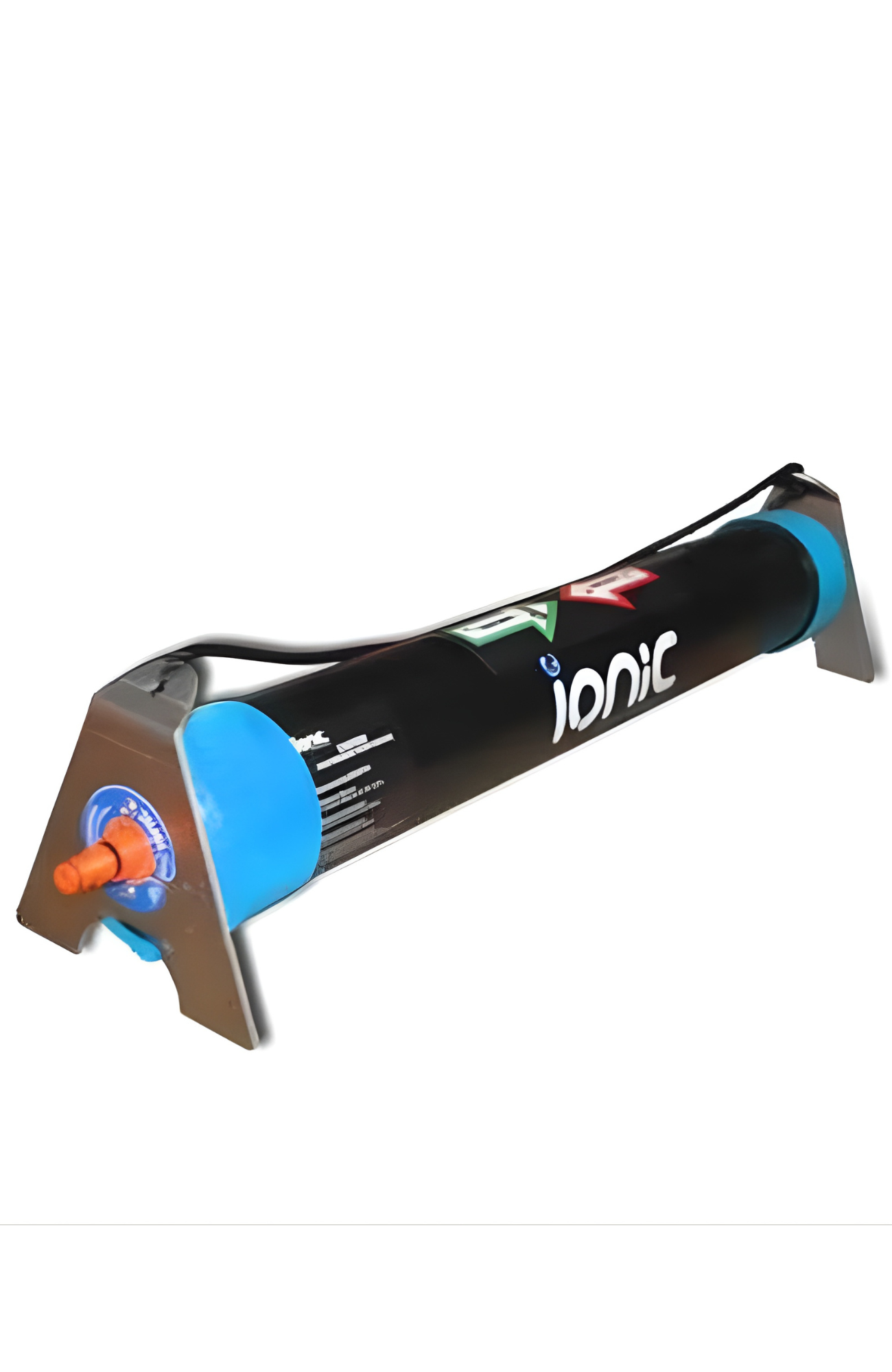

The Ionic Systems Caddy™ In-Line Water Softener Handheld System is a compact, portable solution designed to combat hard water for spotless window cleaning. Engineered for convenience, this lightweight unit connects seamlessly between your water supply and pure water system, delivering softened water that enhances cleaning performance and prevents mineral deposits.

Perfect for window cleaners, mobile detailers, and professionals working in hard-water regions, the Caddy™ ensures consistent, high-quality results every time. Available in single, double, and triple filter configurations, the system adapts to your water quality and workload needs.

Note: Images show all three configurations. The single includes one filter, the double two, and the triple three.

*Please check out our article on Winterizing your Ionic Window Cleaning SystemsHow to Winterize Your Ionic Window Cleaning System to keep your system or caddy in tip top shape through the winter.

Regeneration

• Standard Regeneration Frequency:
• Most experts recommend a regeneration cycle every 2-3 days to maintain efficiency.
• Factors Influencing Regeneration Timing:
  • Water Hardness: Harder water requires more frequent regeneration.
  • Water Usage: Higher water consumption accelerates the need for regeneration.

Please see below for a helpful chart:

How to Regenerate

Video

Included items

Single, Double or Triple Water Softener with metal frame and carry strap. Each system comes with a Salt Back Wash Canister and two quick connect hoses.

Manual

Ionic Systems Water Softener Manual

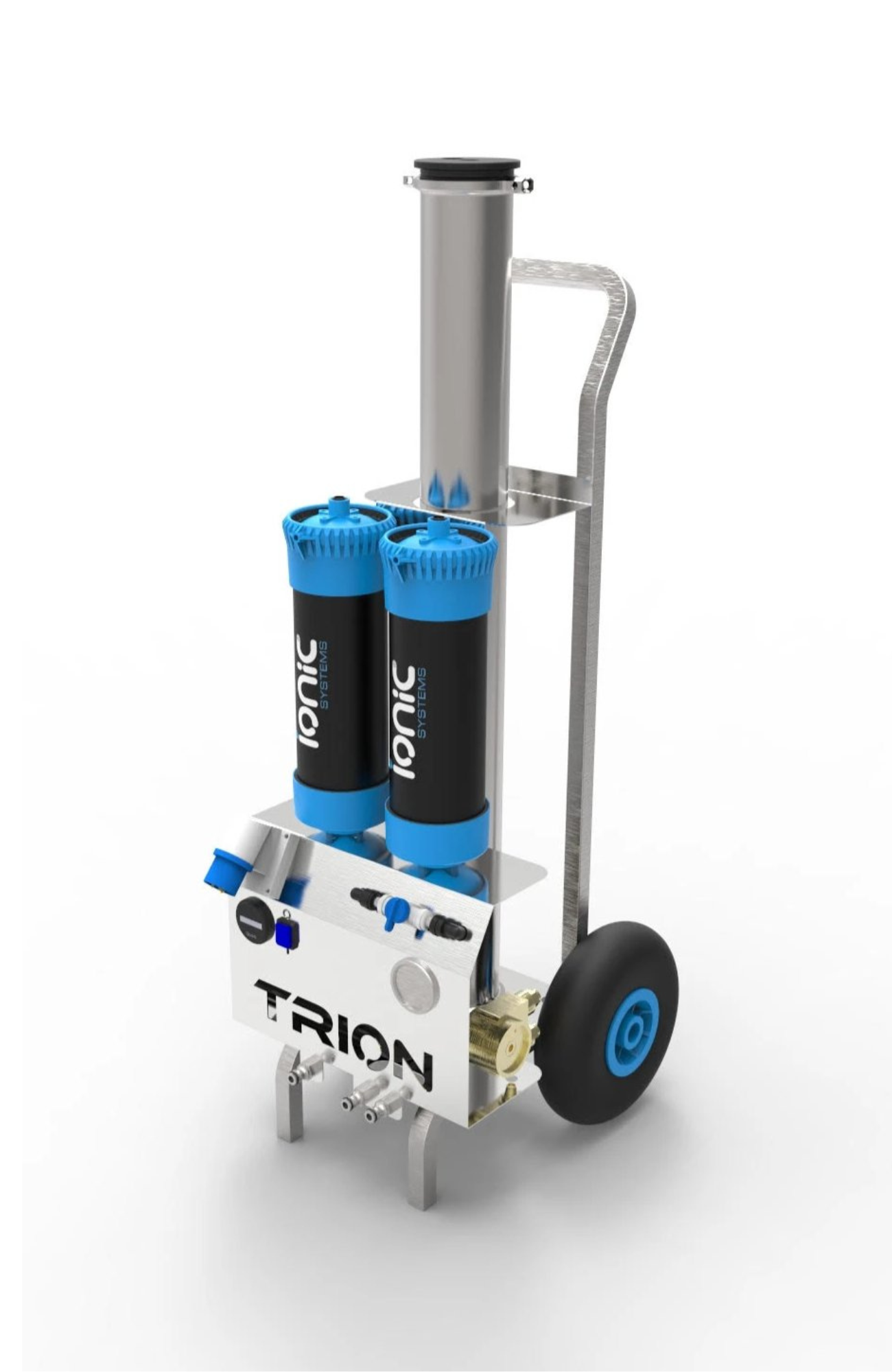

The Ionic Systems Trion is a durable, portable multi-stage filtration system designed for professional window, solar panel, and exterior surface cleaning. Combining reverse osmosis (RO) and de-ionization (DI) technology, the Trion delivers high-quality pure water even in hard-water areas.

Built with a stainless steel RO housing and robust electric brass pump (110v), it ensures reliability and performance in residential and light commercial applications. The compact design and simple operation make it ideal for use on rooftops, courtyards, and other hard-to-reach areas.

Producing up to 5 liters of pure water at 160 psi, the Trion offers exceptional cleaning results while maintaining long-term efficiency. For extremely hard water regions, an optional in-line softener is recommended. A quick manual backwash keeps the RO membrane performing at its best.

Perfect for: professional window cleaners, facilities maintenance teams, and anyone needing portable, efficient pure water cleaning.

Please contact us for more information.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Video

Demo

Included

• 3-Stage Water Treatment:
• Carbon Filter- Removes Chlorine, Protects RO Membrane
• RO Filter- Mechanically Filters Water, Rejects up to 98% of remaining Impurities
• DI Filter- Polishes Water to Zero Parts per Million (PPM)
• Shut-Off Valve
• Automatic Dry-Run Protection
• Electric Powered Water Pump
• Pressure Gauge
• High-Pressure Stainless Steel Filter Housing for Increased RO Pressure and Greater Water-Production

Specs

Voltage: 110V

Manual

Ionic Systems Trion User for the Trion User Manual.

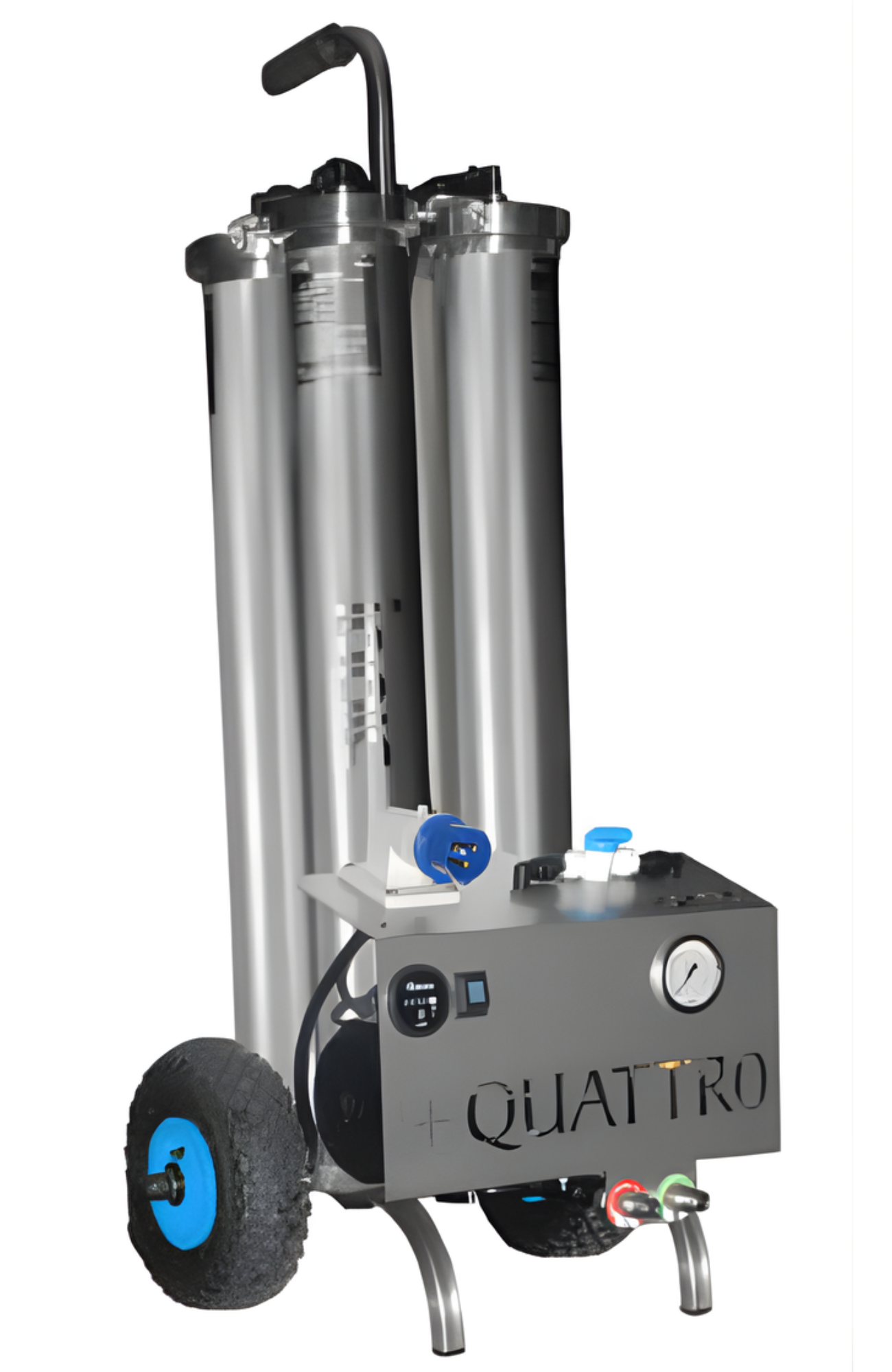

The Ionic Systems QuattRO-S is a professional-grade pure water system designed for window, solar panel, and exterior surface cleaning. Compact, robust, and easy to operate, it’s the ideal on-site solution wherever water and power are available.

Built for performance, the QuattRO-S (110V) features stainless steel housings that withstand temperatures up to 50°C and maintain pressure up to 160 psi. Its advanced RO and DI filtration ensures zero-particle, spot-free results—even in hard water areas.

Perfect for high-rise, atrium, or rooftop applications, the QuattRO-S supports multiple operators up to 80ft, delivering consistent water flow of up to 5 L/min. With superior durability, low maintenance, and powerful output, it’s the trusted choice for professionals who demand efficiency and purity on every job.

The Quattro™ – is available in three configurations. The standard Quattro System works from water pressure alone (min 60psi), and is suitable for a single operator to use at lower levels.

• Carbon Filter, Removes Chlorine, protects RO membrane.
• 5 Micron Filter – Removes impurities larger than 5 microns.
• RO Filter- Mechanically filters water rejects up to 98% of remaining impurities.
• DI Filter – Polishes water to zero parts per million purity.

In hard water areas an in-line water softener is recommended to remove harmful calcium. If not removed from the water supply calcium causes poor performance and premature failure of the RO filter membrane.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Video

Included

Quattro System Stainless Steel with trolley and Pump.

Specs

Dry Weight: 110 lbs (32 Kg)

Wet Weight: 133 lbs (42 Kg)

Height 44.5" (1130mm)

Depth 20" (499mm)

Width 19" (480mm)

Manual

Click here for the Quattro User Manual

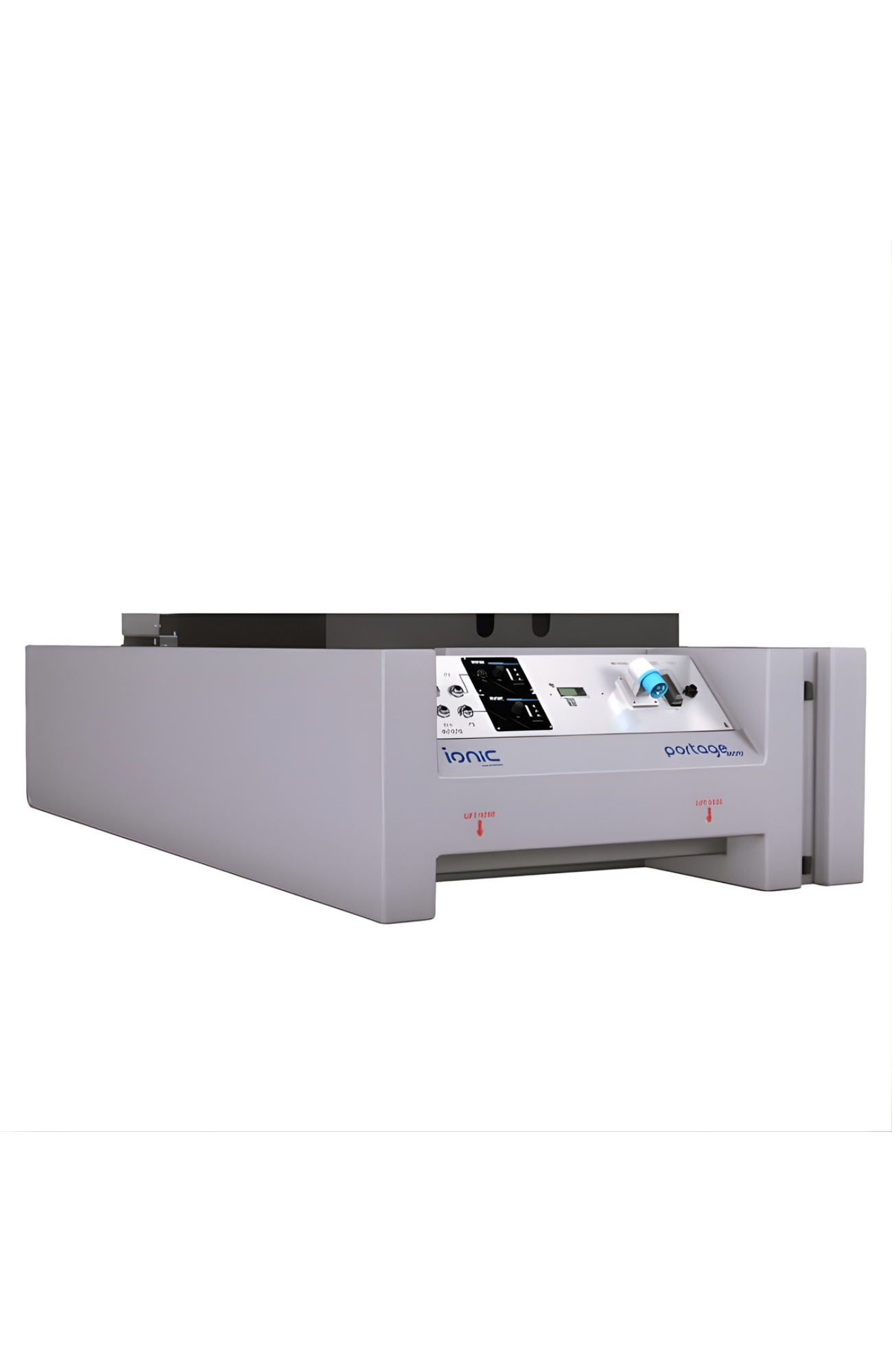

The Portage Fusion™ from Ionic Systems is the ultimate de-mountable pure water window cleaning system—designed for professionals who demand flexibility, performance, and safety. Easily slide the system in and out of your van or truck in minutes, giving you a fully functional work vehicle during the week and a personal one on weekends.

Efficient and Flexible Design

Available in 105-gallon (400L) and 211-gallon (800L) options, the Portage Fusion™ allows complete removal without tools—simply disconnect the battery quick connector, remove the mounting pin, and lift out the tank. Store it safely until your next job.

High-Performance Filtration

Engineered as a five-stage RO/DI system, the Fusion model includes Ionic’s advanced PFS™, ROMS™, and PDI™ technologies, producing up to 3 liters of ultra-pure water per minute (depending on supply pressure). It’s ideal for consistent, spotless window cleaning results on commercial and residential projects.

Smart, Ergonomic Construction

The Portage Fusion™ features an ergonomic layout for easy access to controls and filters, along with a convenient tool tray for poles and accessories. The 211-gallon model offers optional stainless steel hose reels accessible via side doors, ensuring efficient workflow on every job.

Engineered for Maximum Safety

Safety is built into every detail. Inspired by Ionic’s Thatcham crash test program, the Portage™ tank system incorporates FMVSS-208 compliant brackets and a design that minimizes forward tank movement in the event of a collision—protecting both the operator and vehicle occupants.

Simple Installation and Connectivity

Mounting in a Pickup Truck-

A fitting kit is not required for Portage™ tanks that are carried in pickup vehicles. It is however recommended that Portage™ tanks that completely fill the load space are selected. Although it is not a requirement, it is also recommended that Portage™ tanks are secured with ‘tie-down’ straps when transported in pickup type vehicles. If tie-down straps are not used then it is recommended to use wooden blocks to prevent lateral and front to back movement of the tank

Mounting in a Van or on a flatbed trailer-

It must be understood that in the event of a head-on collision an unsecured heavy load need only move the driver and passenger seats forward a small distance for the pre-tensioned seat belts to cause fatal compression injuries. For this reason a Portage™ fitting kit must be installed by a competent person in all vans even when a bulkhead is present. In the event of a head on collision the fitting kits resists the forward movement of the Portage™ tank. The fitting instructions must be followed in every detail.

12 Volt Connection-

Bearing in mind the demountable nature of the Portage™ tank system, the standard 12v connection is made by means of a quick connect fly-lead that plugs into the cigarette lighter. For more permanent installations are intended other more robust 12v power sources with split charging and quick connections are available as optional extras.

Professional-Grade Flexibility

Whether you’re operating a single van or managing a fleet, the Ionic Systems Portage Fusion™ delivers unmatched versatility, performance, and peace of mind. Contact your Clean Direct Representative to configure your system or request a custom quote.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Video

Included

Standard Features for the Portage™️ Fusion System

Included as standard:

• Main Unit with Tank
• Twin 12v Delivery Pumps
• Pressure Gauge
• Dual TDS Meter
• Automatic Fill Shut Off (after cycle completes)
• Auto-Compensating Pump Flow Control
• 12" Carbon Filter
• 12" Sediment Filter
• 12" DI Filter
• 4029 RO Filter
• PDI™️
• PFS™️ (Perpetual Flushing System)
• ROMS™️ (Reverse Osmosis Maintenance System)
• Plastic Housings for Carbon, Sediment & DI Filters
• Stainless Steel Housing for RO Membrane

Optional:

• Fitting Kit for Portage Fusion Van/Trailer (FKPF-V)
• Cast Mounting Brackets (FMVSS-208)
• Mountable Steel Hose Reels*
• Ionic RX Hose (sold as one length 328 ft. / 100m) (suitable for hot water)
• Variable Pump Control
• Dual 360º Stainless Steel Hose Reels (P-SHR x 2)
• Split Charger
• Stainless Steel Tank (ask us for custom quote)

*SPECIAL NOTE ABOUT HOSE REEL MOUNTING

The 211 gallon (800L) size Portage is designed with a top cover (with storage compartments) and has enough room to mount two hose reels towards the back of the unit.

Because the 105 gallon (400L) size Portage is shorter it does not have the same room to accommodate the hose reels so we have designed an optional custom size cover that has the ability to mount hose reels. This is an optional item, sold separately. Please ask your Clean Direct Rep for details.

Optional for Hard Water Areas:

In-line water softeners are highly recommended for use in hard water areas. TDS readings over 200 would be considered hard water area.

Specifications

Dimensions

105 Gallons (400 L) - Length = 4 ft 9 in, Width = 4 ft, Height = 1 ft 7 in

211 Gallons (800 L) - Length = 8 ft 2 in, Width = 4 ft, Height = 1 ft 7 in

Special Note

All Portage shipments require to be packed in a 6 sided crate for safe shipment from the UK manufacturing plant to our facility in NC. We do charge our actual cost for this crate to the customer as a separate line item. Please ask your Clean Direct Sales Rep to supply you a quote. Local pick up is also available but crate charge still applies.

Manual

Ionic Systems Portage User Manual for the full user guide and instructions.

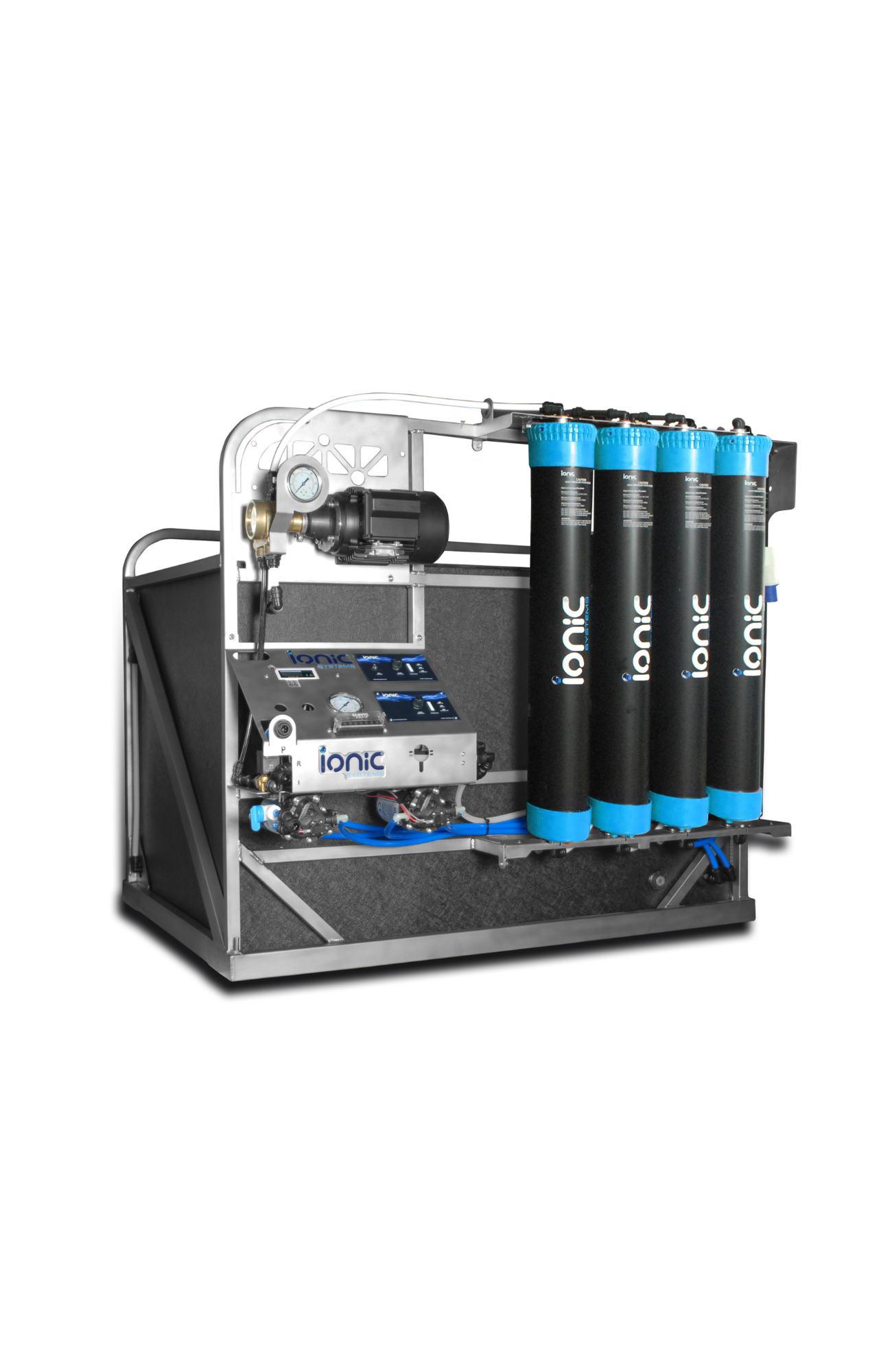

V4™️ is version 4 of The Reach & Wash System first launched in 1997.

The V4™️ truck-mount pure water professional window cleaning system has seen significant improvements over the lifespan of its development. 10% weight reduction and a lower center of gravity has improved vehicle handling.

It boasts tech options to improve filter performance, RO membrane life and water quality.

Tech Features:

• PFS™️ Periodic Flush System - On start up this feature automatically flushes the Reverse Osmosis Membrane for a period of 2 minutes. Thereafter the RO flushes for 2 minutes every hour during the filling process.
• ROMS™️ Reverse Osmosis Maintenance System - At the end of each tank fill, pure water is diverted to the RO membrane housing. Leaving the RO membrane bathing in pure water between fills ensures that dissolved solids (found in tap water) do not foul the membrane. Further, dissolved solids that are not removed from the membrane surface during Periodic Auto Flush cycles are absorbed by the pure water during the "rest period" to be flushed away during the first flush on startup.
• PDI™️ - Perpetual De-ionization - This feature considerably extends DI resin contact time. Ultra purification is achieved by repeated exposure of purified water to the final DI polishing stage.

System Features:

• Digital Flow Control -  Auto-compensating digital flow control allows precise operation of the pumps
• Dual TDS Monitoring - The TDS of the water at critical stages is monitored and shown on a control-mounted digital gauge
• Tank Sight Gauge - Fast and accurate view of the water level in the tank
• Fully Baffled Tank - Black polypropylene tank with advanced baffling for increased vehicle stability
• Twin Pumps - The V4™️ has two independently controlled pumps allowing more than one cleaning pole to be used at the same time (each produces up to 4 liters per minute per pole)
• Pump Activation
• Easy Refillable Filters - The filter media cartridge is simply replaced when spent
• Stainless Steel Chassis - Covered by our 10-year warranty
• Battery Charger - Integrated mains-powered CTEK battery charger (optional)

5 Stages of Filtration:

1. Carbon
2. Sediment
3. Reverse Osmosis
4. De-Ionization
5. Perpetual De-Ionization

Special Note:

An Ionic Systems In-line Water Softener is highly recommended for use in hard water areas. It can prolong the life of the RO Membrane. These are sold separately and can be found here.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Styles

V4™️ Configurations (Choose from drop down list):

DiFUSE™️ (10 MEGΩ) (No Pump)

DiFuse is Ionic's cold pure water delivery truck-mount delivery system. Designed for quick pure water filling from a static water treatment system or emergency filling from a main water supply.

FUSE™️ (11 MEGΩ) (No Pump)

The FUSE™️ is a high performance, fully automatic, full five-stage RO/DI system. Fully automated fill with PFS™️ and PDI™️ are standard. Pure water production is up to 3 liters per minute dependent on the main water supply.

FUSION™️ (12 MEGΩ) (Pump)

FUSION™️ is a high performance, fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features. Pure water production up to 3 liters per minute at maximum operating pressure of 80 psi.

FUSION™️ S (Pump)

FUSION™️ S is an ultra high performance system designed for the most demanding customers as well as the world's hottest climates. Fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features and has stainless steel filter housings. Pure water production is up to 5 liters per minute at maximum operating pressure of 160 psi.

V4™️ THERMOPURE

The new V4™️ THERMOPURE fills the gap between Ionic's Zero™️ with zero Parts Per Billion (PPB) water quality and Ionic's cold water V4™️ The system provides a hot water experience. Previously your only option was to add the Ionic HotBox™️ alongside your system. Now it's a fully integrated hot water, pure water experience.

V4™️ STATIC

The V4™️ STATIC system does not contain any water storage. It is a delivery system only. The S version has a stainless steel container for the RO Membrane (the other canisters are Polyethylene. A fully stainless steel version is available (all canisters in stainless steel), please speak to your sale rep to get a custom quote.

The MEG Ω Difference

The MEG Ω is a small unit of measure, but ultra pure water in the MEG Ω range delivers faster, better spot free results that you can visibly see.

Video

Included

Standard on V4™️

• Heavy Duty Stainless Steel, fully welded, Crash-test Certified Component Chassis to FMVSS-208 Standard
• FMVSS-208 Cast Mounting Brackets
• Pump Control
• Hi-Density Polypropylene Spark Tested Baffled Tank
• Automatic Fill Shut Off
• Auto-compensating Pump Flow Control

5 Stages of Filtration:

1. Carbon
2. Sediment
3. Reverse Osmosis
4. De-Ionization
5. Perpetual De-Ionization

Other Items to consider (sold separately):

• Water Softener
• Vehicle Side Ports
• Vehicle Side Electric Port
• Ionic Hydra Water Fed Pole & Fly Lead
• Hose Reels
• Roof or Side Pole Rack
• Spare Filters
• Professional Installation (Please contact us for quote)

Specifications

Available in different Tank Capacities

• 300 Liters = 79.25 Gallons, Height 44 in, Width 45 in, Depth 37 in
• 400 Liters = 105.67 Gallons, Height 44 in, Width 45 in, Depth 37 in
• 500 Liters = 132.08 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 600 Liters = 158.50 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 700 Liters = 184.92 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 800 Liters = 211.33 Gallons, Height 44 in, Width 48 in, Depth 53 in
• 900 Liters = 237.75 Gallons, Height 44 in, Width 48 ini, Depth 53 in
• 1000 Liters = 264.17 Gallons, Height 44 in, Width 48 in, Depth 53 in

Manual

Click here to download the V4 Operator's Manual.

Click here to download the V4 Thermopure Operator's Manual.

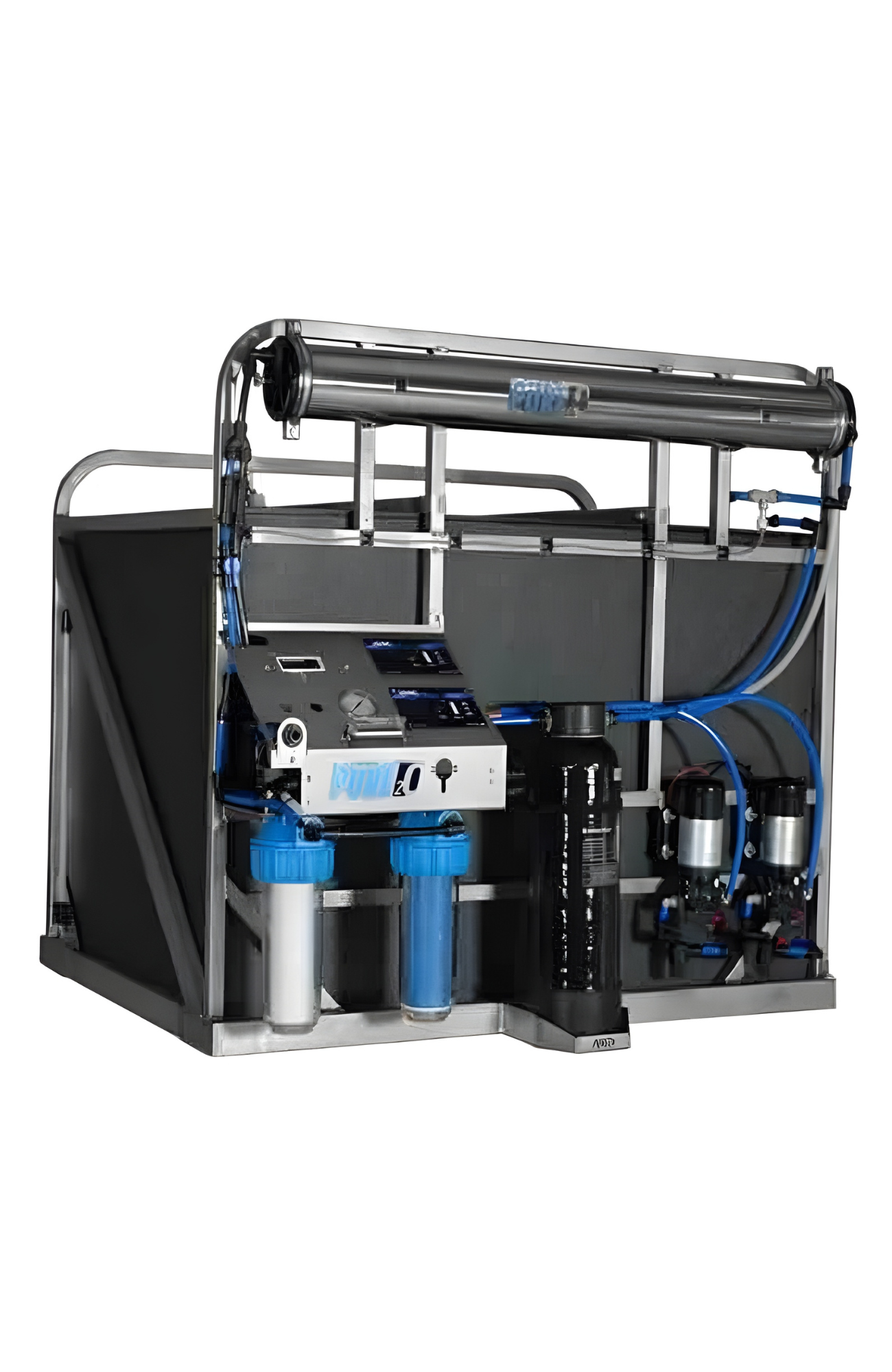

The Pure20 Triton™ is a premium, high-performance manual fill RO/DI system designed for professional window cleaners seeking spotless results. Engineered with a fully welded stainless-steel chassis and FMVSS-208 crash certification, Triton offers unmatched durability and reliability.

With five-stage purification, 4040 HF5 reverse osmosis membrane, and a 7-liter refillable de-ionization tank, it delivers ultra-pure water at up to 370 L/hour. The auto-compensating flow controller, dual 100 PSI pumps, and automatic shut-off ensure efficient and consistent operation.

Optional automation upgrades include PFS™ (Periodic Flush System), ROMS™ (Reverse Osmosis Maintenance System), and PDI™ (Pure De-Ionization) for fully automated filling and superior membrane protection. The black polypropylene baffled tank enhances vehicle stability while maintaining water purity.

Key Features

• Fully welded, stainless steel chassis, crash-tested and certified to FMVSS-208
• 300-1000 Liter Black Polypropylene, Spark-tested tank, with full internal baffling
• Auto-Compensating Flow Controller
• Automatic Shut Off (when the tank is full)
• 4040 HF5 Reverse Osmosis Membrane (capable of producing over 370 Liters per hour)
• 0-inch 5 Micron and Carbon pre-filters (to protect the RO Membrane) in clear housings
• 7-Liter De-Ionization tank (fully refillable) filled with Ionic DI Resin
• Twin 100PSI Pumps with automatic shut-off

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Triton available in several sizes. Please choose below.

Demo

Specs

79.3 Gallons (400 liters)   42" x 45" x 37"

211 Gallons (800 liters)   42" x 49" x 52"

264 Gallons (1000 liters)   42" x 49" x 52"

Manual

Pure20 Triton Manual

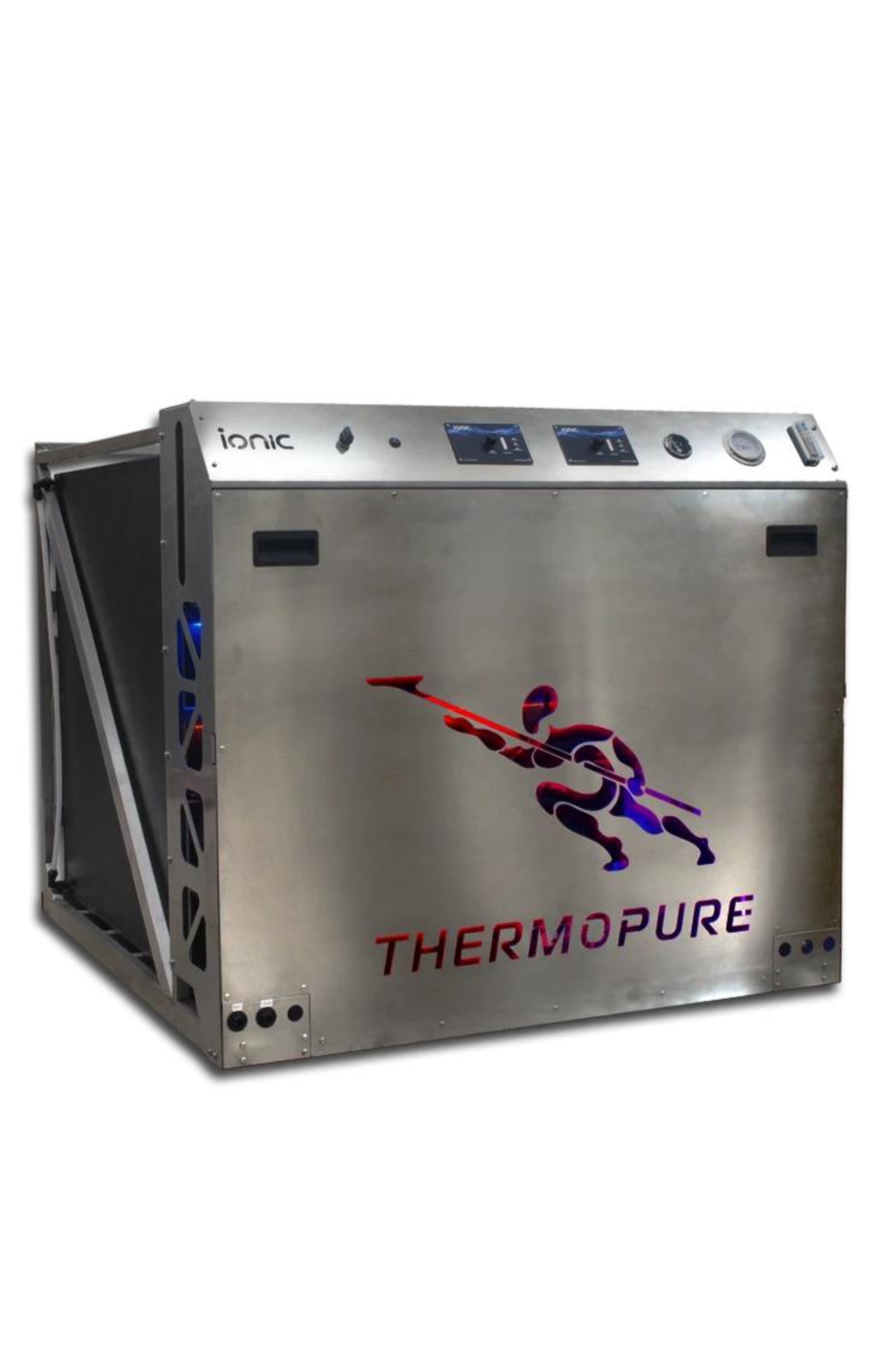

The Ionic Systems Thermopure™️ Hot Water Delivery System is an ideal solution for those that want to benefit from the use of pure water, but don't need water treatment in the vehicle.

Simple to use and easy to operate, this delivery system is the perfect solution for those with several vans on the road.

Please choose the size system you need in the drop down menu.

Don't need hot water?

A cold water delivery system is also available. Please contact us for more information.

Note: This system requires freight shipping

Please Note: This product listing is for the Grafter™️ style configuration for the new Hydra Waterfed poles.

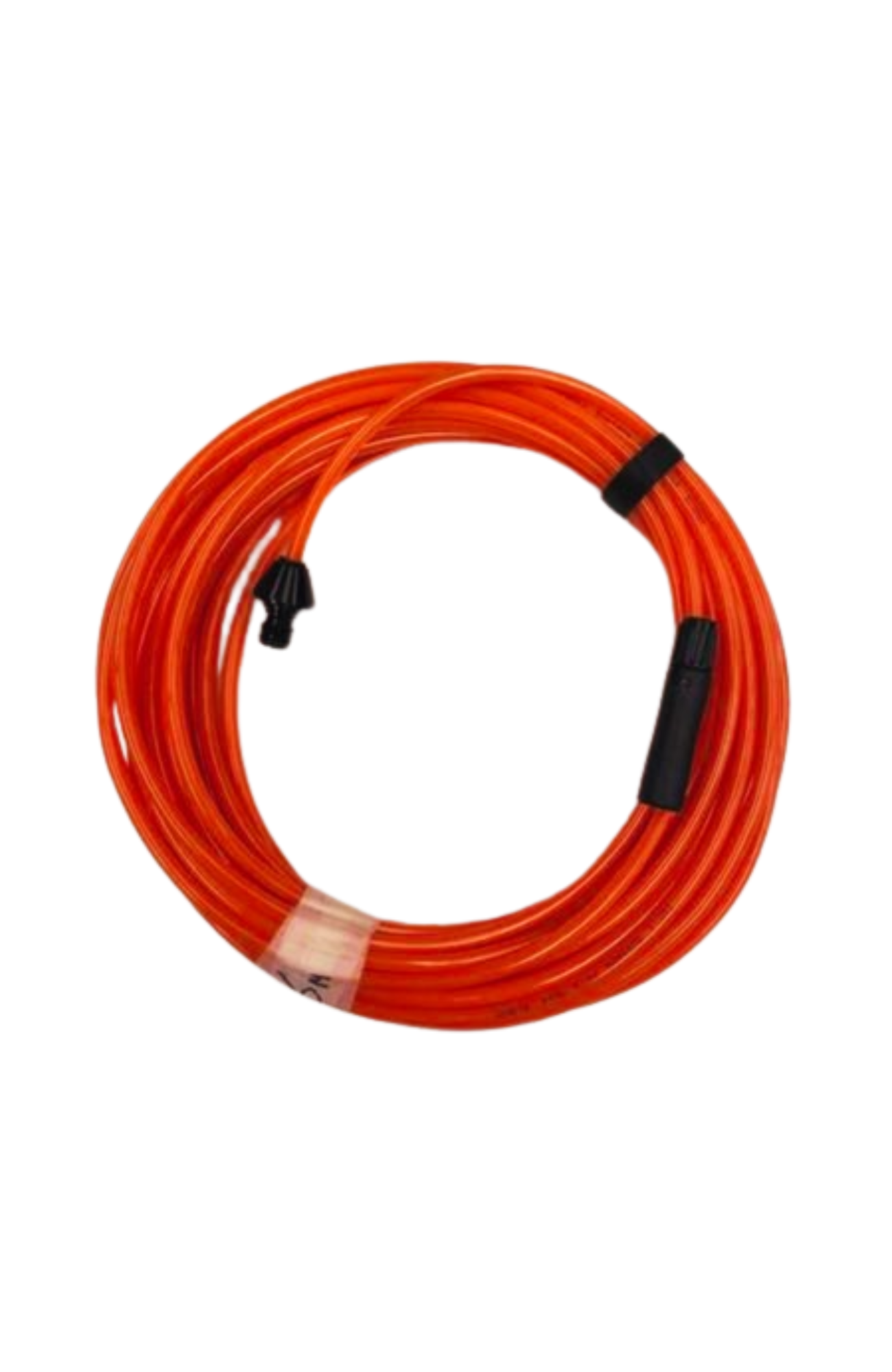

*Each pole requires one fly lead, purchased separately.

You'll need to choose pole length and pole construction (material). All Grafter poles come with a 12 inch non-curling monofilament nylon bristle brush and adjustable angle crank.

Below is a video and description of all the types of Hydra poles available. If you are interested in one of the other styles of poles then click the link below:

• Grafter
• Swift
• Vertigo Standard
• Vertigo Quick Release

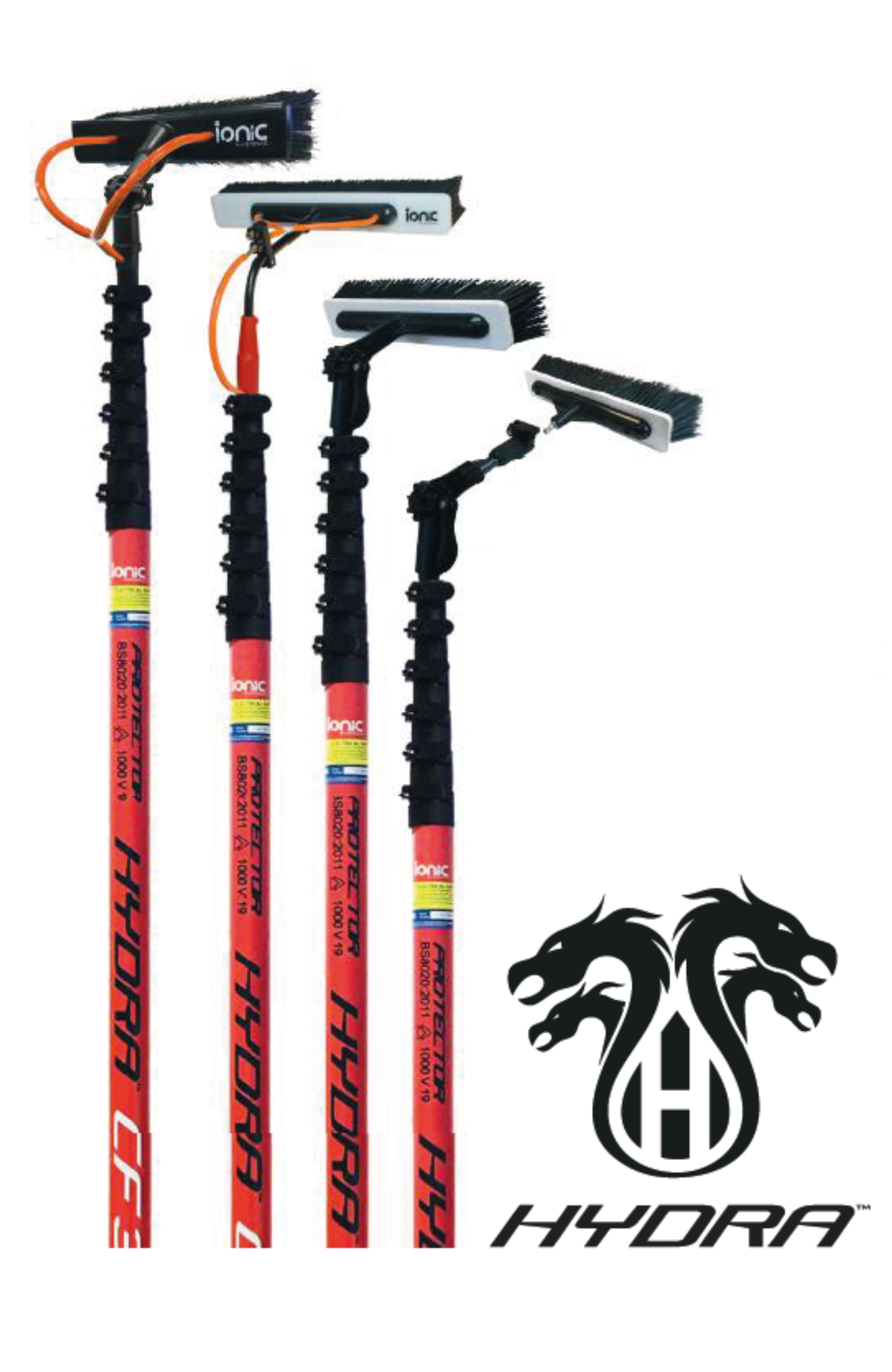

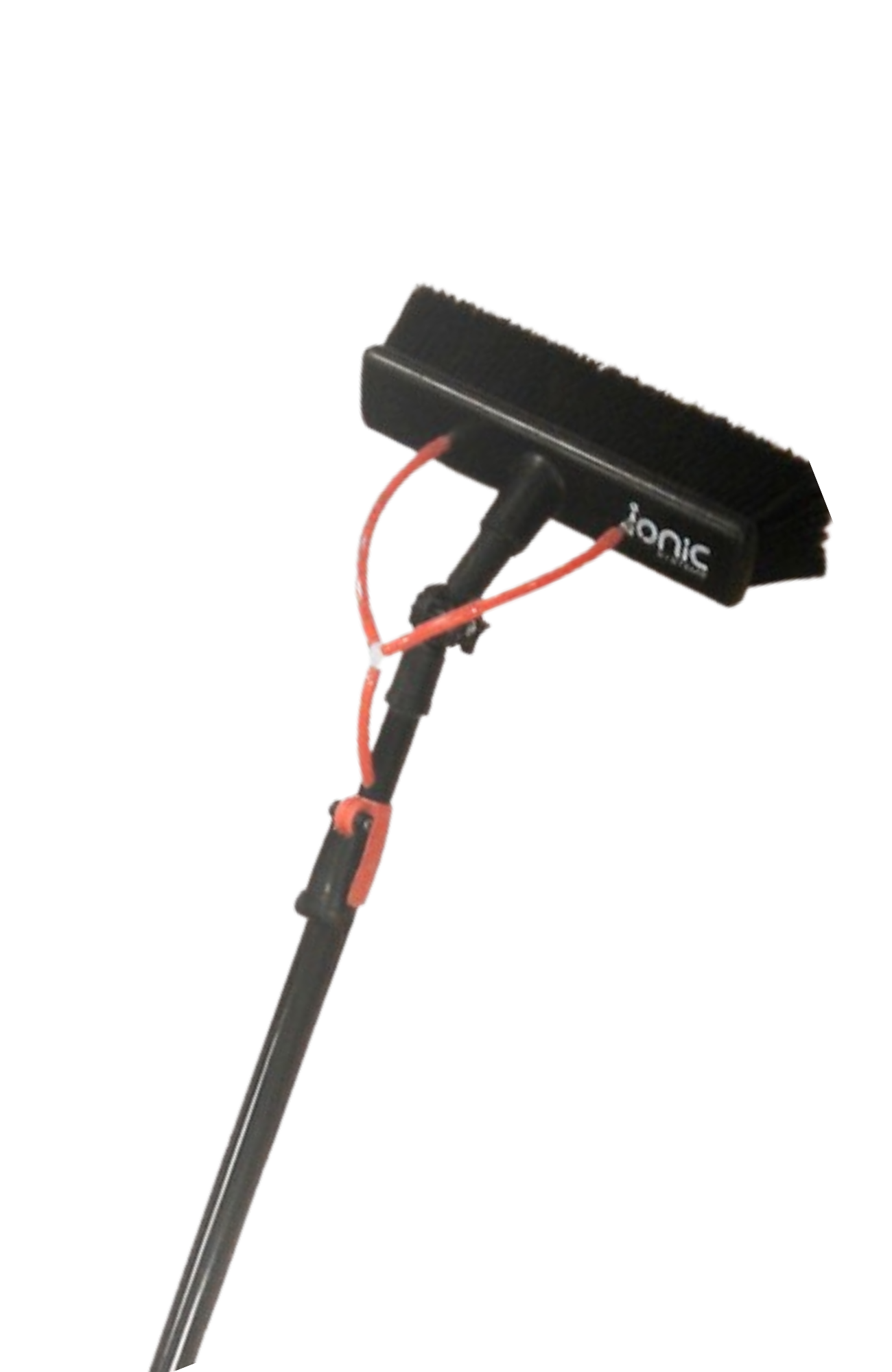

Ionic Hydra™️ Waterfed Pole

Hydra is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s Hydra™️ pole is available with a number of head options.

Weight Savings

The first thing you notice about the Hydra™️ pole is just how light it is. Ionic has really focused on weight reduction and have reduced the wall thickness of every pole section, resulting in significant weight savings and maintained rigidity. Narrow handles provide a more comfortable grip. In order to achieve Ionic's lightest ever pole, every component came under scrutiny, with weight savings being made on nearly every part, from clamps to levers.

One Finger Operation Clamps

The second thing you notice are the next generation clamps on the Hydra™️ pole, with slick one finger operation and adjustment these clamps feature patent pending spring assisted release to reduce tube section wear. In addition, the clamps are carefully crafted to ensure tight closure time after time,  year after year.

Protector™️ Handle as Standard

The final thing you notice is that every Hydra™️ pole comes standard with Ionic’s unique Protector handle. The only waterfed pole to meet the British Standard for electrical safety is available to you at no extra cost. It seems that there is barely a month that goes by without news of a window cleaner electrocuted at work. Whilst safer than ladders Ionic believes that waterfed poles should be a no-risk alternative.

Important: A Special Note About the Protector Handle

The bottom section of the pole is the only section that is double insulated, giving protection up to 1000 volts. If the operator uses it in proximity of a higher voltage, there is a risk of it jumping from the carbon sections and electrocuting the operator. It is absolutely essential that the operator or supervisor does a risk assessment prior to undertaking work using this pole. In areas of greater electrocution risk we recommend using a fully fiber glass pole up to 30ft.

Configurable Brush Heads

Hydra™️ is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s HydraTM pole is available with a number of head options.

Head Options

The Hydra™️ range adopted the tried and tested heads of Ionic's previous Grafter™️, Glyder™️, Swift ™️ and Vertigo™️ waterfed poles. This means you can select your preferred head and brush assembly, and benefit from the numerous features that are standard on the Hydra™️ pole range, including; light weights, compact sizes, next generation clamps, tubeless storage, protective handle and water-flow shut off.

*Hydra Grafter Pole only fits with the 12 inch grafter brush. If you want a larger sized brush, you will need a different pole.

Neck Options

The Grafter™️ Head comes with the Residential Brush/Angle-Crank for Grafter™️

Features

Hydra™️ Features

TUBELESS QUICK CONNECTION

Push fit style connection allows for quick connection to and from the pole, saving you time and money. The twist and lock feature within the protective housing prevents accidental separation during use.

WATER FLOW SHUT OFF Allows the user the shut the water flow off by crimping the tube, meaning the pole can be left unsupervised with no water flowing, reducing unnecessary water usage and saving money.

SPRING LOADED CLAMPS

Combined with wear resistant telescopic tubes, Ionic’s patent pending spring assisted pole clamps ensures smooth action, whilst minimizing wear in the pole sections. While other designs insure that poles remain clamped as the section wears, our focus was to engineer out factors that contribute to pole tube wear in the first place. In doing so Ionic’s poles last considerably longer, retain their performance and save you money over time.

FlyLeads

Hydra FlyLeads

Hydra™️ is a tubeless pole, making it neat and tidy when storing in your van. The pole hose, known as a fly lead, is stored on your hose reel when not in use. Choosing the correct fly lead for your Hydra™️ is dependent on how it is going to be used. For example, if you have one 32ft Hydra™️ then you will require a 16 meter fly lead. But if you have multiple size poles then you only need to have a fly lead to fit your longest pole, so if you had a 32ft and a 55ft Hydra, a 22 meter fly lead would cover both poles.

*If you have more than one operator then a fly lead per hose reel will be required.

Size Chart

Please Note: This product listing is for the Swift™️ style configuration for the new Hydra Waterfed poles.

*Each pole requires one fly lead, purchased separately.

You'll need to choose pole length, pole construction (material) and size brush. All Swift poles come standard with a 9" Gooseneck however 24" and 36" sizes are available by request (for an additional fee). Please contact us directly for pricing on larger sized Goosenecks. Brushes are commercial grade, ready to fit to an Ionic ferrule.

Below is a video and description of all the types of Hydra poles available. If you are interested in one of the other styles of poles then click the link below:

• Grafter
• Swift
• Vertigo Standard
• Vertigo Quick Release

Ionic Hydra™️ Waterfed Pole

Hydra is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s Hydra™️ pole is available with a number of head options.

Weight Savings

The first thing you notice about the Hydra™️ pole is just how light it is. Ionic has really focused on weight reduction and have reduced the wall thickness of every pole section, resulting in significant weight savings and maintained rigidity. Narrow handles provide a more comfortable grip. In order to achieve Ionic's lightest ever pole, every component came under scrutiny, with weight savings being made on nearly every part, from clamps to levers.

One Finger Operation Clamps

The second thing you notice are the next generation clamps on the Hydra™️ pole, with slick one finger operation and adjustment these clamps feature patent pending spring assisted release to reduce tube section wear. In addition, the clamps are carefully crafted to ensure tight closure time after time,  year after year.

Protector™️ Handle as Standard

The final thing you notice is that every Hydra™️ pole comes standard with Ionic’s unique Protector handle. The only waterfed pole to meet the British Standard for electrical safety is available to you at no extra cost. It seems that there is barely a month that goes by without news of a window cleaner electrocuted at work. Whilst safer than ladders Ionic believes that waterfed poles should be a no-risk alternative.

Important: A Special Note About the Protector Handle

The bottom section of the pole is the only section that is double insulated, giving protection up to 1000 volts. If the operator uses it in proximity of a higher voltage, there is a risk of it jumping from the carbon sections and electrocuting the operator. It is absolutely essential that the operator or supervisor does a risk assessment prior to undertaking work using this pole. In areas of greater electrocution risk we recommend using a fully fiber glass pole up to 30ft.

Configurable Brush Heads

Hydra™️ is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s HydraTM pole is available with a number of head options.

Head Options

The Hydra™️ range adopted the tried and tested heads of Ionic's previous Grafter™️, Glyder™️, Swift ™️ and Vertigo™️ waterfed poles. This means you can select your preferred head and brush assembly, and benefit from the numerous features that are standard on the Hydra™️ pole range, including; light weights, compact sizes, next generation clamps, tubeless storage, protective handle and water-flow shut off.

The Swift™️ Head comes with your choice ofSwift Brush Complete Commercial Brush/Gooseneck For Swift™️ head, choose from 14 inch or 18 inch brush, with gooseneck in 9 inch, 18 inch and 24 inch sizes.

Features

Hydra™️ Features

TUBELESS QUICK CONNECTION

Push fit style connection allows for quick connection to and from the pole, saving you time and money. The twist and lock feature within the protective housing prevents accidental separation during use.

WATER FLOW SHUT OFF Allows the user the shut the water flow off by crimping the tube, meaning the pole can be left unsupervised with no water flowing, reducing unnecessary water usage and saving money.

SPRING LOADED CLAMPS

Combined with wear resistant telescopic tubes, Ionic’s patent pending spring assisted pole clamps ensures smooth action, whilst minimizing wear in the pole sections. While other designs insure that poles remain clamped as the section wears, our focus was to engineer out factors that contribute to pole tube wear in the first place. In doing so Ionic’s poles last considerably longer, retain their performance and save you money over time.

FlyLeads

Hydra FlyLeads

Hydra™️ is a tubeless pole, making it neat and tidy when storing in your van. The pole hose, known as a fly lead, is stored on your hose reel when not in use. Choosing the correct fly lead for your Hydra™️ is dependent on how it is going to be used. For example, if you have one 32ft Hydra™️ then you will require a 16 meter fly lead. But if you have multiple size poles then you only need to have a fly lead to fit your longest pole, so if you had a 32ft and a 55ft Hydra, a 22 meter fly lead would cover both poles. *If you have more than one operator then a fly lead per hose reel will be required.

Size Chart

Please Note: This product listing is for the Vertigo™️ Quick Release style configuration for the new Hydra Waterfed poles.

*Each pole requires one fly lead, purchased separately.

Vertigo Quick Release allows the operator to easily remove the Brush Head and replace it with the Vertigo Moerman Tool Adapter; therefore, enabling a range of Moerman hand tools to be used. Examples are a window mop, a squeegee, or a scraper, among others.

You'll need to choose pole length, pole construction (material) and size brush. All Vertigo™️ Quick Release poles come standard with a Vertigo Neck in one of three sizes (6 inch, 9 inch or 15 inch). Don't worry, we've pre-matched these necks to the length of the pole you choose.  The water flows through the angle crank, preventing any exposed tubing outside the pole.

Brushes are commercial grade and available in 14 in. and 18 in. sizes with Rinse Bar with Pencil Jets as standard.

There are three small options available not listed in the drop-down menu. You can optionally substitute Fan Jets (instead of Pencil Jets). Also you can choose a Flocked Brush if you intend on cleaning cladding or delicate surface cleaning. Lastly you can choose a Lightweight Brush (less bristles to lighten overall head weight).

Please contact us for a custom quote if you intend on substituting for a Fan Jet, Flocked Brush or Lightweight Brush.  If you want to own the standard style AND add other brush versions they are listed on our website separately and can be easily added to your cart before checkout.

Below is a video and description of all the types of Hydra poles available. If you are interested in one of the other styles of poles then click the link below:

• Grafter
• Swift
• Vertigo Standard
• Vertigo Quick Release

Ionic Hydra™️ Waterfed Pole

Hydra is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s Hydra™️ pole is available with a number of head options.

Weight Savings

The first thing you notice about the Hydra™️ pole is just how light it is. Ionic has really focused on weight reduction and have reduced the wall thickness of every pole section, resulting in significant weight savings and maintained rigidity. Narrow handles provide a more comfortable grip. In order to achieve Ionic's lightest ever pole, every component came under scrutiny, with weight savings being made on nearly every part, from clamps to levers.

One Finger Operation Clamps

The second thing you notice are the next generation clamps on the Hydra™️ pole, with slick one finger operation and adjustment these clamps feature patent pending spring assisted release to reduce tube section wear. In addition, the clamps are carefully crafted to ensure tight closure time after time,  year after year.

Protector™️ Handle as Standard

The final thing you notice is that every Hydra™️ pole comes standard with Ionic’s unique Protector handle. The only waterfed pole to meet the British Standard for electrical safety is available to you at no extra cost. It seems that there is barely a month that goes by without news of a window cleaner electrocuted at work. Whilst safer than ladders Ionic believes that waterfed poles should be a no-risk alternative.

Important: A Special Note About the Protector Handle

The bottom section of the pole is the only section that is double insulated, giving protection up to 1000 volts. If the operator uses it in proximity of a higher voltage, there is a risk of it jumping from the carbon sections and electrocuting the operator. It is absolutely essential that the operator or supervisor does a risk assessment prior to undertaking work using this pole. In areas of greater electrocution risk we recommend using a fully fiber glass pole up to 30ft.

Configurable Brush Heads

Hydra™️ is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s HydraTM pole is available with a number of head options.

Head Options

The Hydra™️ range adopted the tried and tested heads of Ionic's previous Grafter™️, Glyder™️, Swift ™️ and Vertigo™️ waterfed poles. This means you can select your preferred head and brush assembly, and benefit from the numerous features that are standard on the Hydra™️ pole range, including; light weights, compact sizes, next generation clamps, tubeless storage, protective handle and water-flow shut off.

The Vertigo™️ Quick Release system includes a quick release brush variationsIonic Systems Vertigo Quick Release Brush Head Assembly of double trim, light weight, or flocked, sizes 14"or 18", with necks of of 6", 9", or 15".

Features

Hydra™️ Features

TUBELESS QUICK CONNECTION

Push fit style connection allows for quick connection to and from the pole, saving you time and money. The twist and lock feature within the protective housing prevents accidental separation during use.

WATER FLOW SHUT OFF Allows the user the shut the water flow off by crimping the tube, meaning the pole can be left unsupervised with no water flowing, reducing unnecessary water usage and saving money.

SPRING LOADED CLAMPS

Combined with wear resistant telescopic tubes, Ionic’s patent pending spring assisted pole clamps ensures smooth action, whilst minimizing wear in the pole sections. While other designs insure that poles remain clamped as the section wears, our focus was to engineer out factors that contribute to pole tube wear in the first place. In doing so Ionic’s poles last considerably longer, retain their performance and save you money over time.

MULTIPURPOSE TOOL

When you opt for the Vertigo™️ quick release head, you have the ability to transform your Hydra™️ into a multi purpose tool. With the Moerman adapter you can fit a range of Moerman hand tools to the Vertigo™️ Q/R head, including squeegees, t-bars, scrapers etc. The Vertigo™️ quick release spray nozzle is perfect for rinsing, and allows the application of a foam cleaner when combined with Ionic’s Constant Flow™️ automatic pump system.

FlyLeads

Hydra FlyLeads

Hydra™️ is a tubeless pole, making it neat and tidy when storing in your van. The pole hose, known as a fly lead, is stored on your hose reel when not in use. Choosing the correct fly lead for your Hydra™️ is dependent on how it is going to be used. For example, if you have one 32ft Hydra™️ then you will require a 16 meter fly lead. But if you have multiple size poles then you only need to have a fly lead to fit your longest pole, so if you had a 32ft and a 55ft Hydra, a 22 meter fly lead would cover both poles. *If you have more than one operator then a fly lead per hose reel will be required.

Size Chart

Please Note: This product listing is for the Vertigo™️ standard style configuration for the new Hydra Waterfed poles.

*Each pole requires one fly lead, purchased separately.

You'll need to choose pole length, pole construction (material) and size brush. All Vertigo™️ poles come standard with a water fed angle crank which is adjustable. The water flows through the angle crank, preventing any exposed tubing outside the pole.

Brushes are commercial grade and available in 14 in. and 18 in. sizes with Rinse Bar and Pencil Jets as standard.

There are three small options available not listed in the drop-down menu. You can optionally substitute Fan Jets (instead of Pencil Jets). Also you can choose a Flocked Brush if you intend on cleaning cladding or delicate surface cleaning. Lastly you can choose a Lightweight Brush (less bristles to lighten overall head weight).

Please contact us for a custom quote if you intend on substituting for a Fan Jet, Flocked Brush or Lightweight Brush.  If you want to own the standard style AND add other brush versions they are listed on our website separately and can be easily added to your cart before checkout.

Below is a video and description of all the types of Hydra poles available. If you are interested in one of the other styles of poles then click the link below:

• Grafter
• Swift
• Vertigo Standard
• Vertigo Quick Release

Ionic Hydra™️ Waterfed Pole

Hydra is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s Hydra™️ pole is available with a number of head options.

Weight Savings

The first thing you notice about the Hydra™️ pole is just how light it is. Ionic has really focused on weight reduction and have reduced the wall thickness of every pole section, resulting in significant weight savings and maintained rigidity. Narrow handles provide a more comfortable grip. In order to achieve Ionic's lightest ever pole, every component came under scrutiny, with weight savings being made on nearly every part, from clamps to levers.

One Finger Operation Clamps

The second thing you notice are the next generation clamps on the Hydra™️ pole, with slick one finger operation and adjustment these clamps feature patent pending spring assisted release to reduce tube section wear. In addition, the clamps are carefully crafted to ensure tight closure time after time,  year after year.

Protector™️ Handle as Standard

The final thing you notice is that every Hydra™️ pole comes standard with Ionic’s unique Protector handle. The only waterfed pole to meet the British Standard for electrical safety is available to you at no extra cost. It seems that there is barely a month that goes by without news of a window cleaner electrocuted at work. Whilst safer than ladders Ionic believes that waterfed poles should be a no-risk alternative.

Important: A Special Note About the Protector Handle

The bottom section of the pole is the only section that is double insulated, giving protection up to 1000 volts. If the operator uses it in proximity of a higher voltage, there is a risk of it jumping from the carbon sections and electrocuting the operator. It is absolutely essential that the operator or supervisor does a risk assessment prior to undertaking work using this pole. In areas of greater electrocution risk we recommend using a fully fiber glass pole up to 30ft.

Configurable Brush Heads

Hydra™️ is a lightweight but strong pole platform that window cleaners can configure based upon their specific needs. Therefore just like the mythical Greek serpent Ionic’s HydraTM pole is available with a number of head options.

Head Options

The Hydra™️ range adopted the tried and tested heads of Ionic's previous Grafter™️, Glyder™️, Swift ™️ and Vertigo™️ waterfed poles. This means you can select your preferred head and brush assembly, and benefit from the numerous features that are standard on the Hydra™️ pole range, including; light weights, compact sizes, next generation clamps, tubeless storage, protective handle and water-flow shut off.

Features

Hydra™️ Features

TUBELESS QUICK CONNECTION

Push fit style connection allows for quick connection to and from the pole, saving you time and money. The twist and lock feature within the protective housing prevents accidental separation during use.

WATER FLOW SHUT OFF Allows the user the shut the water flow off by crimping the tube, meaning the pole can be left unsupervised with no water flowing, reducing unnecessary water usage and saving money.

SPRING LOADED CLAMPS

Combined with wear resistant telescopic tubes, Ionic’s patent pending spring assisted pole clamps ensures smooth action, whilst minimizing wear in the pole sections. While other designs insure that poles remain clamped as the section wears, our focus was to engineer out factors that contribute to pole tube wear in the first place. In doing so Ionic’s poles last considerably longer, retain their performance and save you money over time.

FlyLeads

Hydra FlyLeads

Hydra™️ is a tubeless pole, making it neat and tidy when storing in your van. The pole hose, known as a fly lead, is stored on your hose reel when not in use. Choosing the correct fly lead for your Hydra™️ is dependent on how it is going to be used. For example, if you have one 32ft Hydra™️ then you will require a 16 meter fly lead. But if you have multiple size poles then you only need to have a fly lead to fit your longest pole, so if you had a 32ft and a 55ft Hydra, a 22 meter fly lead would cover both poles. *If you have more than one operator then a fly lead per hose reel will be required.

Size Chart

Complete Pole 2 Section Mini Pole with thread and hose assembly. Also includes residential brush and angle crank.

Ionic Systems Fly Lead to fit the Hydra Poles.

Please choose from the following sizes in the drop down menu:

• 23 Feet (7m) - Fits Hydra Poles from 17 Ft to 21 Ft
• 33 Feet (10m) - Fits Hydra Poles from 24 Ft to 30 Ft
• 52 Feet (16m) - Fits Hydra Poles from 32 Ft to 45 Ft
• 72 Feet (22m) - Fits Hydra Poles from 55 Ft to 65 Ft
• 85 Feet (26m) - Fits Hydra Poles for 80 Ft

Each fly lead comes with connectors on each end, one push fit style for the bottom of the water fed pole and one anti snag pole hose adapter for the water supply hose.

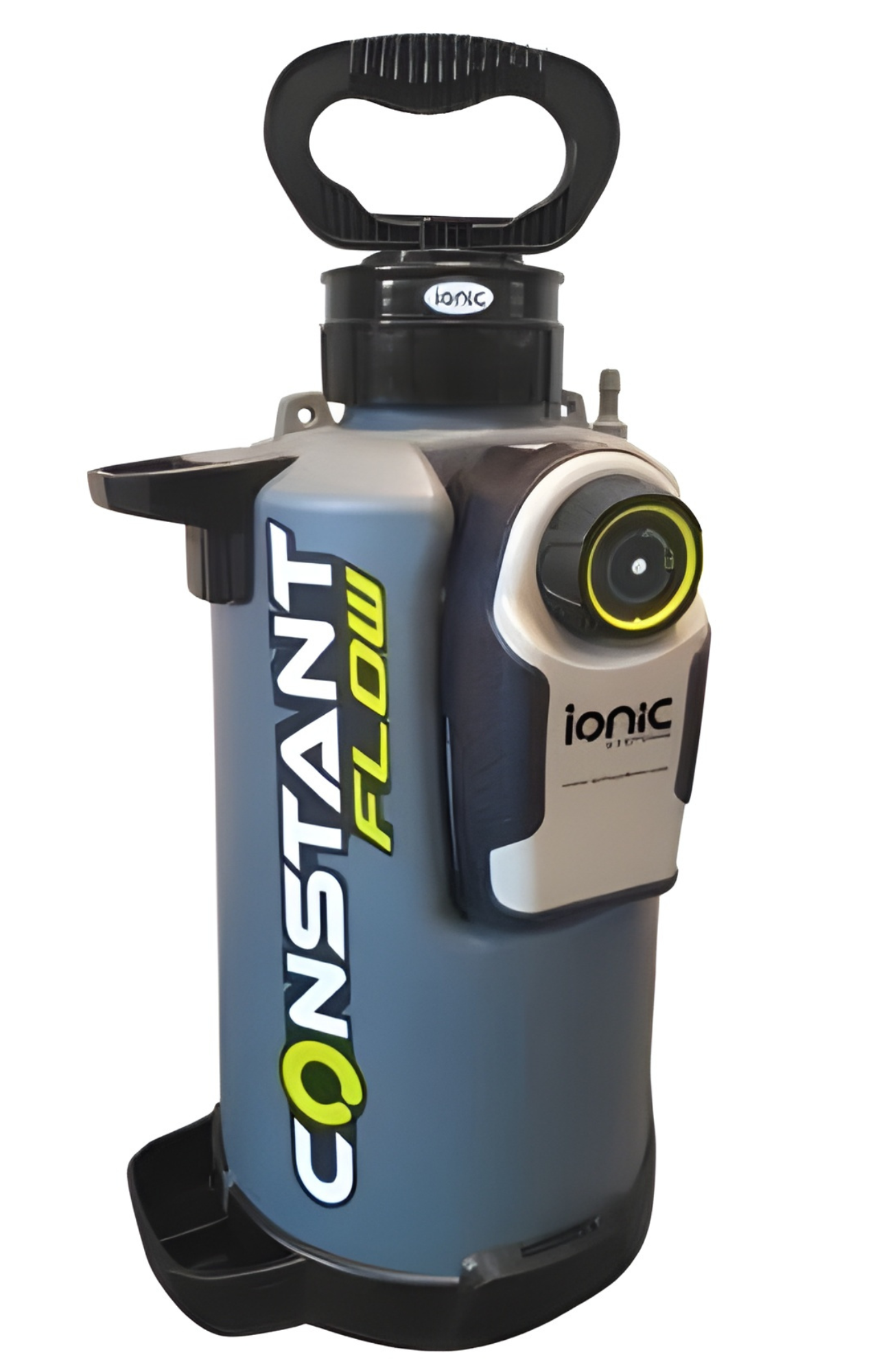

Experience effortless, consistent cleaning performance with the Ionic Systems Constant Flow Touchless Foam Spray System. Designed with Smart Pressure Technology, this innovative system delivers a continuous, even spray without manual pumping. Its detachable lithium-ion power pack electronically pressurizes and maintains optimal air pressure, ensuring perfect foam distribution every time.

With one full charge providing up to a full day of use, you’ll work faster and more efficiently. The 2.5-gallon (9.5-liter) tank delivers precision chemical application, reducing spray time and improving coverage. The quick-connect Power Pack makes setup simple—just click, spray, and go.

Ideal for professionals who demand reliability and performance, this system ensures consistent flow, reduced fatigue, and superior cleaning results.

Key Features:

• Smart Pressure Technology for automatic, even foam application

• Continuous and consistent flow rate

• Long-lasting lithium-ion power pack (up to one day per charge)

• 2.5-gallon / 9.5-liter capacity tank

• Easy attach-and-detach design for quick operation

Video

Specs

24 in × W: 11 in × D: 10 in
Dry weight: 9.70 lb (4.4 kg) (inc power pack)
Capacity: 2.5 Gal 9.5 Liters (Easy-Fill extra wide mouth)
Fabrication: Custom blow molded technology
Material: High strength chemical and impact resistant
Strength: Thick walled - high burst pressure > 60 psi
Chemical Resistance: Highly resistant to a wide range of chemicals
Application Time: 8-10 Hours (Per charge)
Pressure: Factory Setting 17psi ±1
Battery: Rechargeable Li-Ion - 5200 mA-hr.
Charge Time: Approx. 5 Hours
Recharge Method: Plug-in wall charger
Battery Indicator: LED: Green-charged. Yellow-1/2 charge. Red-No charge
Manual Pump: High capacity, fewer strokes for higher pressure
Max Pressure: >50 psi
Max Flow: 6 L/min
Hose Strain Relief: Stainless springs

Manual

Constant Flow Manual
