The Mosmatic DGF Swivel 35.351 is a professional-grade brass swivel designed for demanding high-pressure cleaning applications. Engineered with a nickel-plated finish for durability and corrosion resistance, this swivel ensures long-lasting performance in industrial environments. It incorporates a robust triple bearing system—featuring two radial ball bearings and one thrust ball bearing—for smooth, reliable rotation in both static and dynamic operations. Compatible with a variety of systems, the DGF swivel is an essential component for improving functionality and efficiency in pressure-based cleaning technologies.

Applications

• High-pressure cleaning technology

• Parts washer systems

• Tire cleaning equipment

• Self-rotating cleaning applications

Key Features

• Durable brass body with nickel-plated finish

• Triple bearing design: 2x radial, 1x thrust ball bearings

• O-ring made of NBR (Nitrile Butadiene Rubber) for superior sealing

• Thread IN: 1/4" NPTF to Thread OUT: 1/4" NPTM

• Overall diameter: 2.36” | Length: 1.45” | NW: 1/4"

• Handles pressure up to 4000 PSI

• Operates at up to 1000 RPM

• Temperature tolerance: 90°F at 1000 RPM, 250°F at 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 13.0oz

The Mosmatic DGF Swivel - 35.353 is a heavy-duty swivel engineered for precision and performance in high-pressure cleaning systems. Made from durable brass with a corrosion-resistant nickel-plated finish, this swivel is built to withstand demanding industrial environments. Featuring a robust triple bearing system—two radial ball bearings and one thrust ball bearing—it ensures smooth, efficient rotation and long service life. The integrated O-ring NBR provides reliable sealing even under extreme pressure and temperature conditions, making this swivel an excellent fit for self-rotating tools, tire cleaners, and parts washers.

Applications:

• High-pressure cleaning systems

• Tire and wheel cleaning tools

• Industrial parts washers

• Self-rotating cleaning equipment

Key Features:

• Rugged brass construction with nickel-plated finish

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR for high-pressure and temperature resistance

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 4000 PSI

• Max RPM: 1000

• Temperature rating: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 13.0oz

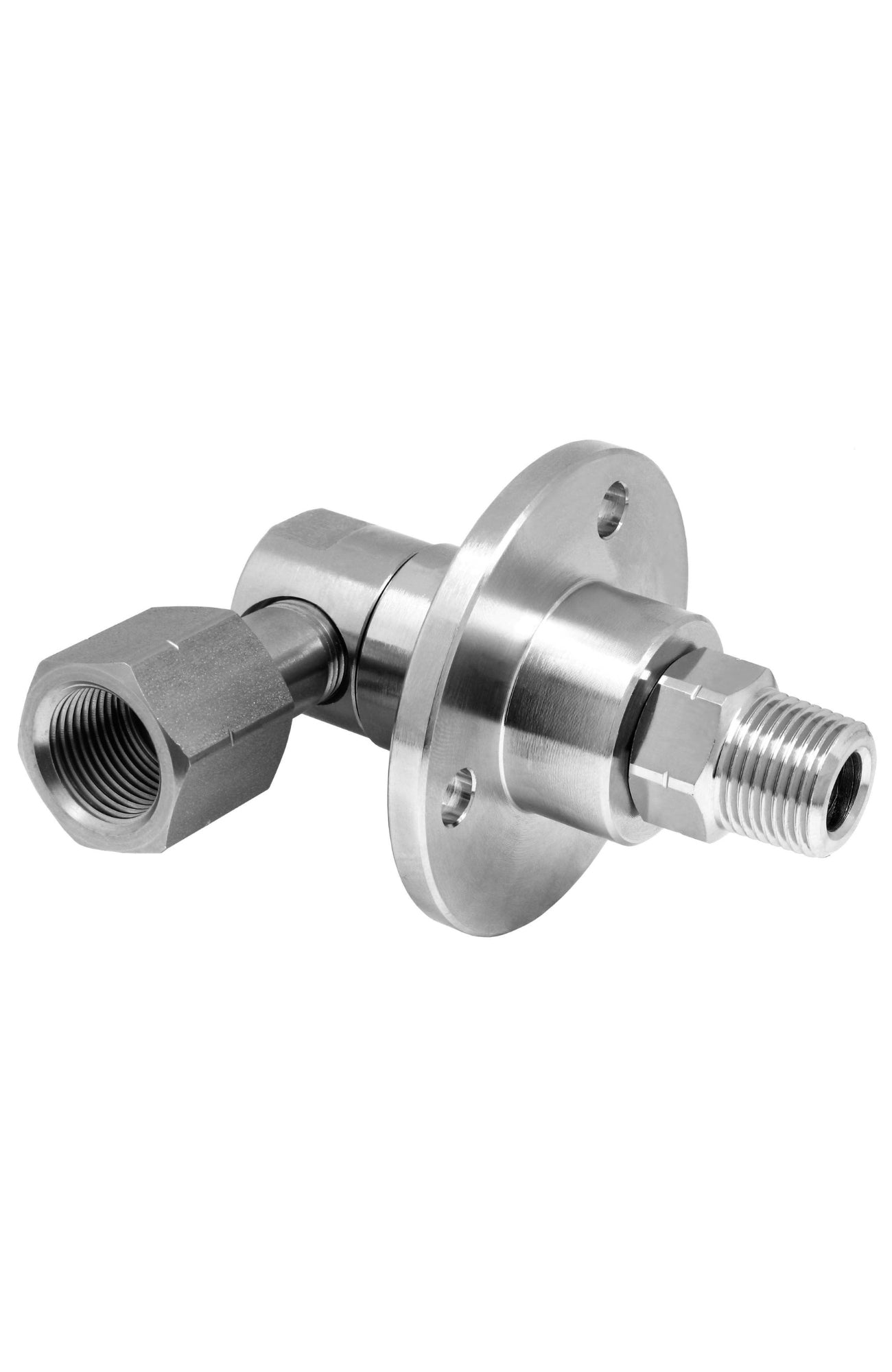

The Mosmatic DGF Swivel - 35.453 is a precision-crafted swivel designed for performance and durability in high-pressure cleaning applications. Built from robust brass with a nickel-plated finish for enhanced corrosion resistance, this swivel ensures dependable operation across a range of industrial cleaning tasks. It features a high-performance triple bearing system—comprising two radial ball bearings and one thrust ball bearing—for smooth rotation and reduced wear under pressure. An integrated O-ring NBR provides effective sealing, making this swivel an excellent solution for tire cleaners, parts washers, and self-rotating cleaning systems.

Applications:

• High-pressure cleaning technology

• Tire and wheel washing equipment

• Industrial parts washers

• Self-rotating cleaning tools and systems

Key Features:

• Brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Sealed with O-ring NBR for reliable high-pressure performance

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rated up to 4000 PSI

• Max RPM: 1000

• Temperature limits: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 15.0oz

The Mosmatic DGF Swivel - 35.463 is a high-performance swivel designed for use in high-pressure cleaning and industrial washing systems. Made from durable brass with a corrosion-resistant nickel-plated finish, this swivel offers exceptional reliability and long-lasting operation. Its advanced triple bearing system—featuring two radial ball bearings and one thrust ball bearing—ensures smooth, consistent rotation under high loads. The integrated O-ring NBR seal delivers dependable performance across a wide range of temperatures and pressures, making it ideal for tire cleaners, self-rotating tools, and parts washers.

Applications:

• High-pressure cleaning systems

• Tire and wheel washing equipment

• Industrial parts washers

• Self-rotating cleaning tools and machinery

Key Features:

• Durable brass construction with nickel-plated finish

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR for reliable sealing under pressure

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 12.9oz

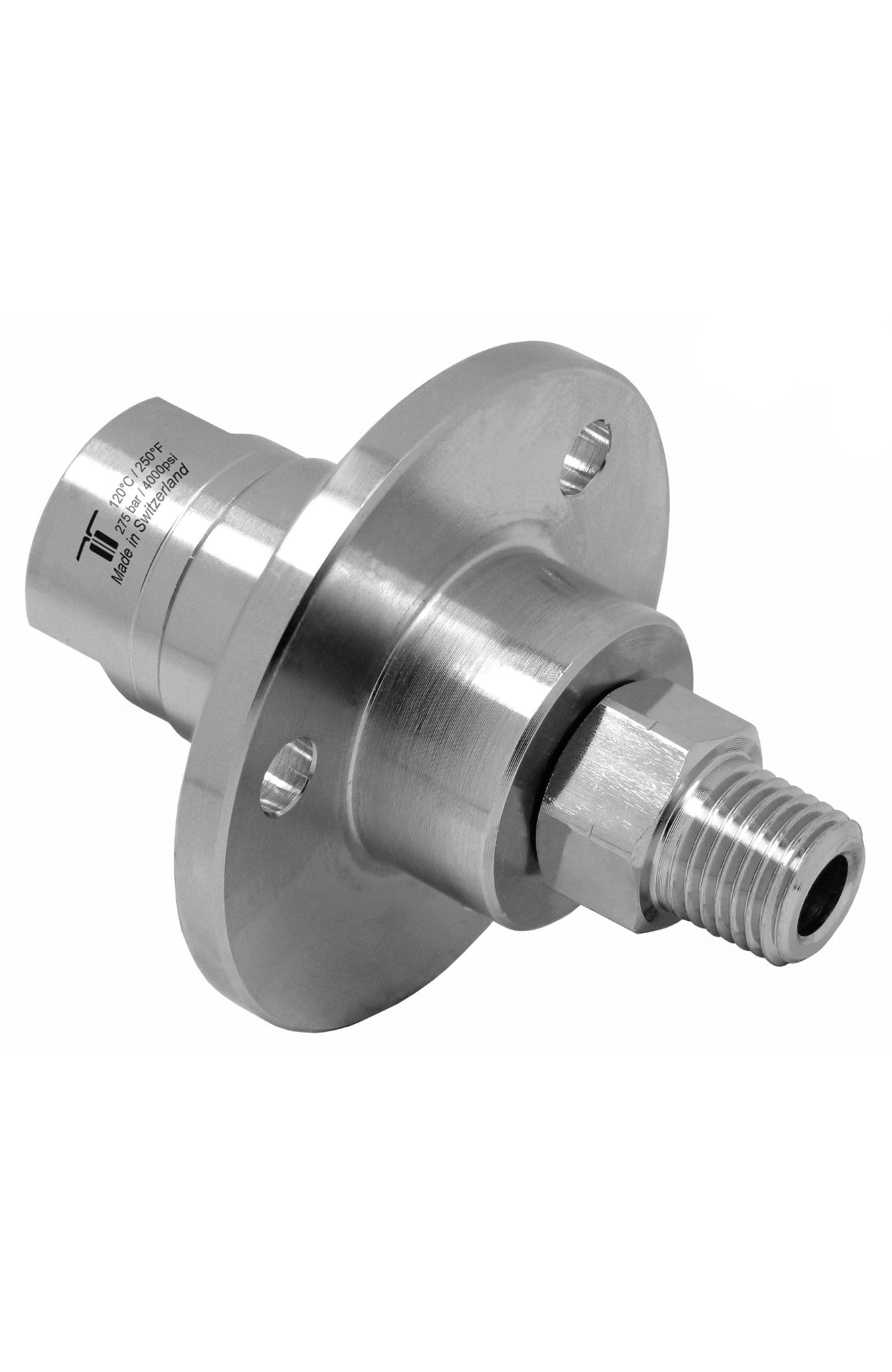

The Mosmatic DGF Swivel - 35.051 is a high-performance swivel designed for demanding high-pressure cleaning applications. Constructed from durable brass with a nickel-plated finish, this swivel ensures longevity and corrosion resistance. It features a precision-engineered triple bearing system (2x radial ball bearings and 1x thrust ball bearing) for smooth operation and extended service life. Engineered with an O-ring NBR seal, the DGF Swivel is ideal for self-rotating systems, tire cleaners, and parts washers operating under high loads and rotational speeds.

Applications:

• High-pressure cleaning systems

• Parts washers

• Tire cleaning equipment

• Self-rotating cleaning tools

Key Features:

• Brass construction with nickel plating for durability

• Triple bearing system: 2 radial + 1 thrust ball bearing

• Sealing: O-ring NBR

• Thread IN: 1/4" NPTF | Thread OUT: 1/4"

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Pressure rating: Up to 4000 PSI

• Max RPM: 1000

• Max Temperature: 90°F @ 1000 RPM / 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 10.4oz

The Mosmatic DGF Swivel - 35.052 is a high-quality swivel engineered for efficient performance in high-pressure cleaning systems. Built from durable brass and finished with corrosion-resistant nickel plating, this swivel is ideal for demanding applications such as parts washers, tire cleaners, and self-rotating cleaning tools. It features a robust triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, long-lasting rotation under pressure. The integrated O-ring NBR seal provides excellent resistance to wear, temperature, and pressure fluctuations.

Applications:

• High-pressure cleaning equipment

• Parts washers and degreasers

• Tire and wheel cleaning systems

• Self-rotating cleaning tools

Key Features:

• Durable brass body with nickel plating for corrosion resistance

• Triple bearing system: 2 radial + 1 thrust ball bearing

• Reliable O-ring NBR sealing

• Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.65"

• Max Pressure: 4000 PSI

• Max Speed: 1000 RPM

• Operating Temperatures: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.65

Weight: 11.0oz

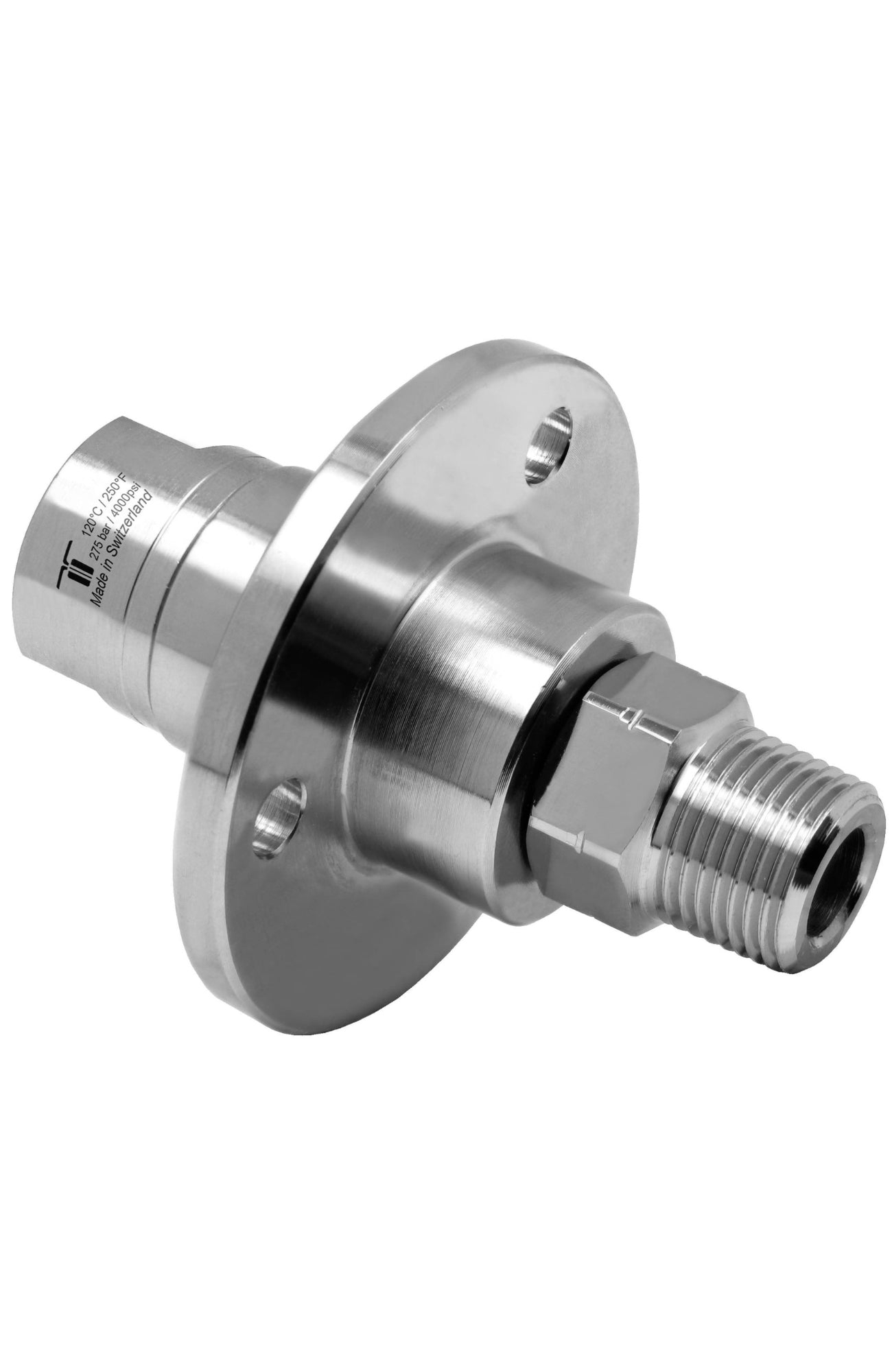

The Mosmatic DGF Swivel - 35.053 is a robust, high-pressure swivel engineered for precision and durability in demanding cleaning environments. Crafted from brass with a corrosion-resistant nickel-plated finish, this swivel is ideal for use in tire cleaners, parts washers, and self-rotating cleaning equipment. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for superior rotational performance and extended operational life. An O-ring NBR seal ensures leak-proof performance under high pressure and varying temperatures.

Applications:

• High-pressure cleaning systems

• Self-rotating cleaning equipment

• Parts washers

• Tire cleaning applications

Key Features:

• Brass body with nickel plating for long-term durability

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR seal for reliable performance

• Thread IN: G1 1/4" NPTF | Thread OUT: G2 3/8" NPTM

• Nominal Width (NW): 1.4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rated up to 4000 PSI

• Max RPM: 1000

• Max Temperature: 90°F at 1000 RPM / 250°F at 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1.4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 11.0oz

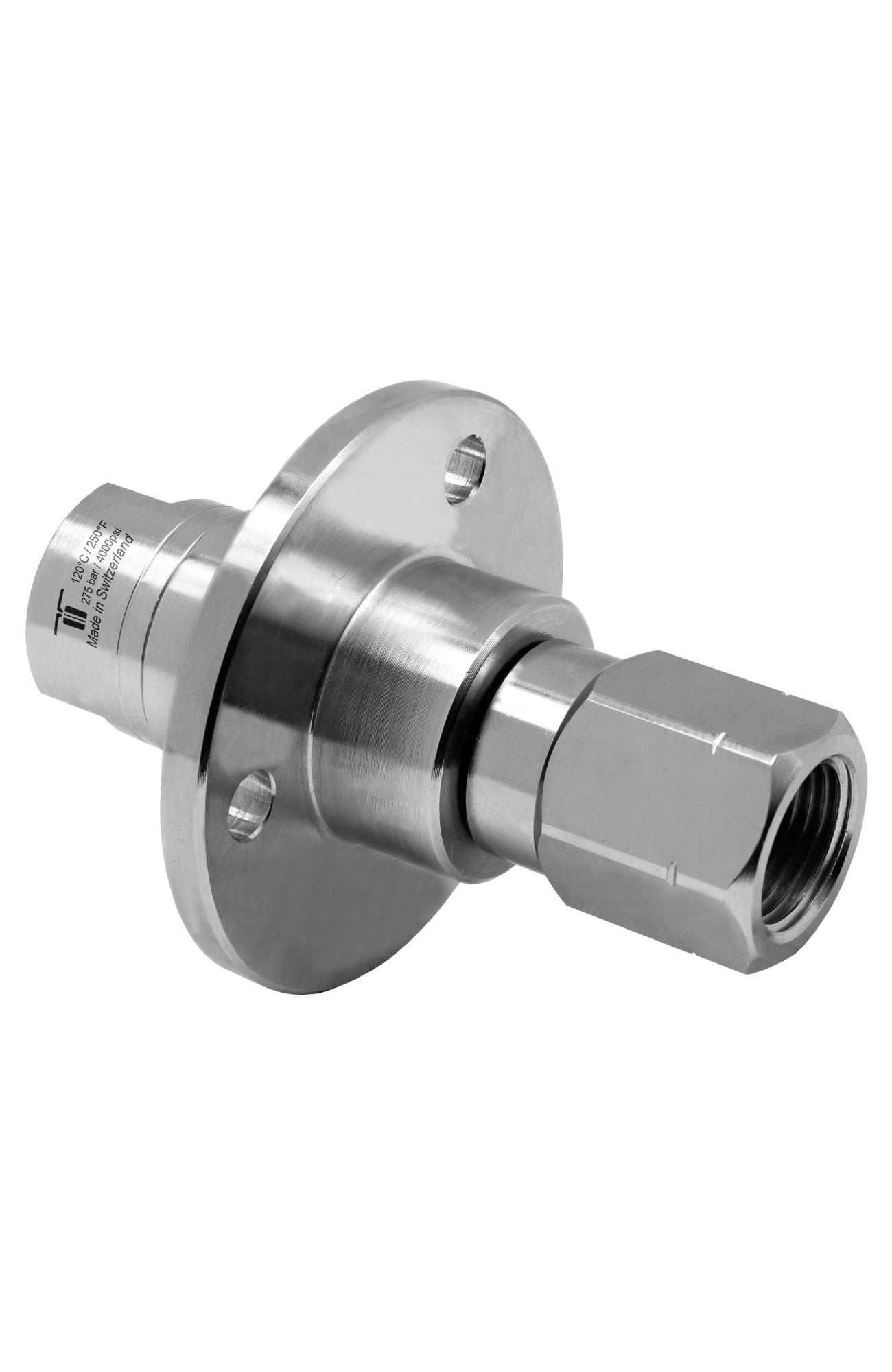

The Mosmatic DGF Swivel - 35.054 is a precision-engineered swivel designed for high-performance operation in high-pressure cleaning systems. Constructed from high-quality brass and finished with nickel plating for superior corrosion resistance, this swivel is ideal for use in tire cleaning systems, parts washers, and self-rotating cleaning tools. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, long-lasting performance under high pressure and rotational speeds. The O-ring NBR seal enhances reliability by maintaining a secure seal under varying pressure and temperature conditions.

Applications:

• High-pressure cleaning equipment

• Parts washers and cleaning stations

• Tire and wheel cleaning systems

• Self-rotating cleaning devices

Key Features:

• Brass construction with corrosion-resistant nickel plating

• Triple bearing system: 2x radial + 1x thrust ball bearing

• High-performance O-ring NBR sealing

• Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.76"

• Rated for up to 4000 PSI

• Maximum speed: 1000 RPM

• Temperature range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 3/8"NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.87

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.76

Weight: 11.0oz

The Mosmatic DGF Swivel - 35.063 is a high-performance swivel built to meet the rigorous demands of industrial cleaning systems. Made from durable brass and finished with corrosion-resistant nickel plating, this swivel delivers long-lasting reliability in high-pressure environments. Its precision-engineered triple bearing system—featuring two radial ball bearings and one thrust ball bearing—ensures smooth rotation and extended service life. Designed with an O-ring NBR seal, this swivel is ideal for applications involving self-rotating tools, tire cleaning equipment, and parts washers.

Applications:

• High-pressure cleaning technology

• Tire cleaning equipment

• Parts washers

• Self-rotating cleaning systems

Key Features:

• Durable brass construction with nickel-plated finish

• Triple bearing system: 2x radial and 1x thrust ball bearing

• Reliable sealing with O-ring NBR

• Thread IN: 1/4" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1.4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure rating: Up to 4000 PSI

• Max RPM: 1000

• Temperature range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1.4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 12.0oz

The Mosmatic DGF Swivel - 35.151 is a durable, high-performance swivel engineered for high-pressure cleaning applications. Constructed from robust brass with a corrosion-resistant nickel-plated finish, this swivel offers reliable operation in tire cleaners, parts washers, and self-rotating cleaning systems. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, long-lasting performance. Sealed with an O-ring NBR, it is designed to handle high pressure, rotational speed, and temperature variations in demanding environments.

Applications:

• High-pressure cleaning systems

• Tire and wheel cleaning equipment

• Parts washers

• Self-rotating cleaning tools

Key Features:

• Brass body with nickel-plated finish for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR seal for enhanced durability and leak prevention

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 11.0oz

The Mosmatic DGF Swivel - 35.152 is a high-performance swivel engineered for demanding high-pressure cleaning applications. Made from durable brass with a corrosion-resistant nickel-plated finish, this swivel ensures reliable performance in harsh environments. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—that allows for smooth and consistent rotation. The integrated O-ring NBR seal enhances durability and maintains leak-proof performance under pressure and extreme temperatures, making it ideal for self-rotating systems, tire cleaners, and industrial parts washers.

Applications:

• High-pressure cleaning systems

• Self-rotating cleaning tools

• Tire and wheel cleaning equipment

• Industrial parts washers

Key Features:

• Durable brass construction with nickel plating

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Reliable O-ring NBR sealing

• Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.65"

• Max Pressure: 4000 PSI

• Max Speed: 1000 RPM

• Temperature Limits: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G2 1/4"NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.65

Weight: 11.0oz

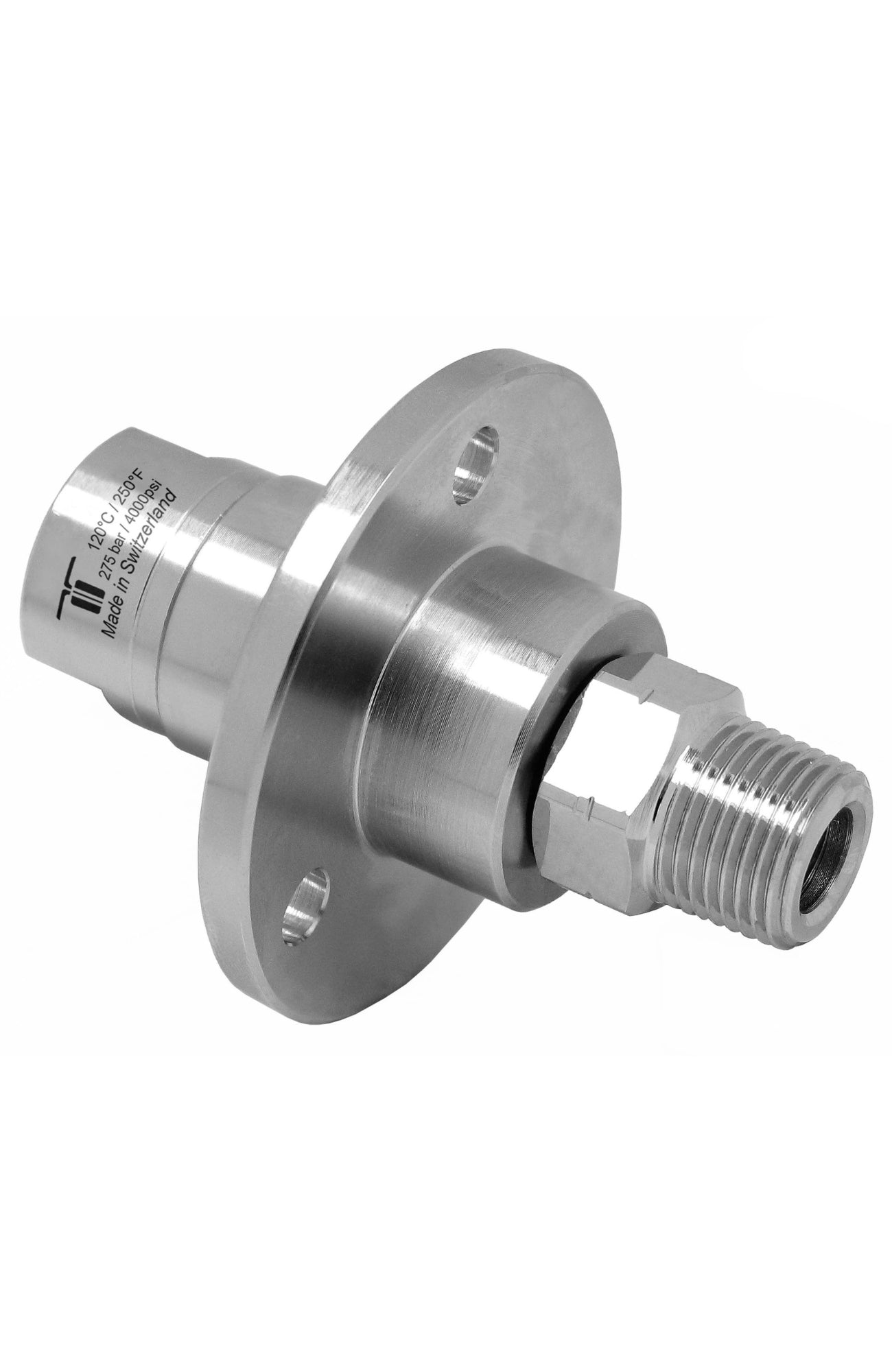

The Mosmatic DGF Swivel - 35.153 is a high-quality swivel engineered for precision and durability in high-pressure cleaning environments. Made from solid brass with a corrosion-resistant nickel-plated finish, this swivel is built for long-lasting performance in demanding applications such as tire cleaning systems, parts washers, and self-rotating cleaning equipment. It features a reliable triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth operation under high pressure and rotational stress. A robust O-ring NBR seal ensures excellent resistance to wear, heat, and fluid exposure.

Applications:

• High-pressure cleaning systems

• Tire and wheel washers

• Parts washing machines

• Self-rotating cleaning devices

Key Features:

• Durable brass construction with nickel plating for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR seal for reliable, leak-free performance

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Rated up to 4000 PSI

• Max RPM: 1000

• Operating Temperature: 90°F @ 1000 RPM / 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 10.4oz

The Mosmatic DGF Swivel - 35.154 is a premium swivel designed for use in high-pressure cleaning systems and self-rotating applications. Constructed from durable brass with a corrosion-resistant nickel-plated finish, this swivel offers long-lasting reliability in industrial environments. Its precision triple bearing system—featuring two radial ball bearings and one thrust ball bearing—ensures smooth rotation under heavy load. The integrated O-ring NBR seal provides dependable sealing performance under high pressure and extreme temperature variations, making it an ideal solution for demanding cleaning operations.

Applications:

• High-pressure cleaning systems

• Parts washing equipment

• Tire and wheel cleaning stations

• Self-rotating cleaning tools

Key Features:

• Brass construction with nickel plating for enhanced durability

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR seal for high-pressure and thermal resistance

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTF

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.76"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.87

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.76

Weight: 11.0oz

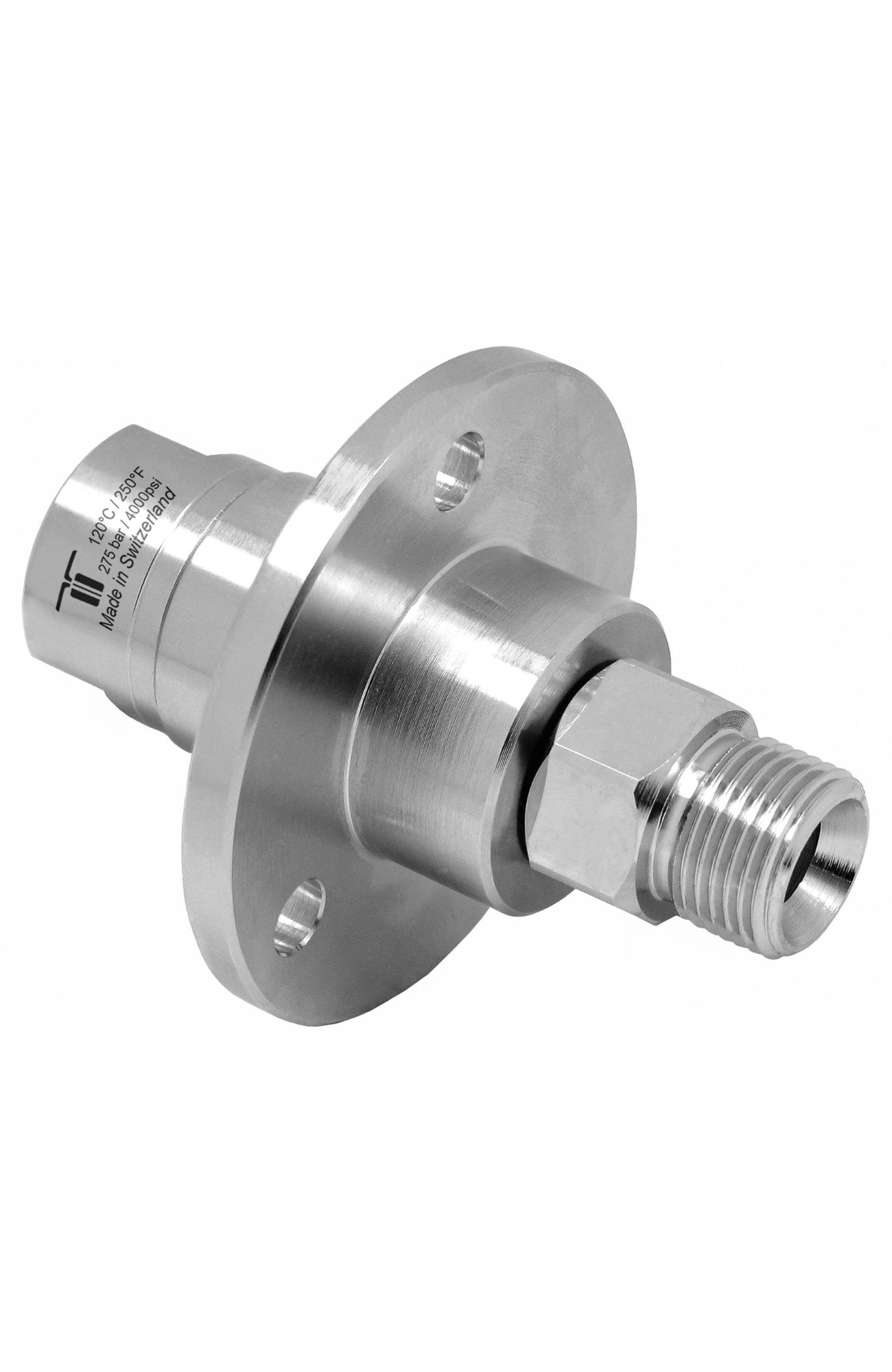

The Mosmatic DGF Swivel - 35.163 is a premium swivel engineered for high-efficiency cleaning in high-pressure environments. Constructed from brass with a durable nickel-plated finish, it provides excellent corrosion resistance and long-term performance. Designed for use in tire cleaning, parts washing, and self-rotating systems, it features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and reliable rotation. An integrated O-ring NBR seal enhances its resistance to temperature, pressure, and wear, making it a dependable solution for industrial and commercial cleaning systems.

Applications:

• High-pressure cleaning systems

• Tire and wheel cleaning equipment

• Parts washers

• Self-rotating cleaning tools

Key Features:

• Brass construction with nickel-plated corrosion-resistant finish

• Triple bearing system: 2 radial + 1 thrust ball bearing

• O-ring NBR seal for dependable performance

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Rated for up to 4000 PSI

• Max rotational speed: 1000 RPM

• Temperature range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 11.6oz
