Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 2", connection top, Weight 18 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

Whenever extended lengths and maximum flexibility are required, the wall-boom-extension is perfect for the job. Prime examples are truck wash bays, mining facilities, air craft maintenance and manufacturing plants. When combined correctly, a working radius of 39' is possible.

• Smooth, comfortable operation
• Extended work radius
• Solid construction
• Add ceiling boom: DKP

B 19'8", L max 19'8", Weight 127 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 DKP Ceiling Boom Sold Separately.

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 6'3",Weight 23 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

Wall-mounted booms area ideal for outdoor areas or in wash bays where ceiling mounts are not an option. The wall bracket is designed for the boom to return to the resting position you selected.

• 180° smooth rotation
• Insulated HP-hose
• Multiple industry application

L1 8'2", L2 7'5", Weight 48 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Wall-mounted booms area ideal for outdoor areas or in wash bays where ceiling mounts are not an option. The wall bracket is designed for the boom to return to the resting position you selected.

• 180° smooth rotation
• Insulated HP-hose
• Multiple industry application

L1 6'9", Weight 25 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The Mosmatic 65.940 Universal Wall Bracket is a heavy-duty mounting solution designed to securely support Mosmatic ceiling booms. Made from high-quality stainless steel, this bracket ensures long-lasting durability, stability, and resistance to corrosion in high-moisture environments.

Its universal design allows for versatile installation on various wall surfaces, making it an essential component for optimizing space and structure in professional car wash and industrial cleaning systems.

Applications

• Wall-mounting support for Mosmatic ceiling booms

• Car wash bays and detailing centers

• Industrial wash systems and service areas

• Installations requiring stable overhead equipment support

Key Features

• Universal fit for Mosmatic ceiling booms

• Made from stainless steel for strength and corrosion resistance

• Provides secure wall-mounting in high-usage environments

• Ideal for indoor and outdoor wash bays

• Enhances equipment stability and space efficiency

• Easy to install and integrate into new or existing systems

Specs

Material Type: Stainless Steel

Weight: 6.6 lbs

The Mosmatic 902.752 Extension is a precision-engineered component designed to extend ceiling boom systems by 4 inches. Made from durable stainless steel, this extension delivers strength, corrosion resistance, and easy integration into existing Mosmatic setups.

Ideal for adjusting boom height or reach, it offers a simple solution for customizing installations in car wash bays, industrial wash environments, and service areas where optimized equipment alignment is essential.

Applications

• Ceiling boom height or reach adjustment

• Car wash and detailing system installations

• Industrial pressure washer systems

• Equipment configurations requiring added clearance

Key Features

• Extension Length: 4 inches

• Material: Stainless steel for long-term durability

• Designed for Mosmatic ceiling boom compatibility

• Improves equipment positioning and workflow

• Quick to install and secure in place

• Suitable for commercial and industrial environments

The ideal solution for self-service car washes. The unique shape of Mosmatic Z-boom allows the installation of multiple ceiling booms in a wash bay. This makes it possible to add additional services such as foam applications and Air Drying ceiling mount and increases your profits

• 360° smooth rotation
• Rated to 4000psi
• Multiple booms with center rotation points
• Polished stainless steel (INOX)
• Clean and classic appearance

L 5'1", A 15', B 36" C 59" D 30", Weight 23 lbs

Part No. includes one ceiling boom

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 9'8",Weight 39.5 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

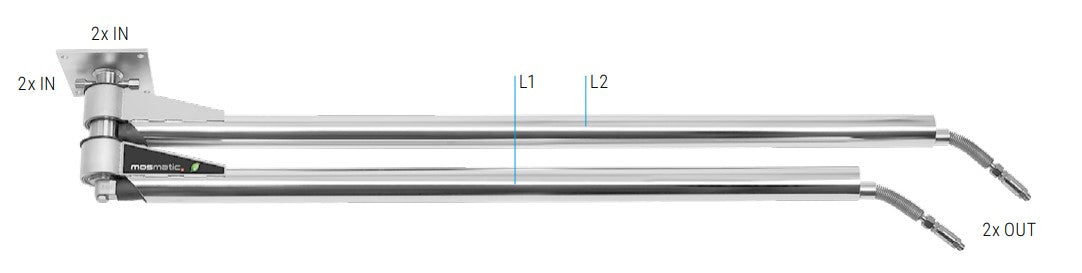

The dual ceiling boom is commonly installed as tunnel prep, detail or fleet wash applications. This is the area where they are most frequently used. If used in a self-service car wash, we recommended to connect the foam brush to the upper boom and the high pressure wand to the lower boom.

• A classic for the prep station
• Delivered ready for installation
• 2x360° booms on one stem

L1 6'3",L2 6'9",Weight 44 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The dual ceiling boom is commonly installed as tunnel prep, detail or fleet wash applications. This is the area where they are most frequently used. If used in a self-service car wash, we recommended to connect the foam brush to the upper boom and the high pressure wand to the lower boom.

• A classic for the prep station
• Delivered ready for installation
• 2x360° booms on one stem

L1 5'9", L2 6'3", Weight 44 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.

• 360° smooth rotation
• Rated to 4000psi
• Sealed bearing design
• Multiple industrial application
• High flow versions available

L1 5'3",Weight 22lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Equip your self-service car wash with the Mosmatic bay-package. Packages contain all the components to complete yourself serve bays having that finished clean appearance and functionality.

• Everything for one-stop shopping
• Air-system boom option
• Complete package for self-service car wash

2 Packages, 4 Possibilities

Easy combine:

Contains

Mosmatic Dry is the new, profit-generating attraction in self-service car wash systems. It dries vehicles and motorcycles efficiently and leaves any type of vehicle streak free in the summer and winter. Gentle on your vehicles finish.

The 60.931 package includes:

• Wall Boom
• Mosmatic Dry (Blue)
• Gun/holder
• Hoses

You may also need the following items that are pictured here but sold separately:

• Elbow 60.314
• Pulley 60.320

Please call us if you need to discuss this product in more detail.
