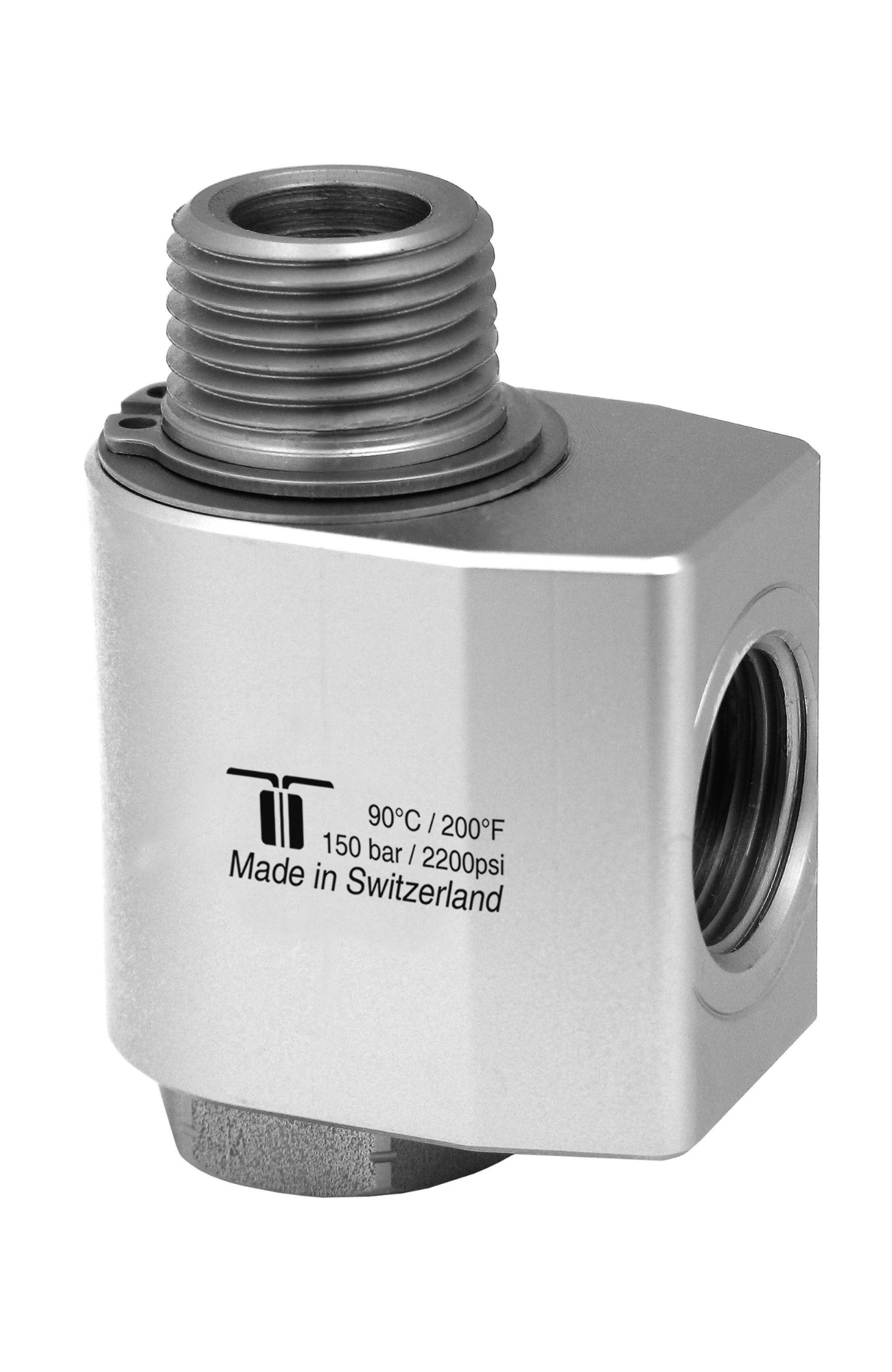

The Mosmatic WDG Swivel 40.231 is a robust, nickel-plated brass swivel engineered for high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed to meet the demands of commercial and industrial environments, it features a sliding bearing for smooth rotation and an O-ring NBR seal to ensure long-lasting, leak-resistant operation. With a 1/2” NPTF inlet and 1/2” NPTM outlet, this swivel provides reliable flow performance in larger diameter systems. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures of up to 200°F, making it ideal for versatile, high-pressure cleaning setups.

Applications

• Hose reels and ceiling booms

• Industrial pressure cleaning

• Washdown systems with 1/2" NPT connections

• Fluid handling in OEM and factory environments

• Heavy-duty rotary connections

Features

• Nickel-plated brass construction for corrosion resistance and durability

• Sliding bearing for consistent, low-friction rotation

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM

• Dimensions: Height – 1.57” | Overall Length – 2.48”

• Nominal Width (NW): 1/2”

• Rated for 2200 psi working pressure

• Handles temperatures up to 200°F

• Operates at speeds up to 30 RPM

• O-ring NBR seal provides dependable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.94

Height (H): 1.57

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.48

Length 3 (L3): 1.14

Length 4 (L4): 1.42

Length 5 (L5): 0.43

Lenght 6 (L6): 0.28

Weight: 13.5 oz

The Mosmatic WDG Swivel 40.022 is a compact and durable high-pressure swivel designed for reliable use in hose reels, ceiling booms, and cleaning systems. Manufactured from nickel-plated brass for corrosion resistance and longevity, this swivel includes a sliding bearing for smooth, controlled rotation. Sealed with a dependable O-ring NBR, it prevents leakage even under continuous use. Featuring a ¼” NPTF inlet and ⅜” NPTM outlet, the 40.022 model is ideal for systems requiring a threaded connection transition. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures up to 200°F.

Applications

• High-pressure hose reels

• Pressure washers with mixed connection sizes

• Washdown and fluid transfer systems

• Compact OEM cleaning devices

• Industrial sanitation equipment

Features

• Nickel-plated brass construction for enhanced corrosion resistance

• Sliding bearing for consistent, low-friction rotation

• Thread IN: ¼” NPTF | Thread OUT: ⅜” NPTM

• Compact design: Height – 1.02” | Overall Length – 1.89”

• Nominal Width (NW): ¼”

• Rated for 2200 psi maximum working pressure

• Temperature resistant up to 200°F

• Suitable for speeds up to 30 RPM

• Sealed with O-ring NBR for reliable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.47

Lenght 6 (L6): 0.25

Weight: 10.3 oz

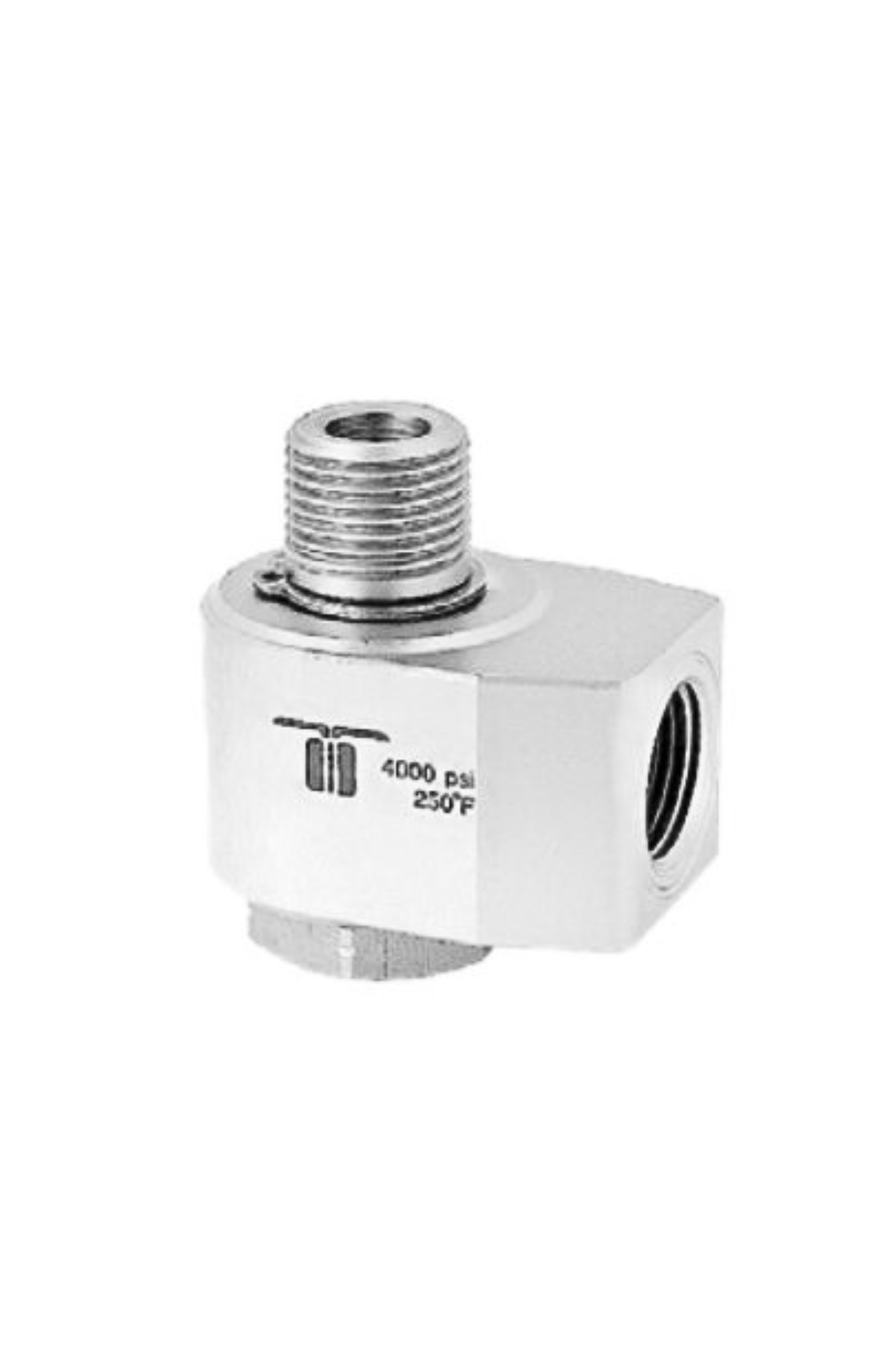

The Mosmatic WDB Swivel 43.251 is a precision-engineered, nickel-plated brass swivel designed for high-pressure cleaning applications. Ideal for use in hose reels, ceiling booms, and pressure washers, this compact swivel features a sliding bearing for reliable, smooth rotation under load. Sealed with a durable O-ring NBR, it delivers long-lasting leak protection in tough environments. With a thread configuration of 1/4” NPTF (inlet) to 1/4” NPTM (outlet), this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it a powerful solution for compact, high-pressure systems.

Applications

• High-pressure hose reels

• Overhead or wall-mounted ceiling booms

• High-pressure washers and cleaning systems

• Stationary and mobile wash bays

• Car wash equipment and service stations

Key Features

• Durable nickel-plated brass construction for corrosion protection

• Sliding bearing design for smooth and controlled rotation

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Compact dimensions: Height – 1.06” | Overall Length – 1.89”

• Nominal Width (NW): 1/4”

• Handles pressures up to 4000 psi

• Operates at temperatures up to 250°F

• Supports 30 RPM for low-speed, high-pressure applications

• O-ring NBR seal for reliable, leak-resistant performance

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.10

Length 5 (L5): 0.39

Weight:10.0 oz

The Mosmatic WDB Swivel 43.252 is a compact, heavy-duty swivel engineered for high-pressure cleaning applications. Built from nickel-plated brass, this swivel resists corrosion and ensures long-term performance in industrial environments. It features a sliding bearing for smooth, low-friction rotation and is sealed with an O-ring NBR for secure, leak-resistant operation. With 3/8” NPTF (inlet) to 3/8” NPTM (outlet) threading, this swivel is capable of handling up to 4000 psi, 30 RPM, and 250°F, making it an ideal component for compact, high-pressure hose systems.

Applications

• High-pressure hose reels in wash bays and mobile cleaning

• Ceiling boom systems for garages and industrial cleaning

• High-pressure washer setups

• Car wash systems and detailing bays

• Equipment requiring low-speed, high-durability swivel movement

Key Features

• Rugged brass construction with nickel plating for enhanced durability

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM

• Sliding bearing for smooth rotational performance

• O-ring NBR seal ensures reliable leak protection

• Compact form factor: Height – 1.06” | Overall Length – 1.93”

• Nominal Width (NW): ⅜”

• Rated for up to 4000 psi working pressure

• Supports operating temperatures up to 250°F

• Max rotational speed of 30 RPM

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 1.93

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.43

Weight: 9.2 oz

The Mosmatic WDB Swivel 43.259 is a compact, high-performance swivel specifically designed for use in Mosmatic ceiling booms and high-pressure hose systems. Manufactured from nickel-plated brass, this swivel provides excellent durability and corrosion resistance. It features a sliding bearing for smooth rotation and an O-ring NBR seal for reliable leak protection. Engineered without a snap ring, it is optimized for integration into Mosmatic ceiling booms. With ⅜” NPTF inlet to G¼” male outlet, this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it ideal for rigorous commercial cleaning applications.

Applications

• Mosmatic ceiling booms (designed for direct fit)

• High-pressure hose reels

• Industrial and commercial pressure cleaners

• Car wash equipment

• Service bay and garage pressure wash setups

Key Features

• Durable nickel-plated brass body for long-lasting performance

• Sliding bearing enables smooth, controlled rotation

• No snap ring, tailored for use in Mosmatic ceiling booms

• Thread IN: ⅜” NPTF | Thread OUT: G¼” M

• Compact size: Height – 1.06” | Overall Length – 1.77”

• Nominal Width (NW): ¼”

• Rated for 4000 psi maximum pressure

• Handles temperatures up to 250°F

• Designed for 30 RPM max rotational speed

• O-ring NBR seal provides secure, leak-free operation

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G1/4" M

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 1.77

Length 3 (L3): 1.14

Length 4 (L4): 0.98

Length 5 (L5): 0.43

Weight: 9.6 oz

The Mosmatic WDB Swivel 43.905 is a compact, precision-engineered swivel crafted for high-pressure applications in commercial and industrial settings. Built from nickel-plated brass for exceptional corrosion resistance and longevity, this swivel features a sliding bearing for smooth operation under load. The integrated O-ring NBR seal ensures dependable leak prevention. Designed with ⅛” NPTF inlet and outlet ports, it delivers reliable performance in tight spaces, supporting up to 4000 psi, 30 RPM, and 250°F, making it a go-to component for smaller high-pressure systems.

Applications

• Compact high-pressure hose reels

• Ceiling booms in detailing bays or garages

• Pressure washing equipment

• Small-scale car wash and industrial cleaning systems

• OEM applications requiring tight-space swivel integration

Key Features

• Nickel-plated brass construction for durability and corrosion resistance

• Sliding bearing for controlled, smooth rotational movement

• Thread IN: 1/8” NPTF | Thread OUT: 1/8” NPTF

• Compact profile: Height – 1.06” | Overall Length – 0.87”

• Nominal Width (NW): 1/4”

• Handles working pressures up to 4000 psi

• Temperature tolerance up to 250°F

• Supports rotational speeds up to 30 RPM

• Equipped with a reliable O-ring NBR seal for leak-free performance

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/8" NPTF

Thread Out: G2 1/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 0.87

Length 3 (L3): 1.14

Length 4 (L4): 0.62

Weight:10.0 oz

The Mosmatic WDBL Swivel 43.262 is a high-performance, nickel-plated brass swivel designed for industrial-grade pressure washing and cleaning systems. Engineered for strength, durability, and longevity, it features 2x radial ball bearings for smooth, high-speed rotation under load. Its sliding bearing adds rotational stability, while the O-ring NBR seal ensures a tight, leak-free seal. With ⅜” NPTF inlet and outlet ports, this swivel supports up to 4000 psi, operates at 200 RPM, and withstands temperatures up to 250°F, making it ideal for high-pressure hose reels, ceiling booms, and pressure cleaners.

Applications

• Industrial high-pressure hose reels

• Ceiling booms in wash bays and garages

• Professional-grade pressure washers

• Car wash systems

• High-pressure cleaning systems in commercial settings

Key Features

• Rugged nickel-plated brass construction for corrosion resistance

• 2x radial ball bearings for smooth, stable high-speed rotation

• Sliding bearing for added support and rotational control

• Thread IN: ⅜” NPTF | Thread OUT: ⅜” NPTF

• Size: Height – 1.81” | Overall Length – 2.72”

• Nominal Width (NW): ⅜”

• Rated for 4000 psi working pressure

• Temperature resistant up to 250°F

• High-RPM capability: 200 RPM max

• Reliable sealing with O-ring NBR

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.10

Length 5 (L5): 0.39

Weight:10.0 oz

The Mosmatic WDBS Swivel 43.272 is a high-performance swivel engineered for durability and smooth operation in high-pressure cleaning systems. Constructed from nickel-plated brass, this swivel is built to withstand harsh industrial conditions. It features 2x radial ball bearings for high-speed rotation, a sliding bearing for enhanced stability, and an integrated protection plate that shields internal components from debris and damage. Sealed with an O-ring NBR, this swivel supports 4000 psi, handles temperatures up to 250°F, and operates at 200 RPM. Its 3/8” NPTF inlet to 3/8” NPTM outlet threading ensures compatibility with standard hose configurations.

Applications

• High-pressure hose reel assemblies

• Ceiling booms for industrial and automotive wash bays

• Pressure washers and cleaning systems

• Car wash tunnels and self-serve stations

• Equipment needing reinforced swivel with protection plate

Key Features

• Nickel-plated brass body for strength and corrosion resistance

• 2x radial ball bearings for smooth, high-speed performance

• Sliding bearing for added rotational stability

• Integrated protection plate safeguards internal mechanisms

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM

• Dimensions: Height – 2.20” | Overall Length – 3.07”

• Nominal Width (NW): 3/8”

• Rated for 4000 psi working pressure

• Withstands temperatures up to 250°F

• Operates at speeds up to 200 RPM

• Sealed with O-ring NBR for leak-proof reliability

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size  (SW): 0.87

Height (H): 2.20

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 3.07

Length 3 (L3): 1.14

Length 4 (L4): 1.70

Length 5 (L5): 0.43

Weight:18.5 oz

The Mosmatic WDC Swivel 43.353 is a premium-grade, nickel-plated brass swivel engineered for high-performance applications in pressure washing systems. Designed to handle demanding environments, this compact yet durable swivel features a sliding bearing and an O-ring NBR seal to ensure smooth rotation, reliable sealing, and long-lasting operation. With a maximum pressure rating of 4000 psi and a temperature threshold of up to 250°F, it's built to maintain performance in the toughest conditions.

Applications

• High pressure hose reels

• Ceiling booms

• High pressure cleaners

Key Features

• Robust brass body with nickel plating for corrosion resistance

• Thread IN: ½” NPTF | Thread OUT: ½” NPTM

• Compact dimensions: Height – 1.34” | Overall Length – 2.40”

• Nominal Width (NW): ½”

• High performance under pressure: Max pressure – 4000 psi

• Max temperature: 250°F

• Smooth operation with sliding bearing design

• Secure sealing with O-ring NBR

• Max RPM: 30 for moderate rotational demands

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.87

Height (H): 1.34

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 2.40

Length 3 (L3): 1.14

Length 4 (L4) :1.73

Length 5 (L5) :0.59

Weight:11.5 oz

The Mosmatic WDC Swivel 43.354 is a compact, high-performance swivel engineered for use in demanding high-pressure cleaning systems. Constructed from durable brass with a corrosion-resistant nickel plating, this swivel is equipped with a sliding bearing and O-ring NBR seal for dependable rotation and long service life. It supports pressures up to 4000 psi and operates efficiently in temperatures up to 250°F, making it a reliable solution for a wide range of industrial and commercial applications.

Applications

• High pressure hose reels

• Ceiling booms

• High pressure cleaners

Key Features

• Durable brass construction with nickel plating

• Thread IN: ½” NPTF | Thread OUT: ½” NPTF

• Compact profile: Height – 1.34” | Overall Length – 2.40”

• Nominal Width (NW): ½”

• Handles up to 4000 psi of pressure

• Withstands temperatures up to 250°F

• Max RPM: 30 for consistent rotation

• Sliding bearing ensures smooth, controlled movement

• O-ring NBR seal for reliable sealing and leak prevention

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.87

Height (H): 1.34

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 2.40

Length 3 (L3): 1.14

Length 4 (L4) :1.73

Length 5 (L5) :0.59

Weight:11.7 oz

The Mosmatic WDCL Swivel 43.363 is a high-performance, nickel-plated brass swivel designed for demanding high-pressure applications. Engineered for durability and smooth operation, it features dual radial ball bearings that support higher rotational speeds and reduce wear under load. The O-ring NBR seal ensures long-lasting leak protection, while its robust build accommodates pressures up to 4000 psi and temperatures up to 250°F. With a higher max RPM of 200, this swivel is ideal for more dynamic setups in commercial and industrial cleaning systems.

Applications

• High-pressure hose reels for commercial cleaning

• Ceiling boom arms in auto wash bays and garages

• Pressure washers in industrial and mobile setups

• Car wash and detailing systems

• Equipment requiring durable high-RPM swivel connections

Key Features

• Heavy-duty brass body with nickel plating for corrosion resistance

• Dual radial ball bearings for enhanced rotation and longevity

• Thread IN: ½” NPTF | Thread OUT: ½” NPTM

• Dimensions: Height – 1.81” | Overall Length – 2.87”

• Nominal Width (NW): ½”

• Handles 4000 psi maximum pressure

• Operates at temperatures up to 250°F

• High rotational capacity: Max RPM – 200

• O-ring NBR seal for reliable, leak-free performance

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.87

Height (H): 1.81

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 2.87

Length 3 (L3): 1.14

Length 4 (L4) :1.97

Length 5 (L5) :0.59

Weight:15.3 oz

The Mosmatic WDCL Swivel 43.364 is a high-performance, industrial-grade swivel engineered for use in high-pressure cleaning systems. Built from durable brass with a nickel-plated finish, this swivel provides excellent resistance to wear and corrosion. Its dual radial ball bearings support smooth rotation at speeds up to 200 RPM, while the O-ring NBR seal ensures leak-free operation under high stress. With a working pressure of 4000 psi and temperature capacity of 250°F, the 43.364 is a reliable, long-lasting solution for demanding cleaning applications.

Applications

• Commercial and industrial high-pressure hose reels

• Ceiling boom arms for wash bays and garages

• Professional and mobile pressure washing systems

• Car wash tunnels and detailing equipment

• Systems requiring smooth, high-RPM swivel rotation

Key Features

• Nickel-plated brass construction for strength and corrosion resistance

• Thread IN: ½” NPTF | Thread OUT: ½” NPTF

• Dual radial ball bearings for high-speed, low-friction operation

• Compact and efficient: Height – 1.81” | Overall Length – 2.87”

• Nominal Width (NW): ½”

• Rated for 4000 psi working pressure

• Operates in temperatures up to 250°F

• Supports up to 200 RPM for dynamic applications

• O-ring NBR seal for reliable leak prevention

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size  (SW): 1.06

Height (H): 1.81

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 2.87

Length 3 (L3): 1.14

Length 4 (L4) :1.97

Length 5 (L5) :0.59

Weight:15.5 oz

The Mosmatic WDCS Swivel 43.373 is a premium-grade, high-pressure swivel engineered for high-demand cleaning applications. Made from nickel-plated brass, this swivel is built to resist corrosion and perform reliably under extreme pressure and temperature conditions. It features 2x radial ball bearings for smooth, consistent rotation and includes an integrated protection plate to shield critical components from debris and wear. Sealed with an O-ring NBR, this swivel is rated for 4000 psi, up to 250°F, and 200 RPM, making it an ideal choice for commercial and industrial setups.

Applications

• High-pressure hose reels for industrial and commercial use

• Ceiling boom systems in automotive garages and wash bays

• Stationary and mobile pressure washer setups

• Car wash tunnels and detailing stations

• Heavy-duty cleaning systems in demanding environments

Key Features

• Nickel-plated brass construction for strength and corrosion resistance

• 2x radial ball bearings ensure stable, smooth rotation

• Protection plate adds durability and shields internal components

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTM

• Dimensions: Height – 2.20” | Overall Length – 3.24”

• Nominal Width (NW): 1/2”

• Handles up to 4000 psi operating pressure

• Maximum working temperature of 250°F

• Rated for 200 RPM in dynamic applications

• Sealed with O-ring NBR for leak-proof operation

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.87

Height (H): 2.20

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 3.24

Length 3 (L3): 1.14

Length 4 (L4): 2.15

Length 5 (L5): 0.59

Weight:16.0 oz

The Mosmatic WDCS Swivel 43.374 is a robust, high-performance swivel designed for use in high-pressure systems such as hose reels, ceiling booms, and pressure cleaners. Constructed from brass with a corrosion-resistant nickel plating, this swivel delivers superior durability in demanding environments. It features 2x radial ball bearings for smooth, high-speed rotation and a protection plate to safeguard internal components. Sealed with an O-ring NBR, the swivel is engineered to handle pressures up to 4000 psi, rotational speeds up to 200 RPM, and temperatures reaching 250°F.

Applications

• High-pressure hose reels

• Ceiling booms in wash bays and automotive shops

• Pressure washers for industrial and commercial use

• Car wash tunnels and detailing systems

• Equipment requiring durable, protected swivel performance

Key Features

• Nickel-plated brass construction for strength and corrosion protection

• Dual radial ball bearings for smooth, high-RPM operation

• Integrated protection plate for added durability

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTF

• Dimensions: Height – 2.20” | Overall Length – 3.24”

• Nominal Width (NW): 1/2”

• Rated for 4000 psi maximum working pressure

• Operates at temperatures up to 250°F

• Supports rotational speeds up to 200 RPM

• O-ring NBR seal ensures leak-proof performance

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 200

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.87

Height (H): 2.20

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 3.24

Length 3 (L3): 1.14

Length 4 (L4): 2.15

Length 5 (L5): 0.59

Weight:16.2 oz
