The Mosmatic DGK Swivel 32.089 is a compact, high-performance brass and stainless steel swivel designed for high and low-pressure cleaning, hose connections, hydraulic setups, and tangle-free hose applications. Engineered with live rotation under maximum pressure, this swivel offers superior functionality and a long-lasting, maintenance-free design.

The unit features a thrust ball bearing for smooth operation and an O-ring NBR seal system, with optional EPDM or FKM materials for enhanced chemical resistance. Its nickel-plated finish ensures durability and corrosion resistance in demanding environments.

Applications

• High-pressure guns and lances

• Hydraulic and pneumatic hose connections

• Hose reels and ceiling booms

• Industrial cleaning systems

• Tangle-free hose management

Key Features

• Model: Mosmatic DGK 32.089

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 1/4” NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Rotation: Live under maximum pressure

• Maintenance-Free: Sealed stainless steel bearing

• Overall Diameter: 0.40”

• Overall Length: 2.70”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

S1: 3/8"

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.70"

Lenght 2 (L2): 0.39"

Diameter 1 (D1): 0.40"

Diameter 2 (D2): 0.42"

Diameter 3 (D3): 0.54"

Weight: 2.6 oz

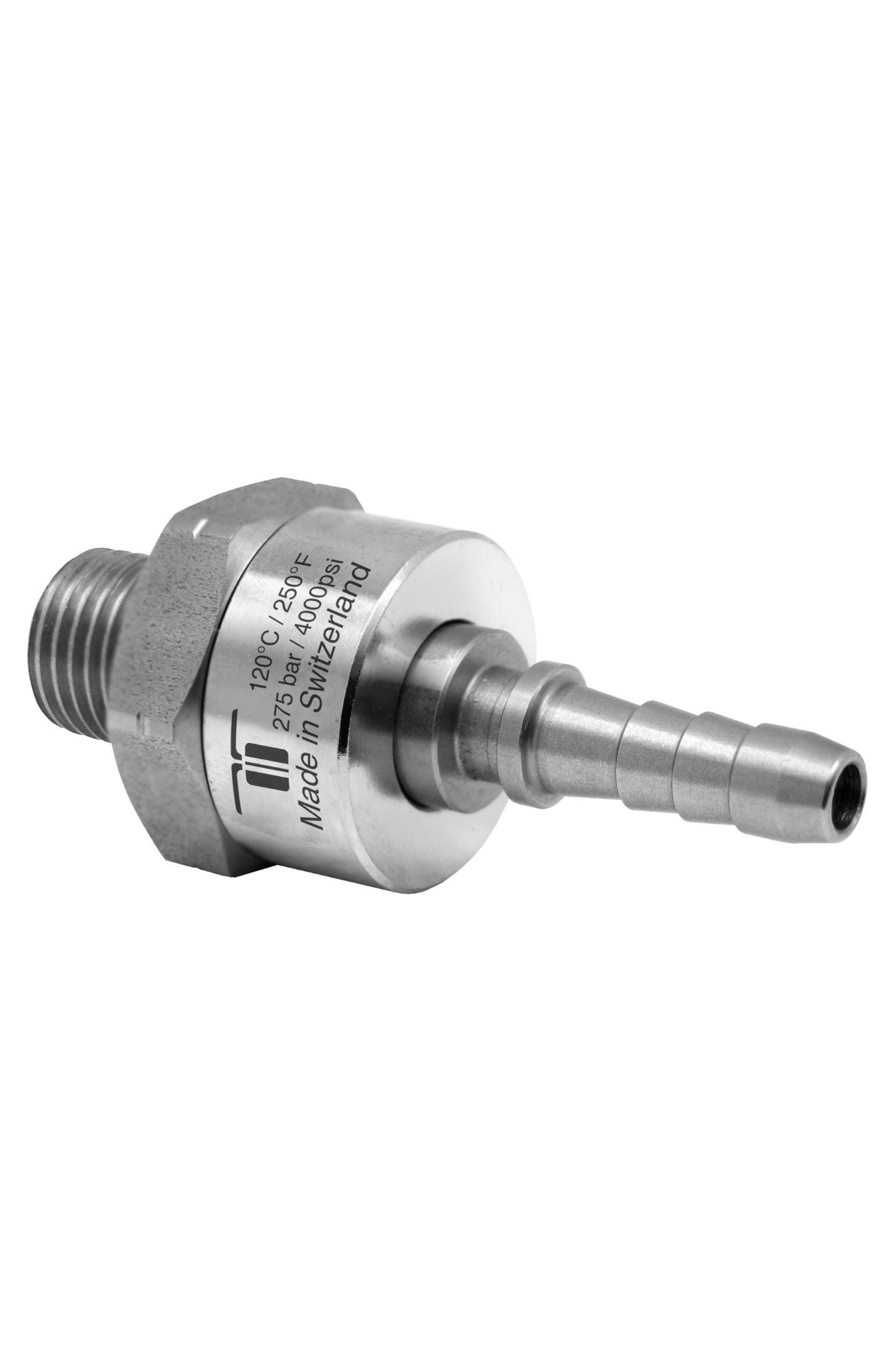

The Mosmatic DGK Swivel 32.081 is a high-performance nickel-plated brass and stainless steel swivel engineered for hose connections, HP guns, hydraulics, and tangle-free operations. Its compact design offers live rotation at full pressure, reducing torque and enhancing maneuverability in demanding cleaning and industrial environments.

Designed for durability and minimal maintenance, the swivel features a stainless steel thrust ball bearing and a reliable O-ring NBR seal system, with optional upgrades to EPDM or FKM. Perfect for high and low-pressure applications, the DGK 32.081 ensures smooth, low-resistance rotation for optimal performance.

Applications

• High-pressure spray guns

• Hydraulic and pneumatic hose assemblies

• Ceiling booms and hose reels

• Compact cleaning tools

• Tangle-free hose management

Key Features

• Model: Mosmatic DGK 32.081

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 1/4” NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing Type: 1x thrust ball bearing

• Compact & Lightweight: Ideal for space-limited tools

• Maintenance-Free: Sealed, long-lasting performance

• Live Rotation: Smooth, low-torque operation at high pressure

• Diameter: 0.27”

• Overall Length: 2.55”

• Nominal Width (NW): 1/8”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

S1: 1/4"

Nominal Width (NW): 1/8”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.55"

Lenght 2 (L2): 0.39"

Diameter 1 (D1): 0.27"

Diameter 2 (D2): 0.29"

Diameter 3 (D3): 0.37"

Weight: 2.8 oz

The Mosmatic DGK Swivel 32.082 is a compact and durable nickel-plated brass and stainless steel swivel engineered for high-pressure guns, hydraulic systems, hose connections, and tangle-free applications. Designed for smooth rotation under pressure, this swivel delivers maintenance-free performance and exceptional durability.

Built with a thrust ball bearing and a robust O-ring NBR seal system (with optional EPDM or FKM), the DGK 32.082 enables live rotation even at maximum pressure, offering exceptional maneuverability for demanding cleaning and industrial environments.

Applications

• High-pressure guns and lances

• Hydraulic hose connections

• Ceiling booms and hose reels

• Tangle-free hose systems

• Compact industrial machinery

Key Features

• Model: Mosmatic DGK 32.082

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 1/4” NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Low Torque: Smooth rotation under pressure

• Maintenance-Free: Sealed system, long service life

• Diameter: 0.33”

• Overall Length: 2.63”

• Nominal Width (NW): 7/32”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

S1: 5/16"

Nominal Width (NW): 7/32”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.63"

Lenght 2 (L2): 0.39"

Diameter 1 (D1): 0.33"

Diameter 2 (D2): 0.34"

Diameter 3 (D3): 0.44"

Weight: 2.8 oz

The Mosmatic DGK Swivel 32.181 is a durable and compact stainless steel/brass swivel engineered for high-performance applications in high-pressure guns, hydraulic systems, and hose connections. This nickel-plated swivel allows live rotation at maximum pressure, making it perfect for tangle-free and efficient hose management.

With a robust thrust ball bearing and an O-ring NBR seal system (with optional EPDM or FKM), this swivel is built for reliability and longevity in both industrial and commercial environments. Its maintenance-free design ensures smooth operation under demanding conditions.

Applications

• High-pressure spray guns

• Hydraulic and pneumatic hose connections

• Hose reels and ceiling booms

• Tangle-free hose setups

• Industrial cleaning and washdown systems

Key Features

• Model: Mosmatic DGK 32.181

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 3/8” NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Design: Compact, maintenance-free

• Live Rotation: Operates at max pressure

• Overall Diameter: 0.27”

• Overall Length: 2.59”

• Nominal Width (NW): 1/8”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 1/4"

Nominal Width (NW): 1/8”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.59"

Lenght 2 (L2): 0.43"

Diameter 1 (D1): 0.27"

Diameter 2 (D2): 0.29"

Diameter 3 (D3): 0.37"

Weight: 3.2 oz

The Mosmatic DGK Swivel 32.182 is a premium-quality swivel made of nickel-plated brass and stainless steel, designed for high-efficiency use in high-pressure guns, hydraulic connections, and hose systems. With a compact design and live rotation under full pressure, this swivel enables tangle-free operation and optimal performance in demanding environments.

Featuring a thrust ball bearing and an O-ring NBR seal system (with optional EPDM or FKM), it ensures smooth operation with very low torque, even at high pressures. Its sealed stainless steel bearings offer long-lasting durability with no maintenance required.

Applications

• High-pressure cleaning guns

• Hydraulic and pneumatic hose systems

• Ceiling booms and hose reels

• Tangle-free hose setups

• Industrial and commercial cleaning systems

Key Features

• Model: Mosmatic DGK 32.182

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 3/8” NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Design: Maintenance-free, compact size

• Rotation: Live rotation under max pressure

• Overall Diameter: 0.33”

• Overall Length: 2.68”

• Nominal Width (NW): 7/32”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 5/16"

Nominal Width (NW): 7/32”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.68"

Lenght 2 (L2): 0.43"

Diameter 1 (D1): 0.33"

Diameter 2 (D2): 0.34"

Diameter 3 (D3): 0.44"

Weight: 3.3 oz

The Mosmatic DGK Swivel 32.189 is a robust and compact swivel crafted from nickel-plated brass and stainless steel, engineered for smooth and tangle-free operation in high-pressure gun and hydraulic hose systems. This high-performance swivel delivers live rotation under maximum pressure and is maintenance-free, making it perfect for both industrial and commercial applications.

Equipped with a thrust ball bearing and O-ring NBR seal system (upgradeable to EPDM or FKM), this swivel is designed for very low torque operation, providing consistent, easy rotation even at full pressure.

Applications

• High-pressure cleaning guns

• Hose and hydraulic line connections

• Ceiling booms and hose reels

• Tangle-free hose assemblies

• Industrial washdown systems

Key Features

• Model: Mosmatic DGK 32.189

• Material: Stainless steel and nickel-plated brass

• Thread IN (G1): 3/8” NPTM

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Rotation: Live rotation under full pressure

• Design: Compact, corrosion-resistant, maintenance-free

• Overall Diameter: 0.40”

• Overall Length: 2.76”

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 3/8"

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.76"

Lenght 2 (L2): 0.43"

Diameter 1 (D1): 0.40"

Diameter 2 (D2): 0.42"

Diameter 3 (D3): 0.54"

Weight: 4.8 oz

The Mosmatic DGK Swivel 32.986 is engineered to enhance precision and control for compressed air and paint guns. Featuring a nickel-plated brass/stainless steel body, this swivel ensures corrosion resistance and extended service life in professional environments.

Equipped with a thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), the swivel allows for smooth 360° rotation at high pressure. Designed with an ISO-6150 B-profile plug nipple, it supports versatile connections, making it a top-tier choice for industrial-grade spray and air gun applications.

Applications

• Compressed air tools

• Spray and paint guns

• Pneumatic equipment

• Automotive detailing

• Industrial and workshop use

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): G1/4" Female

• Plug Nipple: ISO-6150 B-profile

• Connection Size (S1): 1/4"

• Overall Length: 2.24"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.67"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Benefits: Easy rotation, plug-and-play design, enhanced mobility

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 G1/4" F

S1: 1/4"

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.67"

Length 1 (L1) (overall length) : 2.24"

Lenght 2 (L2): 0.94"

Lenght 3 (L3): 1.30"

Diameter 1 (D1): 0.46"

Diameter 2 (D2): 0.31"

Weight: 2.8 oz

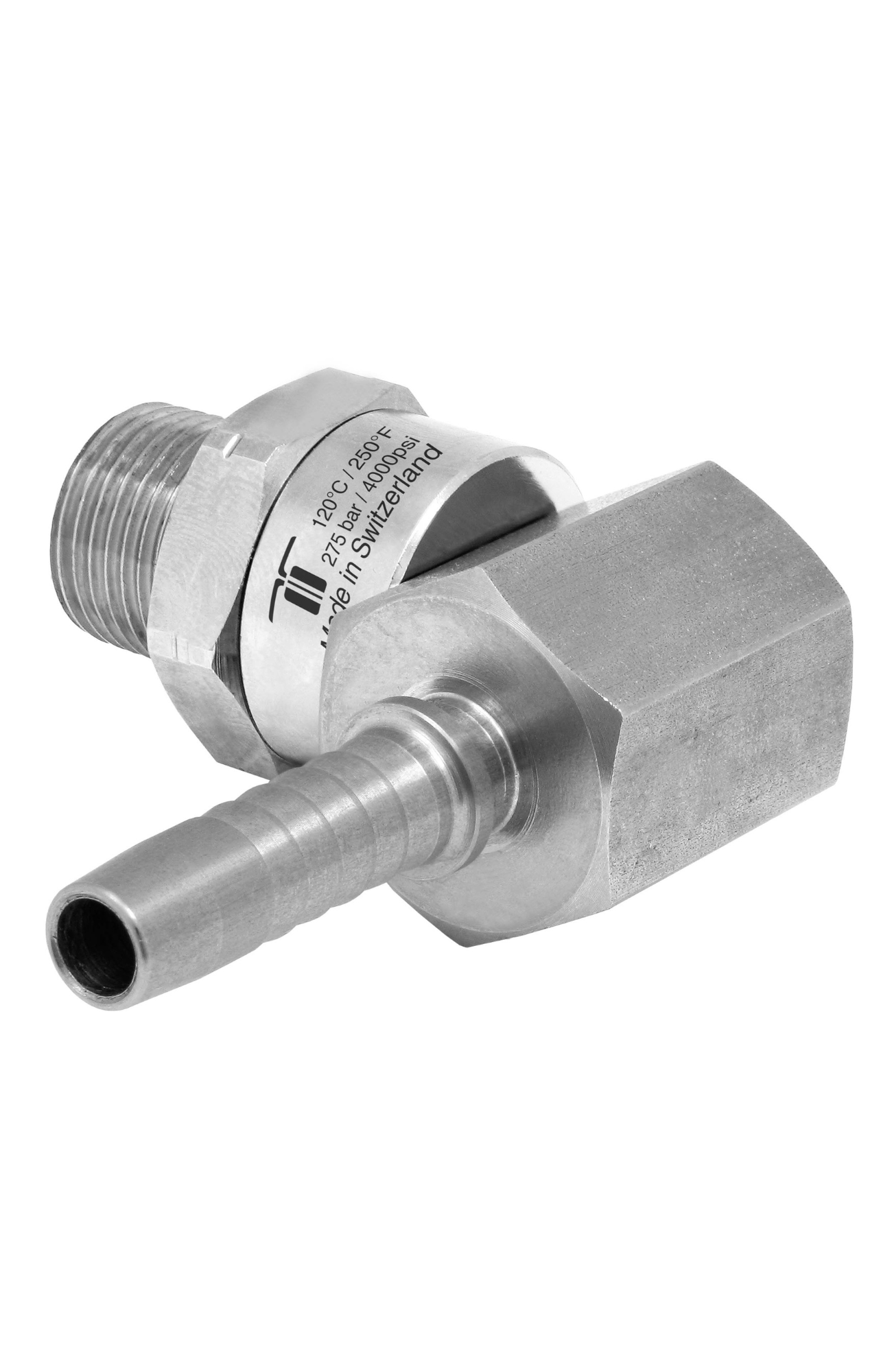

The Mosmatic DGK Swivel 32.481 – 90 Degrees is engineered for high-pressure spray guns, hydraulic systems, and hose applications where compact, efficient rotation is essential. Made of nickel-plated brass and stainless steel, this swivel provides live rotation under full pressure for smooth, tangle-free performance.

Built with a single thrust ball bearing and an NBR O-ring seal system (optional EPDM or FKM), the swivel delivers high durability and is completely maintenance-free. Ideal for setups demanding flexibility in tight spaces, the 90° elbow design improves handling without compromising performance.

Applications

• High-pressure cleaning and HP guns

• Hose connection swivel joints

• Hydraulic and pneumatic tools

• Tangle-free hose and boom systems

• Industrial wash bays and machinery

Features

• Material: Stainless steel & nickel-plated brass

• Thread IN: 3/8" NPTM

• Thread S1: 1/4"

• Configuration: 90° elbow swivel

• Overall Length: 1.95"

• Nominal Width (NW): 1/8”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Performance: Maintenance-free with low torque

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 1/4"

Nominal Width (NW): 1/8”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.95"

Lenght 2 (L2): 0.43"

Diameter 1 (D1): 0.27"

Diameter 2 (D2): 0.29"

Diameter 3 (D3): 0.37"

Weight: 5.5 oz

The Mosmatic DGK Swivel 32.489 – 90 Degrees is a robust, precision-engineered swivel designed for high-pressure guns, hose connections, hydraulic setups, and other tangle-free applications. Built with a nickel-plated brass body and stainless steel components, this compact elbow swivel ensures seamless, live rotation under full pressure.

Featuring a single thrust ball bearing and durable O-ring NBR sealing system (with optional EPDM or FKM variants), it’s built for maintenance-free performance, minimal torque, and long service life even in demanding environments.

Applications

• High-pressure cleaning guns

• Hydraulic hose connections

• Industrial hose swivel joints

• Ceiling booms and retractable systems

• Pressure washer and spray tool assemblies

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN: 3/8" NPTM

• Thread S1: 3/8"

• Design: 90-degree compact swivel

• Overall Length: 2.10"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM optional)

• Performance: Low torque, maintenance-free, high durability

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 3/8"

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.10"

Lenght 2 (L2): 0.43"

Diameter 1 (D1): 0.40"

Diameter 2 (D2): 0.42"

Diameter 3 (D3): 0.54"

Weight: 6.2 oz

The Mosmatic DGK Swivel 32.543 – 90 Degrees is a compact, high-precision swivel ideal for high-pressure guns, hose connections, and hydraulic systems where smooth, tangle-free operation is critical. Constructed with a stainless steel/brass body and protected by nickel plating, this 90° swivel delivers live rotation under full pressure and long-lasting durability.

Featuring a low-torque thrust ball bearing and a dependable O-ring NBR seal system (optional upgrades: EPDM or FKM), this swivel is maintenance-free and engineered to perform consistently in demanding environments.

Applications

• High-pressure gun swivels

• Hose and hydraulic connections

• Industrial tangle-free setups

• Cleaning equipment & car washes

• Spray tools and mobile wash systems

Features

• Material: Stainless steel/brass, nickel plated

• Thread IN (G1): 1/4" NPTM

• Thread OUT (G2): 1/4" NPTF

• Design: 90-degree compact swivel

• Overall Length: 0.94"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM available)

• Performance: Low torque, live rotation, corrosion resistant

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 0.94"

Lenght 2 (L2): 0.39"

Weight: 5.6 oz

The Mosmatic DGK Swivel 32.544 – 90 Degrees is a premium swivel joint engineered for high-pressure guns, hydraulic hose setups, and tangle-free operations. Built with a durable stainless steel/brass body and nickel-plated finish, it offers maximum corrosion resistance and reliability.

Its compact design incorporates a thrust ball bearing and a robust O-ring NBR seal system (with EPDM or FKM as optional upgrades) to ensure smooth rotation at full pressure, minimal torque, and zero maintenance.

Applications

• High-pressure gun swivels

• Hydraulic hose connections

• Cleaning and spray systems

• Ceiling booms and wash bays

• Industrial hose routing

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): 1/4" NPTM

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 1.06"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM available)

• Design: 90-degree configuration for compact installations

• Performance: Maintenance-free, corrosion-resistant, live rotation under load

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.06"

Lenght 2 (L2): 0.39"

Weight: 5.5 oz

The Mosmatic DGK Swivel 32.548 – 90 Degrees is engineered for reliable performance in high-pressure gun systems, hose connections, and hydraulic setups. Constructed with a stainless steel/brass body and nickel-plated finish, it delivers exceptional corrosion resistance and durability in demanding environments.

This compact swivel features a thrust ball bearing and O-ring NBR seal system (also available in EPDM or FKM) for smooth live rotation under pressure, very low torque, and zero maintenance. Ideal for tangle-free hose handling, it supports efficient performance and compact installation.

Applications

• High-pressure gun swivels

• Hydraulic hose setups

• Wash bays and ceiling booms

• Industrial hose and cleaning systems

• Tangle-free hose reel applications

Features

• Material: Stainless steel/brass, nickel plated

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 0.94"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal: O-ring NBR (EPDM or FKM optional)

• Design: 90° swivel for compact and directional applications

• Performance: Live rotation under full pressure, low torque, maintenance free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 0.94"

Lenght 2 (L2): 0.39"

Weight: 5.9 oz

The Mosmatic DGK Swivel 32.549 – 90 Degrees is designed for high-performance pressure cleaning, hydraulic systems, and hose connections. Built with a durable stainless steel/brass body and nickel-plated finish, this swivel delivers exceptional corrosion resistance and longevity in industrial environments.

Featuring a thrust ball bearing and a reliable O-ring NBR seal system (optional EPDM or FKM), this swivel supports live rotation under full pressure with minimal torque. Its 90-degree compact design ensures easy integration into tight setups while keeping hoses tangle-free.

Applications

• High-pressure spray guns

• Hydraulic hose assemblies

• Wash bays and ceiling booms

• Tangle-free hose connection systems

• Industrial pressure cleaning tools

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 1.06"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Maximum Pressure: 4000 PSI

• Maximum RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (EPDM or FKM optional)

• Bearing System: 1x thrust ball bearing

• Design: 90° swivel for optimized directional flow

• Performance: Maintenance free, low torque, high durability

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.06"

Lenght 2 (L2): 0.39"

Weight: 5.8 oz

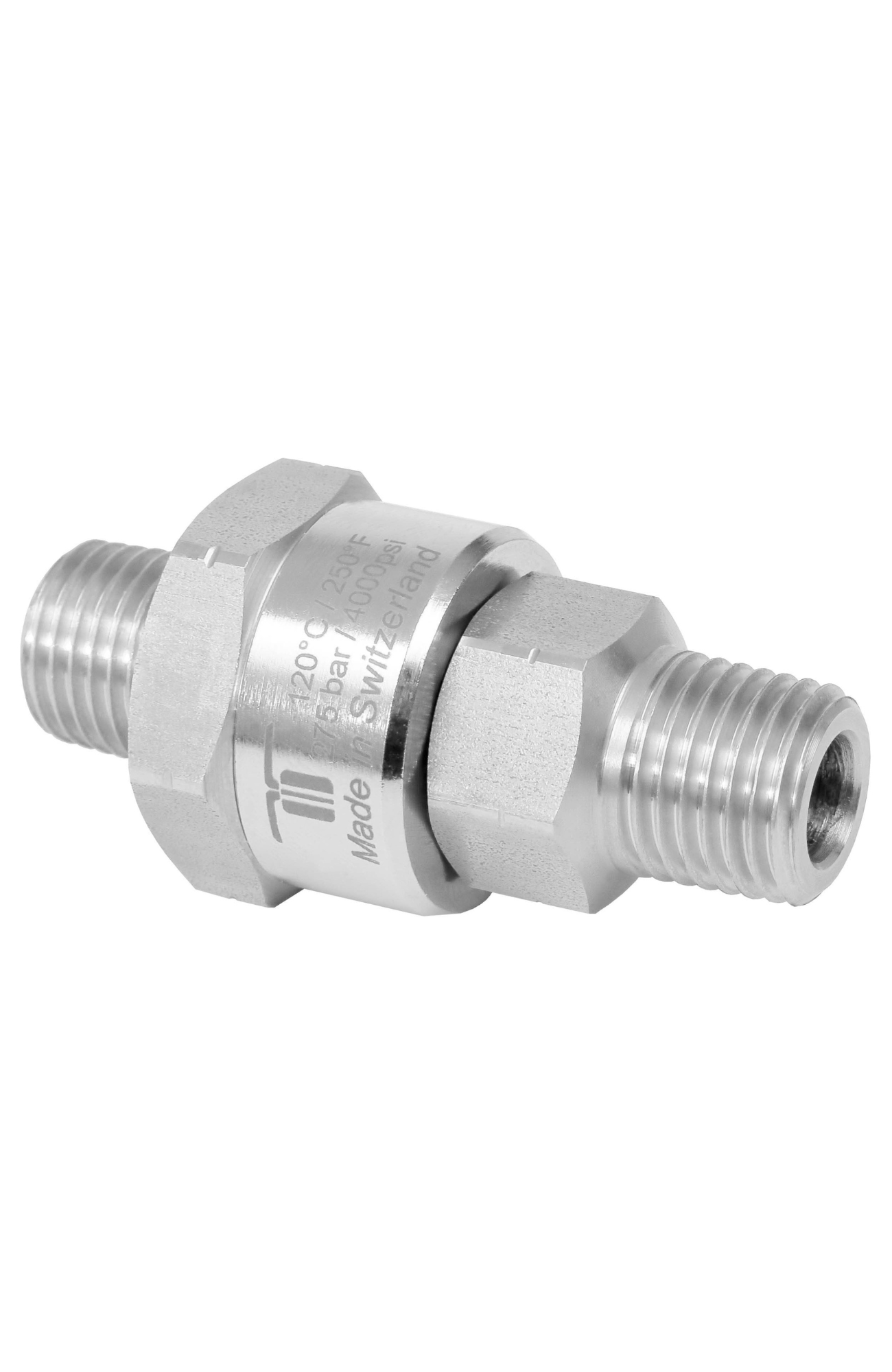

The Mosmatic DGK Swivel 32.051 is a compact, high-quality swivel designed for high-pressure hose connections, HP-guns, and hydraulic applications where live rotation is essential. Engineered with a nickel-plated brass and stainless steel body, this swivel is built to withstand corrosion and daily use in professional environments.

This model features a 1x thrust ball bearing and a durable O-ring NBR seal system (optional EPDM or FKM), allowing smooth, low-torque rotation under maximum pressure. Its maintenance-free design ensures dependable performance in compact spaces, ideal for reducing hose kinks and improving maneuverability in pressurized systems.

Applications

• High-pressure spray guns

• Hose and hydraulic connections

• Ceiling booms and rotating booms

• Tangle-free hose management

• Pressure washing and industrial cleaning

Key Features

• Model: Mosmatic DGK 32.051

• Material: Brass, nickel-plated with stainless steel components

• Thread IN: 1/4” NPTM

• Thread OUT: 1/4” NPTM

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust ball bearing

• Design: Compact, corrosion-resistant, low-torque

• Live Rotation: At full operating pressure

• Overall Length: 2.05"

• Nominal Width (NW): 1/4”

• Wrench Size (SW): 0.94”

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread In: G1 1/4" NPTM

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.67"

Length 1 (L1) (overall length) : 2.05"

Lenght 2 (L2): 0.39"

Lenght 3 (L3): 0.43"

Weight: 3.5 oz
