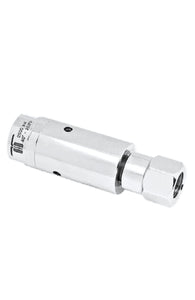

Mosmatic Swivel DXL/DXLI 36.052

Mosmatic DXLi Swivel - 36.057 - G1 1/4"NPTF G2 1/4"NPTF

  • $320.00
  • Save $35
Shipping calculated at checkout.

+ -
 More payment options

Description

The Mosmatic DXLI Swivel 36.057 is a premium stainless steel swivel designed for high-pressure, high-RPM cleaning applications. Built for durability and performance, this swivel is ideal for use in parts washers, tire cleaners, and automated cleaning systems. It features a rugged triple bearing system—including two radial ball bearings and one thrust ball bearing—for optimal rotation and load handling. The ceramic seal system provides outstanding resistance to heat, pressure, and wear. This swivel is also corrosion resistant, maintenance free, and easy to install with its integrated bulkhead fitting, ensuring long-lasting, high-efficiency operation.

Applications

  • High-pressure cleaning equipment

  • Industrial parts washers

  • Tire and wheel cleaning systems

  • High-RPM self-rotating tools

  • Wash bays and commercial cleaning setups

Key Features

  • Stainless steel construction for superior corrosion resistance

  • Triple bearing system: 2x radial and 1x thrust bearing

  • Ceramic seal system for enhanced longevity and leak resistance

  • Engineered for high-RPM and high-pressure use

  • Bulkhead mounting for secure installation

  • Maintenance-free design

  • Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTF

  • Max Pressure: 2500 PSI (17 MPa)

  • Max RPM: 2000

  • Temperature Range: 40°F – 250°F

  • Overall Diameter: 0.98”

  • Overall Length: 3.30”

  • Nominal Width (NW): 1/4”

  • Wrench Size (SW): 0.87”

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4” NPTF

Thread Out: G2 1/4” NPTF

Nominal Width (NW): 1/4”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.30"

Diameter (D) (overall diameter): 0.98"

Weight: 7.5 oz
