Mosmatic – DGR Swivel - 34.312 - G1 3/4"NPTF to G2 3/4"NPTF

Description

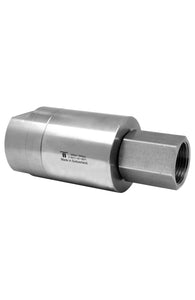

The Mosmatic DGR Swivel - 34.312 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-pressure environments. Perfect for industrial and food service applications, this swivel features a quadruple bearing system with two radial ball bearings and two thrust ball bearings, ensuring smooth, stable operation under heavy load. Its corrosion-resistant stainless steel construction makes it suitable for harsh, high-moisture, or chemical environments, while the high-flow design enhances system efficiency.

Applications:

• Industrial high-pressure cleaning systems

• Food and beverage processing equipment

• Sanitation and washdown systems

• Chemical transfer and fluid handling

Key Features:

• Corrosion-resistant stainless steel body

• Quadruple bearing system: 2x radial + 2x thrust ball bearings

• Supports both radial and thrust load applications

• High-flow performance for continuous-duty systems

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF

• Nominal Width (NW): 3/4"

• Diameter: 2.17"

• Overall Length: 5.55"

• Max Pressure: 3000 PSI

• Max RPM: 150

• Operating Temperature Range: 40°F to 180°F

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTF

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.65

Wrench Size 2 (SW2): 1.26

Diameter (D): 2.17"

Length 1 (L1) (overall length): 5.55"

Length 2 (L2): 3.66

Weight: 53 oz
