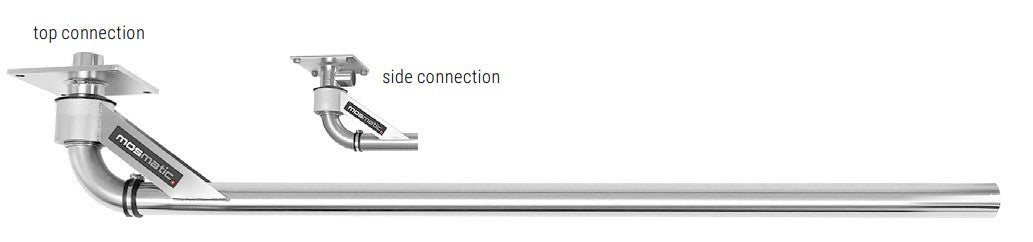

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 2", connection top, Weight 18 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Mosmatic free standing floor mounted air-booms allow you the convenience of placing your boom where you need it. 360° rotation.

• 360° smooth rotation
• Polished stainless steel
• Solid construction
• Ideal for vacuum islands
• Air-system boom included.

L 2", Weight 48 lbs

Consider this Accessory: Bracket with Bumpers for LU: Mosmatic 60.319 - Can be installed to prevent this Air Stand from turning all the way around.

Consider this Accessory:  90° Pipe Mosmatic 60.314 - 2" Diameter bent pipe that attaches at the output end of the Air System Stand, 1x Pipe clamp included

Mosmatic free standing floor mounted air-booms allow you the convenience of placing your boom where you need it. 360° rotation.

• 360° smooth rotation
• Polished stainless steel
• Solid construction
• Ideal for vacuum islands
• Air-system boom included.

L 1'5", Weight 38 lbs

Consider this Accessory: Bracket with Bumpers for LU: Mosmatic 60.319 - Can be installed to prevent this Air Stand from turning all the way around.

Consider this Accessory:  90° Pipe Mosmatic 60.305 - 1.5" Diameter bent pipe that attaches at the output end of the Air System Stand, 1x Pipe clamp included

Mosmatic free standing floor mounted air-booms allow you the convenience of placing your boom where you need it. 360° rotation.

• 360° smooth rotation
• Polished stainless steel
• Solid construction
• Ideal for vacuum islands
• Air-system boom included.
• Mount on standalone vacuum.

L 2", Weight 21 lbs

Consider this Accessory: Bracket with Bumpers for LU: Mosmatic 60.319 - Can be installed to prevent this Air Stand from turning all the way around.

Consider this Accessory:  90° Pipe Mosmatic 60.314 - 2" Diameter bent pipe that attaches at the output end of the Air System Stand, 1x Pipe clamp included

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'7", D 2", connection bottom, Weight 19 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

Note: Please pay special attention to the type of connection you need. The Air System Booms are offered in various connections depending on the size of the boom. Generally there are ceiling mount and wall mount styles with side, top or bottom connections.180° or 360° smooth rotation

?LU-DZ Air Boom 5ft 1in - 60.324

Features:

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

Specifications:

• Length 5'1"
• Diameter: 2"
• Connection side
• Weight 19 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Optional Items You May Want to Consider:

• Extension accessory- 2" Diameter, 3' 3" Part # 60.315
• 90° Elbow - 2" Diameter, Pipe Clamp Included Part #60.314

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

Note: Please pay special attention to the type of connection you need. The Air System Booms are offered in various connections depending on the size of the boom. Generally there are ceiling mount and wall mount styles with side, top or bottom connections.180° or 360° smooth rotation180° or 360° smooth rotation

LU-DZ Air Boom 5ft 1in - 60.326

Features:

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

Specifications:

• Length: 5'1"
• Diameter: 2"
• Connection top
• Weight 18 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Optional Items You May Want to Consider:

• Extension accessory- 2" Diameter, 3' 3" Part # 60.315
• 90° Elbow - 2" Diameter, Pipe Clamp Included Part #60.314

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

Note: Please pay special attention to the type of connection you need. The Air System Booms are offered in various connections depending on the size of the boom. Generally there are ceiling mount and wall mount styles with side, top or bottom connections.

LU-W Air Boom 5ft 3in 60.302

Features:

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

Specifications:

• Length: 5'3"
• Diameter: 1.5"
• Connection bottom
• Weight 17 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 Optional Items You May Want to Consider:

• Extension accessory - 1.5" Diameter, 3' 3" Part # 60.304
• 90° Elbow - 1.5" Diameter, Pipe Clamp Included Part # 60.305

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

Note: Please pay special attention to the type of connection you need. The Air System Booms are offered in various connections depending on the size of the boom. Generally there are ceiling mount and wall mount styles with side, top or bottom connections.

LU-W Air Boom 5ft 3in - 60.311

Features:

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

Specifications:

• Length: 5'3"
• Diameter:  2"
• Connection:  bottom
• Weight 18 lbs

Technical data:

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

 Optional Items You May Want to Consider:

• Extension accessory- 2" Diameter,  3' 3" Part # 60.315
• 90° Elbow - 2" Diameter, Pipe Clamp Included Part #60.314

Mosmatic free standing floor mounted air-booms allow you the convenience of placing your boom where you need it. 180° rotation.

• Compatible with 180° smooth rotation booms LU-W or WAE
• Polished stainless steel
• Solid construction
• Ideal for vacuum islands
• Without Air-boom, suitable for 2x LU-W or WAE.

Weight 53 lbs

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 1.5", connection top, Weight 18 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 1.5", connection side, Weight 17 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Using Mosmatic Air-System Booms will not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses into their vehicles. Available in wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

• 180° or 360° smooth rotation
• Top, bottom or side port connections
• Can be combined with other Mosmatic booms
• For use with air dryers or vacuum systems
• Part No. Includes one boom

L 5'3", D 2", connection side, Weight 17 lbs

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• Inlet (top & side): 3/8" NPTF (other options available)
• Outlet: 3/8" NPTF (other options available)
• Throughput medium: water, oil, air at pH 3-12

Stop replacing hoses! Using Mosmatic Air-System Booms not only keep your hoses off the ground, but save your customer from dragging wet and dirty hoses in and around their vehicles. Available in: wall, floor or ceiling mount. For use with a vacuum or Mosmatic Air-Dry.

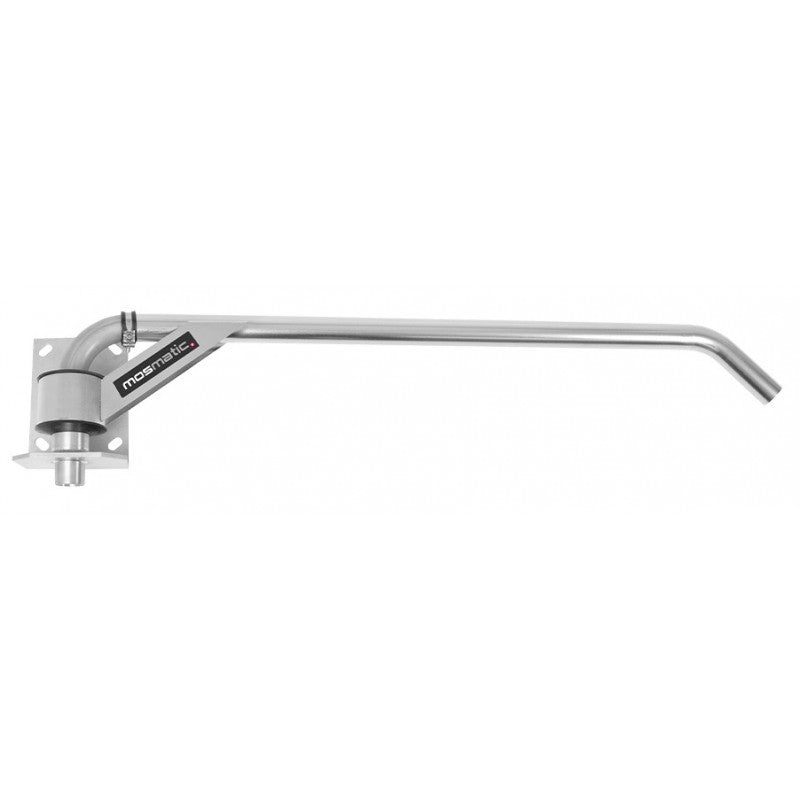

Mosmatic LU-W is a single straight wall mounted air boom.

L 3'3", D 1.5", connection bottom, Weight 15 lbs
