HP Coupling
HP Couplings engineered to provide secure, high-pressure connections between hoses, guns, wands, and accessories. These heavy-duty components ensure stable, leak-free performance during demanding cleaning tasks, making them essential for maintaining consistent pressure and reliable operation on every job.
As a key part of professional pressure washing setups, HP couplings are built to withstand extreme pressure levels while delivering smooth, uninterrupted water flow. Their robust construction, precision threading, and tight sealing capabilities help prevent blowouts, reduce wear on equipment, and support safe, efficient workflow in residential, commercial, and industrial environments.
This collection is ideal for pressure washing professionals who need dependable connection hardware that keeps equipment performing at its best. With compatibility across a wide range of high-pressure tools and hoses, HP couplings play a crucial role in maintaining durability, safety, and operational stability.
Use these HP couplings as part of a complete pressure washing system to ensure secure fittings, reduce downtime, and enhance overall equipment performance. With strong, reliable connections in place, you can work confidently and deliver consistent, professional-grade cleaning results on every project.
Sort by:
The Mosmatic DKS 90° Swivel Coupling 70.582 is a high-quality, right-angle swivel designed for high-pressure cleaning, hose connections, and quick coupling applications where space-saving flexibility is essential. Constructed from nickel-plated brass, this swivel offers exceptional durability, corrosion resistance, and reliable performance in industrial and commercial environments.
This 90-degree swivel features a single thrust ball bearing for smooth rotational movement and an advanced ceramic seal system to ensure long-lasting, leak-free operation. Its flanged design allows for easy and secure installation, while integrated weep holes provide early visual indication of seal failure, promoting proactive maintenance.
The 70.582 model is equipped with a Quick Connect Thread In of M22x1.5F, a nominal width (NW) of 7/32”, and supports high-pressure systems up to 3600 PSI. It operates effectively at a maximum temperature of 250°F and a rotational speed of up to 30 RPM. Compatible with a range of media, including pH 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
High-pressure hose connections in tight or angled spaces
-
Industrial and commercial cleaning systems
-
Quick-connect pressure washer fittings
-
Rotary surface cleaners and spray tools
-
Pneumatic and compressed air tool systems
-
Car wash installations and detailing setups
Features
-
Durable nickel-plated brass construction for corrosion resistance
-
90° swivel design for optimal flexibility in limited spaces
-
Smooth rotation with single thrust ball bearing
-
Long-lasting ceramic seal system for leak protection
-
Flanged design for easy and secure installation
-
Seal failure warning through integrated weep holes
-
Thread In: M22x1.5F
-
Nominal Width (NW): 7/32”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Overall Diameter: 1.34” | Overall Length: 1.97”
-
Suitable for pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M22X1.5F
Nominal Width (NW): 7/32”
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 1.97
Weight: 5.7 oz
The Mosmatic DKS Swivel Coupling 70.153 is a heavy-duty, high-pressure swivel coupling designed for industrial cleaning and hose connection applications. Crafted from corrosion-resistant, nickel-plated brass, this coupling delivers reliable performance and long-lasting durability in demanding environments.
It features a single thrust ball bearing and a ceramic seal system that provide smooth rotation and excellent sealing under high pressure. A flange ensures simple and secure installation, while integrated weep holes offer a built-in warning system for potential seal failure—minimizing downtime and enabling proactive maintenance.
With a Quick Connect Thread In of M22x1.5 F and a Thread Out of 3/8” NPTM, this swivel is built to handle pressures up to 3600 PSI and temperatures up to 250°F. It supports media with a pH range of 3–12 and filtered compressed air (10 microns) up to 290 PSI.
Applications
-
Industrial and commercial high-pressure cleaning
-
Hose and quick-connect coupling systems
-
Surface cleaners and rotating nozzles
-
Pneumatic and air-powered tool setups
-
Car wash systems and maintenance equipment
-
Pressure washing tools and accessories
Features
-
Durable nickel-plated brass construction
-
Long-lasting ceramic seal system
-
Smooth performance with single thrust ball bearing
-
Flange design for easy and secure installation
-
Weep holes for visual seal failure indication
-
Thread In: M22x1.5 F | Thread Out: 3/8” NPTM
-
Nominal Width (NW): ¼”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Dimensions: 1.34” diameter | 1.80” overall length
-
Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M22X1.5F
Thread Out: G2 3/8"NPTM
Nominal Width (NW): ¼”
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2):
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 1.80
Length 2 (L2): 0.47
Weight: 3.7 oz
The Mosmatic DKS Swivel Coupling 70.139 is a high-performance, nickel-plated brass swivel coupling designed for high-pressure cleaning, hose connections, and quick coupling applications. Built for reliability and efficiency, this swivel delivers superior corrosion resistance and smooth rotational function, making it ideal for industrial and commercial environments.
The swivel features a single thrust ball bearing and a precision-engineered ceramic seal system for leak-free operation and extended service life. A flanged design ensures easy and secure installation, while integrated weep holes act as an early warning system for seal failure, helping to prevent unexpected downtime.
With a Quick Connect Thread In of M22x1.5F and a Nominal Width (NW) of ¼”, this swivel coupling supports high-pressure systems up to 3600 PSI, operating at temperatures up to 250°F and a maximum speed of 30 RPM. Suitable for media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
High-pressure hose assemblies
-
Industrial cleaning and spraying systems
-
Quick-connect setups for pressure washers
-
Rotary nozzles and surface cleaning tools
-
Car wash equipment and detailing systems
-
Pneumatic and compressed air tool connections
Features
-
Durable nickel-plated brass construction for corrosion resistance
-
Advanced ceramic seal system for long-lasting performance
-
Single thrust ball bearing for smooth, reliable rotation
-
Flanged design for easy and stable installation
-
Integrated weep holes for early seal failure detection
-
Thread In: M22x1.5F
-
Nominal Width (NW): ¼”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Dimensions: 1.34” overall diameter | 2.42” overall length
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M22X1.5F
Nominal Width (NW): ¼”
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 2.42
Weight: 3.0 oz
The Mosmatic DKS Swivel Coupling 70.132 is a precision-engineered, high-pressure swivel coupling designed for hose connections, cleaning systems, and quick coupling applications. Manufactured from nickel-plated brass, this swivel provides superior corrosion resistance and long-lasting performance in industrial and commercial environments.
The unit features a single thrust ball bearing and an advanced ceramic seal system, ensuring smooth rotation and effective sealing even under high-pressure conditions. The integrated flange offers easy, secure installation, while built-in weep holes serve as an early warning system for seal failure, helping to maintain operational efficiency.
This model includes a Quick Connect Thread In of M22x1.5F, with a nominal width (NW) of 7/32”, an overall diameter of 1.34”, and a length of 2.34”. Rated for up to 3600 PSI, with a maximum temperature of 250°F and a maximum speed of 30 RPM, the DKS 70.132 is suitable for media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Industrial high-pressure cleaning systems
-
Hose connection assemblies and quick coupling setups
-
Surface cleaners and rotating spray tools
-
Car wash systems and detailing equipment
-
Pneumatic tool connections and compressed air lines
-
Pressure washing accessories in commercial environments
Features
-
Heavy-duty nickel-plated brass construction for corrosion resistance
-
Long-life ceramic seal system for reliable sealing performance
-
Smooth rotation with single thrust ball bearing
-
Easy, stable installation with integrated flange design
-
Seal failure warning through weep holes for proactive maintenance
-
Thread In: M22x1.5F
-
Nominal Width (NW): 7/32”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Overall Diameter: 1.34” | Overall Length: 2.34”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M22X1.5F
Nominal Width (NW): 7/32”
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 2.34
Weight: 3.0 oz
The Mosmatic DKS Swivel Coupling 70.131 is a high-precision, nickel-plated brass swivel designed for high-pressure cleaning systems, hose connections, and quick-coupling applications. With a compact build and premium materials, it ensures exceptional durability and resistance to corrosion in industrial and commercial environments.
This model includes a single thrust ball bearing and a ceramic seal system, providing smooth rotation and long-term leak protection under pressure. The integrated flange design simplifies installation, while built-in weep holes serve as a seal failure warning system to support preventative maintenance.
With a Quick Connect Thread In of M22x1.5F, a nominal width (NW) of 1/8”, and an overall length of 2.26”, this swivel is rated for up to 3600 PSI and operates at temperatures up to 250°F. It's compatible with a broad range of media, including pH 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Compact high-pressure cleaning equipment
-
Industrial hose and fitting systems
-
Surface cleaners and small rotating nozzles
-
Precision pneumatic tools and compressed air lines
-
Car wash accessories and detailing systems
-
Quick-connect hose setups in commercial environments
Key Features
-
Durable, corrosion-resistant nickel-plated brass construction
-
Single thrust ball bearing for smooth rotational movement
-
Advanced ceramic seal system for reliable sealing
-
Integrated flange for fast and secure installation
-
Weep holes for visual seal failure indication
-
Thread In: M22x1.5F
-
Nominal Width (NW): 1/8”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Overall Diameter: 1.34” | Overall Length: 2.26”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M22X1.5F
Nominal Width (NW): 1⁄8”
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 2.26
Length 2 (L2):
Weight: 2.8 oz
The Mosmatic DKS Swivel Coupling 70.054 is a professional-grade, high-pressure swivel engineered for hose connections, quick coupling systems, and cleaning equipment. Constructed from nickel-plated brass, this swivel is built to resist corrosion and deliver long-lasting, dependable performance in industrial environments.
It features a single thrust ball bearing and a high-performance ceramic seal system for smooth rotation and effective sealing under high pressure. A flange design allows for quick and secure installation, while integrated weep holes provide an early warning of seal wear or failure to support proactive maintenance.
This model includes a Quick Connect Thread In of M21x1.5 F and a Thread Out of 3/8” NPTF, with a nominal width of ¼”. Designed to handle up to 3600 PSI, 30 RPM, and 250°F, the 70.054 swivel supports media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
High-pressure hose and cleaning equipment
-
Quick connect couplings in industrial systems
-
Surface cleaners and rotating spray nozzles
-
Car wash equipment and maintenance setups
-
Pneumatic tool and compressed air systems
-
Commercial and industrial pressure washing
Features
-
Corrosion-resistant nickel-plated brass body
-
Long-life ceramic seal system
-
Single thrust ball bearing for smooth operation
-
Flange design for easy, stable installation
-
Weep holes for seal failure indication
-
Thread In: M21x1.5 F | Thread Out: 3/8” NPTF
-
Nominal Width (NW): ¼”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Overall Diameter: 1.34” | Length: 2.08”
-
Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M21X1.5F
Thread Out: G2 3/8"NPTF
Nominal Width (NW): ¼”
Wrench Size 1 (SW1): 0.87"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 2.08
Length 2 (L2):
Weight: 3.6 oz
The Mosmatic DKS Swivel Coupling 70.053 is a precision-engineered, high-pressure swivel designed for demanding industrial and commercial cleaning applications. Constructed from corrosion-resistant, nickel-plated brass, this swivel ensures reliability and long service life under continuous use.
Equipped with a single thrust ball bearing and a robust ceramic seal system, it delivers smooth rotation and excellent leak protection. A flange simplifies installation, while integrated weep holes provide a seal failure warning for proactive maintenance. This model features a Quick Connect Thread In of M21x1.5 F and a Thread Out of 3/8” NPTM, making it compatible with a wide range of hose systems and equipment.
Rated for up to 3600 PSI and capable of withstanding temperatures up to 250°F, it’s built for tough environments and supports media in the pH 3–12 range with 10-micron filtered compressed air up to 290 PSI.
Applications
-
High-pressure hose and cleaning systems
-
Industrial and commercial washdown equipment
-
Pneumatic tool connections
-
Surface cleaners and rotary arms
-
Quick-connect fittings in pressure washing setups
-
Car wash installations
Features
-
High-quality nickel-plated brass construction
-
Smooth rotation with single thrust ball bearing
-
Long-life ceramic seal system
-
Flanged design for easy and secure installation
-
Seal failure warning via built-in weep holes
-
Thread In: M21x1.5 F” | Thread Out: 3/8” NPTM
-
Nominal Width (NW): ¼”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Dimensions: 1.34” diameter | 1.80” overall length
-
Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M21X1.5F
Thread Out: G2 3/8"NPTM
Nominal Width (NW): ¼”
Wrench Size 1 (SW1): 0.75"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 1.80
Length 2 (L2): 0.47
Weight: 3.6 oz
The Mosmatic DKS Swivel Coupling 70.052 is a high-quality, heavy-duty swivel coupling designed for high-pressure cleaning, hose connections, and quick coupling systems. Built from nickel-plated brass, this durable swivel delivers exceptional corrosion resistance and long-lasting performance in tough industrial and commercial environments.
Engineered with a single thrust ball bearing and a ceramic seal system, the 70.052 model ensures smooth rotation and dependable sealing under pressure. A built-in flange allows for secure, straightforward installation, and integrated weep holes serve as early seal failure indicators to minimize downtime and prevent damage.
Featuring a Quick Connect Thread In of M21x1.5 F and a Thread Out of ¼” NPTF, this swivel is optimized for high-pressure systems operating up to 3600 PSI and temperatures up to 250°F. It supports a wide range of media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
High-pressure cleaning equipment
-
Industrial hose and coupling systems
-
Pressure washer accessories
-
Rotary surface cleaners and nozzles
-
Car wash systems
-
Pneumatic tool connections
Features
-
Rugged nickel-plated brass construction
-
Ceramic seal system for enhanced durability
-
Smooth operation via single thrust ball bearing
-
Flanged design for easy and secure installation
-
Weep holes for early seal failure detection
-
Thread In: M21x1.5 F | Thread Out: ¼” NPTF
-
Nominal Width (NW): ¼”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Dimensions: 1.34” diameter | 1.96” overall length
-
Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M21X1.5F
Thread Out: G2 1/4"NPTF
Nominal Width (NW): ¼”
Wrench Size 1 (SW1): 0.75"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 1.96
Length 2 (L2):
Weight: 3.6 oz
The Mosmatic DKS Swivel Coupling 70.051 is a high-performance, nickel-plated brass swivel designed for high-pressure cleaning and hose connection systems. Engineered with a single thrust ball bearing and a precision ceramic seal system, it ensures smooth rotation and leak-resistant operation. A built-in flange allows for easy installation, while integrated weep holes provide early warning of seal failure to prevent downtime.
With a high-pressure capacity of up to 3600 PSI and a max temperature tolerance of 250°F, this swivel coupling is built to withstand rigorous industrial use. It features a quick-connect M21x1.5 F thread in and a ¼” NPTM thread out, offering compatibility across a range of applications. Supporting a nominal width of ¼”, and a max speed of 30 RPM, it’s optimized for pH 3–12 media and 10-micron filtered compressed air up to 290 PSI.
Applications
-
High-pressure cleaning equipment
-
Industrial hose connections
-
Quick-connect systems
-
Surface cleaners and rotary arms
-
Car wash systems
-
Pneumatic tool connections
Features
-
Durable nickel-plated brass construction
-
Single thrust ball bearing for smooth rotation
-
Advanced ceramic seal system for enhanced durability
-
Integrated flange for easy installation
-
Seal failure indicator via weep holes
-
Thread In: M21x1.5 F | Thread Out: ¼” NPTM
-
Nominal Width (NW): ¼”
-
Max Pressure: 3600 PSI
-
Max Temperature: 250°F
-
Max RPM: 30
-
Overall Diameter: 1.34” | Length: 1.76”
-
Media compatibility: pH 3–12, 10-micron filtered air up to 290 PSI
Specs
Pressure: 3600 psi
Temperature: 250°
RPM: max 30 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 M21X1.5F
Thread Out: G2 1/4"NPTM
Nominal Width (NW): ¼”
Wrench Size 1 (SW1): 0.67"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 1.76
Length 2 (L2): 0.43
Weight: 3.6 oz
The Mosmatic HP-Coupling Quick Disconnect - 70.904 is a high-efficiency quick connect plug designed to enable fast, tool-free connection and disconnection between a wand and a rotor unit. Ideal for storage convenience or switching between cleaning tools, this coupling features a M 12x1 female thread and a 0.47" diameter for a compact, secure fit. Constructed from durable stainless steel, it delivers long-lasting performance even in high-pressure or corrosive environments.
Applications
-
Wand-to-rotor quick change connections
-
Car wash and pressure washer systems
-
Industrial and mobile cleaning equipment
-
Fast swaps and compact storage setups
Key Features
-
Quick disconnect plug for wand-to-rotor flexibility
-
Thread: M 12x1 F
-
Diameter: 0.47" for a precise fit
-
Built from stainless steel for corrosion resistance
-
Supports tool-free connection and disconnection
-
Enhances efficiency in high-pressure cleaning systems
Specs
Material Type: Stainless Steel
Thread In: M 12x1 F
Diameter: 0.47"
The Mosmatic HP-Coupling Quick Connect - 70.021 is a reliable 1/4" quick coupler plug designed to simplify wand-to-rotor unit connections. Whether for equipment changes or compact storage, this coupling allows for quick and tool-free connection or disconnection. Featuring a G1/4" male thread and a 0.47" diameter, it ensures a snug, leak-free fit. Manufactured from high-quality stainless steel, it resists corrosion and is built to endure high-pressure cleaning environments.
Applications
-
Quick connection between wand and rotor units
-
Car wash and pressure washer systems
-
Mobile cleaning equipment setups
-
Fast equipment swaps and storage optimization
Key Features
-
1/4" quick connect plug for ease of use
-
Thread size: G1/4" M
-
Diameter: 0.47" for a compact and secure fit
-
Made from stainless steel for corrosion resistance
-
Enables fast disconnection for storage or equipment change
-
Compatible with high-pressure cleaning tools
Specs
Material Type: Stainless Steel
Thread In: G1/4" M
Diameter: 0.47"
The Mosmatic 906.026 is a stainless steel high-pressure quick connect plug, engineered for fast, secure, and leak-proof connections in industrial and commercial systems. With a ¼" NPTF (female) thread and Quick Connect interface, this coupling is built to handle the rigors of high PSI operations while ensuring long-lasting performance.
Designed with a 0.55" diameter, ¼" nominal width, and a 0.67" wrench size, this plug offers compact strength and seamless integration into pressure washing systems. Rated for 5000 PSI, it is ideal for applications where reliability, durability, and corrosion resistance are essential.
Applications
-
High-pressure washers and spray systems
-
Car wash and detailing equipment
-
Industrial cleaning and sanitation setups
-
Maintenance and hose interchange systems
-
Quick-connect fluid handling solutions
Features
-
Premium stainless steel for corrosion resistance and strength
-
¼" NPTF to Quick Connect for universal hose/gun fit
-
Compact: 0.55" diameter, ¼" NW, 0.67" wrench size
-
Rated up to 5000 PSI for high-pressure systems
-
Enables fast, leak-free, and secure connections
-
Ideal for demanding and frequent-use environments
Specs
Material Type: Stainless Steel
Pressure: 5000psi
Thread In: 1/4" NPTF
Diameter: 0.55"
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.67"
Weight: 2.10 oz
MosThe Mosmatic 906.025 is a premium high-pressure quick connect plug crafted from stainless steel for superior durability and corrosion resistance. Designed with a ¼" NPTM (male) thread to quick connect interface, it provides a fast, secure, and leak-resistant connection in a wide range of pressure washing and fluid handling systems.
With a compact 0.55" diameter, ¼" nominal width, and a 0.67" wrench size, this coupling is built for efficiency and longevity in the field. Rated up to 5000 PSI, it€™s ideal for industrial-grade applications where performance and reliability are critical.
Applications
-
Commercial and industrial pressure washers
-
Spray guns and high-pressure cleaning tools
-
Car wash equipment and systems
-
Maintenance and service hose connections
-
Fluid transfer systems requiring fast interchange
Features
-
Stainless steel body for excellent corrosion resistance and long life
-
Thread: ¼" NPTM to Quick Connect for standard hose/gun compatibility
-
Diameter: 0.55", Nominal Width: ¼", Wrench Size: 0.67"
-
Withstands pressures up to 5000 PSI
-
Enables quick, reliable, and leak-free connections
-
Ideal for frequent-use, high-pressure environments
Specs
Material Type: Stainless Steel
Pressure: 5000psi
Thread In: 1/4" NPTM
Diameter: 0.55"
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.67"
Weight: 2.10 oz

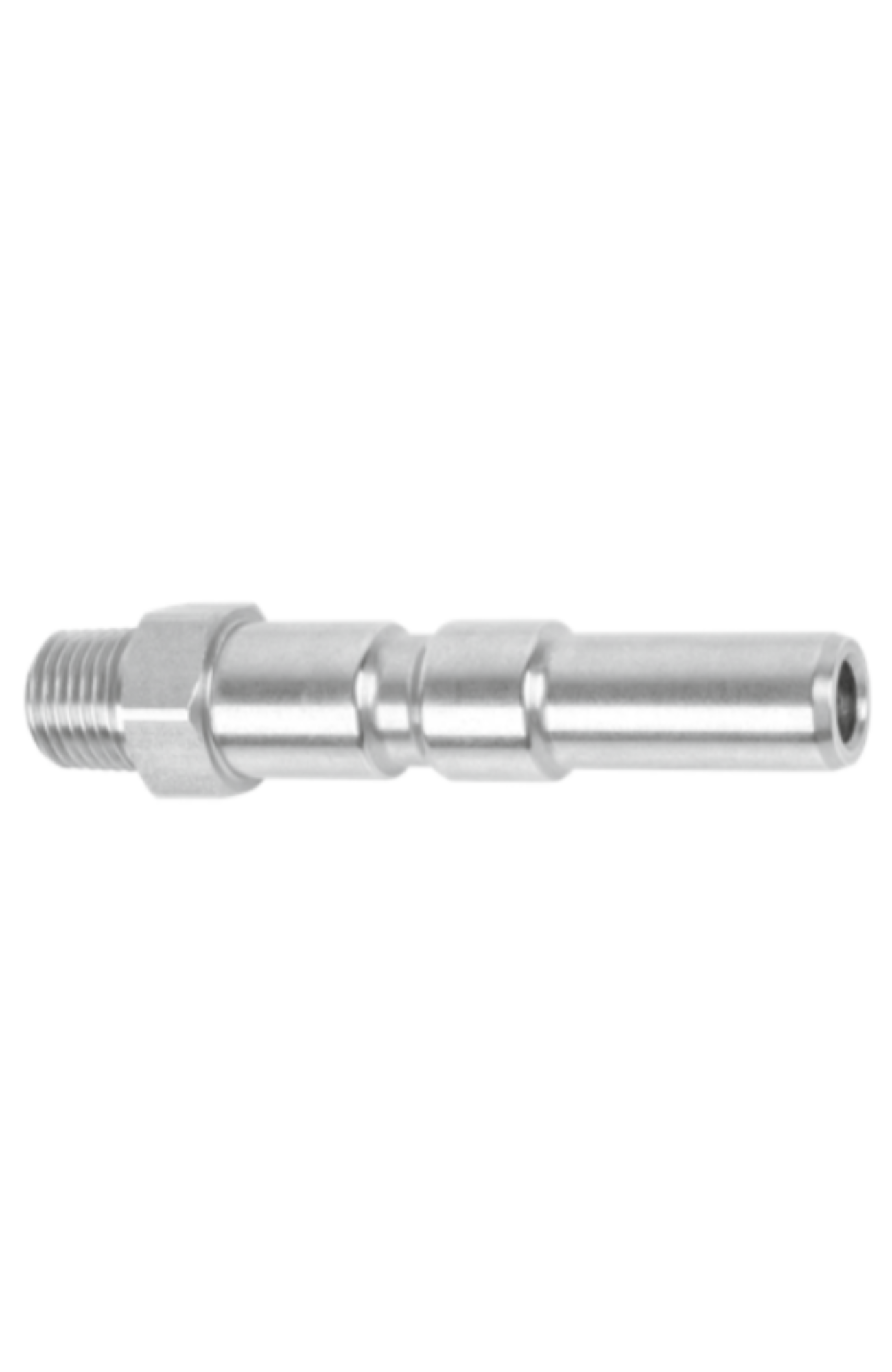

The Mosmatic 906.021 is a high-quality stainless steel quick connect plug, designed for fast and secure connections in high-pressure cleaning and fluid transfer systems. Featuring a G1/4" male thread to quick connect plug interface, this fitting ensures reliable performance and leak-free operation in demanding industrial and commercial applications.
Compact yet durable, this coupling has a 0.55" diameter and a nominal width of ¼", and it is rated for working pressures up to 4000 PSI. Its stainless steel construction offers excellent corrosion resistance, making it ideal for frequent use in wet or chemically aggressive environments.
Applications
-
High-pressure washers and spray systems
-
Industrial and commercial cleaning equipment
-
Car wash systems and wash bays
-
Fluid handling systems requiring fast tool change
-
Maintenance and service hose fittings
Features
-
Stainless steel construction for superior strength and corrosion resistance
-
Thread: G1/4" male to Quick Connect plug
-
Nominal width: ¼", diameter: 0.55"
-
Rated for up to 4000 PSI high-pressure use
-
Enables quick, secure, and leak-free connections
-
Ideal for high-frequency use in demanding environments
Specs
Material Type: Brass
Pressure: 4000psi
Thread In: G1/4"M
Diameter: 0.55"
Nominal Width (NW): 1/4"
Weight: 10.56 oz
Showing 29/29
Cleaning News
Cleaning News
Cleaning News
