Constant Flow Touchless Foam Spray System by Ionic Systems

The Constant Flow Touchless foam spray system uses Smart Pressure Technology packaged in a detachable, rechargeable, lithium ion power pack which electronically pressurizes and maintains the air pressure in the tank. Due to the latest power density technology, the lithium ion power cells are maximized when air is pressurized in the tank.

This leads to a full day of spraying with just one charge! it provides the optimum pressure for even distribution of Contact chemical foam – no more pumping and guessing if the pressure is correct. Constant Flow allows for precision delivery of chemicals and a reduction in spray time.

The Power Pack is easy-to-use, just attach it to the tank with just a push and a click, turn it on and it automatically starts working. To remove, just rotate the knob while the tank is still under pressure.

• Automatic smart pressure technology that eliminates manual pumping
• Continuous equal flow rate
• One charge can last a full day’s use
• 2.5 Gallon (9.5 litre) capacity

Introducing the all-new portable version of the Foamion^TM

The Foamion^TM Portable is an excellent tool for a wide range of cleaning applications, including cleaning windows, vehicles, and building exteriors. Its ability to provide a controlled fusion of water, chemical, and air makes it a versatile and effective cleaning solution.

Here we've assembled the major components for the portable Foamion system including the main unit, cart and some hose accessories.

For the traditional van mounted Foamion, click for more details.

For the Spray Lance only, click for more details.

This assembly does not include the telescopic pole, it must be ordered separately.

Video

Included Items

• Foamion Portable (FOAMION-P)
• Foamion Portable Trolley (FOAMION-P-T)
• Foamion Brush Adapter (FOAMIONBA)
• Foamion Hose - 52 ft or 16m RX (FOAMIONH1)
• Foamion Hose - 23 ft or 7m 1/2" (FOAMIONH2)
• Foamion Lance (FOAMIONL)

You will need to purchase a battery locally.

Other items you may need - Must be ordered separately:

• Ionic Hydra Pole System
• Stainless Steel Hose Reel (only)
• Hi-Vis Air & Water RPVC Hose (12.5MMHS2) 164ft
• Hose Connector (R0505)
• Stainless Hose Clips (19.8-706R) (R0861) (x4)

About the Lance:

Specifications

• Dimensions: H: 19" (490mm) x W: 24" (600mm) x D: 18" (470mm)
• Weight: 90lbs 6 oz (41kg (Lithium Battery)
• Power: 12v (Lithium Battery)
• Air Pressure Control: On-board Isolated Air Regulator
• Max Run Time: 4 Hours
• Mix Ratio Min: 19/1 (5%)
• Mix Ratio Max: 3/1 (25%)
• Frame Construction: Polypropylene
• Outer Construction: PolyPropylene
• Operating Noise Level @1mtr: <85db
• Operating Noise Level @5mtr: <72db
• Air Compressor Pressure: 142psi (max)
• Compatibility: Compatible with all Reach & Wash Systems and/or water taps

 Coverage

 Manuals

Foamion Portable User Manual

Foamion is the little brother to the Thermion™ system. Thermion™ is dual purpose, and is used for Weedkilling and Soft Washing, whereas Foamion™ is primarily a Soft Wash System.

Foamion™ is a cost effective add-on machine and it works in conjunction with your existing Ionic Reach & Wash® System.

Foamion™ gives the operative the option to mix any chemical product, i.e. Sodium Hypochlorite and Biocides at the point of use. This is a perfect way to apply treatments for algae infestations on render or plastics. Foamion™ can used to treat moss on roof tiles or apply black spot remover for patios, paths or driveways.

*Battery Not Included*

Battery Specs: Needs 2 of 150Ah 12V Lead Acid batteries or 2 of 105Ah Lifos Lithium Iron Phosphate (LiFePO4) batteries.

Foam Cleaning

Applying treatments as a foam has multiple benefits, as it gives a longer contact dwell time on a surface. The air infused mix of chemical and water, promotes activation and allows the chemical to work to it’s optimum performance. Chemical activation is further amplified when mixed with hot pure water up to to 60°C from a Thermopure™ system.

A chemical mixed with air and heat is super charged and becomes even more powerful and vigorous, meaning a reduction in the amount of chemical used per application to achieve the desired result. When the chemical is applied as a foam it significantly reduces water usage and the risk of over-spray and run off.

The Foamion™ system can be retro fitted and paired with many existing van installations. Foamion™ takes a pumped water feed from the existing Reach & Wash® system, which enters through a non-return valve, this eliminates the risk of any chemical contamination of the pure water system and delivery pumps, so window cleaning results are unaffected.

Having the Foamion™ operate in this way, allows a chemical feed and pure water to be applied at the same time, allowing operatives to soft wash and window clean simultaneously. The Foamion™ is a battery powered unit, so it can be used self-contained like a Reach & Wash® System.

 Videos

Specifications

Dimensions: 26 in x 48 in x 18 in

Weight: 176 lbs / 282 lbs depending on battery

Power: 12V

Air Pressure control: on-board isolated air regulator

Max run time: 8 hours

Mix Ratio Min: 19/1 (5%)

Mix Ratio Max: 3/1 (25%)

Cleaning Solution Capacity: 9 gal / 35 L

Frame Construction: Stainless Steel

Outer Construction: Polypropylene

Operating noise level at 1 meter: <85db

Operating noise level at 5 meter: <72db

Vehicle Clamping: FMVSS-208 crash tested clamps

Air compressor pressure:; 142 psi (max)

Compatibility: Compatible with all Reach & Wash Systems

Manuals

Foamion User Manual

The Ionic Systems ThermoWash™️ Hot Softwashing System is a compact vehicle-mounted machine that delivers excellent cleaning results due to the combination of purified water and heat. It comes as a 211 Gallon (800 Liter) sized tank system.

Most other soft wash systems use cold, unpurified water, normally drawn from the spigot. In this scenario the chemicals used in the cleaning process have to overcome the minerals in the water; therefore, more chemical is needed than necessary, particularly in hard-water areas. This drives up chemical costs and drives more pollution.

During the colder months and especially when heavy soil is encountered the answer for most soft washers is to add more chemical, which leads to more neutralizer, time and water for rinsing. All of these additions drive up overall job costs.

ThermoWash™️ easily achieves the optimal temperature of 131º to 140º. This drastically improves the effectiveness of pure water when combined with pure water and the right cleaning agent. This delivers superior cleaning results with less environmental impact.

The operator can draw up to four separate chemicals or detergents and set chemical mixes at his desired strength based upon the specific application. The chemicals are mixed inline with the pure water after the pump so no chemicals come in contact with the pump. This eliminates the need to flush the pump.

As a window cleaning system, ThermoWash™️ is a fully automatic four stage RO/DI system with PFS™️ (Periodic Flush System), ROMS™️ (Reverse Osmosis Maintenance System & PDI™️ (Perpetual Deionization) as standard.

 Other Required Products (ordered separately):

• Fitting Kit for ThermoWash
• Crate for shipping
• Quantity 2 Spray Lane

Constant Flow Spray Nozzle

Can be inserted into the Hydra Vertigo Quick Release Pole for high-reach foaming action.

RAPIDO™ ELECTRIC HOSE REEL

The Rapido™ Reel can hold up to 328 ft (100m) of 3/8" RX hose, which can be quickly and effortlessly reeled, and is housed in a sleekly designed encasement; however, as a best practice we typically use 262 ft (80m) which allows the reel to retract the hose faster and keep it coiled up neatly.

Rapido™ has the assistance of a belt driven motor. The battery powered, low torque, high speed motor allows the hose to be reeled onto the spindle at rapid speed, allowing operatives a time and effort-saving benefit over manual reeling.

The Rapido™ Reel is constructed from high quality stainless steel and shares the unrivaled spindle drum design of our tried and tested quality hose reel range. It has a 10 year warranty on the stainless parts. With a sleek plastic cover to protect the motor from water ingress, Rapido™ boasts 180 degree hose guide rollers, and is powered by the system’s own battery. Ionic’s "quality without compromise" design ethos is applied to Rapido™ throughout, and it’s built to last, meaning you can expect many years of trouble free operation.

The Rapido™ reel has as a standard stop/start push button operation. (Note: front controller box version no longer offered)

The unique design allows for the detachable reel to be fitted and secured to the floor of a vehicle or a portable trolley, or stacked on top of each other, maximizing space saving.

Rapido Assembly includes RX hose and connectors.

Video

Included Items

x1 Rapido Hose Reel

Rapido Assembly:

• Rapido Hose Reel
• One section of RX Hose: 328 ft (100M) Hose, 8mm internal diameter.

• RXHADA connector

PLEASE NOTE: The system is no longer offered with a front controller as shown in this video. All units are supplied with an electric push button.

Specifications

• 19"L x 13.5"W x 19"H
• Weight 41 lbs (without hose)

Three different hose reels to choose from!

Stainless Steel Hose Reel with Wheels

Superb quality non-rusting stainless steel hose reel with wheels for ease of transportation. This hose reel is built to last and will stand up to even the most punishing of work schedules!

Holds approximately 100m-200m of Ionic RX Hose (or any 8mm hose) or 50m-100m of standard 1/2 inch hose. Comes with a hose tail on the inside to connect one stretch of hose (to wind up).

In order to connect your water fed pole line to the water output you'll also need to purchase separately an RX Hose Adapter (3/8" Hose to 1/2"inch fitting (RXHADA).

The inside width (where the hose wraps around in-between the walls) is 9 inches. The width from outer wheel (nut) to outer wheel (nut) is approximately 19 inches. and the handle extends out past that approximately another 4.5 inches. The height is 34.5 inches.

Select Type:

• Reel only
• Assembled with 100m of Ionic RX Hose (blue)
• Assembled with 50m of ½ inch Aquaflex Hose (yellow)

Stainless Steel Hose Reel with Wheels - Hand Carriable

Smaller, hand Carriable, quality small stainless steel hose reel. Holds 50m of ½ inch hose or 100m of Ionic RX Hose.

Select Type:

• Reel only
• Assembled with 100m of Ionic RX Hose (blue)
• Assembled with 50m of ½ inch Aquaflex Hose (yellow)

Mountable Steel Hose Reel

Mountable, quality small stainless steel hose reel. Holds 50m of ½ inch hose or 100m of Ionic RX Hose.
*Variation with double stacking cannot be bought online and it will be available upon request.

*Reel only

ROOF WAND™

Until now, roof cleaning has always been a job that presents many challenges, either with costly forms of safe access, with the hire of scaffolding or powered access, and once you have gained access, the need to remove moss or lichen, before applying a biocide to kill the organic life living on there.

The NEW Ionic Roof Wand ™ offers a safe form of access that allows the operative to work from the safety of the ground, to not only remove moss and lichen, but leave the tiles clean and the roof looking like new.

The uniquely patented, high pressure Roof Wand ™ with turbo nozzles, allows for fast coverage of cleaning. The nozzles rotate at high speed to increase both the intensity and cleaning area of the spray.

As water is forced down onto the surface, it creates a hovering action which allows the operative to easily direct and control to wash down a roof.

The Roof Wand ™ is used with a telescopic mast, that allows the operative to gain access over roofs and difficult to access areas with ease and with limited effort.

Key Features:

• Innovative design enables safe working from the ground.
• Roof Wand offers an all-in-one, safe alternative to pre-existing methods.
• One price, for life. Eliminate the need for renting costly access equipment.
• 27 ft vertical adjustment
• 30° Horizontal Adjustment

• Remote control

Components:

The three components that make up this solution are:

• Trolley
• Mast
• Pole Kit

For the trolley there are two options available:  Pumped and non-pumped. The pumped version allows the operator to use the trolley as a pure water reservoir for window cleaning.  Pure water production system not included.

PLEASE NOTE: Pressure Washer (not included)

The ideal pressure washer will be approximately 3000 psi, 5 GPM and the roof wand will reach approximately 60 ft high.

Videos

Included

• Trolley (pumped or non-pumped)
• Mast
• Pole Kit- Pole, Nozzles & Connectors

PLEASE NOTE: This does not include a pressure washer. If you do not currently own one then you will need to purchase one. Pressure Washer specifications should be a minimum of 3000psi and 5 Gallons Per Minute (GPM).

The trolley is supplied with a 12v 22amp hour battery that will need connecting under the black cover (remove the screws to access the battery). The battery needs to be charged after every use using a 110v battery charger supplied. The remote FOB will also require charging after every use, this just plugs into a USB port using the short black cable provided.

Specifications

• Length of Roof Wand: 59 ft 1 in (18M)
• Length of individual poles for Roof Wand: 6ft 7in (2M)
• Length of Roof Mast
• Section 1: 202.6cm
• Section 2: 161.6cm
• Section 3: 157.7cm
• Section 4: 153.8cm
• Section 5: 149.7cm
• Section 6: 145.7cm
• Section 7: 141.4cm
• Mast Trolley uses transverse clamps
• Roof Wand uses 2 transverse clamps on the handle sections and the rest are push fit
• Fitting between Roof Wand pole and Roof Mast is a high pressure hydraulic type hose rated at 2500psi
• Pole fitting: Hose and trigger assembly connectors are TST series 165.5 inch

Manuals

Roof Wand User Manual

Ionic Systems Cartridge Filters for Trion™️

These are the various types of cartridge filters that suit the Trion™️ System.

These cartridge filters fit into the system housings.

Please choose style you need. If you need multiple cartridge styles then add each one individually to your cart.

• Sediment Filter Cartridge- Short
• Carbon Filter Cartridge - Short
• Ultra Low Pressure Reverse Osmosis Membrane (Also for Pure20 Triton)
• Ionic DI Filter Cartridge- Short

Note: If you are looking for cartridge filters for Zero, V4 or Quattro click here. If you are looking for cartridge filters for the Portage Explore Ionic Systems Cartridge Filters for Portage™️.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system and filters in tip top shape through the winter.

Video

Ionic Systems Cartridge Filters

These are the various types of cartridge filters that suit the Reach and Wash® Zero, V4, Quattro and Caddy systems.

These cartridge filters fit into the system housings.

Please choose style you need. If you need multiple cartridge styles then add each one individually to your cart.

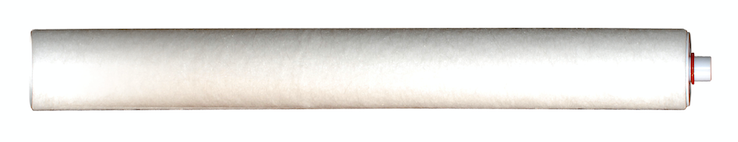

• Sediment Filter Cartridge
• Carbon Filter Cartridge
• Water Softening Cartridge
• Reverse Osmosis Membrane (w/ 4 Red O'Rings)
• Ionic DI Filter Cartridge
• Ionic NGDI Filter Cartridge (Nuclear Grade DI)

Note: If you are looking for Portage™️ filters they are listed separately. Please click here.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system and filters in tip top shape through the winter.

Ionic Systems Cartridge Filters for Portage™️

These are the various types of cartridge filters that suit the Portage™️ System.

These cartridge filters fit into the system housings.

Please choose style you need. If you need multiple cartridge styles then add each one individually to your cart.

• Sediment Filter Cartridge- Short
• Carbon Filter Cartridge - Short
• Reverse Osmosis Membrane (w/ 4 Red O'Rings)
• Ionic DI Filter Cartridge- Short

Note: If you are looking for cartridge filters for Zero, V4 or Quattro Ionic Systems cartridge filters for the Trion. If you are looking for cartridge filters for the Trion Ionic Systems cartridge filters for Trion.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system and filters in tip top shape through the winter.

Ionic Systems Male Hose Quick Coupling

Available in these sizes:

• 021 Series Plug 6mm Hosetail -REC6M
• 021 Series Plug 8mm Hosetail - REC8M

1/2 BSP 90 degree nipple [3302 51

1/2 BSP straight Hose nipple [3301 73]
