Protective cage only for for 24" duct cleaner. Stainless steel - polished.

*Cage only, other parts not included, picture for reference only

The Mosmatic 80.9011 Low Pressure Upgrade Kit is a reliable solution for enhancing the functionality of your Hurricane Series surface cleaner. This professional-grade upgrade kit allows operators to easily switch to low-pressure applications, such as rinsing or applying chemicals, without compromising performance or durability.

The kit includes one HP spray gun, one upper fork assembly, and one low-pressure hose for smooth integration with existing Hurricane systems. Nozzles are not included and must be ordered separately based on your specific cleaning needs.

Applications

• Mosmatic Hurricane Series surface cleaners

• Low-pressure rinsing and chemical application

• Industrial, commercial, and municipal surface cleaning

• Retrofit upgrades for extended functionality

Key Features

• Designed specifically for the Hurricane Series

• Includes: 1x HP-Gun, 1x Upper Fork, 1x LP-Hose

• Supports low-pressure functionality for expanded use

• Nozzles sold separately for customized spray patterns

• Built with durable components for long service life

• Easy integration with existing Mosmatic equipment

Important: Do not use unproteced!

Nozzles are not included, please order separately.

Specs

HP-Gun: 1x

Upper Fork: 1x

LP-Hose: 1x

Weight:8.4 lbs

The Mosmatic Professional Surface Cleaner FL-AH 750 (Part #80.798) is a high-performance, stainless steel cleaning system designed for large-scale surface cleaning indoors and outdoors. Featuring an integrated recovery system, this unit collects and recycles wastewater and debris using your vacuum system—delivering an eco-conscious and efficient cleaning solution.

Its adjustable-height housing, reinforced rotor arms, and high-speed DXTI swivel offer excellent cleaning precision and durability under continuous use. With a wide 30" cleaning path and pressure tolerance up to 5000 PSI, the FL-AH 750 is engineered for maximum productivity in professional environments. This unit includes four rotor arms, four high-pressure nozzles, a high-pressure gun, and four stainless steel casters for easy maneuvering in tight spaces.

Applications

• Cleaning large industrial and commercial floor spaces

• Sidewalk, concrete, and parking lot maintenance

• Municipal surface cleaning and sanitation

• Warehouse and logistics facility floor care

• Indoor/outdoor surfaces in high-traffic public areas

Features

• Built-in fluid recovery system with vacuum port for efficient wastewater recycling

• Stainless steel, height-adjustable frame for optimal surface contact and stability

• Includes one DXTI swivel with high-rpm, self-lubricated stainless steel ball bearings

• Dual spring-based carbide seal system for long-lasting performance

• Four precision-balanced 1/4" NPTF rotor arms rated up to 7300 PSI

• Four high-pressure nozzles and one HP gun for a complete professional setup

• Four 4" stainless steel casters with custom mounting brackets for smooth maneuvering

• 30" cleaning diameter for fast, large-area coverage

• Rated up to 5000 PSI and 250°F for high-pressure, high-temperature cleaning

Video

Included

Swivel: 1 x DYCI - Part No: 39.910

Rotor Arms: 4 x 1/4" NPTF - 4p4 Rotor Arm

HP Nozzles: 4 x HP Nozzle 1/8" - Part No: 1503

HP Gun: 1 x HP Gun - Part No: 29.081

Caster:  4 x Stainless Steel Caster - Part No: 80.956

Specs

Pressure: 5000 psi

Temperature: 250°F

Thread In: 1/2" NPTF

Thread Out (for nozzles): 1/8" NPTF

Diameter: 30"

Weight: 57.3lbs

The Mosmatic Professional Surface Cleaner FL-AH 520 is expertly engineered for high-performance cleaning of large indoor and outdoor areas. Crafted from premium stainless steel, this robust cleaner combines professional-grade durability with an integrated fluid recovery system that allows wastewater and debris to be collected, recycled, and reused—supporting environmental sustainability.

Designed for maximum efficiency, the FL-AH 520 features a height-adjustable frame for optimal cleaning results, precision-balanced rotor arms capable of handling up to 5000 PSI, and a high-rpm stainless steel swivel with reinforced ball bearings for extended service life. With a 21" cleaning diameter, 1/4" NPTM inlet, and operating capacity up to 250°F, this cleaner is the ultimate solution for demanding surface cleaning applications.

Applications

• Industrial and commercial floor and surface cleaning

• Parking garage, sidewalk, and concrete washing

• Warehouse and facility maintenance

• Municipal and public area cleaning

• Heavy-duty construction site cleanup

Features

• Integrated fluid recovery system for wastewater collection and recycling

• Stainless steel, height-adjustable frame for enhanced cleaning control and stability

• Four 4" premium stainless steel casters with custom mounting brackets for smooth maneuverability

• Precision-welded and balanced rotor arms rated up to 5000 PSI

• High-rpm stainless steel swivel with reinforced, self-lubricated ball bearings for superior performance

• Dual spring-based carbide seal system for long-lasting durability under harsh conditions

• Includes four high-pressure (HP) nozzles, one HP gun, four stainless steel casters, and four 1/4" NPTF rotor arms

• 21" cleaning diameter for efficient coverage

• Handles pressure up to 5000 PSI and temperatures up to 250°F

• 1/4" NPTM inlet for easy connection

Included

Swivel: 1 x DXTI - Part No: 39.910

Rotor Arms: 4 x 1/4" NPTF - 4p4 Rotor Arm

HP Nozzles: 4 x HP Nozzle 1/8" - Part No: 1503

HP Gun: 1 x HP Gun - Part No: 29.081

Caster:  4 x Stainless Steel Caster - Part No: 80.956

Specs

Pressure: 5000 psi

Temperature: 250°F

Thread In: 1/2" NPTF

Thread Out (for nozzles): 1/8" NPTF

Nominal Width (NW): 1/2"

Diameter: 21"

Weight: 44.0lbs

The Mosmatic FL-PB 750 - 80.689 Contractor Big Surface Cleaner is engineered to clean large, uneven, and heavily textured surfaces with maximum control and efficiency. Its robust 30-inch diameter cleaning path, paired with oversized pneumatic tires and a rear stainless steel caster, ensures smooth maneuverability over slatted floors, grates, and ramps. The integrated wand and holder enable precise corner and edge cleaning, making this model a two-in-one powerhouse. Built from high-grade stainless steel and equipped with a high-performance swivel and rotor arms, this cleaner is ideal for industrial, agricultural, and commercial cleaning professionals.

Applications

• Deep cleaning of animal stalls, barns, and stables with slatted or grated flooring

• Industrial warehouse floors and processing plants with uneven surfaces

• Large outdoor areas like arenas, walkways, and platforms

• Situations requiring both wide-path cleaning and detail-oriented rinsing

Key Features

• Dual-Function Cleaning: Quick-connect wand system allows for seamless corner cleaning, rinsing, and prep without tool changes.

• Easy Maneuverability: Two 10" pneumatic tires and a 5" rear caster enable effortless navigation across rough or sloped surfaces.

• Heavy-Duty Rotor Arms: Precision-welded and balanced rotor arms handle up to 4000 psi with consistent pressure distribution.

• Premium Swivel Mechanism: High-rpm stainless steel swivel with self-lubricating bearings and a dual spring carbide seal system ensures long service life.

• Rugged Construction: Corrosion-resistant stainless steel frame built for daily industrial use.

• Specifications: 30" diameter, handles up to 4000 psi and 250°F, with a 3/8" NPTF inlet.

• Includes: 1 x DYCI Swivel, 3 x 1/8" NPTF Rotor Arms, 3 x HP Nozzles, 1 x Wand Nozzle, 1 x HP Gun, 1 x 5" Stainless Steel Caster, 2 x 10" Pneumatic Casters.

Video

Included

Swivel: 1 x DYCI - Part No: 55.253

Rotor Arm: 3 x 1/8" NPTF - 3cw3 Rotor Arms 18.5" - Part No: 82.943

HP Nozzles: 3 x HP Nozzle 1/8" - Part No: 1503

HP Gun: 1 x HP Gun - Part No: 29.081

Wand: 1 x Wand Nozzle - Part No: 1508

Caster: 1 x Caster 5" Ø, 2  x Casters 10" Ø

Optional Extra:

Rotor Arm 17.7", 1/8" - Part No: 82.9069

Specs

Pressure: 4000psi

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out (for nozzles): 1/8" NPTF

Diameter: 30"

Weight: 58.4lbs

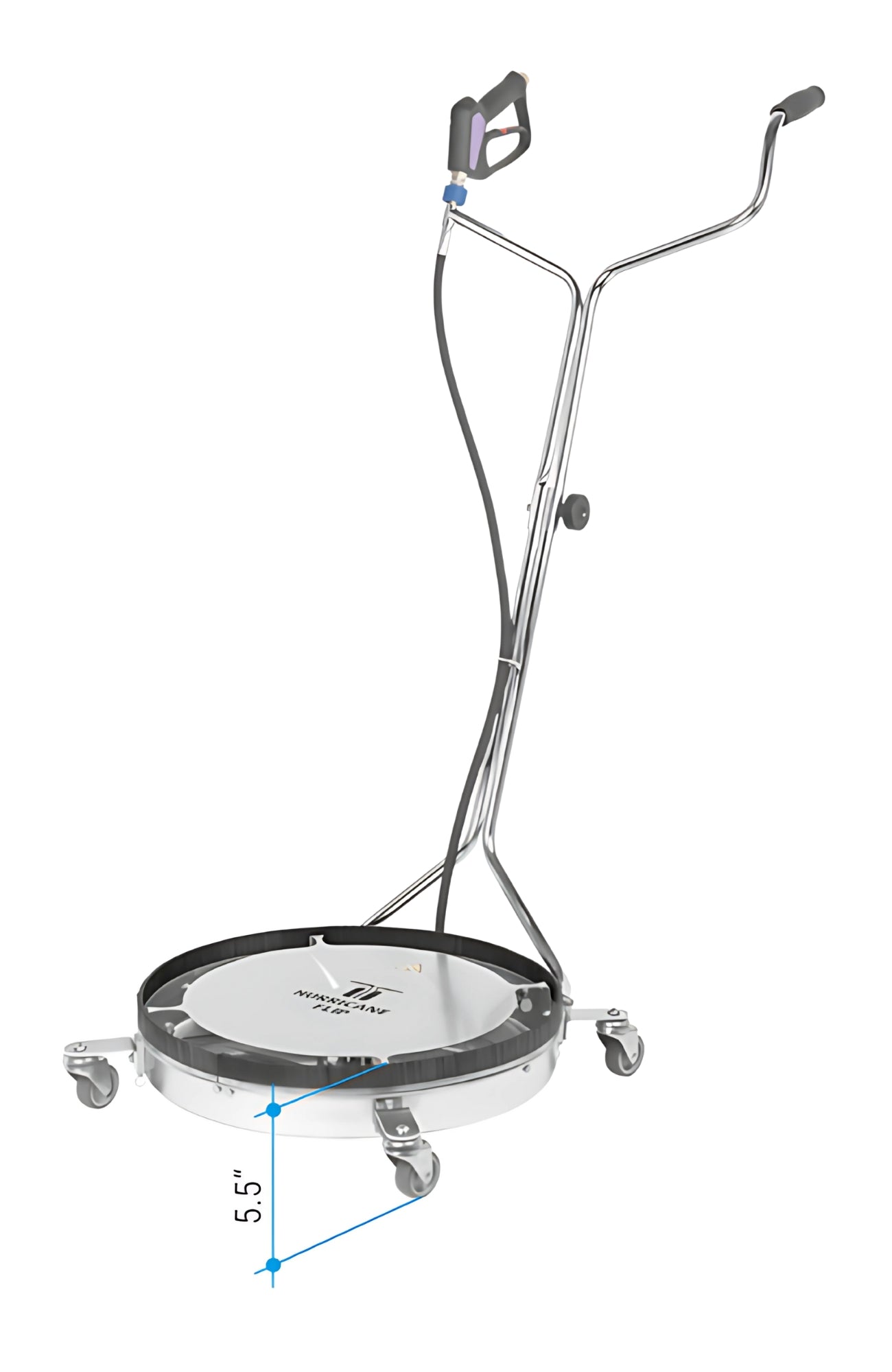

The Mosmatic Hurricane Flip is a dual-function pressure cleaning system engineered for efficiency and precision. Serving as both a surface cleaner and undercarriage washer, this 2-in-1 unit allows users to switch cleaning modes with minimal effort using the easy flip function. Its low-profile design eliminates the need for vehicle lifts, making it ideal for professional auto detailing, fleet maintenance, and industrial operations.

Built to handle pressures up to 4000 PSI and temperatures up to 250°F, the Hurricane Flip delivers durable, high-performance cleaning with both hot and cold water. Featuring a high-precision rotor arm, a reinforced DYF swivel, and smooth-rolling stainless steel casters, it’s designed for professionals who demand quality, versatility, and reliability in the field.

Applications

• Vehicle undercarriage washing (cars, trucks, buses)

• Pressure washing of driveways, sidewalks, and shop floors

• Auto detailing and fleet maintenance

• Commercial and industrial equipment cleaning

• High-temperature degreasing with hot water

Key Features

• 2-in-1 Flip Function: Effortlessly transitions between floor and underbody cleaning

• High-Precision Rotor Arm: Balanced, low-profile arm made using automated welding for stability and consistent coverage

• Premium Swivel (DYF): Reinforced with self-lubricating stainless steel bearings and carbide sealing for high RPM durability

• High-Pressure Performance: Rated for up to 4000 PSI and 250°F operation with hot or cold water

• Quick Setup: 3/8" NPTF inlet for standard high-pressure connections

• Low Clearance Design: Requires only 5.7" for undercarriage cleaning without vehicle lifts

• Heavy-Duty Components: 2 x 1/8" NPTF rotor arms, 2 x HP Nozzles (1503), 1 x HP Gun, 3 x 2½" stainless steel casters
• Compact & Portable: Weighs only 28.7 lbs for easy maneuvering and storage

Video

Included

Swivel: 1 x Toggle Swivel - Part No: 58.323

Rotor Arm: 2 x 1/8" NPTF 18.5" High Precision Rotor Arm - Part No: 82.942

HP Nozzles: 2 x HP Nozzle 1/8" - Part No: 1503

HP Gun: 1 x HP Gun - Part No: 29.081

Caster: 3 x Stainless Steel Casters 2 1/2" Ø - Part No: 80.9045

Specs

Pressure: 4000 psi

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out (for nozzles): 1/8" NPTF

Diameter: 21"

Min. Clearance: 5.7"

Weight: 28.7 lbs

The Mosmatic Professional Surface Cleaner FL-AHY 750 (Part #80.389) is engineered for high-efficiency, chemical-free cleaning of large surfaces both indoors and outdoors. Featuring a dual-housing recovery system and vacuum port, this unit captures and recycles wastewater and debris—ensuring sustainable, environmentally responsible operation.

Crafted from premium stainless steel, the FL-AHY 750 combines strength, maneuverability, and longevity. Its height-adjustable housing ensures optimal surface contact, while the high-performance DYDI swivel and precision-welded rotor arms deliver smooth, reliable function under tough conditions. With a wide 30" cleaning diameter and 5000 PSI capacity, it’s built to handle demanding commercial and industrial cleaning applications with ease.

Applications

• Indoor and outdoor commercial floor cleaning

• Municipal and public space sanitation

• Concrete surface and sidewalk maintenance

• Parking lot and plaza cleaning

• Industrial facility and warehouse floor restoration

Features

• Integrated fluid recovery system with vacuum port for wastewater collection and reuse

• Height-adjustable stainless steel frame for enhanced cleaning performance and control

• Four 4" stainless steel casters with custom mounting brackets for smooth maneuverability

• DYDI stainless steel swivel with high RPM and self-lubricated ball bearings

• Dual spring-based carbide seal system for long-lasting, leak-resistant operation

• Three 1/8" NPTF rotor arms, precision-welded and balanced, rated up to 7300 PSI

• 30" cleaning diameter for wide-area coverage

• Rated for up to 5000 PSI and 250°F

Video

Included

Swivel: 1 x DYDI - Part No: 55.263

Rotor Arm: 3 x 1/8" NPTF

Caster:  4 x Stainless Steel Caster - Part No: 80.956

Specs

Pressure: 7300 psi

Temperature: 250°F

Thread In: 1/4" NPTM

Nominal Width (NW): 1/4"

Diameter: 30"

Weight: 50.7lbs

The Mosmatic Allrounder Surface Cleaner FL-AER 410 is a compact, high-performance cleaning tool designed for precise and efficient surface cleaning in small or hard-to-reach areas. Built with a 16" cleaning diameter and a powerful recovery system, this unit allows residual water and debris to be captured, recycled, or discharged via a vacuum system—supporting eco-friendly operations.

Crafted from durable stainless steel, the FL-AER 410 features Mosmatic’s proven toggle swivel joint, enabling smooth, fatigue-free cleaning on vertical and angled surfaces. It also includes a high-rpm DYF swivel, balanced rotor arms, and heavy-duty casters, making it ideal for professionals who demand performance, mobility, and long-term reliability in a compact design.

Applications

• Cleaning confined or narrow spaces

• Vertical and sloped surface cleaning (walls, steps, curbs)

• Commercial restrooms, kitchens, and food service areas

• Small patios, walkways, and staircases

• Public area detailing and sanitation

Features

• Built-in recovery system with dual-wall housing to optimize vacuum suction and fluid recovery

• Toggle swivel joint for angled and vertical surface cleaning with adjustable movement

• High-rpm DYF stainless steel swivel with reinforced, self-lubricated ball bearings

• Dual spring-based carbide seal system for extended durability under tough conditions

• Two precision-balanced 1/8" NPTF rotor arms rated up to 4000 PSI

• Includes 2 HP nozzles, 1 HP gun, and three 2 1/4" stainless steel caster wheels

• 16" cleaning diameter ideal for small to mid-sized surface areas

• Rated for up to 4000 PSI and 250°F for high-pressure, high-temperature cleaning

Video

Included

Swivel: 1 x DYF -  Part No: 58.250

Rotor Arm: 2 x 1/8" NPTF - Rotor Arm 14" - Part No: 82.625

HP Nozzles: 2 x HP Nozzle 1/8" - Part No: 1503

HP Gun: 1 x HP Gun - Part No: 29.081

Caster: 3 x Stainless Steel Caster 2 1/4" Ø - Part No: 80.943

Specs

Pressure: 4000 psi

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out (for nozzles): 1/8" NPTF

Diameter: 16"

Weight: 20.0lbs

Surface cleaners, parts washer, tire cleaners, high pressure, self rotating applications

• Flange for easy installation
• Seal failure warning, through week holes
• Maintenance free
• Carbide seal systems

DYF-06 M22x1,5-M M12x1-M

Technical data

• Pressure: 4000 psi(27.5 MPa)
• Temperature: 4000 psi(27.5 MPa)
• Temperature: 250 °F (max. 2’000 rpm)
• RPM: max. 2’000 rpm)
• Body: DYF: brass, nickel plated, DYFI: Stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

The Mosmatic DYG Swivel 57.654 is a high-precision, maintenance-free swivel designed for high-pressure, self-rotating cleaning equipment. Built from durable brass with a corrosion-resistant nickel-plated finish, this swivel is ideal for demanding industrial and commercial environments. Featuring a triple bearing system—two radial ball bearings and one thrust ball bearing—it ensures smooth and consistent rotation. The carbide seal system enhances leak protection and extends operational life, while the bulkhead fitting allows for secure, fixed mounting.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotating equipment

• Industrial and commercial cleaning applications

Key Features

• Brass body with corrosion-resistant nickel plating

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for exceptional sealing and wear resistance

• Maintenance-free design

• Bulkhead fitting for fixed, secure mounting

• Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTF

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34”

• Overall Length: 3.42”

• Nominal Width (NW): 3/8”

• Wrench Size (SW): 0.87”

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8” NPTF

Thread Out: G2 3/8” NPTF

Nominal Width (NW): 3/8”

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.42

Length 2 (L2):

Weight: 7.4 oz

High rpm, high pressure, self rotating applications, wall cleaners, parts washers

• Easy rotation under maximum pressure
• Flange for easy installation
• Sealed stainless steel bearings
• Maintenance free

DYW-06 G1/4"F M12x1-M 5000psi

Swivel for Surface Cleaner, Carbide/ss

Technical data

• Pressure: 5000 psi(35 MPa)
• Temperature: 250 °F
• RPM: max. 2’000 rpm)
• Body: brass, nickel plated, stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

The Mosmatic HP Gun <Neo> - 29.142 is expertly designed to provide superior comfort, durability, and performance in even the toughest cleaning conditions. Featuring an ergonomic molded handle and advanced Low Trigger Force technology, it reduces holding force by 90% and trigger effort by 40%, helping minimize operator fatigue during extended use. This model is also equipped with a Weep function that allows water to continuously leak, preventing freezing in cold temperatures. Rated for up to 5000 PSI and 300°F, it includes a 3/8” NPTF inlet and a 1/4” NPTF outlet to ensure secure, professional-grade connections.

Applications

• Cold-weather and winter pressure washing

• Industrial and commercial cleaning

• Automotive and truck wash stations

• Agricultural machinery maintenance

• Construction site cleaning

Features

• Ergonomic molded handle for superior comfort

• Low Trigger Force: 90% reduced holding, 40% less trigger effort

• Weep function prevents freezing during cold weather

• Handles pressures up to 5000 PSI

• Max temperature rating of 300°F

• Thread Inlet: 3/8” NPTF

• Thread Outlet: 1/4” NPTF

• Built for rugged, professional use

Specs

Pressure: 5000 psi

Temperature: 300°F

Weep Function: Yes

Low Trigger Force: Yes

Groove: No

Swivel: No

Thread In: 3/8" NPTF

Thread Out: 1/4" NPTF

Color: Purple

Weight: 1.3lbs

The Mosmatic HP Gun <Neo> - 29.136 is built for extreme performance and durability, making it the perfect choice for heavy-duty industrial cleaning tasks. Featuring an ergonomic molded design for maximum operator comfort, this high-pressure gun is engineered to handle pressures up to 8700 PSI and temperatures up to 300°F. It is equipped with a 1/2” NPTF inlet and a 1/2” NPTF outlet, ensuring secure, reliable connections even in the most demanding environments. Designed for power, precision, and long service life, the Mosmatic Neo series is ideal for the toughest cleaning challenges.

Applications

• Heavy-duty industrial cleaning

• Commercial equipment and machinery maintenance

• Construction site pressure washing

• Agricultural and farming equipment cleaning

• Fleet and large vehicle wash facilities

Features

• Ergonomic molded handle for operator comfort

• Extreme high-pressure capacity up to 8700 PSI

• Max temperature rating of 300°F

• Thread Inlet: 1/2” NPTF

• Thread Outlet: 1/2” NPTF

• Heavy-duty, professional-grade construction

• Designed for long-lasting durability and performance

Specs

Pressure: 8700 psi

Temperature: 300°F

Weep Function: No

Low Trigger Force: No

Groove: No

Swivel: No

Thread In: 1/2" NPTF

Thread Out: 1/2" NPTF

Color: Blue

Weight: 1.5lbs

Mosmatic offers a wide variety of high pressure trigger guns. From our relax actions guns that offer 90% reduced holding and 40% less trigger force to models with built in live swivels. Standard and Weep model designs are also available.

• 500 Bar Rated
• Relax trigger force
• * No swivel inlet or weep function *

7300psi-bar 300° in:G3/8"F out:G1/4"F

Inlet Thread: G3/8 F

Outlet Thread: G1/4 F

Color: Red

Bar Pressure: 500

Temperature (°C)150 / 302°F
