Suttner America

The Suttner MPT Nozzles Size 60 provide high-precision cleaning performance for industrial and commercial pressure washing systems. Engineered from hardened stainless steel, these nozzles are built to withstand wear in high-usage environments while delivering a consistent, controlled spray pattern.

Available in 1/4" MPT thread size, Size 60 nozzles come in three spray angle options: 0°, 5°,  and 25°, offering a wide range of cleaning intensities - from concentrated impact to broad coverage. These threaded nozzles are ideal for operators who prefer a secure, fixed nozzle connection over quick-connect styles.

Compact and durable, these nozzles are a perfect fit for equipment where quick access, spray control, and reliability are critical.

Applications

• Fixed spray systems and compact lances

• Industrial and commercial pressure washers

• Vehicle cleaning, parts washing, and detail spraying

• Installations requiring high wear resistance and precise coverage

Features

• Three spray angles: 0°, 5°, 25°

• Available in 1/4" MPT thread size

• Uniform droplet distribution for clean, efficient coverage

• Hardened stainless steel for extended life under pressure

• Ideal for applications where quick exchange is not needed

Specs:

Product Type: Nozzle
Category: Threaded Spray Nozzle
Brand: Suttner
Part Number: Varies by variant
Material: Hardened Stainless Steel
O-Ring: None
Pressure: Not specified
Temperature: Not specified
Threading In: 1/4" MPT
Threading Out: N/A
Weight: Approx. 0.05 lb

The Suttner MNPT Nozzles Size 1.5 are engineered for fixed spray applications where precision and durability are essential. Manufactured from hardened stainless steel, these nozzles are built to last in high-use environments, delivering consistent spray performance for compact and secure setups.

Size 1.5 is available in 1/4" MNPT with a 25° spray angle, offering a medium fan pattern ideal for controlled surface cleaning. This direct-threaded nozzle is the perfect choice for systems that do not require quick-connect fittings and benefit from a tight, permanent installation.

Applications

• Precision cleaning in fixed-position equipment

• Compact systems requiring narrow spray patterns

• Pressure washing without quick-connect fittings

• Equipment maintenance and spot cleaning tasks

Features

• 25° spray angle for medium-width coverage

• Hardened stainless steel for excellent wear resistance

• Fixed 1/4" MNPT threading

• Uniform droplet distribution

• Ideal for detailed cleaning and tight installations

Specs:

Product Type: Nozzle
Category: Threaded Spray Nozzle
Brand: Suttner
Part Number: 820202515
Material: Hardened Stainless Steel
O-Ring: None
Pressure: Not specified
Temperature: Not specified
Threading In: 1/4" MNPT
Threading Out: N/A
Weight: Approx. 0.05 lb

The Suttner MNPT Nozzles Size 2 provide high-precision cleaning performance for industrial and commercial pressure washing systems. Engineered from hardened stainless steel, these nozzles are built to withstand wear in high-usage environments while delivering a consistent, controlled spray pattern.

Available in 1/4" MNPT for all spray angles and 1/8" MNPT specifically for the 65° angle, Size 2 nozzles offer a range of cleaning intensities from concentrated impact to wide fan coverage. This makes them ideal for applications requiring precise control and durable, fixed-thread performance without the need for quick-connect fittings.

Compact and durable, these nozzles are a perfect fit for equipment where quick access, spray control, and reliability are critical.

Applications

• Fixed spray systems and compact lances

• Industrial and commercial pressure washers

• Vehicle cleaning, parts washing, and detail spraying

• Installations requiring high wear resistance and precise coverage

Features

• Four spray angles: 0°, 15°, 25°, 65°

• Available in 1/4" MNPT and 1/8" MNPT thread sizes

• Uniform droplet distribution for clean, efficient coverage

• Hardened stainless steel for extended life under pressure

• Ideal for applications where quick exchange is not needed

Specs:

Product Type: Nozzle
Category: Threaded Spray Nozzle
Brand: Suttner
Part Number: Varies by variant
Material: Hardened Stainless Steel
O-Ring: None
Pressure: Not specified
Temperature: Not specified
Threading In: 1/4" MNPT or 1/8" MNPT
Threading Out: N/A
Weight: Approx. 0.05 lb

The Suttner MNPT Nozzles Size 1 offer precision performance for pressure washing applications where compact, high-impact spraying is required. Manufactured from hardened stainless steel, these nozzles are built for durability and consistent output in demanding environments.

Size 1 is available exclusively in 1/4" MNPT with a 25° spray angle, delivering a medium-width fan pattern ideal for controlled cleaning in tight or fixed installations. The nozzle produces a uniform distribution of small to medium droplets, perfect for detail-focused pressure washing tasks.

These nozzles are a great fit for operators who don’t require quick-connect fittings and need a reliable threaded solution for precision equipment or compact cleaning systems.

Applications

• Ideal for one-nozzle, fixed applications

• Precision cleaning in tight or narrow setups

• Compatible with 1/4" MNPT threaded lances

• Pressure washing without quick-connect requirements

Features

• Available in a single spray angle (25° for Size 1)

• Thread option: 1/4" MNPT only

• Uniform droplet distribution for consistent cleaning

• Hardened stainless steel body for wear resistance

• Designed for direct-threaded nozzles, no quick coupling

Specs:

Product Type: Nozzle
Category: Threaded Spray Nozzle
Brand: Suttner
Part Number: 820202501
Material: Hardened Stainless Steel
O-Ring: None
Pressure: Not specified
Temperature: Not specified
Threading In: 1/4" MNPT
Threading Out: N/A
Weight: Approx. 0.05 lb

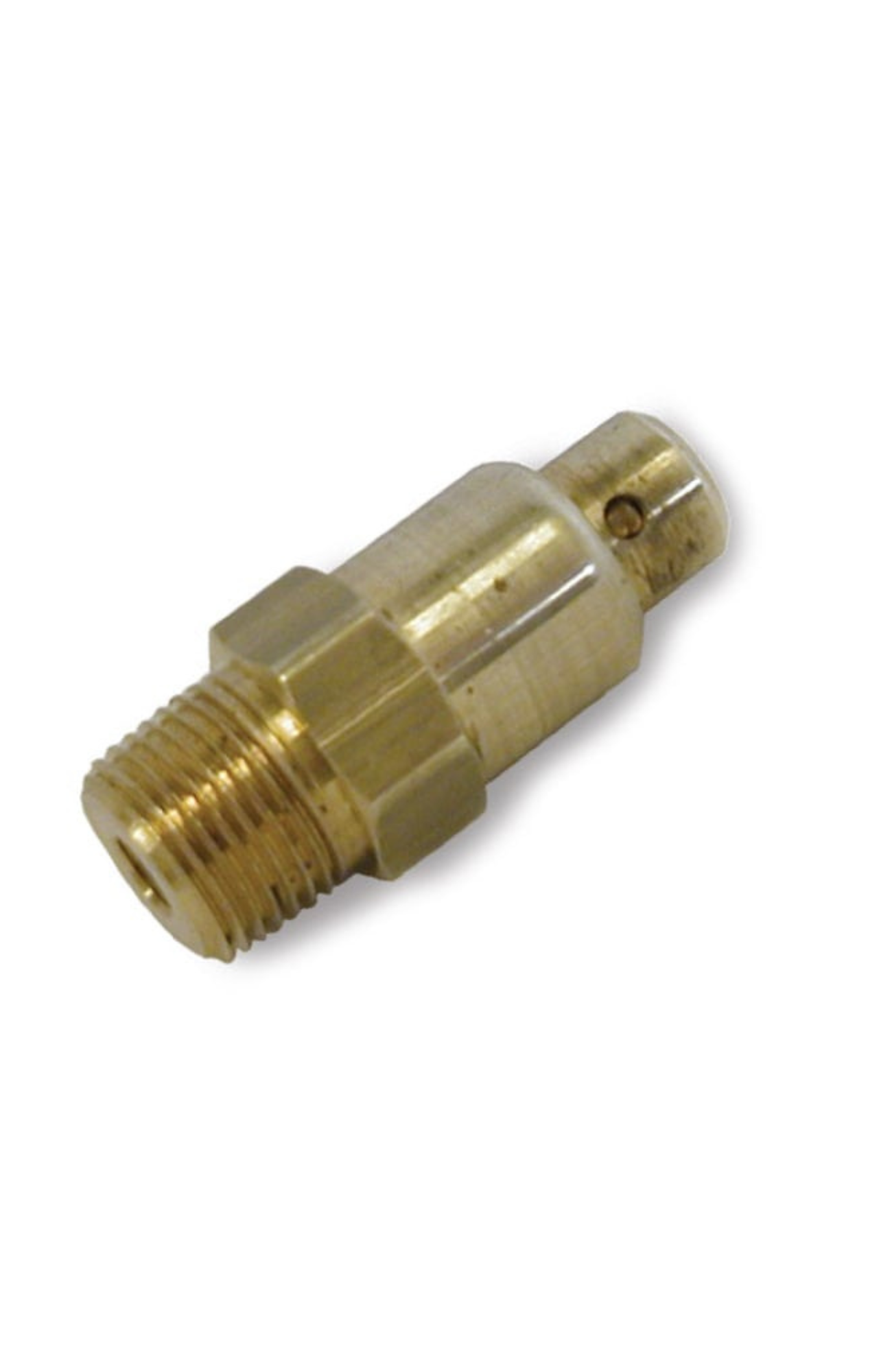

The Suttner Valve 900000063 is a compact and durable thermal relief valve designed to protect high-pressure pumps and systems from overheating due to prolonged bypass operation. Rated for 200 PSI, this valve automatically opens to discharge overheated water when temperature thresholds are exceeded, preventing pump damage and extending system life.

Constructed with robust materials and fitted with a nitrile O-ring, the valve ensures a reliable seal, resistance to heat and chemicals, and long service intervals. It features a 3/8" Male NPT (MPT) threading, making it compatible with most standard pressure washer pump outlets and bypass lines.

Applications:

• Thermal protection for pressure washer pumps

• Bypass loop temperature relief

• Commercial and industrial pressure cleaning systems

• Safety systems in fluid handling

Features:

• Opens automatically when system temperature exceeds safe limits

• Rated for systems up to 200 PSI

• Fitted with chemical- and heat-resistant nitrile O-ring

• 3/8" MPT threading for universal compatibility

• Compact brass design for high durability in field use

Specs

Product Type: Valve
Category: Valves
Brand: Suttner
Part Number: 900000063
Material: Brass
O-Ring: Nitrile
Pressure: 200 PSI
Temperature: Opens at approx. 140–160°F (60–71°C)
Threading In: 3/8" MPT
Threading Out: N/A
Weight: 0.10 kg

The Suttner Nipple 10000561 is a compact, high-pressure ST-41 (A) screw nipple constructed from precision-machined brass. Designed to handle pressures up to 5800 PSI and temperatures up to 300°F (149°C), it enables seamless connections between 1/4" FPT components and M22-threaded systems. Ideal for compact spray guns, chemical injectors, and pressure washing accessories.

This screw nipple is part of the ST-41 series, known for its compatibility with mixed-thread systems and long service life under demanding conditions. The 1/4" Female NPT (FPT) inlet connects easily to U.S.-standard components, while the M22 outlet interfaces with European-style fittings commonly used in pressure washer systems.

Applications:

• Compact pressure washer accessories and spray guns

• Hose adapters for mixed-thread setups

• Chemical and foam injection systems

• High-pressure systems requiring FPT-to-M22 transitions

Features:

• Brass construction for excellent corrosion and chemical resistance

• Supports pressure up to 5800 PSI

• Rated for temperatures up to 300°F (149°C)

• 1/4" FPT inlet connects to U.S.-standard fittings

• M22 outlet compatible with European-style pressure washer accessories

Specs

Product Type: Nipple
Category: Nipples
Brand: Suttner
Part Number: 10000561
Material: Brass
O-Ring: N/A
Pressure: 5800 PSI
Temperature: Up to 149°C (300°F)
Threading In: 1/4" FPT
Threading Out: M22
Weight: 0.12 kg

The Suttner Nipple 80056525 is a high-pressure ST-41 (B) screw nipple made of corrosion-resistant brass, engineered to deliver secure, leak-free performance in systems operating up to 5800 PSI and 300°F (149°C). Designed for connecting U.S. standard fittings to M22 European-style components, this nipple is ideal for pressure washers, sprayers, and other fluid-handling applications.

Manufactured from precision-machined brass, this fitting resists chemical exposure, wear, and temperature fluctuations. The ST-41 (B) model features a 1/4" Female NPT (FPT) inlet and an M22 outlet, offering versatile compatibility in compact systems where mixed-thread integration is required.

Applications:

• Pressure washer hose and spray gun adapters

• Industrial washdown systems

• Chemical and sanitation sprayers

• Transitions between U.S. and European thread types

Features:

• Solid brass construction for corrosion and wear resistance

• Rated for up to 5800 PSI and 300°F (149°C)

• 1/4" FPT inlet fits standard male-threaded U.S. components

• M22 outlet integrates with European-style fittings

• Ideal for compact and mixed-thread environments

Specs

Product Type: Nipple
Category: Nipples
Brand: Suttner
Part Number: 80056525
Material: Brass
O-Ring: N/A
Pressure: 5800 PSI
Temperature: Up to 149°C (300°F)
Threading In: 1/4" FPT
Threading Out: M22
Weight: 0.12 kg

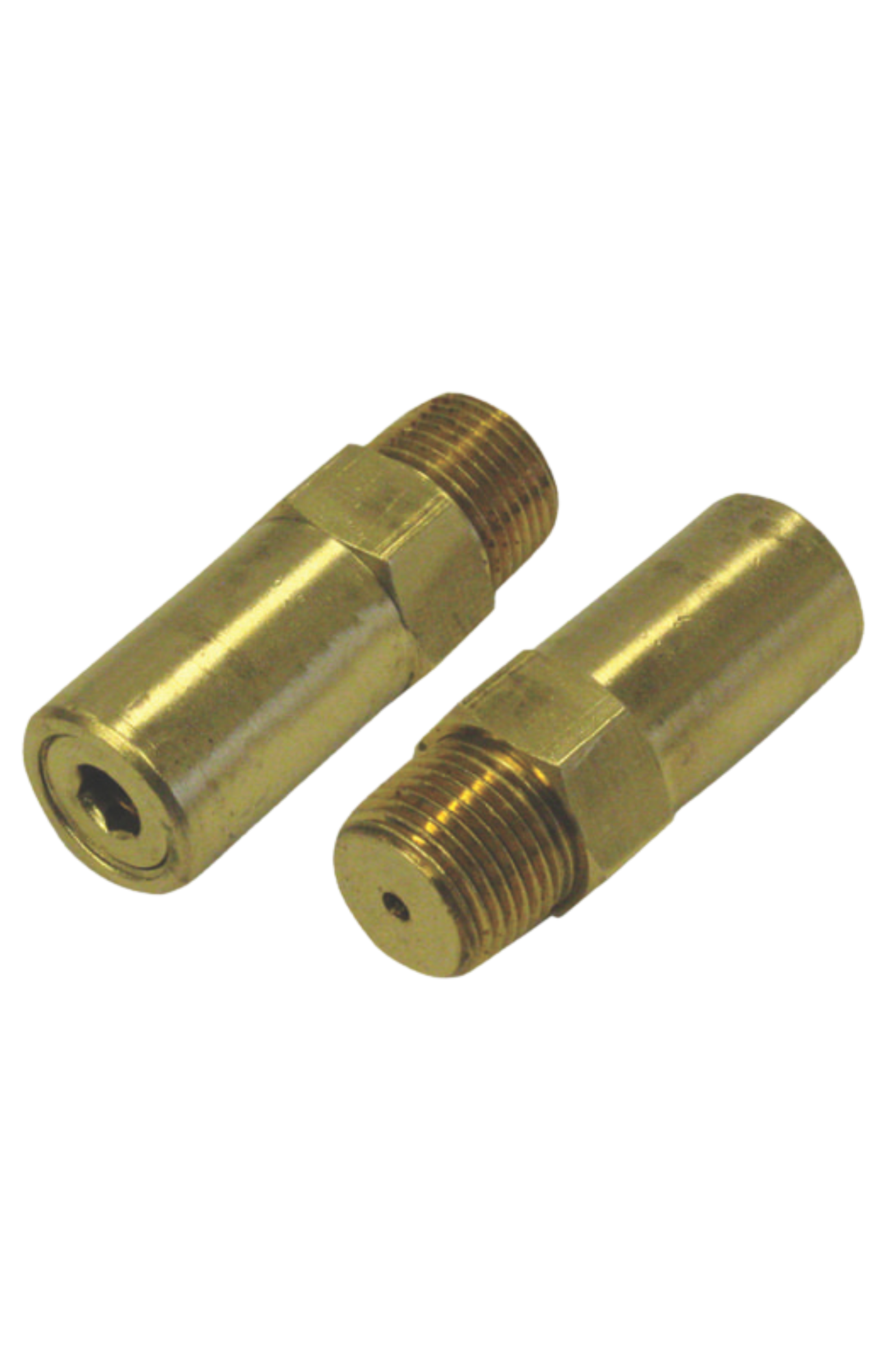

The Suttner Pressure Relief Valve 900000069 is a safety-critical component designed to protect pressure washer systems from damage due to extreme pressure spikes. Often referred to as a “pop-off” valve, it is engineered for 1000 to 4000 PSI systems and supports flow rates up to 6 GPM.

Constructed from durable brass with a soft seat design, this valve helps eliminate leakage (“weeping”) while delivering consistent safety performance. It is adjustable in the field for operational flexibility and features end discharge for easy system integration.

The valve uses a 3/8" MPT inlet, making it compatible with most commercial and industrial pressure washer configurations.

Applications:

• Pressure washer system protection

• Safety backup to unloaders

• Prevents overpressurization damage

• Ideal for portable and fixed cleaning systems

Features:

• Pressure range: 1000 to 4000 PSI

• End discharge design

• Field-adjustable relief setting

• Soft seat to prevent weeping or leakage

• Made of durable brass for corrosion resistance

Suttner relief valves are engineered for safety, durability, and consistent performance under high-pressure demands.

Specs:

Product Type: Valve
Category: Pressure Relief Valve
Brand: Suttner
Part Number: 900000069
Material: Brass
Pressure: 1000–4000 PSI
Temperature: 180°F
Flow Rate: 6 GPM
Threading In: 3/8" MPT
Threading Out: End Discharge
Weight: 0.16 lb

The Suttner ST-264 BSP Check Valve 200264620 is a compact, high-pressure stainless steel valve designed to prevent reverse flow in pressure systems. Rated for up to 5800 PSI, this check valve is suitable for both horizontal and vertical installations, making it versatile for a wide range of cleaning and fluid control setups.

Built with Viton® O-rings and an opening pressure of just 2 PSI, the ST-264 ensures responsive flow control while maintaining high chemical resistance and durability. It is engineered to meet the demands of professional applications in harsh environments.

Equipped with 3/8" Female BSP (British Standard Pipe) threading on both inlet and outlet, this valve is fully compatible with European and BSP-threaded system configurations.

Applications:

• Preventing backflow in pressure washing systems

• Fluid control in chemical, industrial, and washdown setups

• Suitable for vertical and horizontal mounting positions

• Ideal for corrosive or high-pressure applications

Features:

• Compact BSP-threaded stainless steel check valve

• Operating pressure up to 5800 PSI

• Viton® O-rings for chemical and heat resistance

• 2 PSI opening pressure for smooth flow activation

• Mounts in horizontal or vertical orientation

Suttner check valves are built for performance and precision, offering long-lasting reliability in high-pressure systems worldwide.

Specs:

Product Type: Check Valve
Category: Valves
Brand: Suttner
Part Number: 200264620
Material: Stainless Steel
Pressure: 5800 PSI
Temperature: 248° F
Threading In: 3/8" F BSP
Threading Out: 3/8" F BSP
Weight: 0.27 lb

The Suttner Chemical Injector 999000019 is a precision-engineered ST-64 upstream chemical injector, designed for flow rates between 1.5 and 4.0 GPM. Ideal for low-flow pressure washing systems, this injector introduces detergents or chemicals before the pump, offering safe chemical application without exposing the high-pressure components to aggressive agents.

Constructed for durability and ease of use, this unit features 3/4" Female Garden Hose (FGH) inlet and 3/4" Male Garden Hose (MGH) outlet connections, making it compatible with residential and commercial setups that use garden hose fittings. The ST-64 series is known for consistent chemical draw and smooth operation across variable flow environments.

Applications:

• Low-flow upstream chemical injection

• Pressure washers 1.5–4.0 GPM

• Pre-pump detergent or sanitation applications

• Agricultural spraying with chemical isolation

• Equipment requiring pump protection from chemicals

Features:

• Upstream injection protects internal pump components

• Rated for 1.5 to 4.0 GPM systems

• 3/4" garden hose (FGH x MGH) connection for quick installation

• Consistent chemical draw with efficient fluid dynamics

• Durable body design for long-lasting use

Specs

Product Type: Chemical Injector
Category: Chemical Injectors
Brand: Suttner
Part Number: 999000019
Material: Brass/Polymer Body (typical of ST-64 series)
O-Ring: N/A
Pressure: Variable (based on upstream inlet supply)
Temperature: Up to 60°C (140°F) typical
Threading In: 3/4" F Garden Hose
Threading Out: 3/4" M Garden Hose
Flow Rate: 1.5–4.0 GPM
Weight: 0.25 kg

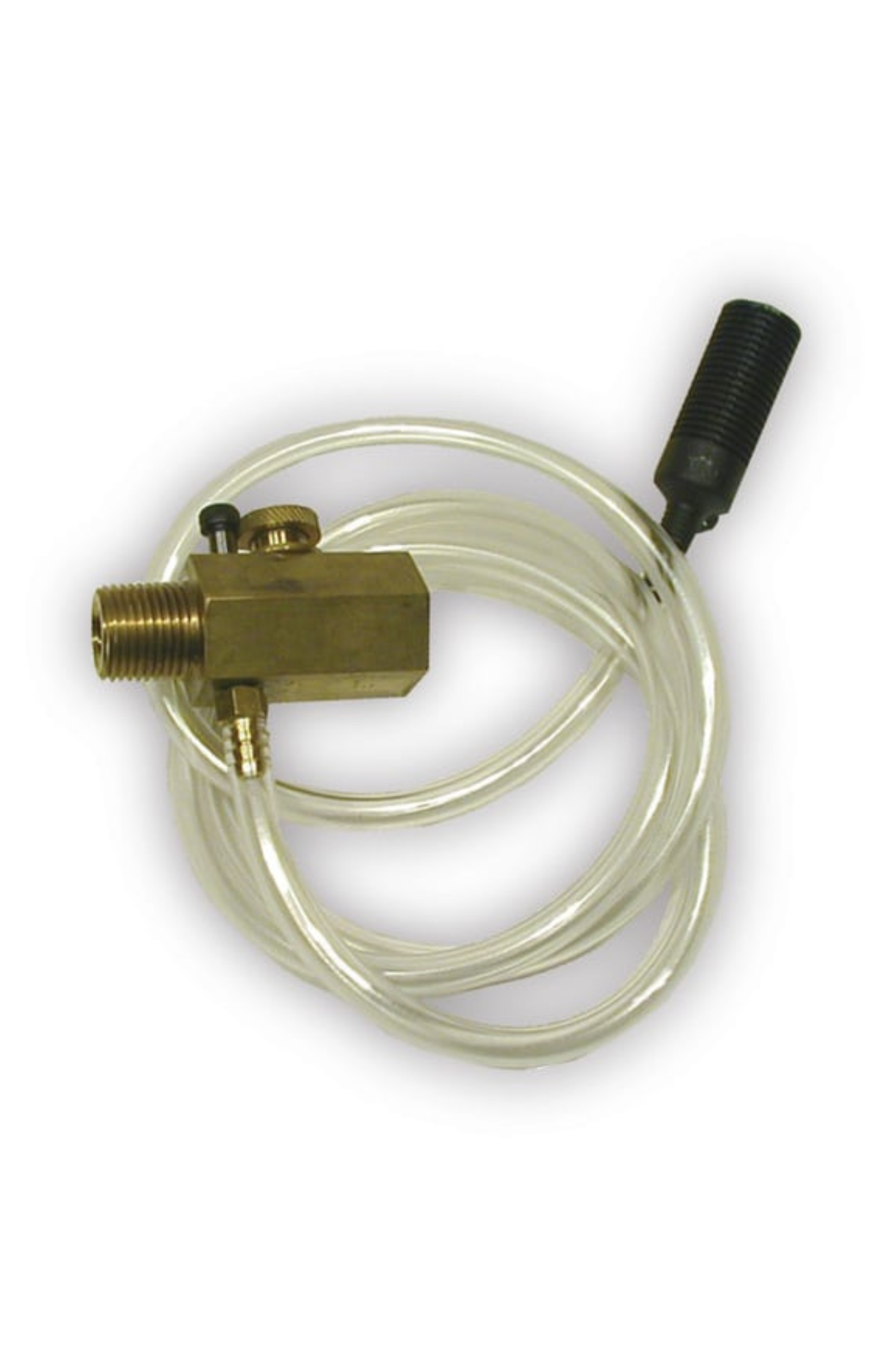

The Suttner Chemical Injector 999000021 is a high-quality ST-64 upstream chemical injector designed for precise chemical application before the pump in pressure washer systems. Engineered for flow rates between 4.0 and 7.0 GPM, this injector is ideal for introducing detergents, degreasers, or sanitation chemicals into the water stream at low pressure, ensuring pump protection and optimal dilution.

Built with durable components and a flow-optimized body, the ST-64 delivers consistent chemical draw and performance. It is specifically designed for garden hose–style connections, featuring a 3/4" Female Garden Hose (FGH) inlet and a 3/4" Male Garden Hose (MGH) outlet, making it compatible with standard residential and commercial water supply systems.

Applications:

• Upstream chemical injection for pressure washers

• Industrial sanitation and cleaning systems

• Agricultural and horticultural chemical spraying

• Pre-pump detergent and degreaser application

Features:

• Upstream injection design protects the pump from chemical exposure

• Rated for flow between 4.0–7.0 GPM

• 3/4" garden hose FGH inlet and MGH outlet for easy hose integration

• Durable construction for reliable long-term use

• Ideal for downstream equipment that cannot tolerate chemical contact

Specs

Product Type: Chemical Injector
Category: Chemical Injectors
Brand: Suttner
Part Number: 999000021
Material: Brass/Polymer Body (unspecified in this case—can confirm if needed)
O-Ring: N/A
Pressure: Variable (typical garden hose feed; upstream configuration)
Temperature: Up to 60°C (140°F) typical
Threading In: 3/4" F Garden Hose
Threading Out: 3/4" M Garden Hose
Flow Rate: 4.0–7.0 GPM
Weight: 0.25 kg

The Suttner ST-53.2 Dual Lance 517053600 is a premium, professional-grade lance built for high-performance cleaning in demanding environments. Designed in stainless steel and equipped with a 38.5" length, this dual lance handles pressures up to 5800 PSI and temperatures up to 302°F, delivering extreme versatility for commercial and industrial use.

With an ergonomic, heat-resistant molded grip, the ST-53.2 is comfortable to handle during extended operation. Its integrated soap nozzle and 65° x 30.0 tip allow for quick switching between high and low pressure, or detergent and rinse functions, making it an essential tool for operators who require precise control and efficient cleaning.

This model features a 1/4" MPT inlet and a dual 1/4" F x 1/4" soap outlet, compatible with most professional pressure washers and detergent systems.

Applications:

• Commercial and industrial cleaning operations

• Vehicle and fleet washing

• Agricultural and food processing equipment cleaning

• Use with corrosive detergents and chemicals

Features:

• Built for high-performance spray contractors

• Dual-outlet for detergent and high-pressure water

• Ergonomic molded grip resists heat and improves comfort

• Includes integrated soap nozzle

• 65° x 30.0 spray nozzle for controlled coverage

• Easy hi/low pressure switch for fast transitions

• Constructed from stainless steel – chemical-resistant and durable

Suttner’s stainless steel dual lances provide unmatched durability, ergonomic handling, and top-tier German engineering for professionals who demand the best.

Specs:

Product Type: Lance
Category: Dual Lance
Brand: Suttner
Part Number: 517053600
Material: Stainless Steel
Pressure: 5800 PSI
Temperature: 302°F
Threading In: 1/4" MPT
Threading Out: 1/4" F x 1/4" Soap
Weight: 2.75 lb

The Suttner Screw Coupling 200040800 is a compact, high-pressure ST-40 (A) screw coupling made from durable brass and engineered to handle up to 5800 PSI and 300°F (149°C). This coupling is ideal for adapting 1/4" FPT connections to standard M22-threaded accessories in pressure washers, sprayers, and compact fluid systems.

Constructed from corrosion-resistant brass, this coupling ensures excellent performance in chemically exposed and high-pressure environments. Its precision-machined body delivers secure, leak-free sealing between U.S. and European thread standards, especially in tight or portable setups.

The ST-40 (A) model features a 1/4" Female NPT (FPT) inlet and an M22 outlet, making it suitable for spray guns, hoses, and lances using mixed-thread configurations.

Applications:

• Compact pressure washer and sprayer systems

• Portable washdown and sanitation equipment

• Hose and accessory transitions between 1/4" FPT and M22

• Industrial, commercial, and agricultural fluid systems

Features:

• Made from solid brass for corrosion and chemical resistance

• Pressure rated to 5800 PSI and temperature up to 300°F (149°C)

• 1/4" FPT inlet compatible with standard U.S. fittings

• M22 outlet for use with European-style hoses and guns

• Part of Suttner’s trusted ST-40 brass screw coupling series

Specs

Product Type: Screw Coupling
Category: Screw Couplings
Brand: Suttner
Part Number: 200040800
Material: Brass
O-Ring: N/A
Pressure: 5800 PSI
Temperature: Up to 149°C (300°F)
Threading In: 1/4" FPT
Threading Out: M22
Weight: 0.14 kg

The Suttner Screw Coupling 200040810 is a high-pressure ST-40 (B) screw coupling constructed from corrosion-resistant brass, built to handle up to 5800 PSI and temperatures of 300°F (149°C). Designed for compact equipment and light-to-heavy-duty pressure washer systems, it enables a secure transition from 1/4" MPT connections to M22 European-style threads.

This coupling is precision-machined from high-quality brass to ensure strength, leak resistance, and reliable long-term performance in chemically demanding and high-pressure environments. It is ideal for integrating spray guns, hoses, and lances across systems with mixed thread standards.

The ST-40 (B) model features a 1/4" Male NPT (MPT) inlet and an M22 outlet, making it ideal for smaller-diameter pressure washer systems that require M22 compatibility.

Applications:

• Compact and portable pressure washer systems

• Spray guns and accessories with 1/4" NPT connections

• Adapters for chemical sprayers and foamers

• Hose-to-lance or lance-to-gun transitions in mixed-thread systems

Features:

• Made from high-quality brass for corrosion resistance

• Rated up to 5800 PSI and 300°F (149°C)

• 1/4" MPT inlet fits standard U.S. threaded tools

• M22 outlet allows compatibility with European-style hoses and couplers

• Part of the trusted ST-40 series of screw couplings

Specs

Product Type: Screw Coupling
Category: Screw Couplings
Brand: Suttner
Part Number: 200040810
Material: Brass
O-Ring: N/A
Pressure: 5800 PSI
Temperature: Up to 149°C (300°F)
Threading In: 1/4" MPT
Threading Out: M22
Weight: 0.14 kg

The Suttner Nozzle Holder 20002515 is a practical and compact solution for organizing and accessing up to four 1/4" quick connect nozzles. Designed for professional use, it keeps nozzles secure and within reach during pressure washing operations, helping operators stay efficient and organized.

Made from a soft yet durable polymer, the holder is resistant to impact and weather conditions, while being gentle enough to prevent wear or damage to nozzles. It is rated for temperatures up to 140°F, making it suitable for most standard cleaning environments.

This model is universally compatible with all standard 1/4" QC nozzles, and can be easily mounted on lances, belts, or toolboards depending on your workflow.

Applications:

• Organizing pressure washer quick connect nozzles

• Use with lances, holsters, or mobile cleaning carts

• Ideal for car washes, mobile cleaning units, and industrial setups

Features:

• Holds up to 4 standard 1/4" quick connect nozzles

• Soft, impact-resistant polymer construction

• Compact and lightweight design

• Withstands temperatures up to 140°F

• Keeps frequently used nozzles accessible and organized

Suttner’s accessories offer practical, field-tested solutions built with German quality and professional utility in mind.

Specs:

Product Type: Nozzle Holder
Category: Nozzle Accessories
Brand: Suttner
Part Number: 20002515
Material: Soft Durable Polymer
Pressure: Not applicable
Temperature: 140°F
Threading In: N/A
Threading Out: N/A
Weight: 0.10 lb
