IONIC HYDRA VERTIGO REPLACEMENT SECTIONS & HANDLE

These are the sections & pole handle to order if you have broken your Hydra Vertigo style pole (standard or quick connect). These are the sections for the new Hydra Poles. If you are needing a replacement section for your Endura (new) style Ionic Pole please click here.

Sometimes just the section that you damaged can be replaced instead of replacing the whole pole.

Please choose your 1) size/material of pole (as displayed on the handle section, this is the pole's collapsed length 5 ft, 5.2 ft, 6.3 ft, 7.3 ft) and type/section number that you need.

The most frequently damaged section is the top section of the pole that has the custom brush configuration, in this case the Vertigo. (The Grafter and Swift sections are a different listing.) This top section is section 1.

If you damaged other sections too you count down from there and determine the other sections you need, Section 2, Section 3 etc...

If you don't know what section you need please feel free to contact us for help.

Three different hose reels to choose from!

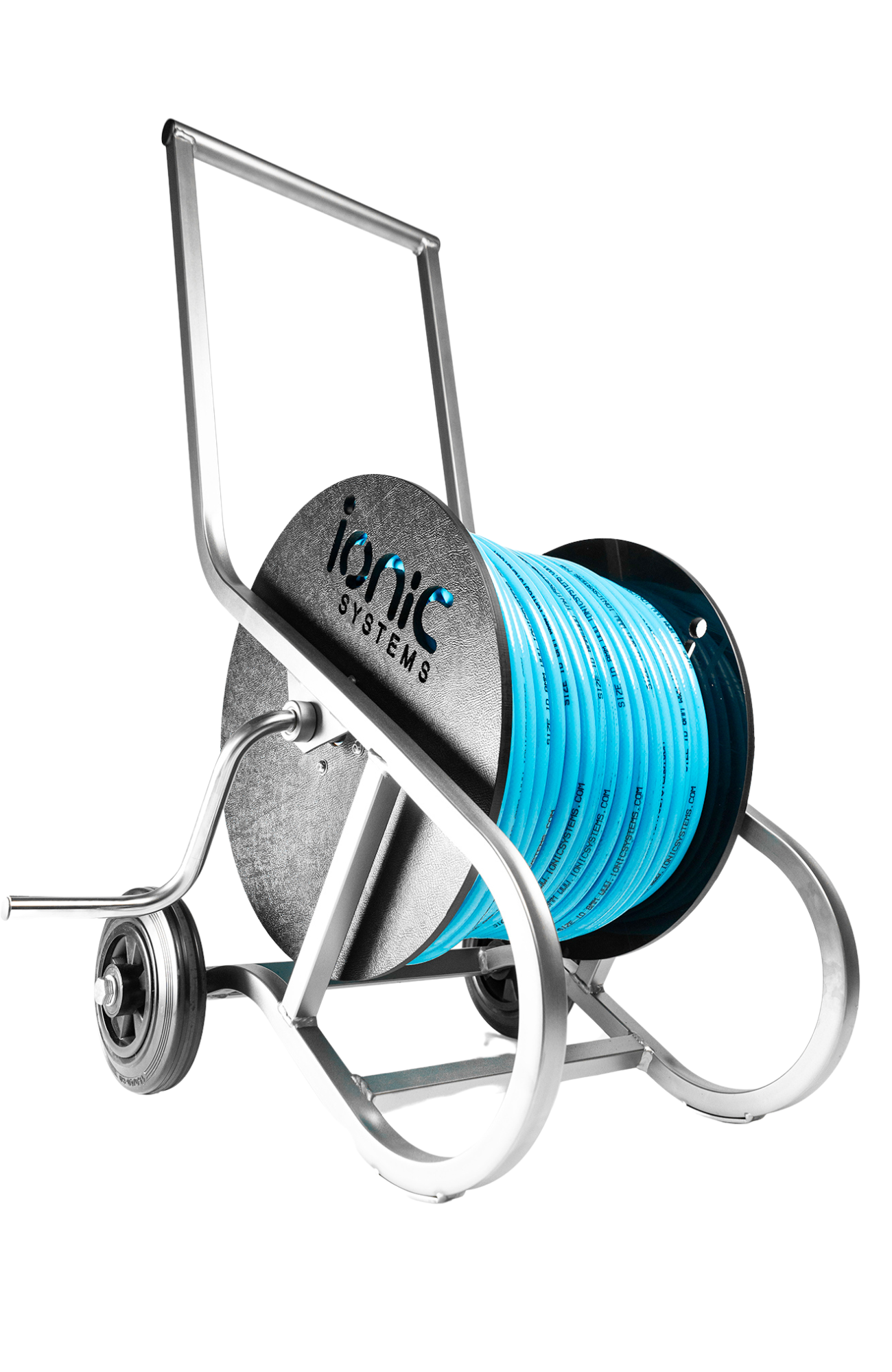

Stainless Steel Hose Reel with Wheels

Superb quality non-rusting stainless steel hose reel with wheels for ease of transportation. This hose reel is built to last and will stand up to even the most punishing of work schedules!

Holds approximately 100m-200m of Ionic RX Hose (or any 8mm hose) or 50m-100m of standard 1/2 inch hose. Comes with a hose tail on the inside to connect one stretch of hose (to wind up).

In order to connect your water fed pole line to the water output you'll also need to purchase separately an RX Hose Adapter (3/8" Hose to 1/2"inch fitting (RXHADA).

The inside width (where the hose wraps around in-between the walls) is 9 inches. The width from outer wheel (nut) to outer wheel (nut) is approximately 19 inches. and the handle extends out past that approximately another 4.5 inches. The height is 34.5 inches.

Select Type:

• Reel only
• Assembled with 100m of Ionic RX Hose (blue)
• Assembled with 50m of ½ inch Aquaflex Hose (yellow)

Stainless Steel Hose Reel with Wheels - Hand Carriable

Smaller, hand Carriable, quality small stainless steel hose reel. Holds 50m of ½ inch hose or 100m of Ionic RX Hose.

Select Type:

• Reel only
• Assembled with 100m of Ionic RX Hose (blue)
• Assembled with 50m of ½ inch Aquaflex Hose (yellow)

Mountable Steel Hose Reel

Mountable, quality small stainless steel hose reel. Holds 50m of ½ inch hose or 100m of Ionic RX Hose.
*Variation with double stacking cannot be bought online and it will be available upon request.

*Reel only

Gooseneck that connects to the end of our waterfed pole on one end and the Speed Brush on the other end.

Different Sizes Available:

• 4" Gooseneck, Adjustable Plastic
• 5" Angled Gooseneck
• 8" Gooseneck, Adjustable Aluminum
• 16" Gooseneck, Adjustable Aluminum

The Ionic Systems Water Reject Hose is an essential accessory for efficiently expelling rejected water from Ionic Pure Water systems. Designed for durability and ease of use, this hose comes with a secure end connector and 10 feet of high-quality tubing. Ideal for maintaining optimal performance and cleanliness in professional water filtration setups, it ensures seamless water disposal with minimal effort.

Includes:

• 1 End Connector

• 10-Foot Hose

Engineered to meet the standards of professional cleaning and filtration systems, the Ionic Systems Water Reject Hose is a reliable addition to your Pure Water equipment.

Please choose what you need:

• Hydro Bottle Start-Up Package
• Hydro Bottle (only)
• Replacement Bag (only) of Resin for use with Hydro Bottle

When purchasing an Ionic Systems vehicle mounted, pure water window cleaning system a fitting kit is required.

This kit contains most of  the miscellaneous parts needed to adapt the system to your vehicle.

Please choose they style needed from the drop down menu.

This product is for the older style "black" legacy Ionic Pole.

If you have lost or broken a pole handle (the bottom section with the model printed on it) or one of the other sections you can order a replacement by choosing the style pole you have in the drop down menus.

The handles come complete with handle section, clamp and butt ring. The pole sections come complete with clamp. All of these are carbon fiber construction.

Please note that not all pole sections are stocked in the USA and may need to be custom manufactured and shipped from the UK. If time is of the essence please contact us for availability and lead times.

PLEASE NOTE: If selecting the section handle or protector handle please disregard the Section No

“Finally a de-mountable tank system so I can use my van for work during the week and for play at the weekend.”

PRODUCT DESCRIPTION

Portage™️ is the perfect solution for a safe, de-mountable pure water window cleaning filtration system. Designed for professional window cleaners, this system easily slides in-and-out of your van or truck in a couple of minutes thus freeing up your vehicle for other needs.

This low-profile tank is available in:

• 105 gallons (400 liter)
• 211 gallons (800 liter)

Simply undo the battery quick connector, remove the mounting pin and the tank can be portaged out of your van and stored until needed for the next days work.

Configurations

Portage™ is available in a number of different specifications. The following two configurations suit the North American market.

Portage Delivery- Designed as a pure water delivery system (only) for quick pure water filling from a static water treatment system. Does not have any filtration features, simply designed for delivery with tank and pump.

Portage Fusion- Designed as a high-performance, fully automatic five-stage RO/DI system with 240vv mains powered boosted fill, PFS™️, ROMS™️, & PDI™️ are all standard features. (Pure water production up to 3 liters per minute dependent on mains water supply)

Please speak with your Clean Direct Rep to discuss other model types available for your area. It may be necessary for your rep to configure your system and send you a quote.

Ergonomic Design

The ergonomic design provides easy access to controls for easy operation and to the filter system for ease of maintenance. We’ve incorporated a handy tool tray for water fed poles, window cleaning tools and drinks cans.

The 211 gallon tank has mounting points for the optional multi-position stainless steel hose reels. These are positioned for easy access via the side loading doors.

Unlike other flat tank systems, the underside of the Portage™ tank has been carefully designed to ensure that 100% of tank capacity runs to the 12v delivery pumps. So unless you’re parked on a steep incline you’ll be able to use every drop of the tanks water capacity even when the water level is low.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Built with Safety In Mind

Window cleaner safety has always been our highest priority. The Portage™ design was inspired after re-watching hours of crash test footage from our 2003 Thatcham crash test program. The lifting forces generated during a certain phase of a head on crash are considerable. For that reason most of the clamping on our other FMVSS-208 tested designs can be found at the rear of the framework. In a head on crash with Portage™ fitted in a van the absence of clamps at the rear of the tank allows the tank to lift and be arrested by the roof of the van instead. The dimensions of the tank and the FMVSS-208 brackets that fix the tank securely to the chassis at the front combine to prevent the heavy water filled tank from colliding with the driver and passenger seats to avoid fatal crush injuries. The benefit of this design is that whilst security is maintained the tank can be removed in minutes leaving the vehicle free for other uses.

Mounting in a Pickup Truck-

A fitting kit is not required for Portage™ tanks that are carried in pickup vehicles. It is however recommended that Portage™ tanks that completely fill the load space are selected. Although it is not a requirement, it is also recommended that Portage™ tanks are secured with ‘tie-down’ straps when transported in pickup type vehicles. If tie-down straps are not used then it is recommended to use wooden blocks to prevent lateral and front to back movement of the tank

Mounting in a Van or on a flatbed trailer-

It must be understood that in the event of a head-on collision an unsecured heavy load need only move the driver and passenger seats forward a small distance for the pre-tensioned seat belts to cause fatal compression injuries. For this reason a Portage™ fitting kit must be installed by a competent person in all vans even when a bulkhead is present. In the event of a head on collision the fitting kits resists the forward movement of the Portage™ tank. The fitting instructions must be followed in every detail.

12 Volt Connection-

Bearing in mind the demountable nature of the Portage™ tank system, the standard 12v connection is made by means of a quick connect fly-lead that plugs into the cigarette lighter. For more permanent installations are intended other more robust 12v power sources with split charging and quick connections are available as optional extras.

* Please note that 600L size has been discontinued.

*SPECIAL NOTE ABOUT HOSE REEL MOUNTING

The 211 gallon (800L) size Portage is designed with a top cover (with storage compartments) and has enough room to mount two hose reels towards the back of the unit.

Because the 105 gallon (400L) size Portage is shorter it does not have the same room to accommodate the hose reels so we have designed an optional custom size cover that has the ability to mount hose reels. This is an optional item, sold separately. Please ask your Clean Direct Rep for details.

Video

Included

Standard Features for the Portage™️ Fusion System

Included as standard:

• Main Unit with Tank
• Twin 12v Delivery Pumps
• Pressure Gauge
• Dual TDS Meter
• Automatic Fill Shut Off (after cycle completes)
• Auto-Compensating Pump Flow Control
• 12" Carbon Filter
• 12" Sediment Filter
• 12" DI Filter
• 4029 RO Filter
• PDI™️
• PFS™️ (Perpetual Flushing System)
• ROMS™️ (Reverse Osmosis Maintenance System)
• Plastic Housings for Carbon, Sediment & DI Filters
• Stainless Steel Housing for RO Membrane

Optional:

• Fitting Kit for Portage Fusion Van/Trailer (FKPF-V)
• Cast Mounting Brackets (FMVSS-208)
• Mountable Steel Hose Reels
• Ionic RX Hose (sold as one length 328 ft. / 100m) (suitable for hot water)
• Variable Pump Control
• Dual 360º Stainless Steel Hose Reels (P-SHR x 2)
• Split Charger
• Stainless Steel Tank (ask us for custom quote)

Optional for Hard Water Areas:

In-line water softeners are highly recommended for use in hard water areas. TDS readings over 200 would be considered hard water area.

Specifications

Dimensions

105 Gallons (400 L) - Length = 4 ft 9 in, Width = 4 ft, Height = 1 ft 7 in

211 Gallons (800 L) - Length = 8 ft 2 in, Width = 4 ft, Height = 1 ft 7 in

Special Note

All Portage shipments require to be packed in a 6 sided crate for safe shipment from the UK manufacturing plant to our facility in NC. We do charge our actual cost for this crate to the customer as a separate line item. Please ask your Clean Direct Sales Rep to supply you a quote. Local pick up is also available but crate charge still applies.

Manual

Ionic Systems Portage User Manual for the full user guide and instructions.

Attaches to the Speed Brush. Flip it over and you can scrub heavily soiled windows.

Includes the T-Bar Kit only.

Speed Brush and Carbon Fiber Water Fed Pole are sold separately.

The Red pad is the microfiber pad and the white pad is the heavy duty scrub pad.

Microfiber wash pads designed to be used with Cleano or Technopad.

Available in 10" or 16" size.

Please select the size you need in the drop down menu.

If you are looking for a complete Cleano Pole and Assembly please click here.

If you are looking for a complete TechnoPad Assembly please click here.

V4™️ is version 4 of The Reach & Wash System first launched in 1997.

The V4™️ truck-mount pure water professional window cleaning system has seen significant improvements over the lifespan of its development. 10% weight reduction and a lower center of gravity has improved vehicle handling.

It boasts tech options to improve filter performance, RO membrane life and water quality.

Tech Features:

• PFS™️ Periodic Flush System - On start up this feature automatically flushes the Reverse Osmosis Membrane for a period of 2 minutes. Thereafter the RO flushes for 2 minutes every hour during the filling process.
• ROMS™️ Reverse Osmosis Maintenance System - At the end of each tank fill, pure water is diverted to the RO membrane housing. Leaving the RO membrane bathing in pure water between fills ensures that dissolved solids (found in tap water) do not foul the membrane. Further, dissolved solids that are not removed from the membrane surface during Periodic Auto Flush cycles are absorbed by the pure water during the "rest period" to be flushed away during the first flush on startup.
• PDI™️ - Perpetual De-ionization - This feature considerably extends DI resin contact time. Ultra purification is achieved by repeated exposure of purified water to the final DI polishing stage.

System Features:

• Digital Flow Control -  Auto-compensating digital flow control allows precise operation of the pumps
• Dual TDS Monitoring - The TDS of the water at critical stages is monitored and shown on a control-mounted digital gauge
• Tank Sight Gauge - Fast and accurate view of the water level in the tank
• Fully Baffled Tank - Black polypropylene tank with advanced baffling for increased vehicle stability
• Twin Pumps - The V4™️ has two independently controlled pumps allowing more than one cleaning pole to be used at the same time (each produces up to 4 liters per minute per pole)
• Pump Activation
• Easy Refillable Filters - The filter media cartridge is simply replaced when spent
• Stainless Steel Chassis - Covered by our 10-year warranty
• Battery Charger - Integrated mains-powered CTEK battery charger (optional)

5 Stages of Filtration:

1. Carbon
2. Sediment
3. Reverse Osmosis
4. De-Ionization
5. Perpetual De-Ionization

Special Note:

An Ionic Systems In-line Water Softener is highly recommended for use in hard water areas. It can prolong the life of the RO Membrane. These are sold separately and can be found here.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Styles

V4™️ Configurations (Choose from drop down list):

DiFUSE™️ (10 MEGΩ) (No Pump)

DiFuse is Ionic's cold pure water delivery truck-mount delivery system. Designed for quick pure water filling from a static water treatment system or emergency filling from a main water supply.

FUSE™️ (11 MEGΩ) (No Pump)

The FUSE™️ is a high performance, fully automatic, full five-stage RO/DI system. Fully automated fill with PFS™️ and PDI™️ are standard. Pure water production is up to 3 liters per minute dependent on the main water supply.

FUSION™️ (12 MEGΩ) (Pump)

FUSION™️ is a high performance, fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features. Pure water production up to 3 liters per minute at maximum operating pressure of 80 psi.

FUSION™️ S (Pump)

FUSION™️ S is an ultra high performance system designed for the most demanding customers as well as the world's hottest climates. Fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features and has stainless steel filter housings. Pure water production is up to 5 liters per minute at maximum operating pressure of 160 psi.

V4™️ THERMOPURE

The new V4™️ THERMOPURE fills the gap between Ionic's Zero™️ with zero Parts Per Billion (PPB) water quality and Ionic's cold water V4™️ The system provides a hot water experience. Previously your only option was to add the Ionic HotBox™️ alongside your system. Now it's a fully integrated hot water, pure water experience.

V4™️ STATIC

The V4™️ STATIC system does not contain any water storage. It is a delivery system only. The S version has a stainless steel container for the RO Membrane (the other canisters are Polyethylene. A fully stainless steel version is available (all canisters in stainless steel), please speak to your sale rep to get a custom quote.

The MEG Ω Difference

The MEG Ω is a small unit of measure, but ultra pure water in the MEG Ω range delivers faster, better spot free results that you can visibly see.

Video

Included Items

Standard on V4™️

• Heavy Duty Stainless Steel, fully welded, Crash-test Certified Component Chassis to FMVSS-208 Standard
• FMVSS-208 Cast Mounting Brackets
• Pump Control
• Hi-Density Polypropylene Spark Tested Baffled Tank
• Automatic Fill Shut Off
• Auto-compensating Pump Flow Control

5 Stages of Filtration:

1. Carbon
2. Sediment
3. Reverse Osmosis
4. De-Ionization
5. Perpetual De-Ionization

Other Items to consider (sold separately):

• Water Softener
• Vehicle Side Ports
• Vehicle Side Electric Port
• Ionic Hydra Water Fed Pole & Fly Lead
• Hose Reels
• Roof or Side Pole Rack
• Spare Filters
• Professional Installation (Please contact us for quote)

Specifications

Available in different Tank Capacities

• 300 Liters = 79.25 Gallons, Height 44 in, Width 45 in, Depth 37 in
• 400 Liters = 105.67 Gallons, Height 44 in, Width 45 in, Depth 37 in
• 500 Liters = 132.08 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 600 Liters = 158.50 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 700 Liters = 184.92 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 800 Liters = 211.33 Gallons, Height 44 in, Width 48 in, Depth 53 in
• 900 Liters = 237.75 Gallons, Height 44 in, Width 48 ini, Depth 53 in
• 1000 Liters = 264.17 Gallons, Height 44 in, Width 48 in, Depth 53 in

Manual

Click here to download the V4 Operator's Manual.

Click here to download the V4 Thermopure Operator's Manual.

Black Rigid Tube 8mm x 1.0mm - 36mm Long for Vertigo Quick Release Brush

If you need the full head assembly (brush head base that attaches to the brush, minus the brush), visit the Vertigo Brush Head Base product page.

If you need the full head assembly including the brush, explore the Vertigo Standard Brush Head Assembly options to choose your size and type.

 Cleano Solution Globes, please pick type:

• Solution Globe - For Standard Cleano 1
• Solution Globe 300ML - For Standard Cleano 2
• Solution Globe 750ML - For Standard Ceano 5 through 25
