The Mosmatic DGS Swivel 30.054 is a high-performance brass, nickel-plated swivel engineered for high and low pressure cleaning, hydraulic systems, and hose reel setups. Designed for seamless operation, it ensures low torque rotation even at maximum pressure, supported by sealed stainless steel bearings for maintenance-free reliability.
With a robust O-ring NBR seal system (optional EPDM or FKM) and dual bearing setup—1x thrust and 1x radial bearing—this swivel is built to endure heavy-duty industrial applications. Its compact profile and durable construction make it ideal for confined installations and long-term use.
Applications
-
High and low-pressure cleaning systems
-
Hydraulic hose connections
-
Ceiling boom installations
-
Industrial wash bays
-
Mobile and stationary hose reel systems
Key Features
-
Model: Mosmatic DGS 30.054
-
Material: Brass, nickel plated
-
Thread IN (G1): 1/4” NPTF
-
Thread OUT (G2): 3/8” NPTF
-
Seal Type: O-ring NBR (Optional EPDM or FKM)
-
Bearings: 1x radial, 1x thrust ball bearing
-
Very Low Torque: Smooth operation under pressure
-
Stainless Steel Bearings: Sealed and maintenance-free
-
Corrosion Resistant: Long service life
-
Overall Diameter: 0.86”
-
Overall Length: 2.63”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.75”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.63"
Diameter (D) (overall diameter): 0.86"
Weight: 5.6 oz
The Mosmatic DGS Swivel 30.153 is a premium brass, nickel-plated swivel designed for high and low pressure cleaning systems, hose connections, and hydraulic applications. Built for durability and smooth operation, this swivel ensures low torque performance under full pressure, ideal for commercial and industrial setups.
Engineered with sealed stainless steel bearings—including one thrust and one radial ball bearing—this swivel offers exceptional rotational efficiency and longevity. The integrated O-ring NBR sealing system (with optional EPDM or FKM materials) ensures tight sealing even in challenging environments.
Applications
-
High and low-pressure hose connections
-
Ceiling and wall-mounted booms
-
Hydraulic equipment
-
Commercial and industrial cleaning
-
Automatic car washes
-
Hose reels and rotating arms
Key Features
-
Model: Mosmatic DGS 30.153
-
Material: Brass, nickel-plated
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTM
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust + 1x radial ball bearing
-
Low Torque: Smooth rotation at full pressure
-
Maintenance-Free: Sealed stainless steel bearing system
-
Overall Diameter: 0.98”
-
Overall Length: 2.36”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.36"
Lenght 2 (L2): 0.47"
Diameter (D) (overall diameter): 0.98"
Weight: 4.6 oz
The Mosmatic DGS Swivel 30.154 is a precision-engineered brass, nickel-plated swivel designed for high and low-pressure cleaning systems, hydraulic hose connections, ceiling booms, and other demanding industrial applications. Built for durability and ease of use, this swivel features sealed stainless steel bearings and a low torque design to ensure effortless rotation under maximum pressure.
A dual bearing configuration—1x thrust and 1x radial ball bearing—combined with an O-ring NBR seal system (optional EPDM or FKM), makes it an ideal maintenance-free solution for continuous use in tough environments.
Applications
-
High and low pressure cleaning systems
-
Hydraulic and pneumatic hose connections
-
Ceiling boom installations
-
Industrial and commercial wash systems
-
Hose reels and fluid transfer systems
Key Features
-
Model: Mosmatic DGS 30.154
-
Material: Brass, nickel plated
-
Thread IN (G1): 3/8” NPTF
-
Thread OUT (G2): 3/8” NPTF
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust, 1x radial ball bearing
-
Very Low Torque: Ensures smooth operation
-
Stainless Steel Bearings: Sealed, corrosion-resistant
-
Overall Diameter: 0.98”
-
Overall Length: 2.63”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.63"
Diameter (D) (overall diameter): 0.98"
Weight: 5.6 oz
The Mosmatic DGS Swivel 30.653 is a high-performance brass, nickel-plated swivel engineered for high and low pressure cleaning systems, hose connections, ceiling booms, and hydraulic applications. Designed for durability and smooth, low-torque rotation, this swivel is an ideal solution for heavy-duty cleaning and fluid handling setups.
Built with sealed stainless steel bearings—including one thrust and one radial ball bearing—the DGS 30.653 delivers reliable, maintenance-free operation. Its O-ring NBR seal system ensures consistent sealing under pressure, with optional EPDM or FKM seals available for specialized applications.
Applications
-
Pressure washing and hose connections
-
Ceiling and wall-mounted boom systems
-
Hydraulic rotary applications
-
Car wash equipment
-
Hose reels and swiveling assemblies
Key Features
-
Model: Mosmatic DGS 30.653
-
Material: Brass, nickel-plated
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTM
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust and 1x radial ball bearing
-
Low Torque: Easy rotation at high pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.98”
-
Overall Length: 2.43”
-
Nominal Width (NW): 3/8”
-
Wrench Size (SW): 0.87”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.43"
Lenght 2 (L2): 0.47"
Diameter (D) (overall diameter): 0.98"
Weight: 6.0 oz
The Mosmatic DGS Swivel 30.654 is a high-quality brass, nickel-plated swivel engineered for high and low-pressure cleaning, hydraulic hose connections, ceiling booms, and other industrial applications. Designed for smooth performance under pressure, it features very low torque, sealed stainless steel bearings, and maintenance-free operation.
With a robust design including 1x thrust and 1x radial ball bearing, and an O-ring NBR seal system (upgradeable to EPDM or FKM), this swivel ensures reliable rotation at high PSI, making it an ideal solution for demanding environments.
Applications
-
Pressure washers and cleaning systems
-
Hydraulic and pneumatic hose assemblies
-
Ceiling booms and rotary arms
-
Car wash equipment
-
Hose reels and industrial setups
Key Features
-
Model: Mosmatic DGS 30.654
-
Material: Brass, nickel plated
-
Thread IN (G1): 3/8” NPTF
-
Thread OUT (G2): 3/8” NPTF
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust, 1x radial ball bearing
-
Low Torque Operation: Smooth rotation at high pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.98”
-
Overall Length: 2.71”
-
Nominal Width (NW): 3/8”
-
Wrench Size (SW): 0.87”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 3/8”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.71"
Diameter (D) (overall diameter): 0.98"
Weight: 5.6 oz

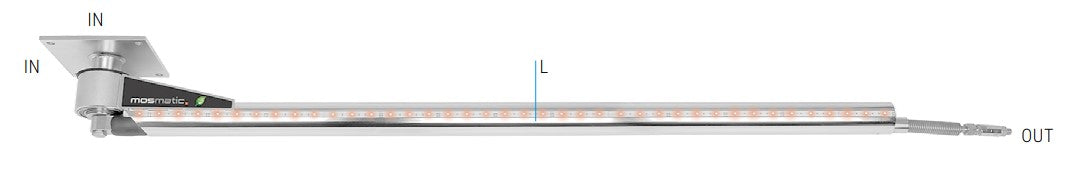

Specifications:
Nominal Width (NW): 5/16"
Pressure: 5800psi
Temperature: 300°F
Total Length: L=62"
2 x cut ring fitt.
Specifications:
Nominal Width (NW): 5/16"
Pressure: 5800psi
Temperature: 300°F
Total Length: L=66"
2 x cut ring fitt.
Specifications:
Nominal Width (NW): 5/16"
Pressure: 5800psi
Temperature: 300°F
Total Length: L=68"
2 x cut ring fitt.
Specifications:
Nominal Width (NW): 5/16"
Pressure: 5800psi
Temperature: 300°F
Total Length: L=70"
2 x cut ring fitt.
Specifications:
Nominal Width (NW): 5/16"
Pressure: 5800psi
Temperature: 300°F
Total Length: L=79"
2 x cut ring fitt.
Specifications:
Nominal Width (NW): 5/16"
Pressure: 5800psi
Temperature: 300°F
Total Length: L=74"
2 x cut ring fitt.

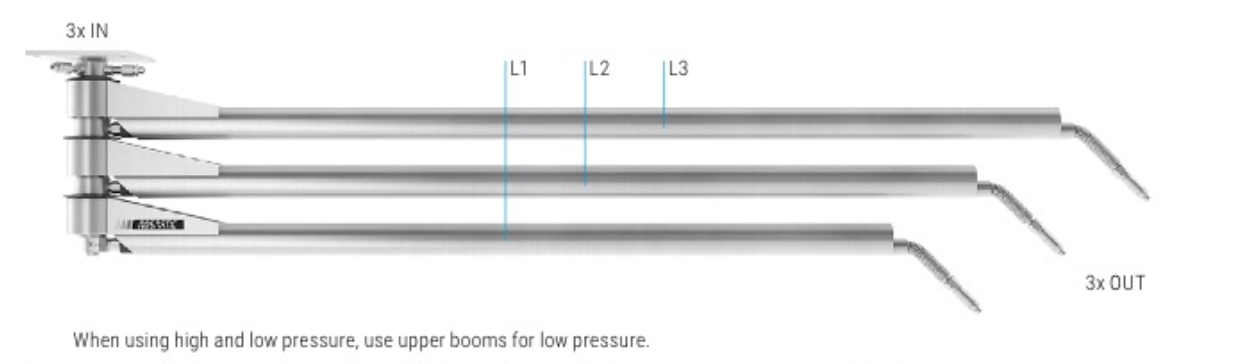

The triple ceiling boom works great for your prep area or in wash bays. For use with water, oil or air.
- 3x360° booms on one stem
- Ideal solution when space is limited
- Solid construction
L1 4'9", L2 5'3", L3 5'9", Weight 54 lbs
Technical data
- Pressure: 4000 psi (27.5 MPa)
- Temperature: 250°F
- Inlet (top & side): 3/8" NPTF (other options available)
- Outlet: 3/8" NPTF (other options available)
- Throughput medium: water, oil, air at pH 3-12
The triple ceiling boom works great for your prep area or in wash bays. For use with water, oil or air.
- 3x360° booms on one stem
- Ideal solution when space is limited
- Solid construction
L1 5'3", L2 5'9", L3 6'3", Weight 56 lbs
Technical data
- Pressure: 4000 psi (27.5 MPa)
- Temperature: 250°F
- Inlet (top & side): 3/8" NPTF (other options available)
- Outlet: 3/8" NPTF (other options available)
- Throughput medium: water, oil, air at pH 3-12
The Mosmatic WDB Swivel 43.251 is a precision-engineered, nickel-plated brass swivel designed for high-pressure cleaning applications. Ideal for use in hose reels, ceiling booms, and pressure washers, this compact swivel features a sliding bearing for reliable, smooth rotation under load. Sealed with a durable O-ring NBR, it delivers long-lasting leak protection in tough environments. With a thread configuration of 1/4” NPTF (inlet) to 1/4” NPTM (outlet), this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it a powerful solution for compact, high-pressure systems.
Applications
-
High-pressure hose reels
-
Overhead or wall-mounted ceiling booms
-
High-pressure washers and cleaning systems
-
Stationary and mobile wash bays
-
Car wash equipment and service stations
Key Features
-
Durable nickel-plated brass construction for corrosion protection
-
Sliding bearing design for smooth and controlled rotation
-
Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM
-
Compact dimensions: Height – 1.06” | Overall Length – 1.89”
-
Nominal Width (NW): 1/4”
-
Handles pressures up to 4000 psi
-
Operates at temperatures up to 250°F
-
Supports 30 RPM for low-speed, high-pressure applications
-
O-ring NBR seal for reliable, leak-resistant performance
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.89
Length 3 (L3): 1.14
Length 4 (L4): 1.10
Length 5 (L5): 0.39
Weight:10.0 oz
The Mosmatic WDB Swivel 43.252 is a compact, heavy-duty swivel engineered for high-pressure cleaning applications. Built from nickel-plated brass, this swivel resists corrosion and ensures long-term performance in industrial environments. It features a sliding bearing for smooth, low-friction rotation and is sealed with an O-ring NBR for secure, leak-resistant operation. With 3/8” NPTF (inlet) to 3/8” NPTM (outlet) threading, this swivel is capable of handling up to 4000 psi, 30 RPM, and 250°F, making it an ideal component for compact, high-pressure hose systems.
Applications
-
High-pressure hose reels in wash bays and mobile cleaning
-
Ceiling boom systems for garages and industrial cleaning
-
High-pressure washer setups
-
Car wash systems and detailing bays
-
Equipment requiring low-speed, high-durability swivel movement
Key Features
-
Rugged brass construction with nickel plating for enhanced durability
-
Thread IN: 3/8” NPTF | Thread OUT: 3/8” NPTM
-
Sliding bearing for smooth rotational performance
-
O-ring NBR seal ensures reliable leak protection
-
Compact form factor: Height – 1.06” | Overall Length – 1.93”
-
Nominal Width (NW): ⅜”
-
Rated for up to 4000 psi working pressure
-
Supports operating temperatures up to 250°F
-
Max rotational speed of 30 RPM
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 1.93
Length 3 (L3): 1.14
Length 4 (L4): 1.14
Length 5 (L5): 0.43
Weight: 9.2 oz
