The Mosmatic WDEI Swivel 43.473 is a heavy-duty stainless steel swivel designed for high-pressure hose reels and industrial fluid transfer systems. Engineered for reliability, it features a sliding bearing for smooth rotational movement and a standard O-ring NBR seal, with optional EPDM or FKM seal materials for enhanced chemical and temperature resistance. With 1/2” NPTF inlet and outlet threads, this swivel supports up to 5800 psi, operates at 30 RPM, and handles temperatures up to 250°F—making it ideal for rigorous commercial and industrial use.

Applications

• High-pressure hose reels

• Industrial washdown and rinsing systems

• Pressure washers and fluid transfer equipment

• OEM and commercial hose reel assemblies

Features

• Stainless steel construction ensures durability and corrosion resistance

• Sliding bearing allows smooth, stable rotation under pressure

• Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTF

• Dimensions: Overall Diameter – 1.57” | Overall Length – 2.27”

• Nominal Width (NW): 1/2”

• Rated for 5800 psi maximum working pressure

• Temperature tolerance up to 250°F

• Operates at speeds up to 30 RPM

• Sealed with O-ring NBR (optional EPDM or FKM available for special media compatibility)

Specs

Pressure: 5800 psi (40 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.94

Length 1 (L1): 1.97

Length 2 (L2) (overall length): 2.27

Length 3 (L3): 1.34

Length 4 (L4): 1.48

Diameter (D1): 1.57

Weight: 12.2 oz

The Mosmatic WDEI Swivel 43.473B – Box of 25 Units offers a reliable, industrial-grade swivel solution in bulk for demanding hose reel and pressure systems. Manufactured from high-strength stainless steel, each swivel is equipped with a sliding bearing for smooth rotation and a standard O-ring NBR seal, with optional EPDM or FKM available to suit various fluids and operating environments. Designed with ½” NPTF inlet and outlet threads, these swivels handle up to 5800 psi, support 30 RPM, and operate at temperatures up to 250°F, making them ideal for OEMs, commercial service providers, and maintenance crews.

Applications

• High-pressure hose reel systems

• OEM hose reel and equipment manufacturing

• Industrial washdown and chemical transfer

• Pressure washer service and supply

Features

• Box includes 25 stainless steel swivels

• Thread IN: ½” NPTF | Thread OUT: ½” NPTF

• Durable stainless steel construction for corrosion resistance

• Sliding bearing provides smooth, low-friction operation

• Sealed with O-ring NBR (optional EPDM or FKM available for chemical or thermal compatibility)

• Dimensions per unit: Overall Diameter – 1.57” | Overall Length – 2.27”

• Nominal Width (NW): ½”

• Rated for 5800 psi and temperatures up to 250°F

• Supports up to 30 RPM rotational speed

Specs

Pressure: 5800 psi (40 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.94

Length 1 (L1): 1.97

Length 2 (L2) (overall length): 2.27

Length 3 (L3): 1.34

Length 4 (L4): 1.48

Diameter (D1): 1.57

Box: 25 pcs

Weight: 12.2 oz

The Mosmatic WDEI Swivel 43.474 is a high-performance stainless steel swivel engineered for use in heavy-duty hose reel and fluid transfer systems. Designed for high-pressure environments, it features a sliding bearing for smooth rotation under load and a dependable O-ring NBR seal, with optional EPDM or FKM for compatibility with aggressive chemicals or elevated temperatures. With 3/4” NPTF inlet and outlet threads, this swivel supports pressures up to 3000 psi, operates at 30 RPM, and handles temperatures up to 250°F, making it an ideal solution for industrial washdown, cleaning, and transfer operations.

Applications

• High-pressure hose reels

• Industrial washdown systems

• Commercial pressure washers

• Fluid and chemical handling systems

• OEM and equipment manufacturing

Features

• Stainless steel construction ensures corrosion resistance and long service life

• Sliding bearing enables smooth and controlled rotation

• Thread IN: 3/4” NPTF | Thread OUT: 3/4” NPTF

• Dimensions: Overall Diameter – 2.16” | Overall Length – 2.95”

• Nominal Width (NW): 3/4”

• Rated for 3000 psi operating pressure

• Max operating temperature: 250°F

• Supports rotational speeds up to 30 RPM

• Sealing system: O-ring NBR (optional EPDM or FKM for specialized media)

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTF

Nominal Width (NW): 3/4"

Wrench Size (SW): 1.42

Length 1 (L1): 2.95

Length 2 (L2) (overall length): 2.95

Length 3 (L3): 1.89

Length 4 (L4): 1.87

Diameter (D1): 2.16

Weight: 29.6 oz

The Mosmatic WDEI Swivel 43.474B – Box of 10 Units offers industrial-grade swivel performance in a convenient bulk package, ideal for OEMs, service teams, and high-volume operations. Each swivel is constructed from high-strength stainless steel for superior corrosion resistance and features a sliding bearing for smooth, reliable rotation. A standard O-ring NBR seal ensures leak-free performance, with optional EPDM or FKM seal materials available for compatibility with aggressive chemicals or elevated temperatures. With 3/4” NPTF inlet and outlet, each swivel supports 3000 psi, 30 RPM, and up to 250°F, making them perfect for demanding hose reel and fluid transfer applications.

Applications

• Industrial and commercial hose reel systems

• Washdown and cleaning system manufacturing

• OEM component integration

• Pressure washer service and system buildouts

• Bulk supply for maintenance teams

Features

• Box includes 10 stainless steel swivels

• Thread IN: 3/4” NPTF | Thread OUT: 3/4” NPTF

• Rugged stainless steel construction for long service life

• Sliding bearing allows consistent, low-friction rotation

• O-ring NBR seal, with EPDM or FKM optional for chemical/thermal applications

• Dimensions per unit: Overall Diameter – 2.16” | Overall Length – 2.95”

• Nominal Width (NW): 3/4”

• Rated for 3000 psi pressure and up to 250°F

• Supports up to 30 RPM rotation

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTF

Nominal Width (NW): 3/4"

Wrench Size (SW): 1.42

Length 1 (L1): 2.95

Length 2 (L2) (overall length): 2.95

Length 3 (L3): 1.89

Length 4 (L4): 1.87

Diameter (D1): 2.16

Box: 10 pcs

Weight: 29.6 oz

The Mosmatic WDEI Swivel 43.475 is a heavy-duty stainless steel swivel designed for high-flow, high-pressure hose reel and fluid transfer systems. Engineered for performance and durability in demanding environments, it features a sliding bearing for smooth, stable rotation and a reliable O-ring NBR seal, with optional EPDM or FKM seal materials for specialized chemical and thermal compatibility. With 1” NPTF inlet and outlet threads, this swivel handles pressures up to 3000 psi, operates at 30 RPM, and withstands temperatures up to 250°F, making it a trusted component for industrial cleaning and washdown systems.

Applications

• High-pressure industrial hose reels

• Fluid transfer in commercial and manufacturing operations

• Heavy-duty washdown and cleaning systems

• Equipment assembly and OEM integrations

Features

• Stainless steel construction for superior corrosion and pressure resistance

• Sliding bearing enables smooth and consistent rotation

• Thread IN: 1” NPTF | Thread OUT: 1” NPTF

• Dimensions: Overall Diameter – 2.35” | Overall Length – 3.07”

• Nominal Width (NW): 1”

• Rated for 3000 psi working pressure

• Maximum operating temperature: 250°F

• Supports rotational speeds up to 30 RPM

• Sealing system includes O-ring NBR, with EPDM or FKM optional for enhanced chemical resistance

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTF

Nominal Width (NW): 1"

Wrench Size (SW): 1.61

Length 1 (L1): 3.35

Length 2 (L2) (overall length): 3.07

Length 3 (L3): 2.17

Length 4 (L4): 1.89

Diameter (D1): 2.35

Weight: 39.5 oz

The Mosmatic WDEI Swivel 43.475B – Box of 10 Units provides a reliable, high-volume solution for industrial hose reel and fluid transfer applications. Each swivel is built from durable stainless steel and engineered for long-lasting use in high-pressure environments. A sliding bearing ensures smooth, low-friction rotation, while a standard O-ring NBR seal prevents leaks under pressure. Optional EPDM or FKM seals are available for systems requiring enhanced chemical or thermal resistance. With 1” NPTF inlet and outlet threads, these swivels are rated for 3000 psi, up to 30 RPM, and 250°F, making this 10-piece box ideal for OEMs, service operations, and large-scale maintenance teams.

Applications

• High-pressure industrial hose reels

• Heavy-duty washdown and cleaning systems

• OEM equipment production and system integration

• Bulk supply for maintenance departments and service teams

Features

• Box contains 10 stainless steel swivels

• Thread IN: 1” NPTF | Thread OUT: 1” NPTF

• Rugged stainless steel construction for corrosion and pressure resistance

• Sliding bearing enables smooth and stable rotation

• Standard O-ring NBR seal, with optional EPDM or FKM for specialized applications

• Dimensions per unit: Overall Diameter – 2.35” | Overall Length – 3.07”

• Nominal Width (NW): 1”

• Rated for 3000 psi and 250°F maximum operating conditions

• Designed to operate at up to 30 RPM

Specs

Pressure: 3000 psi (20 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTF

Nominal Width (NW): 1"

Wrench Size (SW): 1.61

Length 1 (L1): 3.35

Length 2 (L2) (overall length): 3.07

Length 3 (L3): 2.17

Length 4 (L4): 1.89

Diameter (D1): 2.35

Box: 10 pcs

Weight: 39.5 oz

The Mosmatic WDG Swivel 40.019 is a compact, high-performance swivel specifically designed for use with Mosmatic ceiling booms and other high-pressure systems. Crafted from nickel-plated brass, this swivel is engineered to resist corrosion and wear in demanding environments. It features a sliding bearing for smooth rotational movement and an O-ring NBR seal for dependable leak resistance. Designed without a snap ring, it integrates seamlessly with Mosmatic ceiling boom assemblies. With 3/8" NPTF inlet to G1/4" male outlet, it supports 4000 psi, 30 RPM, and 250°F, making it a reliable choice for pressure control and flexibility.

Applications

• Mosmatic ceiling booms

• High-pressure cleaning equipment

• Washdown hose reels

• Industrial hose and gun swivels

Features

• Nickel-plated brass body ensures corrosion resistance and durability

• Sliding bearing for smooth, controlled rotation

• Engineered without snap ring for ceiling boom compatibility

• Thread IN: 3/8" NPTF | Thread OUT: G 1/4" M

• Compact design: Height – 1.02” | Overall Length – 1.73”

• Nominal Width (NW): 1/4”

• Handles 4000 psi working pressure

• Temperature rated up to 250°F

• Operates at a maximum of 30 RPM

• O-ring NBR seal provides secure, leak-free operation

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G1/4" M

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.73

Length 3 (L3): 1.14

Length 4 (L4): 0.96

Length 5 (L5): 0.43

Lenght 6 (L6): 0.25

Weight: 9.7 oz

The Mosmatic WDG Swivel 40.021 is a compact, nickel-plated brass swivel engineered for efficiency and durability in high-pressure cleaning systems. Designed for use with hose reels, ceiling booms, and pressure washers, this swivel features a sliding bearing that ensures smooth rotation under load. Its O-ring NBR seal provides reliable leak protection, even during continuous operation. With 1/4” NPTF inlet and 1/4” NPTM outlet, it offers versatile compatibility in compact systems. Rated for 2200 psi, 30 RPM, and 200°F, this swivel is an ideal solution for moderate-duty applications.

Applications

• High-pressure hose reels

• Pressure washers

• Fluid handling and washdown systems

• OEM swivel integration

• Equipment requiring tight, high-pressure rotation

Features

• Durable nickel-plated brass construction for corrosion resistance

• Sliding bearing enables smooth, controlled movement

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Compact form: Height – 1.02” | Overall Length – 1.89”

• Nominal Width (NW): 1/4”

• Rated for 2200 psi maximum pressure

• Handles temperatures up to 200°F

• Operates at speeds up to 30 RPM

• O-ring NBR seal ensures dependable leak-free operation

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.47

Lenght 6 (L6): 0.25

Weight: 10.3 oz

The Mosmatic WDG Swivel 40.028 is a precision-engineered, nickel-plated brass swivel built for reliable performance in high-pressure hose reels, ceiling booms, and pressure washers. Designed to handle continuous use in demanding environments, this swivel features a sliding bearing for smooth, controlled rotation and an O-ring NBR seal for leak-resistant sealing. With a 1/4” NPTF inlet and 1/4” NPTM outlet, it supports up to 2200 psi, operates at 30 RPM, and handles temperatures up to 200°F. Its extended body length of 2.56” allows added reach in tight configurations.

Applications

• Hose reels with extended offset

• Pressure washers and mobile units

• Compact fluid systems requiring distance between inlet/outlet

• OEM industrial equipment

Features

• Nickel-plated brass construction for corrosion and wear resistance

• Sliding bearing ensures smooth, consistent rotation

• Thread IN: 1/4” NPTF | Thread OUT: 1/4” NPTM

• Extended size: Height – 1.02” | Overall Length – 2.56”

• Nominal Width (NW): 1/4”

• Rated for 2200 psi maximum pressure

• Withstands temperatures up to 200°F

• Operates at speeds up to 30 RPM

• Equipped with a durable O-ring NBR seal for leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.56

Length 3 (L3): 1.14

Length 4 (L4): 1.77

Length 5 (L5): 0.47

Lenght 6 (L6): 0.27

Weight: 10.0 oz

The Mosmatic WDG Swivel 40.029 is a high-quality, nickel-plated brass swivel engineered for use in high-pressure hose reels, ceiling booms, and cleaning equipment. Designed for compact and reliable performance, it features a sliding bearing for smooth rotation and an O-ring NBR seal for dependable leak prevention. With 1/4” NPTF inlet and 3/8” NPTM outlet, it enables efficient flow transition between fittings. This swivel is rated for 2200 psi, operates up to 30 RPM, and withstands temperatures of up to 200°F, making it a dependable component in commercial cleaning systems.

Applications

• Washdown and fluid handling systems

• Medium-pressure hose reels

• Systems needing thread size transition

• OEM integration with spatial constraints

• Industrial cleaning tools

Features

• Durable nickel-plated brass body for corrosion resistance

• Sliding bearing design for controlled, consistent rotation

• Thread IN: ¼” NPTF | Thread OUT: ⅜” NPTM

• Extended body: Height – 1.02” | Overall Length – 2.56”

• Nominal Width (NW): ¼”

• Rated for 2200 psi operating pressure

• Withstands temperatures up to 200°F

• Operates at up to 30 RPM

• O-ring NBR seal ensures reliable, leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.56

Length 3 (L3): 1.14

Length 4 (L4): 1.77

Length 5 (L5): 0.51

Lenght 6 (L6): 0.27

Weight: 11.7 oz

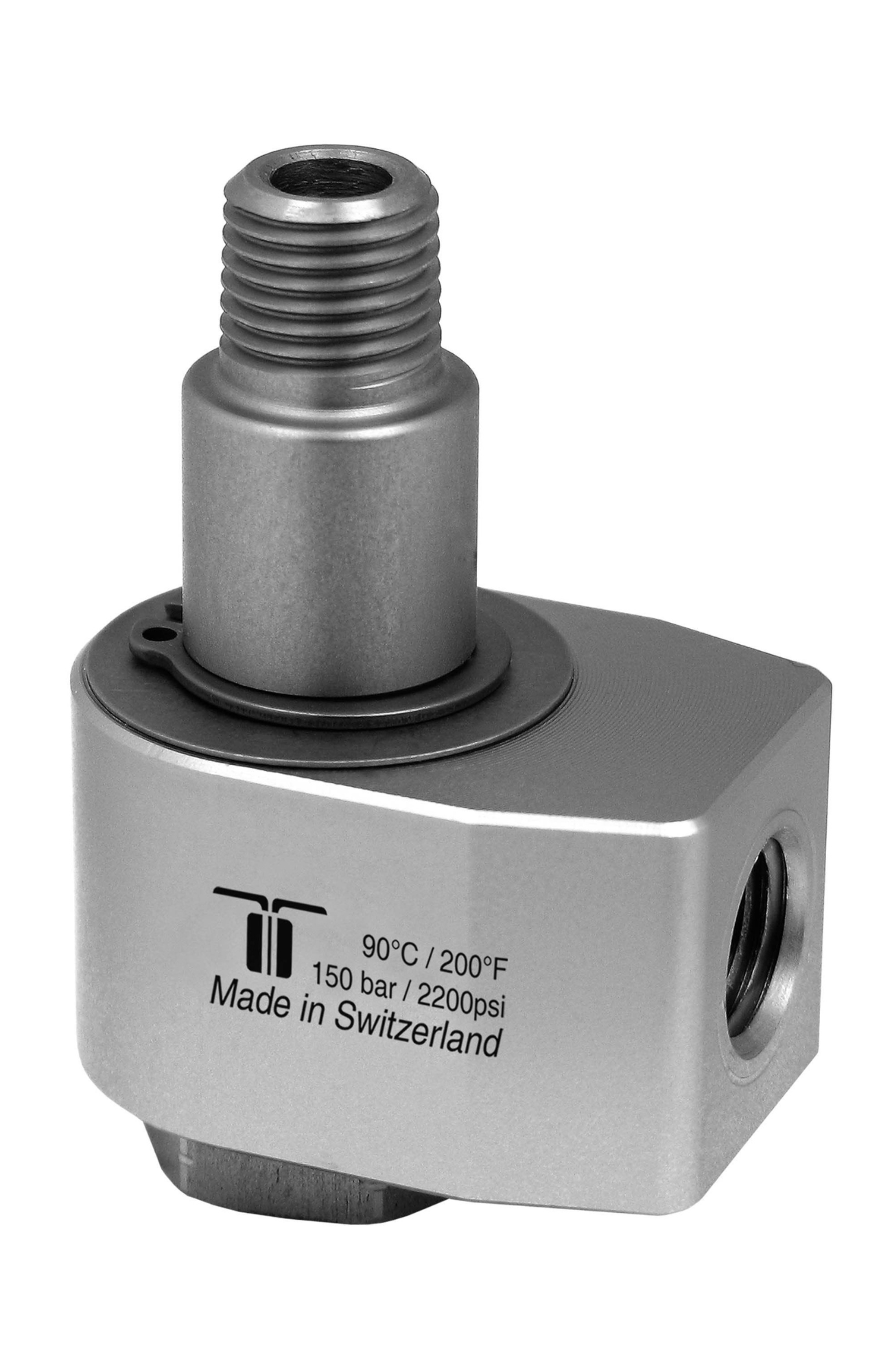

The Mosmatic WDG Swivel 40.031 is a compact, high-quality swivel designed to deliver efficient performance in high-pressure hose reels, ceiling booms, and cleaning systems. Made from nickel-plated brass, this swivel is built for corrosion resistance and long service life. It features a sliding bearing for smooth rotation and an O-ring NBR seal for dependable leak protection. With a ⅜” NPTF inlet and ¼” NPTM outlet, this swivel is ideal for systems that require connection adaptation. It supports up to 2200 psi, operates at 30 RPM, and withstands temperatures up to 200°F.

Applications

• Pressure washers and hose reels

• Surface cleaners and spray guns

• Compact and mobile washdown systems

• Equipment with mixed NPT thread sizes

• Industrial and commercial cleaning applications

Features

• Durable nickel-plated brass construction for corrosion resistance

• Sliding bearing allows smooth and stable rotation

• Thread IN: 3/8” NPTF | Thread OUT: 1/4” NPTM

• Compact size: Height – 1.02” | Overall Length – 1.89”

• Nominal Width (NW): 1/4”

• Rated for 2200 psi operating pressure

• Handles temperatures up to 200°F

• Supports up to 30 RPM rotational speed

• Equipped with O-ring NBR seal for leak-free operation

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.47

Lenght 6 (L6): 0.25

Weight: 9.6 oz

The Mosmatic WDG Swivel 40.031 is a compact and durable swivel designed for use in high-pressure hose reels, ceiling booms, and pressure cleaning systems. Built from nickel-plated brass, it offers excellent resistance to corrosion and wear in demanding industrial environments. This swivel features a sliding bearing for smooth, controlled movement and an O-ring NBR seal for reliable leak protection. With a ⅜” NPTF inlet and ⅜” NPTM outlet, it is ideal for systems requiring dependable flow, rotational capability, and lasting performance. It supports up to 2200 psi, 30 RPM, and 200°F.

Applications

• Pressure washers and hose reels

• Industrial washdown and sanitation systems

• Cleaning guns and rotating nozzles

• Mobile and fixed fluid transfer systems

• OEM applications requiring compact 3/8" NPT swivels

Features

• Nickel-plated brass body for superior durability and corrosion resistance

• Sliding bearing ensures smooth, low-friction rotation

• Thread IN: ⅜” NPTF | Thread OUT: ⅜” NPTM

• Compact build: Height – 1.02” | Overall Length – 1.89”

• Nominal Width (NW): ¼”

• Rated for 2200 psi working pressure

• Handles up to 200°F operating temperature

• Supports rotational speeds up to 30 RPM

• Sealed with a high-quality O-ring NBR for leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.87

Height (H): 1.02

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.89

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.47

Lenght 6 (L6): 0.25

Weight: 10.0 oz

The Mosmatic WDG Swivel 40.039 is a high-quality, nickel-plated brass swivel engineered for consistent performance in high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed for durability and leak resistance, this swivel includes a sliding bearing for smooth rotation and an O-ring NBR seal to ensure long-lasting, leak-proof operation. With 3/8” NPTF inlet and 3/8” NPTM outlet, it offers versatility across a wide range of cleaning applications. This model is rated for 2200 psi, operates at 30 RPM, and handles temperatures up to 200°F, making it a dependable choice for industrial and commercial systems.

Applications

• Hose reels with extended offset

• Pressure washers and mobile units

• Compact fluid systems requiring distance between inlet/outlet

• OEM industrial equipment

Features

• Nickel-plated brass body for superior corrosion resistance

• Sliding bearing design for controlled, stable rotation

• Thread IN: ⅜” NPTF | Thread OUT: ⅜” NPTM

• Dimensions: Height – 1.26” | Overall Length – 2.09”

• Nominal Width (NW): ¼”

• Rated for 2200 psi working pressure

• Withstands temperatures up to 200°F

• Operates at a maximum of 30 RPM

• Sealed with durable O-ring NBR for leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size (SW): 0.94

Height (H): 1.26

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.09

Length 3 (L3): 1.14

Length 4 (L4): 1.18

Length 5 (L5): 0.43

Lenght 6 (L6): 0.28

Weight: 11.4 oz

The Mosmatic WDG Swivel 40.223 is a heavy-duty, nickel-plated brass swivel designed for smooth and reliable operation in high-pressure systems. Built for use in hose reels, ceiling booms, and pressure cleaners, this swivel features a sliding bearing for controlled, low-friction rotation and a robust O-ring NBR seal for superior leak protection. With a ⅜” NPTF inlet and a ½” NPTF outlet, it supports system flexibility where different thread sizes are needed. Rated for up to 2200 psi, 30 RPM, and 200°F, this swivel delivers performance and durability in commercial and industrial applications.

Applications

• Industrial washdown systems

• Hose reels and high-pressure connectors

• OEM machinery with female NPT ports

• Ceiling booms and spray systems

• Medium-pressure rotary joints

Features

• Durable nickel-plated brass construction for corrosion resistance

• Sliding bearing design for smooth, stable rotation

• Thread IN: ⅜” NPTF | Thread OUT: ½” NPTF

• Dimensions: Height – 1.57” | Overall Length – 2.75”

• Nominal Width (NW): ½”

• Rated for 2200 psi working pressure

• Operates at temperatures up to 200°F

• Supports up to 30 RPM rotational speed

• Sealed with O-ring NBR for leak-free performance

Specs

Pressure: 2200 psi

Temperature: 200°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 1/2"

Wrench Size (SW): 1.06

Height (H): 1.57

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.75

Length 3 (L3): 1.14

Length 4 (L4): 1.89

Lenght 6 (L6): 0.28

Weight: 14.1 oz
