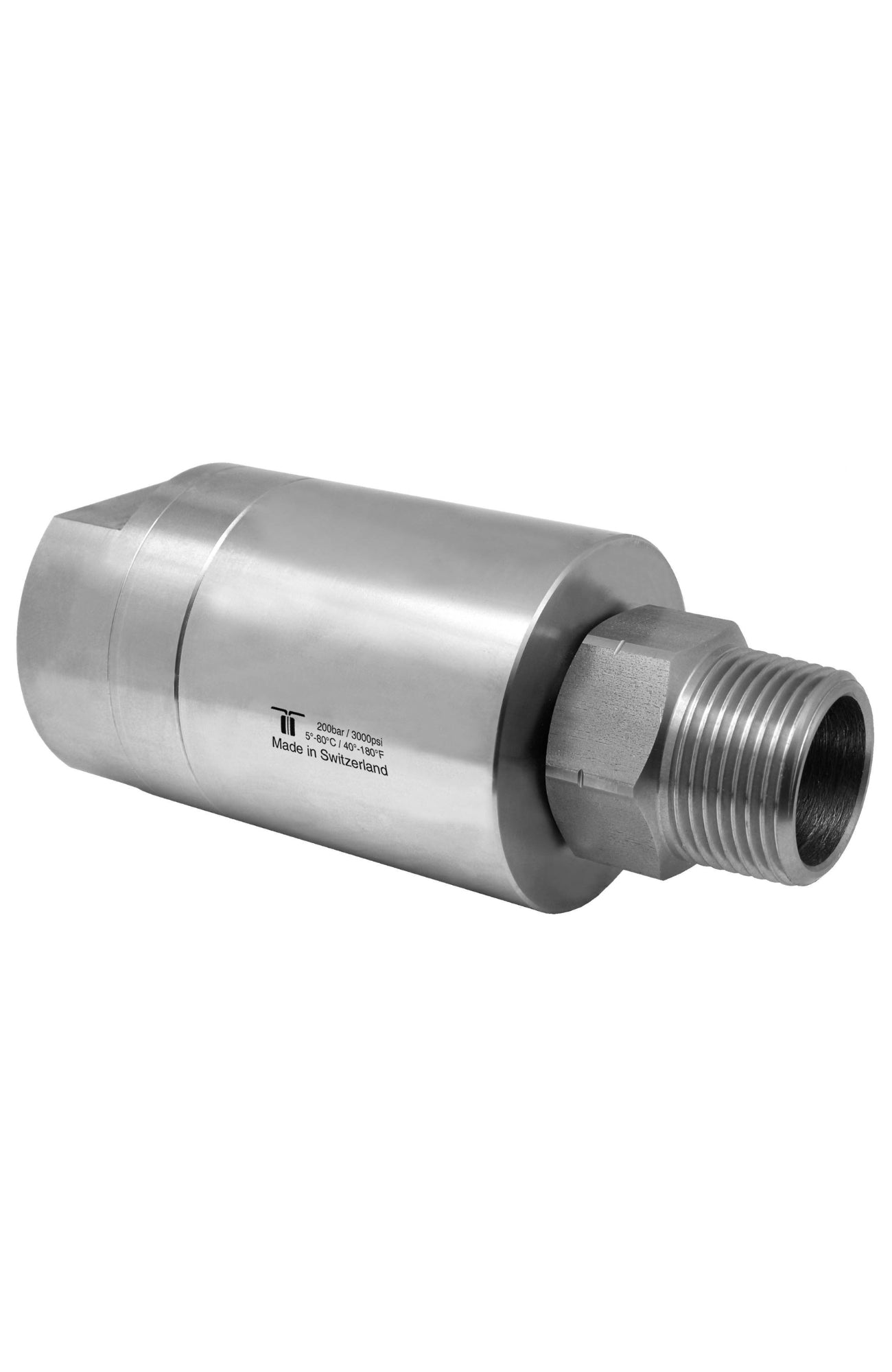

Mosmatic DGR Swivel - 34.646 - 2 ½" NPTF to 2 ½" NPTM
$3,691.00 USD
Unit price perThe Mosmatic DGR Swivel 34.646 is a high-performance, stainless steel swivel engineered to manage both thrust and radial forces in demanding high-pressure environments. Designed for industrial and food service applications, this swivel is built with a robust quadruple bearing system€”featuring 2 radial ball bearings and 2 thrust ball bearings€”to deliver smooth rotation and extended durability under continuous use.
With a 2½" NPTF IN thread and 2½" NPTM OUT thread, the swivel integrates easily into large-diameter, high-flow systems. It measures 6.30" in diameter with a total length of 10.9", and handles pressures up to 290 PSI, a maximum temperature range of 40°F to 180°F, and up to 50 RPM. Its corrosion-resistant stainless steel construction ensures reliable performance in harsh and hygienic environments alike.
Applications
-
Industrial high-pressure cleaning systems
-
Food and beverage processing equipment
-
Rotating arms and reels in wash stations
-
Tank cleaning and spray bars
-
High-volume fluid transfer systems
Features
-
Built from corrosion-resistant stainless steel for long-lasting durability
-
Quadruple bearing system: 2 radial & 2 thrust bearings for enhanced load handling
-
High-flow design with 2½" NPTF IN / 2½" NPTM OUT threading
-
Dimensions: 6.30" diameter, 10.9" length
-
Operates up to 290 PSI and 50 RPM
-
Suitable for temperatures between 40°F and 180°F
-
Engineered for thrust and radial force applications in demanding environments
Specs
Pressure: 290 psi
Temperature: 40°F - 180°F
RPM: 50
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 2 ½" NPTF
Thread Out: G2 2 ½" NPTM
Nominal Width (NW): 2 ½"
Wrench Size 1 (SW1): 3.35
Wrench Size 2 (SW2): 3.35
Diameter (D): 6.30
Length 1 (L1) (overall length): 10.9
Length 2 (L2) : 8.53
Length 3 (L3) : 1.14
Weight: 713 oz
Mosmatic DGR Swivel - 34.646 - 2 ½" NPTF to 2 ½" NPTM
$3,691.00 USD
Unit price perFind out more about our returns policy or warranty policy.
$3,691.00 USD
Unit price per- Description
- Specs
The Mosmatic DGR Swivel 34.646 is a high-performance, stainless steel swivel engineered to manage both thrust and radial forces in demanding high-pressure environments. Designed for industrial and food service applications, this swivel is built with a robust quadruple bearing system€”featuring 2 radial ball bearings and 2 thrust ball bearings€”to deliver smooth rotation and extended durability under continuous use.
With a 2½" NPTF IN thread and 2½" NPTM OUT thread, the swivel integrates easily into large-diameter, high-flow systems. It measures 6.30" in diameter with a total length of 10.9", and handles pressures up to 290 PSI, a maximum temperature range of 40°F to 180°F, and up to 50 RPM. Its corrosion-resistant stainless steel construction ensures reliable performance in harsh and hygienic environments alike.
Applications
-
Industrial high-pressure cleaning systems
-
Food and beverage processing equipment
-
Rotating arms and reels in wash stations
-
Tank cleaning and spray bars
-
High-volume fluid transfer systems
Features
-
Built from corrosion-resistant stainless steel for long-lasting durability
-
Quadruple bearing system: 2 radial & 2 thrust bearings for enhanced load handling
-
High-flow design with 2½" NPTF IN / 2½" NPTM OUT threading
-
Dimensions: 6.30" diameter, 10.9" length
-
Operates up to 290 PSI and 50 RPM
-
Suitable for temperatures between 40°F and 180°F
-
Engineered for thrust and radial force applications in demanding environments
Pressure: 290 psi
Temperature: 40°F - 180°F
RPM: 50
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 2 ½" NPTF
Thread Out: G2 2 ½" NPTM
Nominal Width (NW): 2 ½"
Wrench Size 1 (SW1): 3.35
Wrench Size 2 (SW2): 3.35
Diameter (D): 6.30
Length 1 (L1) (overall length): 10.9
Length 2 (L2) : 8.53
Length 3 (L3) : 1.14
Weight: 713 oz
